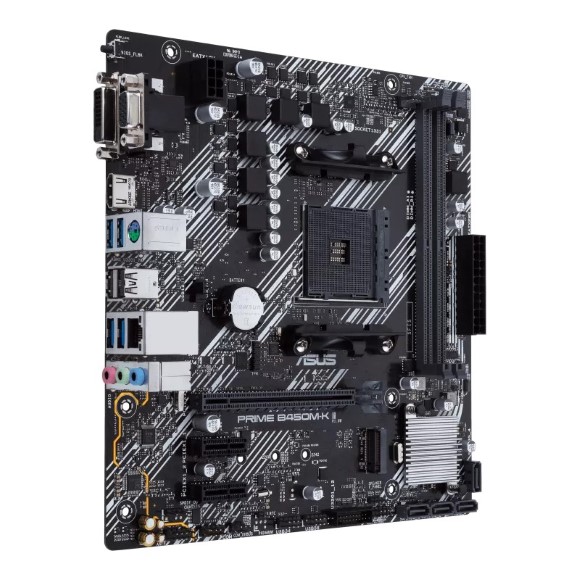

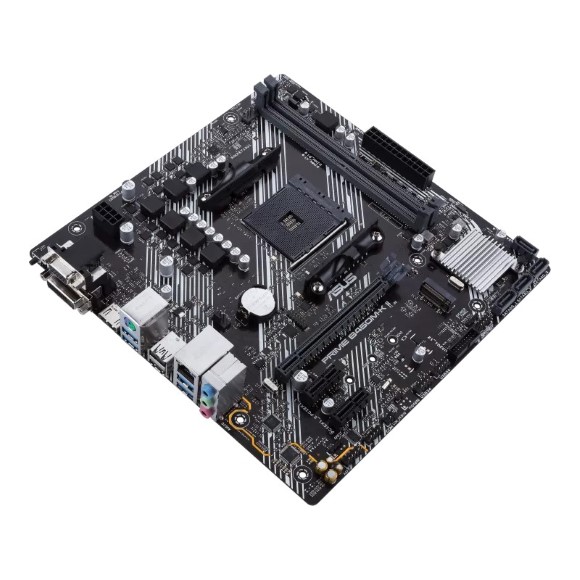

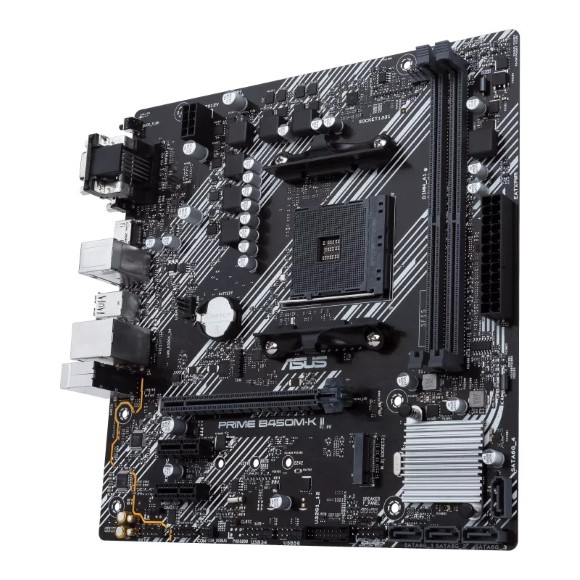

ASUS PRIME B450M-K II AMD B450 DDR4 Micro ATX Motherboard
The ASUS PRIME B450M-K II is a micro ATX motherboard featuring the AMD B450 chipset, supporting AMD AM4 processors including Ryzen 5000 and 4000 G-Series. It offers DDR4 memory, integrated graphics for select APUs, one M.2 slot, four SATA ports, Realtek Gigabit LAN, and 7.1-channel audio, making it a solid foundation for a reliable and affordable PC build.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 24,900
Description
The ASUS PRIME B450M-K II is a reliable micro ATX motherboard built on the AMD B450 chipset, supporting a wide range of AMD AM4 processors including Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3rd/2nd/1st Gen Ryzen, and Athlon with Radeon Vega Graphics. It features dual-channel DDR4 memory, integrated graphics support for select APUs, and a comprehensive set of connectivity options.
Designed for stability and performance, this motherboard includes a Realtek RTL8111H LAN for smooth networking and Realtek ALC887/897 7.1-channel audio for immersive sound. With one M.2 slot and four SATA 6Gb/s ports, it offers flexible storage configurations. The mATX form factor makes it suitable for compact builds while maintaining essential features.
- AMD AM4 socket for Ryzen 5000/5000 G/4000 G/3rd/2nd/1st Gen processors
- AMD B450 chipset with DDR4 memory support
- Integrated graphics support for 2nd/1st Gen Ryzen with Radeon Vega Graphics and Athlon with Radeon Vega Graphics
- 1 x M.2 slot and 4 x SATA 6Gb/s for storage
- Realtek RTL8111H Gigabit LAN and Realtek ALC887/897 7.1-channel audio
- Micro ATX form factor with comprehensive I/O including PS/2, USB, and HDMI
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Model | PRIME B450M-K II |
| CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * |
| Chipset | AMD B450 |
| Memory | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen™ Processors |
| Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports |
| LAN | Realtek® RTL8111H |
| Audio | Realtek ALC887/897 7.1-Channel High Definition Audio CODEC * |
| USB Ports | Rear USB Port ( Total 6 ) |

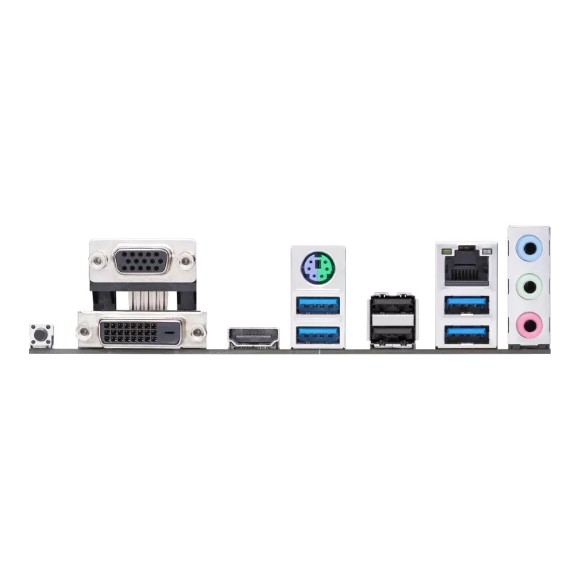

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) |
| Accessories | User´s manual |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor |
| Note | *To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor. |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
