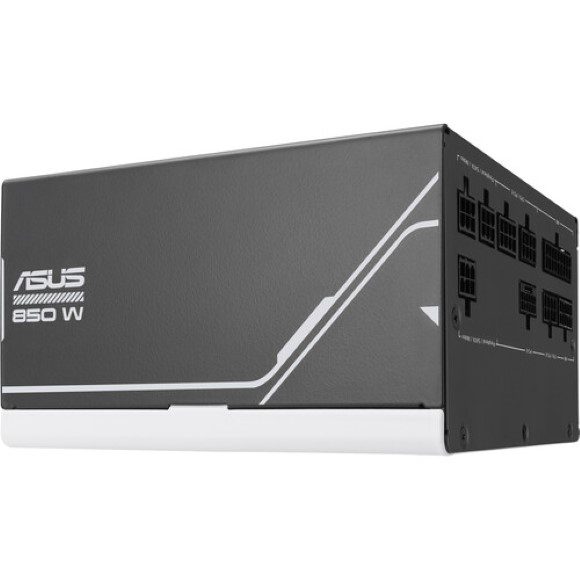

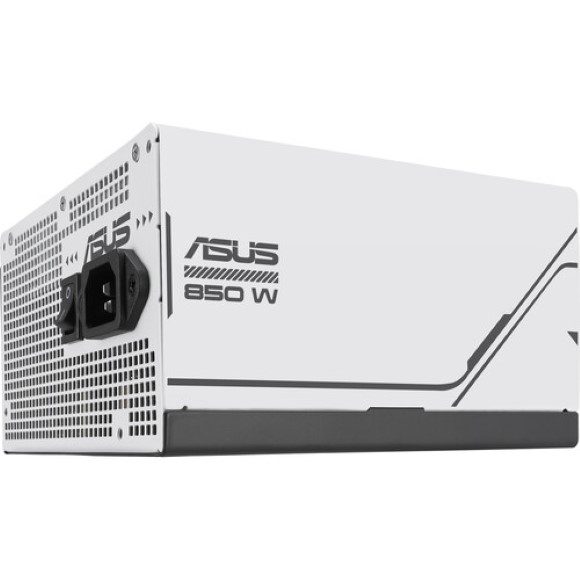

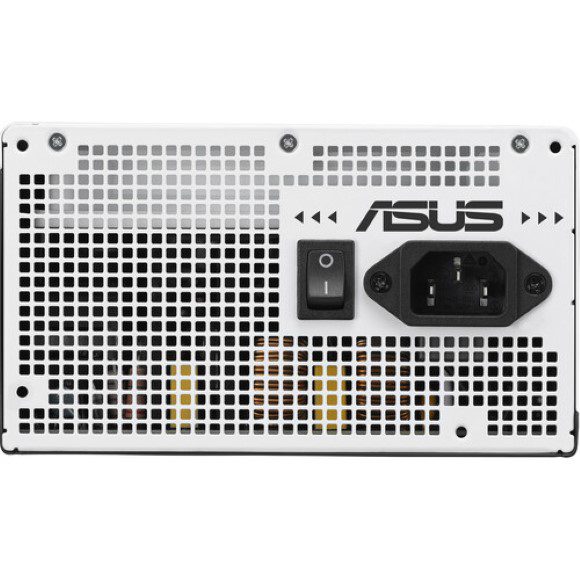

ASUS Prime AP-850W 80 Plus Gold Modular Power Supply
The ASUS Prime AP-850W 80 Plus Gold Modular Power Supply delivers 850W of stable power with up to 91% efficiency. Its fully modular cables and single +12V rail (70.5A) support modern components, including a 16-Pin PCIe (12VHPWR) connector. With comprehensive protections and a 135mm fan, it’s a reliable choice for high-performance builds.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 34,000
Description
The ASUS Prime AP-850W 80 Plus Gold Modular Power Supply delivers reliable and efficient power for your high-performance system. With 850W total wattage and a single +12V rail providing up to 70.5A, it ensures stable power delivery even under heavy loads. The 80 PLUS Gold certification guarantees up to 91% efficiency, reducing heat and energy waste.

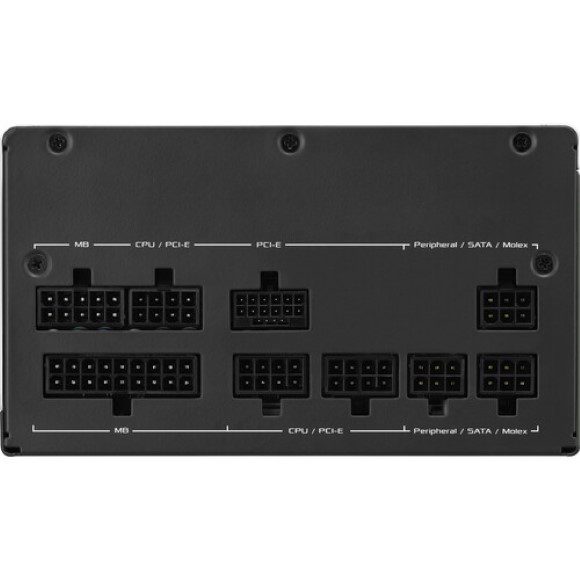

Fully modular cables allow for clean builds and easy cable management, with included connectors for modern GPUs including a 16-Pin PCIe (12VHPWR) connector. The 135mm ball-bearing fan operates quietly while maintaining optimal temperatures. Comprehensive protections (OCP, OPP, OTP, OVP, SCP, UVP) safeguard your components, and compliance with ATX 12V v3.0 ensures compatibility with the latest hardware.
- 850W power output with 80 PLUS Gold efficiency (up to 91% at 50% load)
- Fully modular cable design for easy installation and clean cable routing
- Single +12V rail with 70.5A max load for stable power delivery
- Includes 1x 16-Pin PCIe (12VHPWR) connector for modern GPUs

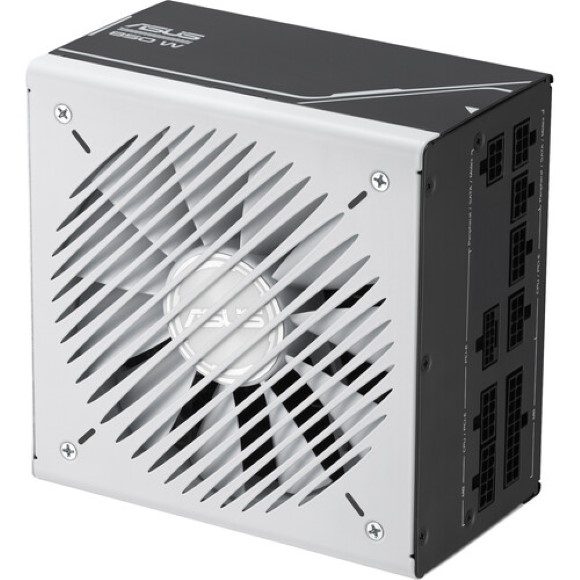

- 135mm ball-bearing fan for quiet and reliable cooling
- Comprehensive protection: OCP, OPP, OTP, OVP, SCP, UVP
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Total Connectors | 1 x, 20+4-Pin ATX Motherboard, 2 x, 4+4-Pin EPS CPU, 1 x, 16-Pin PCIe (12VHPWR), 3 x, 8-Pin PCIe, 5 x, 15-Pin SATA, 3 x, 6-Pin SATA / Peripheral |
| Cable Design | Modular |
| PCIe Connector Distances | 26.6″ / 675 mm |
| SATA Connector Distances | 15.7″ / 400 mm, 20.5″ / 520 mm, 25.2″ / 640 mm |
| Peripheral Connector Distances | 15.7″ / 400 mm, 21.7″ / 550 mm, 27.6″ / 700 mm |
| ATX Connector Distance | 24″ / 610 mm |
| EPS Connector Distances | 25.6″ / 650 mm |
| Total Wattage | 850 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 846 W |
| Combined Power for +3.3/+5 V | 110 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 12.5 W |
| Max Load for +5 Vsb | 2.5 A |
| Max Power for -12 V | 3.6 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Efficiency Rating | 80 PLUS Gold |
| Active Power Factor Correction | Yes |
| Efficiency | 91% at 25% Load, 91% at 50% Load, 90% at 75% Load, 89% at 100% Load |
| Fan Size | 135 mm |
| Bearing Type | Ball |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 20 to 80% |
| Form Factor | ATX |
| Compliance | ATX 12 V v3.0 |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Certifications | RoHS |
| Dimensions | 5.9 x 3.4 x 5.9″ / 150 x 86 x 150 mm |
| Weight | 3.3 lb / 1.5 kg |
| Max Load for +12 V | 70.5 A |
