Antec Signature Series SP1000W 80 Plus Platinum Modular Power Supply
The Antec Signature Series SP1000W is a fully modular 80 Plus Platinum power supply delivering 1000W of efficient, reliable power. With up to 92% efficiency, a silent 135mm FDB fan, and comprehensive protections, it’s ideal for high-performance PCs. Backed by a 10-year warranty, it offers long-term reliability for demanding builds.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 70,000
Description
The Antec Signature Series SP1000W is a fully modular 80 Plus Platinum certified power supply, delivering 1000W of clean, stable power with exceptional efficiency. Built with high-quality Japanese capacitors and a 135mm FDB silent fan, it ensures reliable performance and quiet operation even under heavy loads.
This PSU features advanced protection circuits including OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, safeguarding your valuable components. With a 10-year warranty and compliance with international safety standards, the SP1000W is a long-term investment for high-end gaming or workstation builds.
- 80 Plus Platinum certified efficiency: up to 92% at 50% load (115V AC)

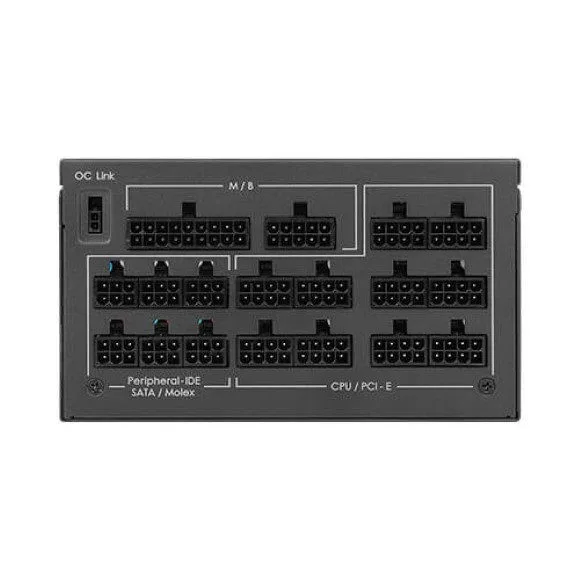

- Fully modular cabling for clean cable management and improved airflow
- 135mm Fluid Dynamic Bearing (FDB) fan for silent and durable cooling
- 1000W continuous output with single +12V rail design
- Comprehensive protection: OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO
- 10-year warranty for peace of mind
Specification
Overview
| Product Name | SP1000 Platinum |
|---|---|
| Model Name | X8000A505-18 |
| Type | ATX |
| Modular | Fully |
| Dimension (W x L x H) | 150 x 170 x 86mm |
| Warranty | 10 years |
| Input Voltage | 100-240 |
| Input Current | 13A ~ 6.5A |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | APFC, PFC at half / full load:, >0.95 at AC 110v 60Hz(typical), >0.90 at AC 230v 50Hz(typical) |
| Power Good Signal | 100 ~ 500mS |
| Efficiency | At 20% / 50% / 100% load AC 115V internal,, the power efficiency should be at least 90% / 92% / 89%. |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus / TUV / CB [IEC62368 Compliant] / CE /, FCC / BSMI / 3C / RCM |
| Fan | 135 x 135 x 25(mm) FDB Silent Fan |
| Certifications | 80 Plus Platinum |
| Connector | 1 x MB 24(20+4) Pin |
| UPC# | 0-761345-11700-5 SP1000, 0-761345-11701-2 SP1000 AU, 0-761345-11702-9 SP1000 EC, 0-761345-11703-6 SP1000 GB, 0-761345-11704-3 SP1000 JP |
| Net Weight | 2.11 Kgs |
| Gross Weight | 3.93 Kgs |
