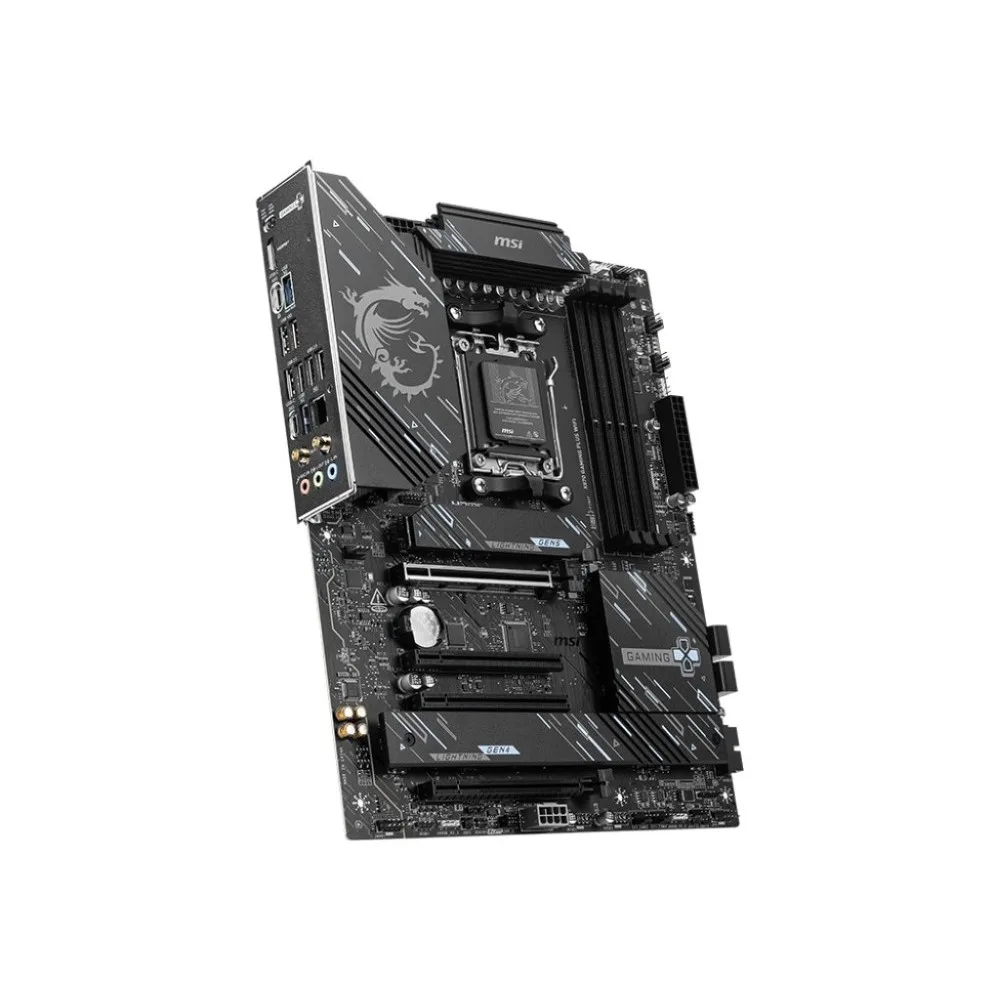

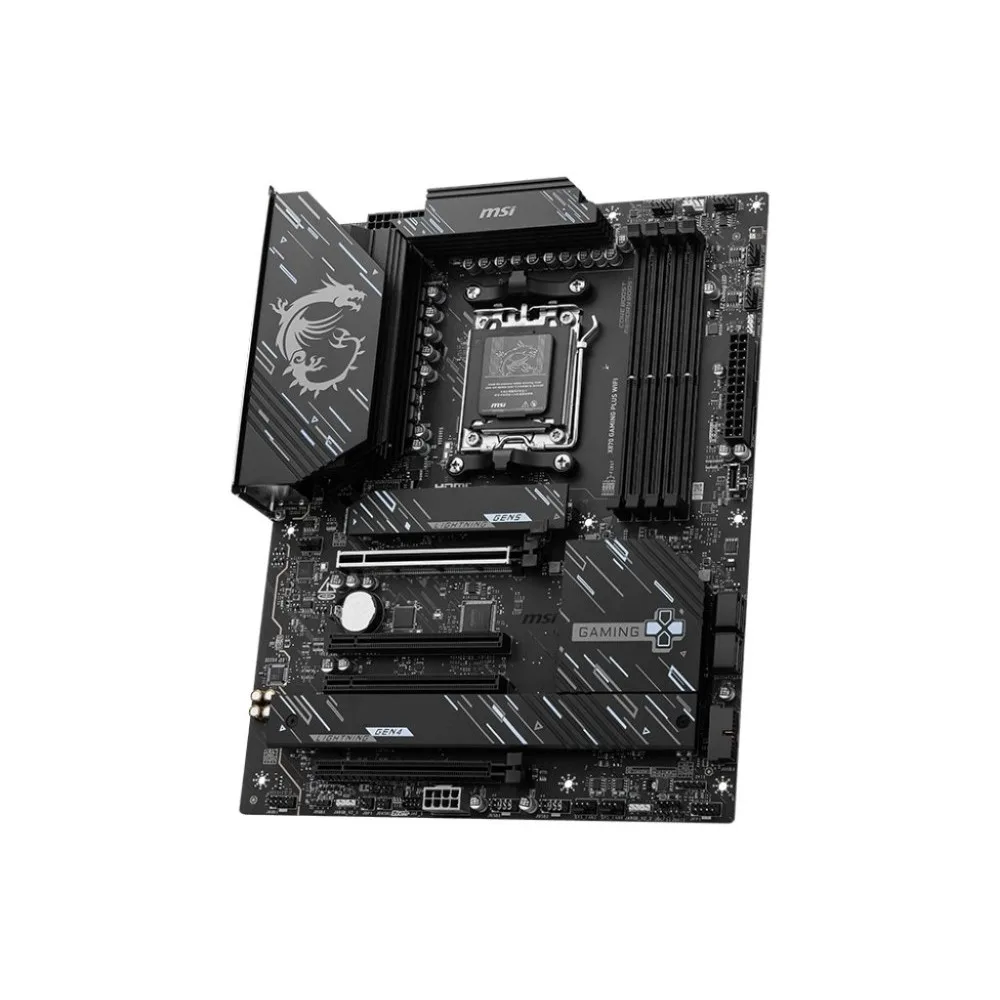

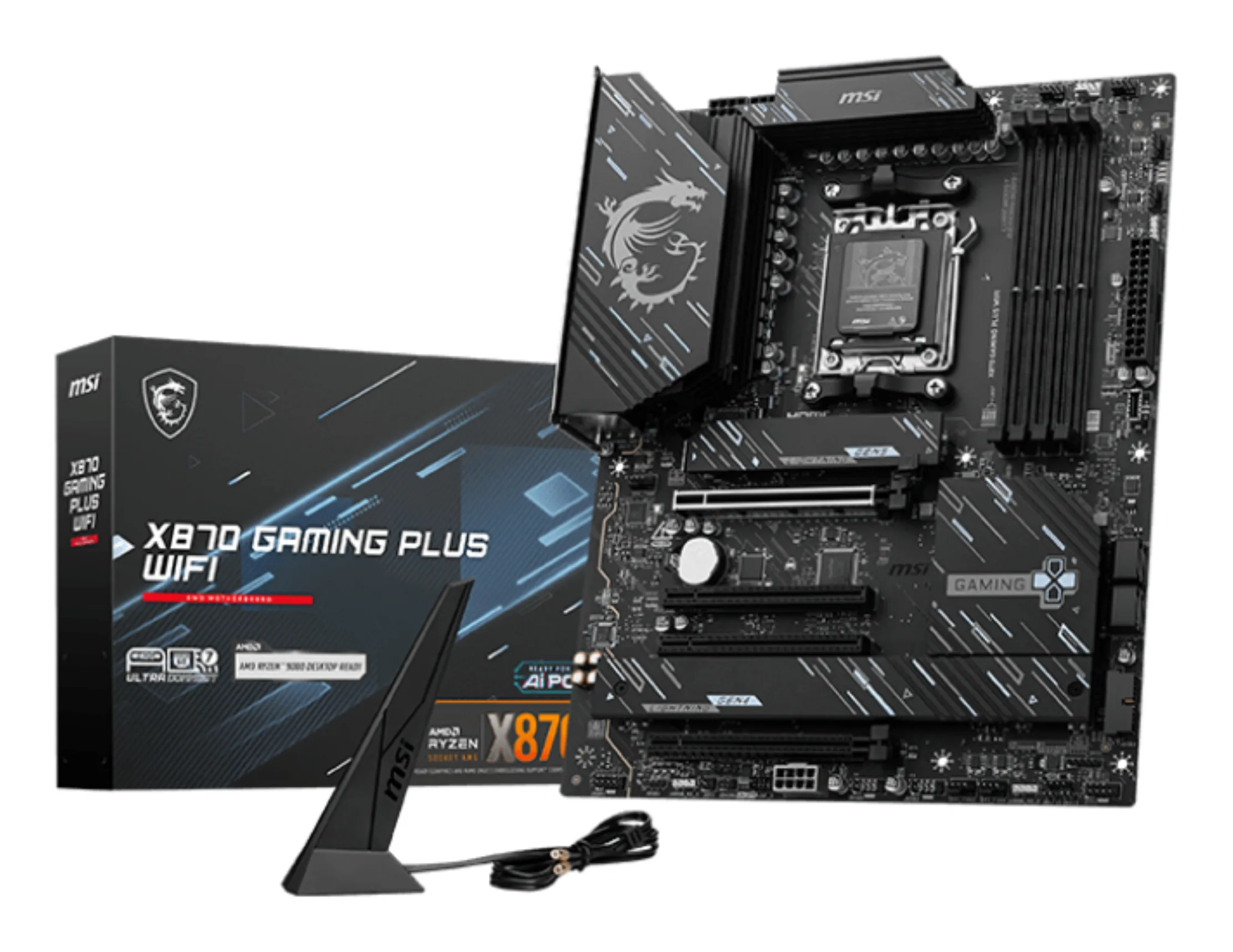

MSI X870 GAMING PLUS WIFI AM5 AMD X870 ATX Motherboard
The MSI X870 GAMING PLUS WIFI is an ATX motherboard for AMD AM5 CPUs (Ryzen 7000/8000/9000 series) featuring the X870 chipset. It supports DDR5 memory up to 8200+ MT/s (OC) and includes PCIe 5.0 slots, three M.2 slots, Realtek 5G LAN, Wi-Fi 7, and Bluetooth 5.4. With extensive USB connectivity and a 2-year warranty, it’s a solid foundation for high-performance gaming and productivity builds.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 98,000
Description
The MSI X870 GAMING PLUS WIFI is an ATX motherboard built on the AMD X870 chipset, designed for AMD AM5 socket CPUs including Ryzen 7000, 8000, and 9000 series. It supports DDR5 memory with speeds up to 8200+ MT/s (OC) and a maximum capacity of 256GB across four slots, enabling high-performance multitasking and gaming.
Connectivity is comprehensive with PCIe 5.0 support for the primary x16 slot and M.2_1 slot, plus three M.2 slots total (one PCIe 5.0 x4, two PCIe 4.0 x4/x2). The board features Realtek 5G LAN, Wi-Fi 7 (802.11 be), Bluetooth 5.4, and a rich array of USB ports including USB 40Gbps Type-C and USB 20Gbps Type-C on the back panel. Audio is handled by Realtek ALC897 codec with 7.1 channel output.
- AMD AM5 socket with X870 chipset, supports Ryzen 7000/8000/9000 series
- 4x DDR5 slots, up to 256GB, speeds up to 8200+ MT/s (OC) with AMD EXPO
- PCIe 5.0 x16 slot from CPU, PCIe 5.0 M.2_1, plus two PCIe 4.0 M.2 slots
- Realtek 5G LAN, Wi-Fi 7 (802.11 be), Bluetooth 5.4 for fast wired and wireless networking
- Back I/O: USB 40Gbps Type-C, USB 20Gbps Type-C, HDMI, Clear CMOS & Flash BIOS buttons
- ATX form factor, 2-year warranty, supports Windows 11 64-bit
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Brand | MSI |
| Model | X870 GAMING PLUS WIFI |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin |
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6666 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Memory Support DDR5 8200 – 5600 MT/s / 5600 – 4800 MT/s Ryzen 9000 Series Processors max. overclocking frequency: – 1DPC 1R Max speed up to 8200+ MT/s – 1DPC 2R Max speed up to 6400+ MT/s – 2DPC 1R Max speed up to 6400+ MT/s – 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
| PCI Express 5.0 x16 | PCI_E1 Gen PCIe 5.0 supports up to x16 |
| PCI Express x4 | PCI_E4 Gen PCIe 4.0 supports up to x4 |
| PCI Express x1 | PCI_E2 Gen PCIe 3.0 supports up to x1 PCI_E3 Gen PCIe 3.0 supports up to x1 |
| Other Slots | PCI_E1 slot – Supports PCIe 5.0 x16 – Supports PCIe 4.0 x8 – Supports PCIe 4.0 x4 * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot. |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 3x M.2 M.2_1 Source supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_3 Source supports up to PCIe 4.0 x2, supports 2280/2260 devices M2_1 slot – Supports up to PCIe 5.0 x4 – Supports up to PCIe 4.0 x4 *Please refer to the manual for M.2 SSD heatsink restrictions. |
| SATA RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126VB 5G LAN |
| Max LAN Speed | 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |
| Back I/O Ports | 1 x Clear CMOS Button 2 x USB 5Gbps Type-A 2 x USB 10Gbps Type-A 4 x USB 2.0 1 x 5G LAN 2 x Wi-Fi / Bluetooth 3 x Audio connectors 1 x Flash BIOS Button 1 x HDMI 1 x USB 40Gbps Type-C 1 x USB 20Gbps Type-C |
| Onboard USB | 4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 10Gbps Type C ports |
| Other Connectors | 1 x CPU Fan 1 x Combo Fan 6 x System Fan 1 x EZ Conn-header 2 x Front Panel 1 x Chassis Intrusion 1 x Front Audio 1 x Tuning Controller connector 3 x Addressable V2 RGB LED connector 1 x RGB LED connector 1 x TPM pin header |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x Power Connector 2 x Power Connector 1 x Power Connector |
| Windows 11 | Support for Windows 11 64-bit |
| Form Factor | ATX |
