MSI X670E GAMING PLUS WIFI SATA 6Gb/s ATX DDR5 Motherboards
The MSI X670E GAMING PLUS WIFI is an ATX motherboard for AMD Ryzen 7000 series processors, featuring the AMD X670 chipset. It supports DDR5 memory up to 7800+ MHz (OC), four M.2 slots (one PCIe 5.0), built-in Wi-Fi 6E and Bluetooth 5.3, and 2.5G LAN. With a robust 14+2+1 power design and premium thermal solution, it delivers stable performance for gaming and content creation.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 73,000
Description
The MSI X670E GAMING PLUS WIFI is an ATX motherboard designed for AMD Ryzen 7000 series processors, featuring the AMD X670 chipset. It supports up to 192GB of DDR5 memory with speeds up to 7800+ MHz (OC), and includes four M.2 slots, one of which supports PCIe 5.0 for lightning-fast storage.
This motherboard offers robust connectivity with built-in Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN, and a comprehensive set of rear I/O ports including USB 3.2 Gen 2×2 Type-C. The enhanced power design with 14+2+1 Duet Rail Power System and dual 8-pin CPU power connectors ensures stable performance for demanding tasks.
- Supports AMD Ryzen 7000 Series Processors (Socket AM5)
- 4x DDR5 UDIMM slots, up to 192GB, with support for AMD EXPO and overclocking up to 7800+ MHz
- 1x PCIe 5.0 x16 slot and 4x M.2 slots (1x PCIe 5.0, 3x PCIe 4.0)
- Built-in AMD Wi-Fi 6E and Bluetooth 5.3, Realtek 2.5G LAN

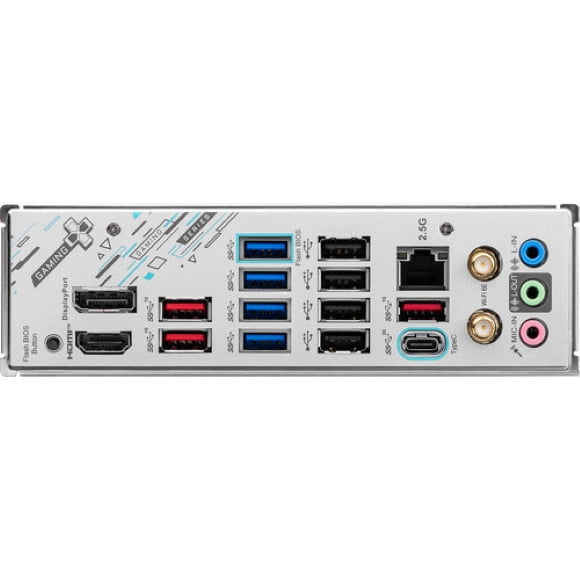

- Rear I/O: DisplayPort, HDMI, USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0, audio jacks, Flash BIOS button
- ATX form factor with premium thermal solution: extended heatsink, M.2 Shield Frozr, and 6-layer PCB with 2oz copper
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Best Seller Ranking | #28 in AMD Motherboards |
| Brand | MSI |
| Model | X670E GAMING PLUS WIFI |
| Part Number | X670E GAMING PLUS WIFI |
| CPU Socket Type | AM5 |
| CPU Type | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Number of Memory Slots | 4x DDR5 UDIMM, Maximum Memory Capacity 192GB |
| Memory Standard | Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz, Max. overclocking frequency:, • 1DPC 1R Max speed up to 7800+ MHz, • 1DPC 2R Max speed up to 6400+ MHz, • 2DPC 1R Max speed up to 6400+ MHz, • 2DPC 2R Max speed up to 5400+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports AMD EXPO™ |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express x16 | 3x PCI-E x16 slot, Supports x16/x1/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 3.0 supports up to x1 (From CPU), PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 4x M.2, M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| SATA RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
| Audio Channels | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| Max LAN Speed | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless LAN | AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3**, * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11., ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Bluetooth | Yes |
| Back I/O Ports | DisplayPort, USB 3.2 Gen 2 10Gbps (Type-A), USB 3.2 Gen 1 5Gbps (Type-A), USB 2.0 (Type-A), 2.5G LAN, Flash BIOS Button, HDMI™, USB 3.2 Gen 2×2 20Gbps (Type-C), Wi-Fi / Bluetooth, Audio Connectors |
| Other Connectors | 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports, 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
| Form Factor | ATX |
| Dimensions (W x L) | 243.84mmx304.8mm |
| Windows 11 | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Features | Supports AMD Ryzen™ 7000 Series Desktop Processors, Supports DDR5 Memory, up to 7800+(OC) MHz, Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2, Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works, High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material, AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience |
| Form Factor | ATX |
| Memory Type | DDR5 |
