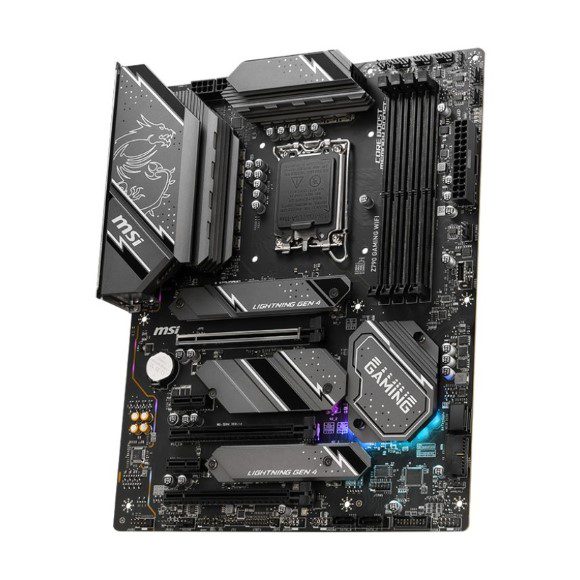

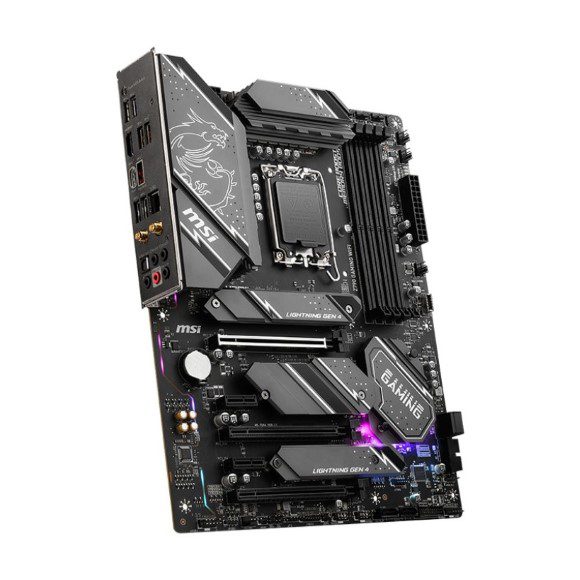

MSI PRO Z790 Gaming DDR5 WIFI LGA 1700 Intel Motherboard

Name: MSI PRO Z790 Gaming DDR5 WIFI LGA 1700 Intel Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0090
Price: 78500 PKR
Availability: InStock

SKU: MC-MBD-MSI-0090 Category: Intel Motherboards Brand: MSI

The MSI PRO Z790 Gaming DDR5 WIFI LGA 1700 Intel Motherboard is a feature-rich ATX board built for Intel 14th, 13th, and 12th Gen CPUs. It supports up to 192GB of DDR5 memory with overclocking speeds exceeding 7200 MHz, includes three M.2 slots and Wi-Fi 6E, and offers a 2.5G LAN port for fast wired connections. Ideal for gaming and high-performance computing.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 78,500

Compare

Add to wishlist

Description

The MSI PRO Z790 Gaming DDR5 WIFI LGA 1700 Intel Motherboard is designed to support Intel Core 14th, 13th, and 12th Gen processors, offering a robust platform for gaming and productivity. With the Intel Z790 chipset, it delivers high-speed connectivity and advanced features for demanding users.

Equipped with four DDR5 memory slots supporting up to 192GB and speeds up to 7200+ MHz (OC), this motherboard ensures smooth multitasking and fast data access. It also includes integrated Wi-Fi 6E and Bluetooth 5.3 for wireless connectivity, along with a 2.5G LAN port for wired networking.

Supports Intel Core 14th/13th/12th Gen processors (LGA 1700)
4x DDR5 slots, up to 192GB, 7200+ MHz (OC)
3x M.2 slots (PCIe 4.0) and 4x SATA 6G for storage
Intel Wi-Fi 6E and Bluetooth 5.3
Realtek 2.5G LAN for high-speed networking
HDMI 1.4 port supporting 4K 30Hz output

Specification

Overview

Warranty	2 Years
CHIPSET	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB, Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency:, • 1DPC 1R Max speed up to 7200+ MHz, • 1DPC 2R Max speed up to 6400+ MHz, • 2DPC 1R Max speed up to 6000+ MHz, • 2DPC 2R Max speed up to 5600+ MHz, Supports Intel, ®, XMP 3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	1x HDMI™, Support HDMI, TM, 1.4 with HDR, maximum resolution of 4K 30Hz, Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	3x PCI-E x16 slot, 2x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE	3x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Rear), 4x USB 3.2 Gen1 Type A (Front), 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Rear), 1x USB 3.2 Gen2 Type C (Front)
LAN	Realtek, ®, RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel, ®, Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth, ®, 5.3, FIPS, FISMA, * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11., ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek, ®, ALC897 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
INTERNAL IO	1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 4x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, HD Audio Connectors, Flash BIOS Button, HDMI™ 1.4 Port, USB 3.2 Gen 2 10Gbps Type-C, USB 3.2 Gen 1 5Gbps Type-A, Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows, ®, 11 64-bit, Windows, ®, 10 64-bit
PCB INFO	ATX, 243.84mmx304.8mm
Memory Type	DDR5
