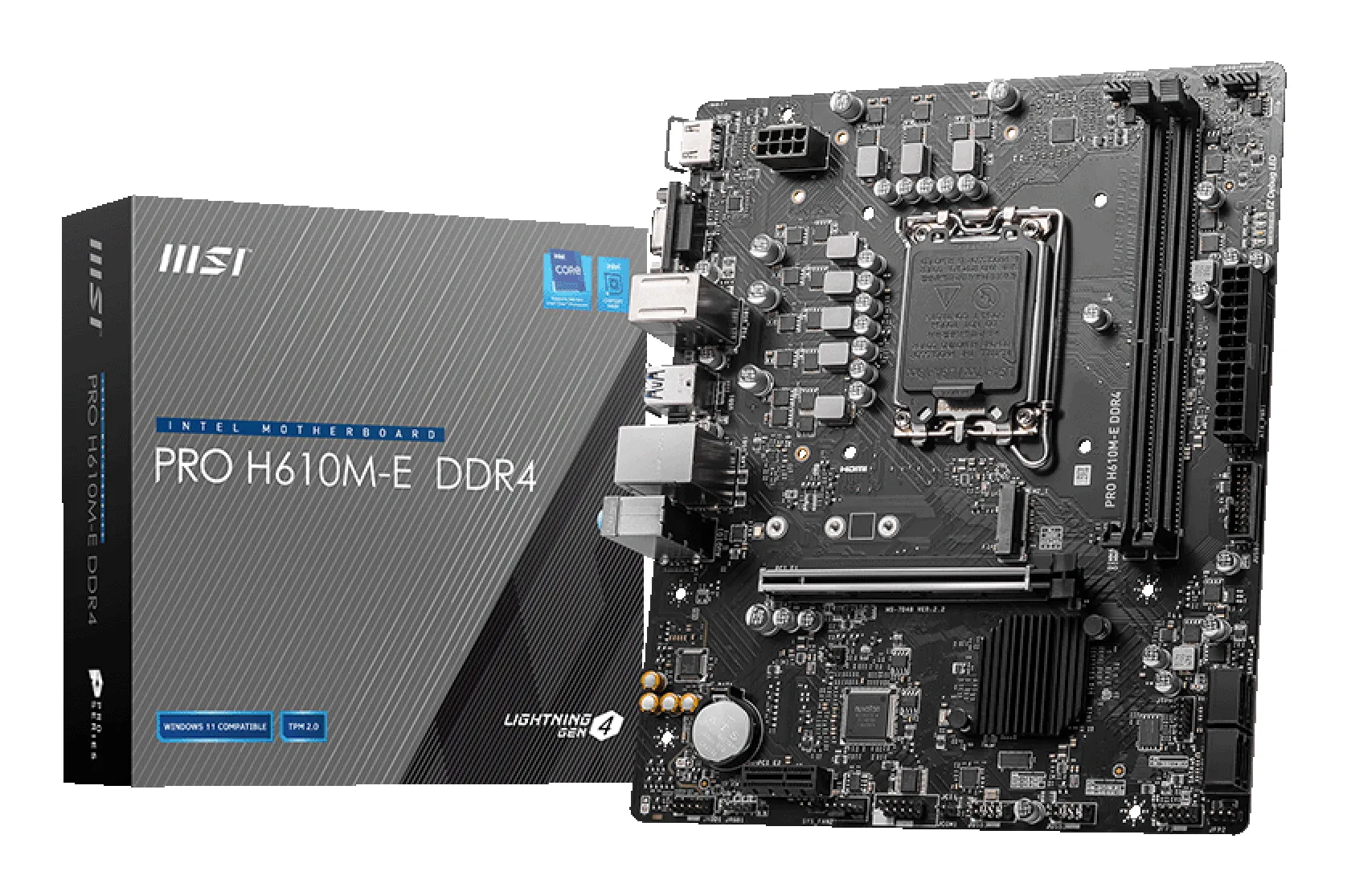

MSI PRO H610M-E DDR4 LGA 1700 Motherboard
The MSI PRO H610M-E DDR4 LGA 1700 Motherboard supports 13th/12th Gen Intel processors with DDR4 memory up to 64GB. It features PCIe 4.0, dual M.2 slots, and Realtek 1Gb Ethernet for fast connectivity. With ASUS 5X Protection III and RGB lighting, it’s a reliable choice for your build, available with nationwide delivery and cash-on-delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 27,999
Description

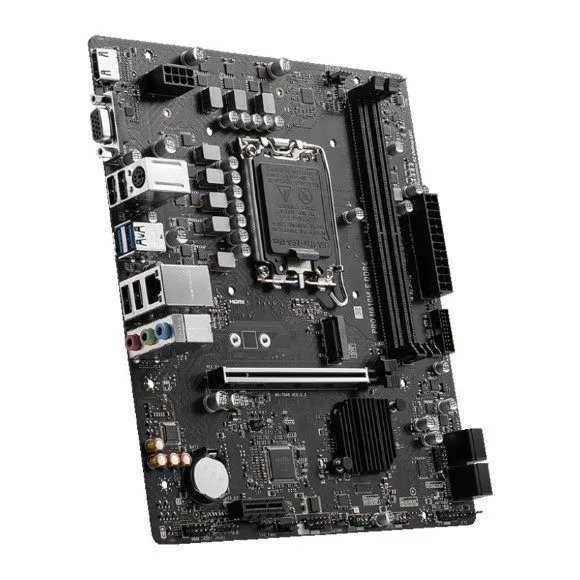

The MSI PRO H610M-E DDR4 LGA 1700 Motherboard is designed for 13th/12th Gen Intel Core processors, providing a solid foundation for your build. It supports DDR4 memory up to 64GB and features PCIe 4.0 for fast graphics and storage.
With dual M.2 slots, 4 SATA ports, and Realtek 1Gb Ethernet, this motherboard offers reliable connectivity. ASUS 5X Protection III ensures durability, while RGB headers allow customization.
- LGA 1700 socket for 13th/12th Gen Intel Core, Pentium Gold, and Celeron processors
- DDR4 memory support up to 64GB (dual channel)
- 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
- 4x SATA 6Gb/s, 2x M.2 slots (PCIe 3.0 x4 and x2)
- Realtek 7.1-channel HD audio, Realtek 1Gb LAN
- ASUS 5X Protection III, RGB header, Micro ATX form factor
Specification
Overview
| Brand | MSI |
|---|---|
| Model | PRO H610M-E DDR4 |
| Socket | LGA 1700 |
| Chipset | H610 |
| Memory Type | DDR4 |
| Max Memory Speed | 3200 MHz |
| Warranty | 2 Years |
| CPU Socket Type | LGA 1700 |
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors*, *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. Visit: https://www.asus.com/news/oujwh1old5n6oglf/ |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 2x288pin |
| Memory Standard | DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | M.2_1 slot, type 2242/2260/2280 |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 1Gb Ethernet |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 2 x USB 3.2 Gen 1 ports, 2 x USB 2.0 ports |
| Onboard USB | 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6″ x 8.3″ |
| Power Pin | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
| Features | Special Features:, ASUS 5X PROTECTION III |
| Package Contents | Accessories:, Cables |
| Memory Type | DDR4 |
