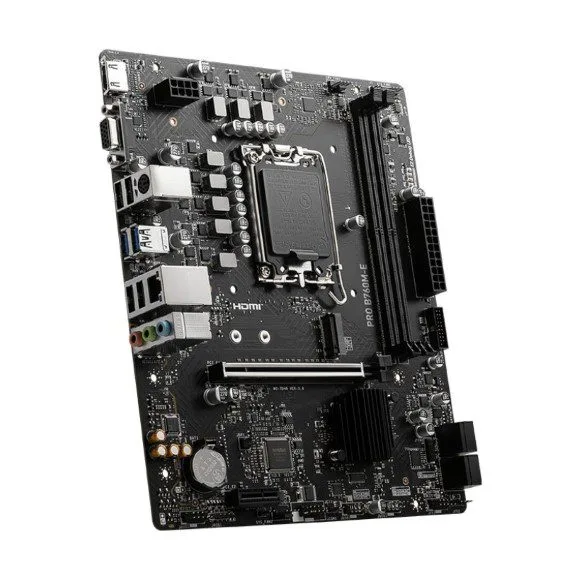

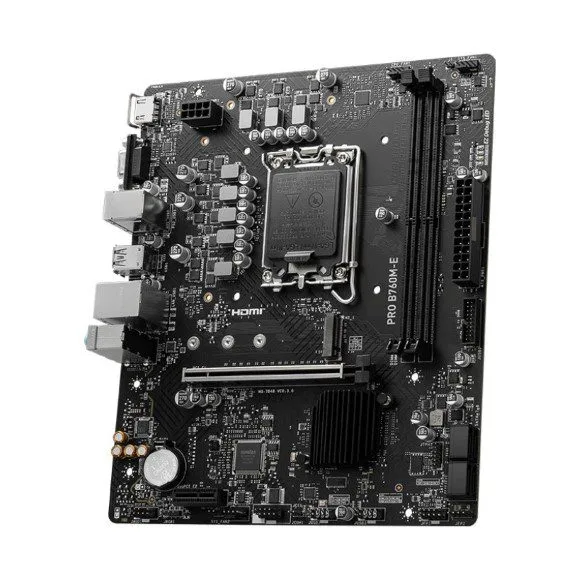

MSI PRO B760M-E DDR5 Micro-ATX LGA 1700 Motherboard
The MSI PRO B760M-E DDR5 Micro-ATX LGA 1700 Motherboard is a reliable choice for Intel 14th/13th/12th Gen CPUs, featuring DDR5 memory support, PCIe 4.0, and a compact mATX design. It offers essential connectivity with HDMI, VGA, USB 3.2 Gen1, and Gigabit LAN, making it ideal for everyday computing and office builds. Available with nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 31,815
Description
The MSI PRO B760M-E DDR5 Micro-ATX LGA 1700 Motherboard is designed for Intel Core 14th, 13th, and 12th Gen processors, offering a solid foundation for business or home builds. With the Intel B760 chipset, it supports the latest DDR5 memory and PCIe 4.0 for fast data transfer.
This motherboard features a micro-ATX form factor, making it suitable for compact systems without sacrificing performance. It includes HDMI and VGA ports for integrated graphics, multiple USB 3.2 Gen1 and USB 2.0 ports, and Realtek Gigabit LAN for reliable networking.
- Supports Intel Core 14th/13th/12th Gen, Pentium Gold, and Celeron processors (LGA 1700)
- 2x DDR5 slots with up to 96GB capacity and overclocking support up to 6400+ MHz
- 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
- 1x M.2 slot (PCIe 4.0 x4/SATA) and 4x SATA 6G ports with RAID 0/1/5/10 support
- Rear I/O: 4x USB 2.0, 2x USB 3.2 Gen1 Type-A, HDMI, VGA, Gigabit LAN, audio jacks
- EZ Debug LEDs for easy troubleshooting
Specification
Overview
| Brand | MSI |
|---|---|
| Model | PRO B760M-E |
| Form Factor | Micro-ATX |
| Socket | LGA 1700 |
| Memory Type | DDR5 |
| Max Memory Speed | 6400+MHz (OC) |
| Chipset | B760 |
| Warranty | 2 Years |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700 |
| MEMORY | 2x DDR5, Maximum Memory Capacity 96GB, Memory Support DDR5 6400+/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/ 4800 |
| ONBOARD GRAPHICS | 1x HDMI™, Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* |
| SLOT | 1x PCI-E x16 slot, 1x PCI-E x1 slot |
| STORAGE | 1x M.2, M.2_1 Source supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0, 4x USB 2.0 |
| LAN | Realtek, ® |
| AUDIO | Realtek, ® |
| INTERNAL IO | 1x Power Connector, 1x Power Connector |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | |
| OPERATING SYSTEM | Support for Windows, ® |
| PCB INFO | mATX, 200mmx236.16mm |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
