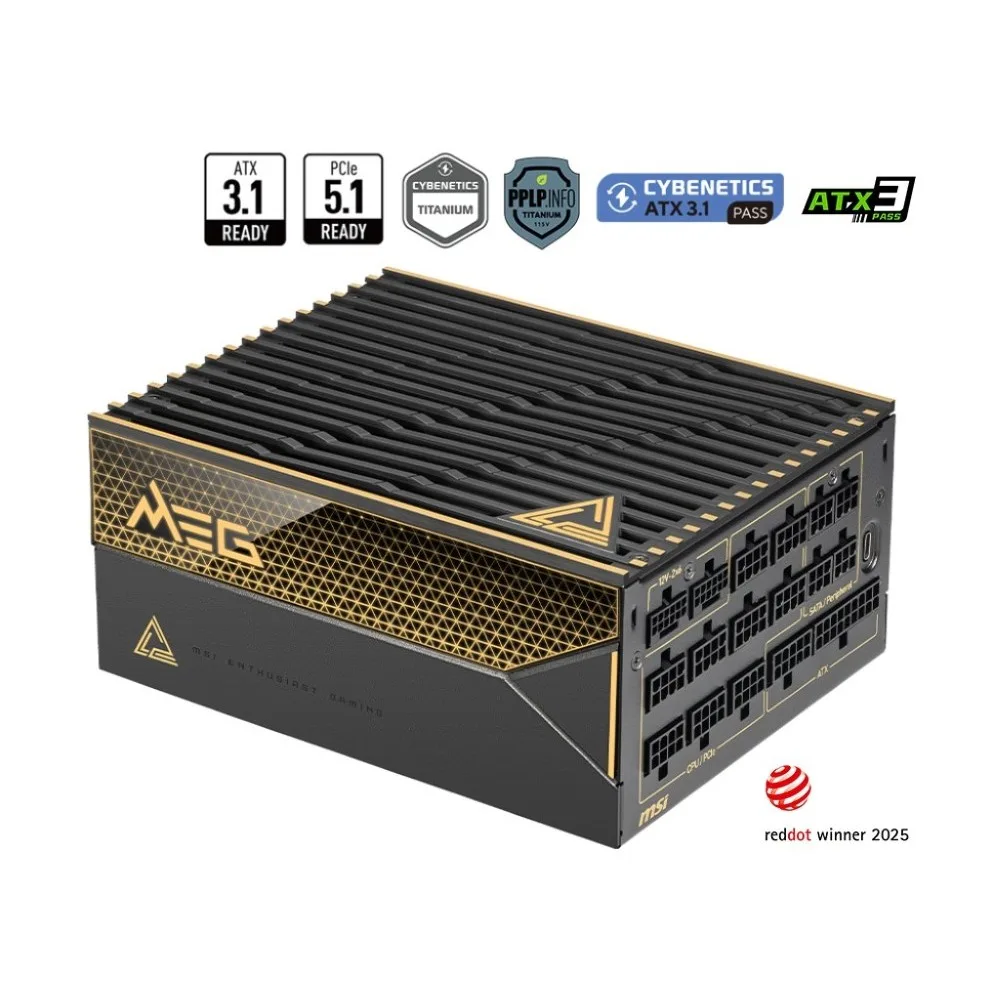

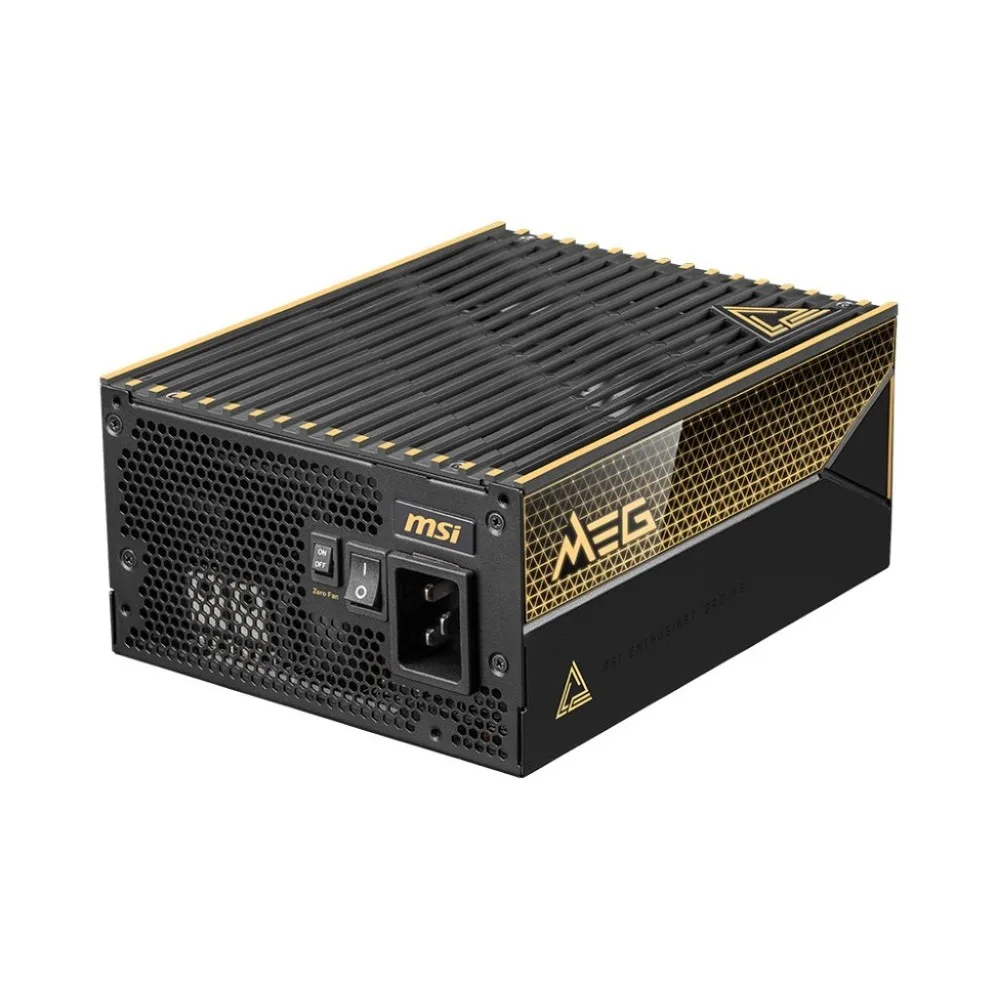

MSI MEG Ai1600T PCIe5 1600W Full Modular Compact 80 PLUS Titanium ATX 3.1 PCIE 5.1 Power Supply
The MSI MEG Ai1600T PCIe5 is a 1600W fully modular power supply with 80 PLUS Titanium certification for up to 94% efficiency. It features two native PCIe 5.1 16-pin connectors delivering 600W each, supports extreme power excursions up to 3840W, and includes comprehensive protections. Ideal for top-tier gaming or workstation builds, it is available nationwide in Pakistan with cash-on-delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 204,020
Description
The MSI MEG Ai1600T PCIe5 is a 1600W fully modular power supply built for the most demanding high-end PC builds. Certified 80 PLUS Titanium, it delivers up to 94% efficiency at typical loads, reducing heat and power waste. Its compact 190mm depth fits easily into modern cases while still providing massive wattage for multi-GPU setups or overclocking.
Designed for ATX 3.1 and PCIe 5.1 standards, this PSU includes two native 16-pin (12V-2×6) connectors capable of delivering 600W each to next-gen graphics cards. It can handle power excursions up to 3840W (240% of rated power) for 100μs, ensuring stability under transient loads. A 135mm double ball bearing fan provides reliable cooling with a long lifespan.
- 1600W continuous power with 80 PLUS Titanium efficiency (up to 94%)

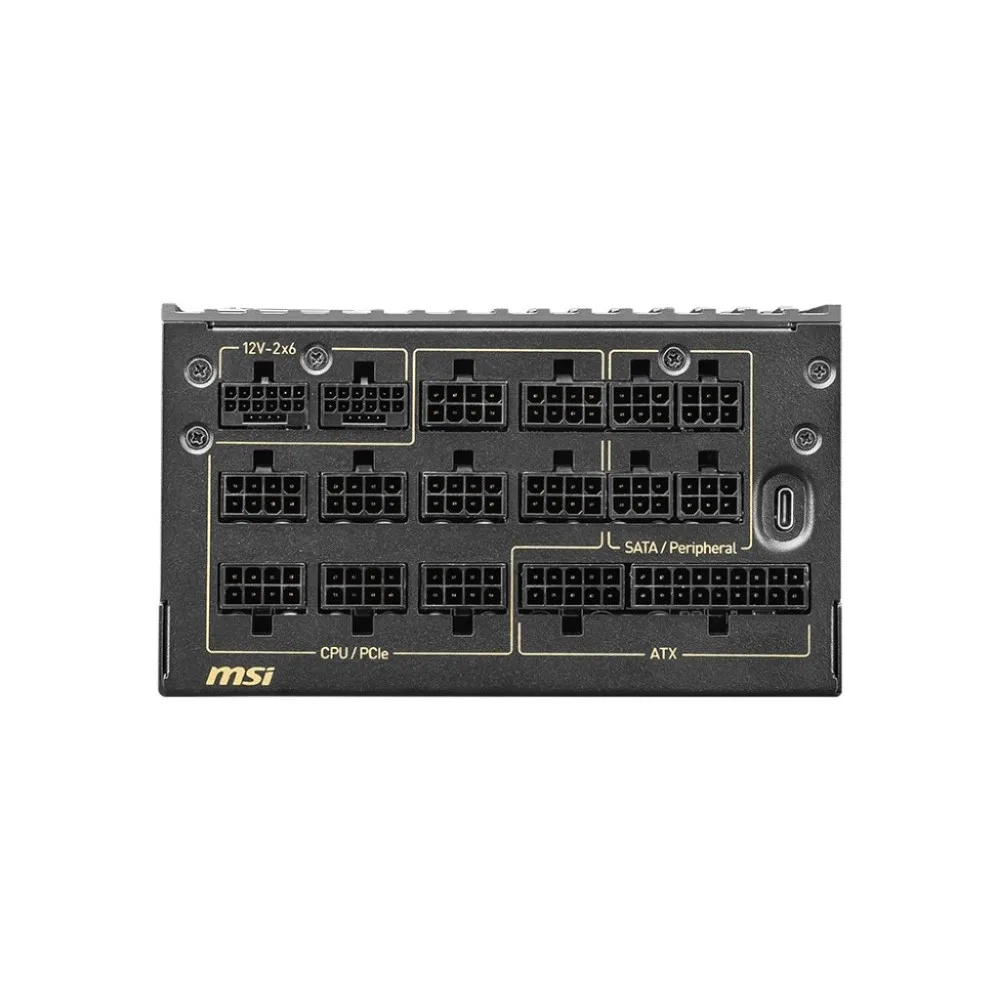

- Fully modular cabling for clean builds and easy cable management
- Two native PCIe 5.1 (16-pin) connectors, each rated for 600W
- Supports power excursions up to 3840W (240% for 100μs) for transient loads
- Full protection suite: OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO

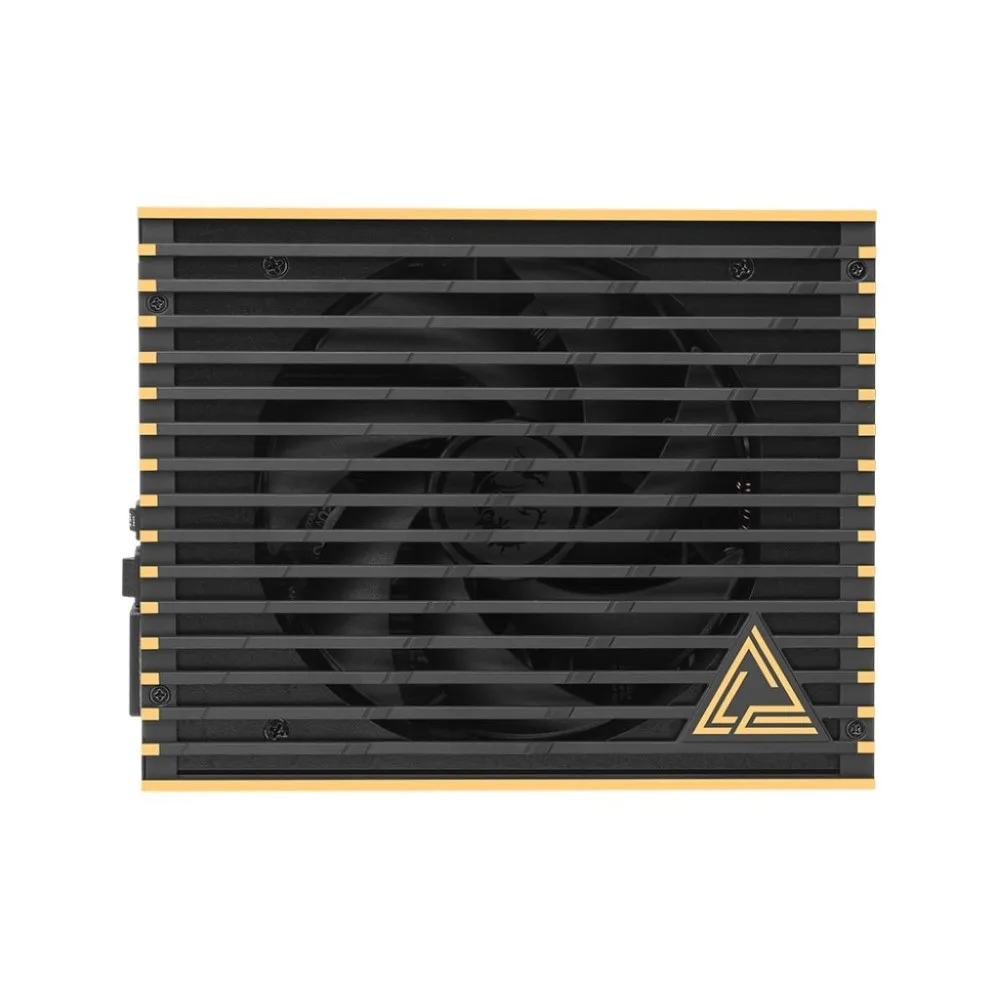

- Compact 190mm depth with 135mm double ball bearing fan
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Efficiency Rating | 80 PLUS Titanium (up to 94%) |
| Modular | Yes (Fully Modular) |
| Fan Size | 135 mm |
| Fan Bearing | Double Ball Bearing |
| Dimensions (D × W × H) | 190 × 150 × 86 mm |
| PFC Type | Interleaved PFC |
| Input Voltage Range | 100–240V |
| Power Watt | 1600W |
| Power Excursion | 3840W (up to 240% for 100μs) |
| Input Frequency Range | 50–60 Hz |
| Protection | OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO |
| ATX (24 pin) | 1 |
| PCI-E 5.1 (16 pin) | 2 (600W) |
| SATA (15 pin) | 8 |
| Peripheral (4 pin) | 8 |
| eps-4-4-pin | 2 |
| pci-e-6-2-pin | 9 |
| EPS (4+4 pin) | 2 |
| PCI-E (6+2 pin) | 9 |
