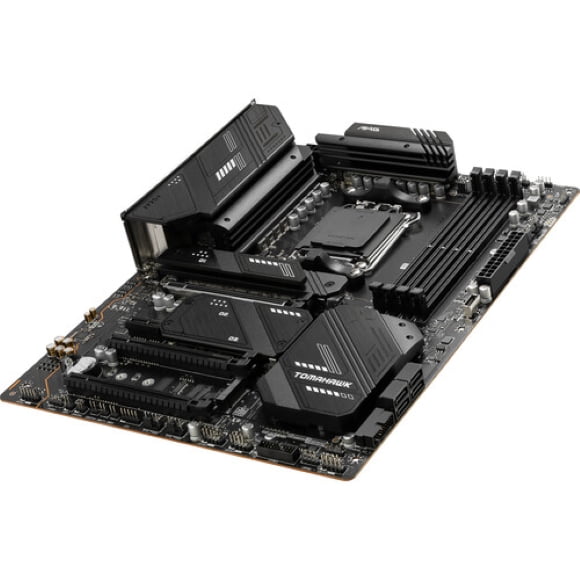

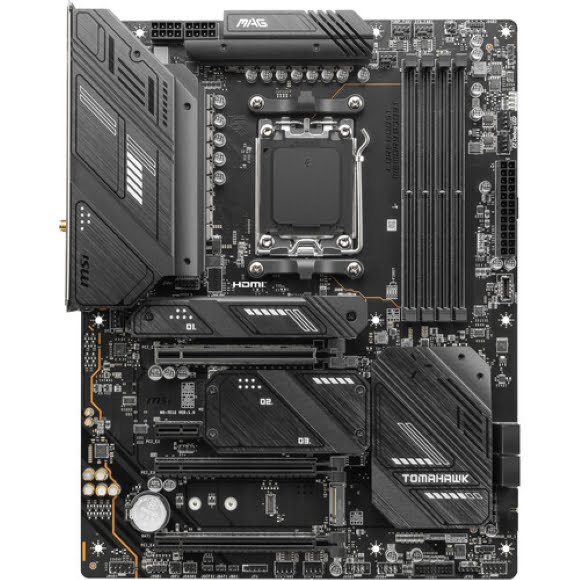

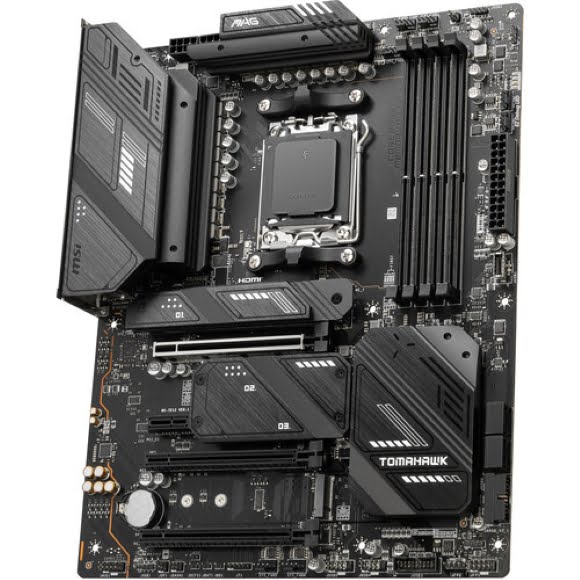

MSI MAG X670E TOMOHAWK WIFI SATA 6Gb/s ATX Motherboard
The MSI MAG X670E TOMAHAWK WIFI is an ATX motherboard for AMD Ryzen 7000 series, featuring the X670E chipset. It supports DDR5 memory up to 7800+ MHz, PCIe 5.0, four M.2 slots, Wi-Fi 6E, and 2.5G LAN. Ideal for high-performance gaming and content creation builds, available with nationwide delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 77,000
Description
The MSI MAG X670E TOMAHAWK WIFI is a high-performance ATX motherboard designed for AMD Ryzen 7000 series processors, built on the AMD X670E chipset. It supports DDR5 memory up to 7800+ MHz (OC) with a maximum capacity of 192GB, and features PCIe 5.0 support for the latest graphics cards and SSDs.
With four M.2 slots (one PCIe 5.0) and four SATA 6Gb/s ports, this motherboard offers extensive storage options. It also includes integrated Wi-Fi 6E, Bluetooth 5.3, and a 2.5G LAN port for fast and reliable connectivity.
- Supports AMD Ryzen 7000 series CPUs with AM5 socket
- DDR5 memory support up to 7800+ MHz (OC) with AMD EXPO
- Three PCIe x16 slots: one PCIe 5.0 x16, two PCIe 4.0 x16
- Four M.2 slots: one PCIe 5.0 x4, three PCIe 4.0 x4
- Integrated AMD Wi-Fi 6E and Bluetooth 5.3
- Realtek ALC1200 7.1 channel audio and 2.5G LAN
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Best Seller Ranking | #15 in AMD Motherboards |
| Brand | MSI |
| Model | MAG X670E TOMAHAWK WIFI |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series |
| Chipset | AMD X670E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz, Max. overclocking frequency:, – 1DPC 1R Max speed up to 7800+ MHz, – 1DPC 2R Max speed up to 6400+ MHz, – 2DPC 1R Max speed up to 6400+ MHz, – 2DPC 2R Max speed up to 5400+ MHz |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports AMD EXPO |
| PCI Express 5.0 x16 | 3 x PCI-E x16 slot Supports x16/x4/x2, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU), PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset), *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot. |
| PCI Express x1 | 1 x PCI-E x1 slot, PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 4 x M.2, M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices, *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot. |
| SATA RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC1200 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125BG |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands, Supports 802.11 a/ b/ g/ n/ ac/ ax, * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| Bluetooth | Bluetooth 5.3**, ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |

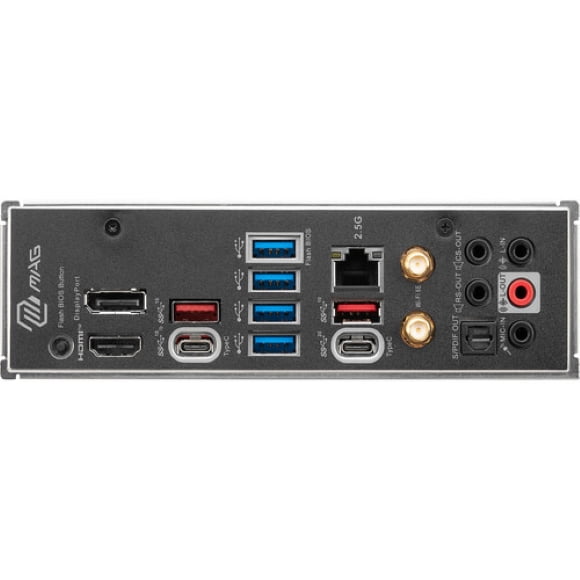

| Back I/O Ports | 1 x DisplayPort, 1 x USB 3.2 Gen 2 10Gbps (Type-A), 1 x USB 3.2 Gen 2 5Gbps (Type-A), 1 x 2.5G LAN, 1 x Wi-Fi / Bluetooth, 5 x Audio Connectors, 1 x Flash BIOS Button, 1 x HDMI, 1 x USB 3.2 Gen 2 10Gbps (Type-C Display port), 1 x USB 3.2 Gen 2×2 20Gbps (Type-C), 1 x S/PDIF-Out |
| Onboard USB | 4 x USB 2.0 ports, 4 x USB 3.2 Gen1 Type A ports, 1 x USB 3.2 Gen2 Type C ports |
| Other Connectors | 1 x CPU Fan, 1 x Pump Fan, 6 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Tuning Controller connector(JDASH), 2 x Addressable V2 RGB LED connector (JARGB_V2), 2 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0) |
| Form Factor | ATX |
| LED Lighting | 4 x EZ Debug LED |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR) |
| Windows 11 | Supported |
| Form Factor | ATX |
