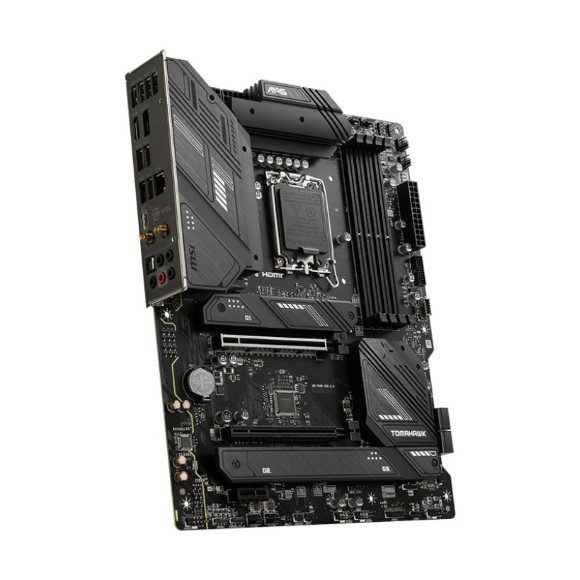

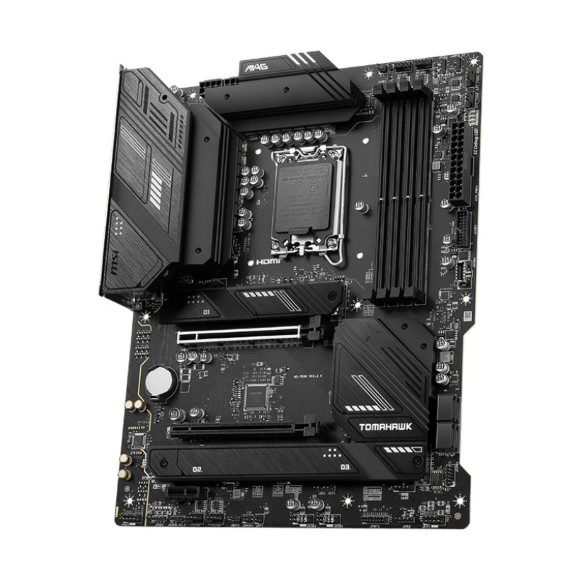

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX LGA 1700 Motherboard

Name: MSI MAG B760 TOMAHAWK WIFI DDR5 ATX LGA 1700 Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0067
Price: 64500 PKR
Availability: InStock

SKU: MC-MBD-MSI-0067 Category: Intel Motherboards Brand: MSI

The MSI MAG B760 TOMAHAWK WIFI DDR5 ATX LGA 1700 Motherboard is a feature-packed board for Intel 14th/13th/12th Gen CPUs. It supports DDR5 memory up to 7000+ MHz, PCIe 5.0, triple M.2 slots, Wi-Fi 6E, and 2.5G LAN. With a robust VRM design and extensive connectivity, it’s perfect for high-end gaming and productivity builds. Available with nationwide delivery and cash-on-delivery in Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 64,500

Compare

Add to wishlist

Description

The MSI MAG B760 TOMAHAWK WIFI DDR5 ATX LGA 1700 Motherboard is built for high-performance Intel Core 14th, 13th, and 12th Gen processors. With the Intel B760 chipset, it supports DDR5 memory up to 7000+ MHz (OC) and features PCIe 5.0 for the latest graphics cards. Connectivity is robust with Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN, making it ideal for gaming and productivity.

This ATX motherboard offers extensive storage options with three M.2 slots (all PCIe 4.0) and four SATA ports supporting RAID configurations. The rear I/O includes HDMI 2.1, DisplayPort 1.4, USB 3.2 Gen2x2 Type-C, and multiple USB ports. With a 1-year warranty and nationwide delivery across Pakistan, it’s a reliable choice for builders.

Supports Intel Core 14th/13th/12th Gen LGA1700 processors
4x DDR5 slots, up to 192GB, 7000+ MHz (OC)
PCIe 5.0 x16 slot for next-gen GPUs
Triple M.2 PCIe 4.0 slots and 4x SATA 6G with RAID
Intel Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN
USB 3.2 Gen2x2 Type-C rear, HDMI 2.1, DP 1.4

Specification

Overview

Warranty	1 Year
CHIPSET	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB, Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz, Max. overclocking frequency:, • 1DPC 1R Max speed up to 7000+ MHz, • 1DPC 2R Max speed up to 6600+ MHz, • 2DPC 1R Max speed up to 6400+ MHz, • 2DPC 2R Max speed up to 5600+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel, ®, Extreme Memory Profile
ONBOARD GRAPHICS	1x HDMI™, Support HDMI, TM, 2.1 with HDR, maximum resolution of 4K 60Hz, 1x DisplayPort, Support DP 1.4, maximum resolution of 8K 60Hz, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	2x PCI-E x16 slot, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
STORAGE	3x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Front), 4x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek, ®, 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel, ®, Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth, ®, 5.3, FIPS, FISMA, * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11., ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek, ®, ALC897 Codec, 7.1-Channel High Performance Audio, Supports S/PDIF output
INTERNAL IO	1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED

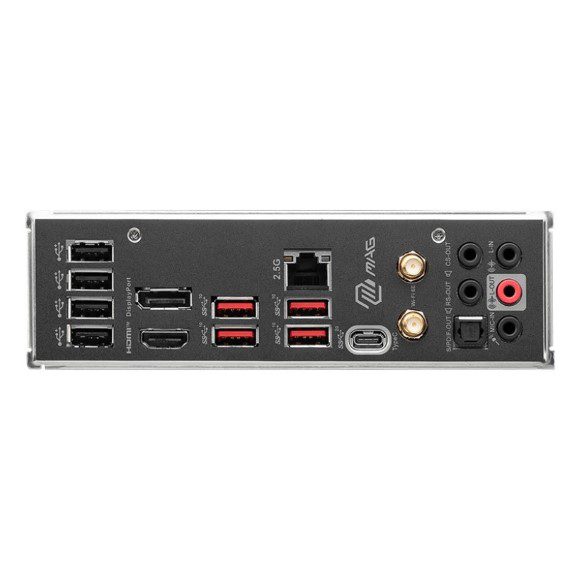

BACK PANEL PORTS	USB 2.0, DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, HD Audio Connectors, HDMI™ 2.1 Port, USB 3.2 Gen 2×2 20Gbps Type-C, Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows, ®, 11 64-bit, Windows, ®, 10 64-bit
PCB INFO	ATX, 243.84mmx304.8mm
Form Factor	ATX
Memory Type	DDR5
