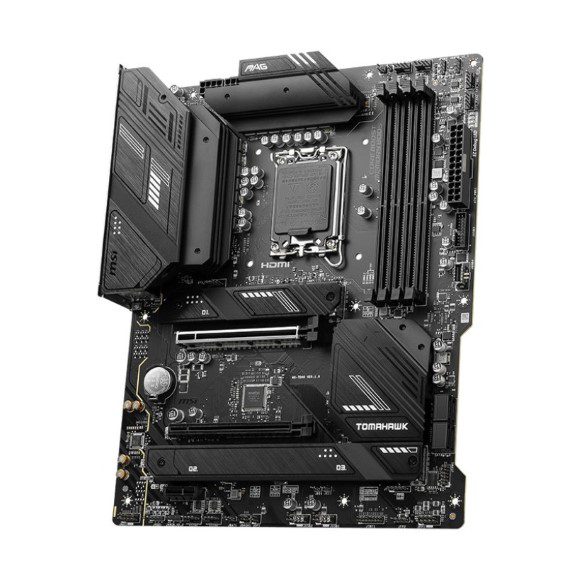

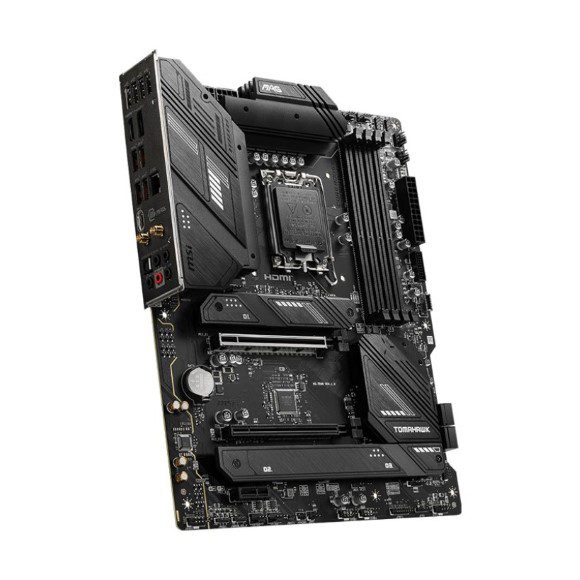

MSI MAG B760 TOMAHAWK WIFI DDR4 ATX LGA 1700 Motherboard

Name: MSI MAG B760 TOMAHAWK WIFI DDR4 ATX LGA 1700 Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0079
Price: 60000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0079 Category: Intel Motherboards Brand: MSI

The MSI MAG B760 TOMAHAWK WIFI DDR4 ATX LGA 1700 Motherboard is a feature-rich ATX board for Intel 14th/13th/12th Gen CPUs. It supports DDR4 memory up to 5333+ MHz, PCIe 5.0, triple M.2 slots, Intel Wi-Fi 6E, and 2.5G LAN. With USB 3.2 Gen2x2 Type-C and comprehensive RAID support, it’s ideal for gaming and productivity builds. Available with nationwide delivery across Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 60,000

Compare

Add to wishlist

Description

The MSI MAG B760 TOMAHAWK WIFI DDR4 ATX LGA 1700 Motherboard is designed for Intel Core 14th/13th/12th Gen processors, offering a robust foundation for high-performance builds. With Intel B760 chipset, it supports DDR4 memory up to 5333+ MHz (OC) and features PCIe 5.0 for the primary x16 slot, ensuring compatibility with the latest GPUs and storage.

Connectivity is comprehensive with Intel Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN, and multiple USB ports including USB 3.2 Gen2x2 Type-C. The board includes three M.2 slots (all PCIe 4.0) and four SATA ports with RAID support, plus HDMI 2.1 and DisplayPort 1.4 for integrated graphics. Available nationwide in Pakistan with cash-on-delivery.

Intel LGA1700 socket: Supports 14th/13th/12th Gen Core, Pentium Gold, and Celeron processors
DDR4 memory: 4 slots, up to 128GB, overclocking support up to 5333+ MHz
PCIe 5.0 x16 slot for next-gen graphics cards
Triple M.2 slots (all PCIe 4.0) and 4x SATA 6G with RAID 0/1/5/10
Intel Wi-Fi 6E and Bluetooth 5.3 for fast wireless connectivity
2.5G LAN, USB 3.2 Gen2x2 Type-C, HDMI 2.1, and DisplayPort 1.4

Specification

Overview

Warranty	1 Year
CHIPSET	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA1700
MEMORY	4x DDR4, Maximum Memory Capacity 128GB, Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC), Max. overclocking frequency:, • 1DPC 1R Max speed up to 5333+ MHz, • 1DPC 2R Max speed up to 4800+ MHz, • 2DPC 1R Max speed up to 4400+ MHz, • 2DPC 2R Max speed up to 4000+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel, ®, Extreme Memory Profile
ONBOARD GRAPHICS	1x HDMI™, Support HDMI, TM, 2.1 with HDR, maximum resolution of 4K 60Hz, 1x DisplayPort, Support DP 1.4, maximum resolution of 8K 60Hz, *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT	2x PCI-E x16 slot, Supports x16/x4, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
STORAGE	3x M.2, M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Front), 4x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front), 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek, ®, 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	Intel, ®, Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth, ®, 5.3, FIPS, FISMA, * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11., ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek, ®, ALC897 Codec, 7.1-Channel High Performance Audio, Supports S/PDIF output
INTERNAL IO	1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED

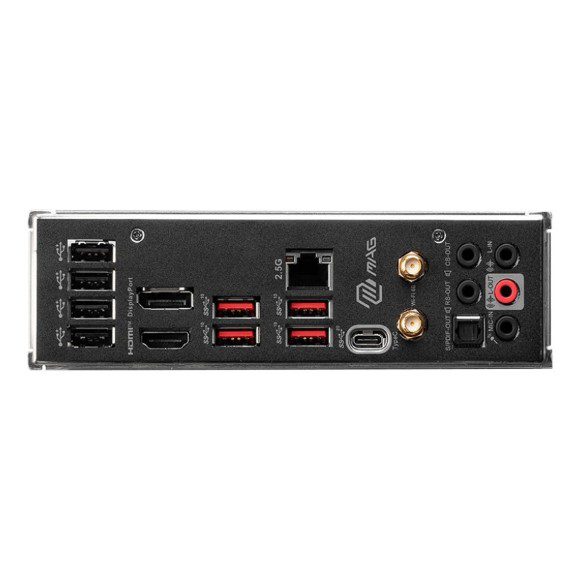

BACK PANEL PORTS	USB 2.0, DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, HD Audio Connectors, HDMI™ 2.1 Port, USB 3.2 Gen 2×2 20Gbps Type-C, Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows, ®, 11 64-bit, Windows, ®, 10 64-bit
PCB INFO	ATX, 243.84mmx304.8mm
Form Factor	ATX
Memory Type	DDR4
