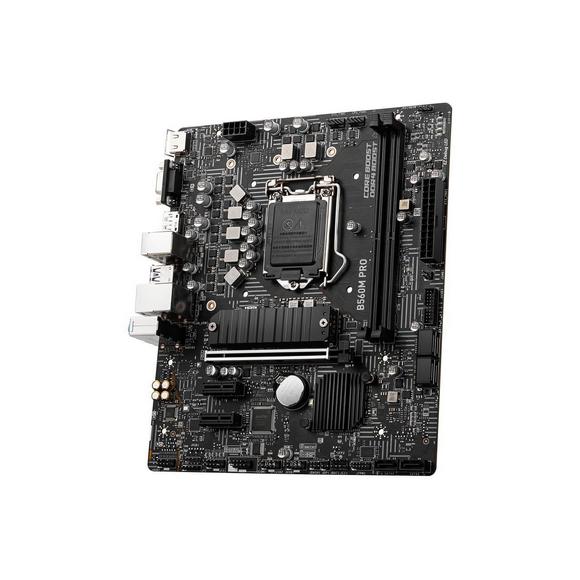

MSI B560M-A PRO LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard

Name: MSI B560M-A PRO LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0086
Price: 35000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0086 Category: Intel Motherboards Brand: MSI

The MSI B560M-A PRO is a Micro ATX motherboard supporting 10th and 11th Gen Intel Core processors on the LGA 1200 socket. It features DDR4 memory up to 5200 MHz (OC), PCIe 4.0, a Lightning Gen4 M.2 slot, and 2.5G LAN for fast data and network performance. With Core Boost, DDR4 Boost, and Audio Boost, it delivers stable performance and immersive sound, ideal for everyday computing and gaming builds.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 35,000

Compare

Add to wishlist

Description

The MSI B560M-A PRO is a Micro ATX motherboard designed for 10th and 11th Gen Intel Core processors (LGA 1200). Built on the Intel B560 chipset, it supports DDR4 memory up to 5200 MHz (OC) and features PCIe 4.0 for lightning-fast data transfers. With a 2.5G LAN controller and Audio Boost, this board delivers a premium networking and audio experience.

This motherboard includes a single M.2 slot with Shield Frozr for Gen4 x4 SSDs (11th Gen CPU) and six SATA 6Gb/s ports for ample storage. Core Boost and DDR4 Boost technologies enhance stability and performance, while the Steel Armor PCIe slot protects your graphics card. It also supports Windows 11 and is ready for Intel Optane Memory.

Supports 10th/11th Gen Intel Core, Pentium Gold, and Celeron processors (LGA 1200)
DDR4 memory support up to 5200 MHz (OC) with dual-channel architecture (max 64GB)
PCIe 4.0 x16 slot and Lightning Gen4 M.2 with Shield Frozr for ultra-fast storage
2.5G LAN (Realtek 8125B) for high-speed wired networking
Audio Boost with Realtek ALC897 codec for 7.1-channel HD audio
Multiple connectivity options: HDMI, D-Sub, USB 3.2 Gen 1 Type-A, and PS/2 combo port

Specification

Overview

Brand	MSI
Model	B560M-A PRO
CPU Socket Type	LGA 1200
CPU Type	Supports 11th Gen/10th Gen Intel Core / Pentium Gold / Celeron Processors
Chipset	Intel B560
Onboard Video Chipset	Supported only by CPU with integrated graphic
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR), DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR), Max overclocking frequency:, 1DPC 1R Max speed up to 5200, 1DPC 2R Max speed up to 4700+
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
PCI Express 4.0 x16	1 x PCI Express 4.0 x16, * Actual support may vary by CPU.
PCI Express x1	2 x PCI Express 3.0 x1
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2 slot (Key M):, Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU), Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset), Supports 2242/ 2260/ 2280 storage devices, * Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane Ready	Yes
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels
LAN Chipset	Realtek 8125B
Max LAN Speed	10/100/1000/2500Mbps
Back I/O Ports	1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45), 1 x PS/2 Keyboard/Mouse Combo, 2 x USB 2.0/1.1, 4 x USB 3.2 Gen 1 Type-A, 3 x Audio Jacks
Onboard USB	1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector, 1 x 4-pin system fan connector, 1 x Front panel audio connector, 2 x System panel connectors, 1 x Chassis Intrusion connector, 1 x Clear CMOS jumper, 1 x TPM module connector, 1 x Serial port connector, 1 x Tuning Controller Connector
Form Factor	Micro ATX
Dimensions (W x L)	9.3″ x 8.0″
Power Pin	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
Windows 11	Supported
Features	Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket., Supports DDR4 Memory, up to 5200(OC) MHz., Core Boost: With premium layout and digital power design to support more cores and provide better performance., DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability., Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr., 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection., Audio Boost: Reward your ears with studio grade sound quality., Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Form Factor	Micro-ATX
