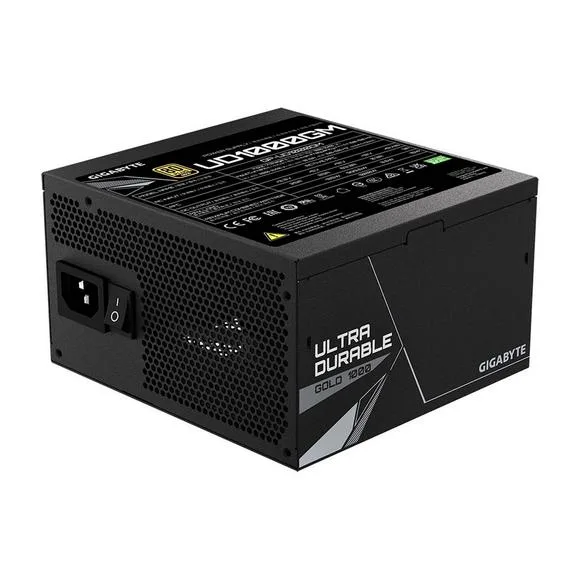

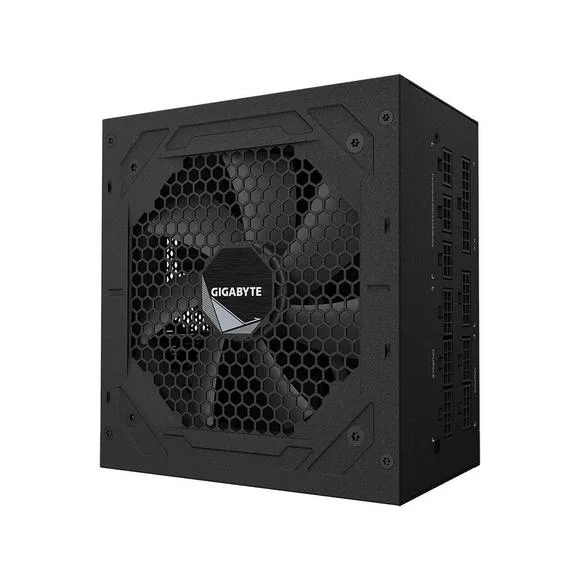

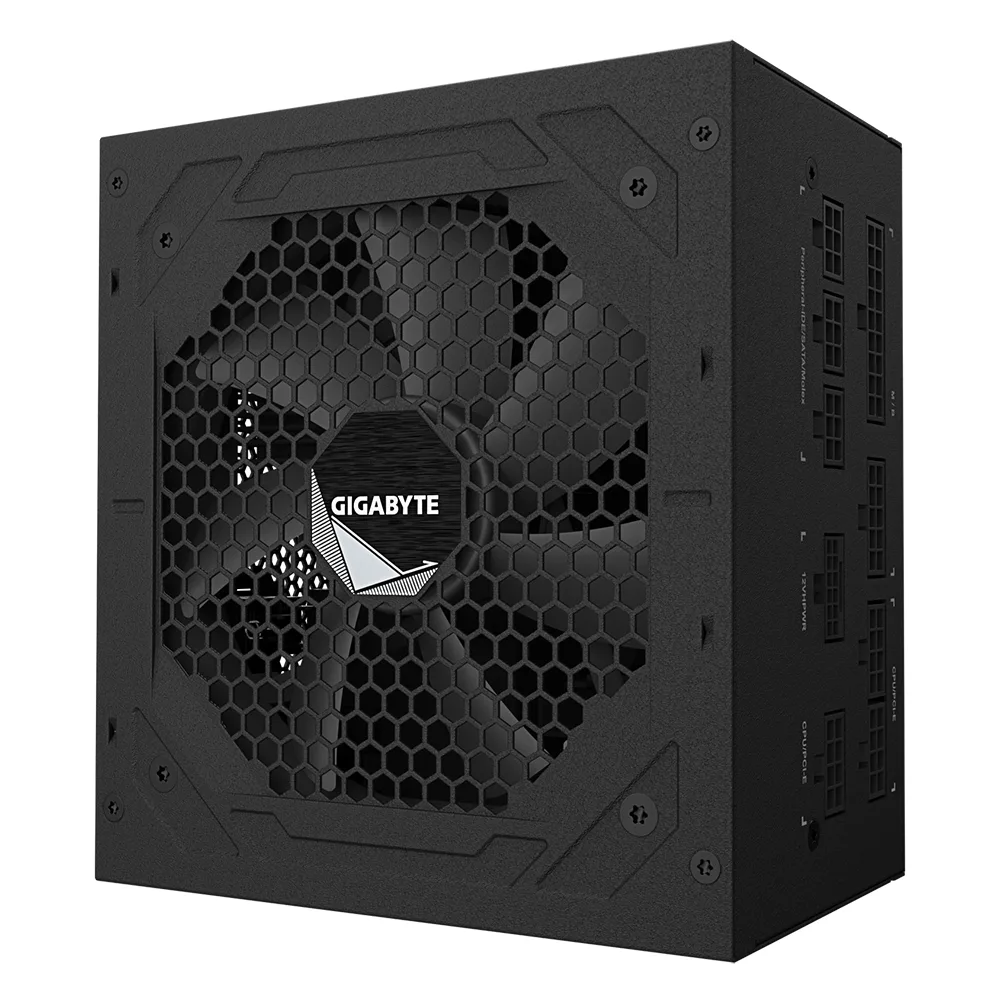

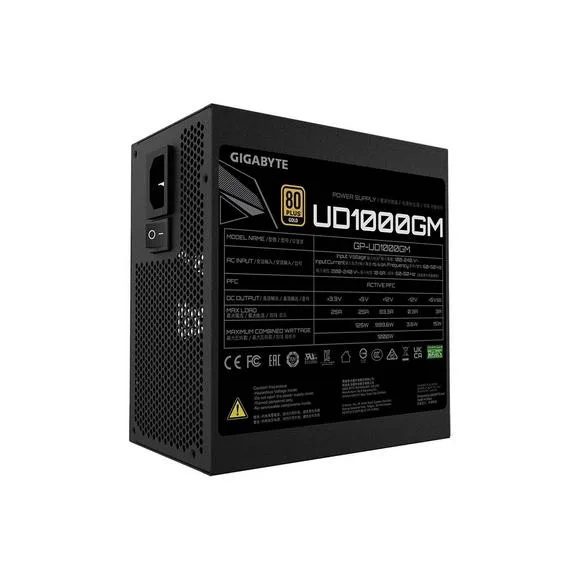

GIGABYTE GP-UD1000GM PG5 1000W PCIe 5.0 80 Plus Gold Certified Fully Modular Power Supply
The GIGABYTE GP-UD1000GM PG5 is a 1000W fully modular power supply with 80 PLUS Gold certification for high efficiency. It features a single +12V rail, six PCIe connectors, and Japanese capacitors, ensuring stable power for gaming or workstation builds. Available with nationwide delivery in Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 46,460
Description
The GIGABYTE GP-UD1000GM PG5 is a 1000W fully modular power supply built for high-performance systems. It is 80 PLUS Gold certified, delivering up to 90% efficiency at typical loads, which reduces heat and energy waste.
Equipped with a single +12V rail and six PCIe 6+2-pin connectors, this PSU supports PCIe 5.0 graphics cards and multi-GPU setups. Japanese capacitors and multiple protections (OVP/OPP/SCP/UVP/OCP/OTP) ensure stable and safe power delivery.
- 1000W maximum power with 80 PLUS Gold efficiency (90% at typical load)

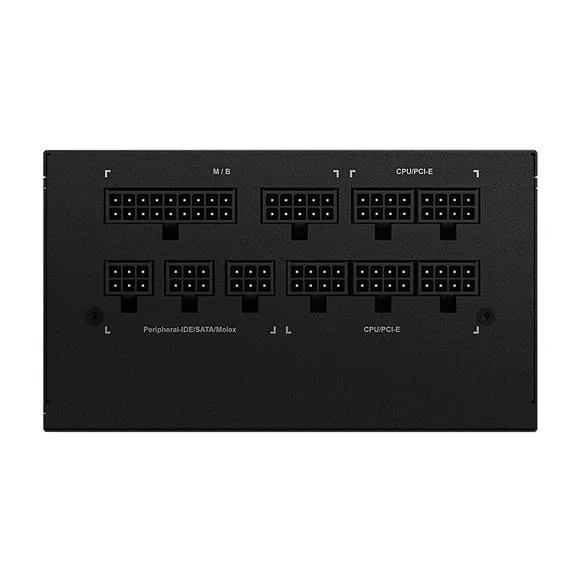

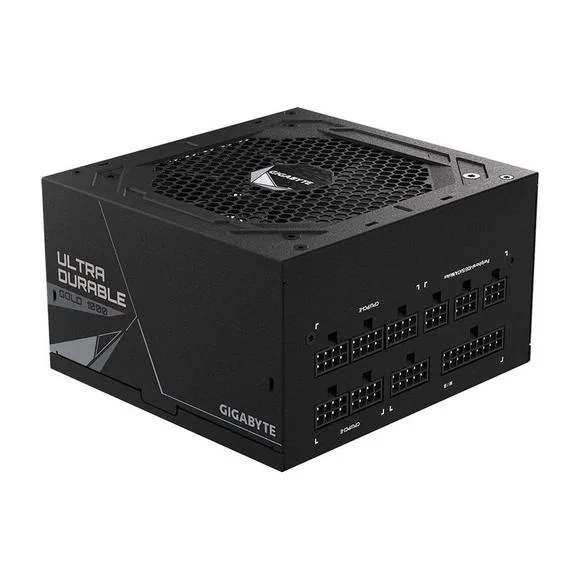

- Fully modular design for clean cable management
- Single +12V rail with 6 x 6+2-Pin PCIe connectors

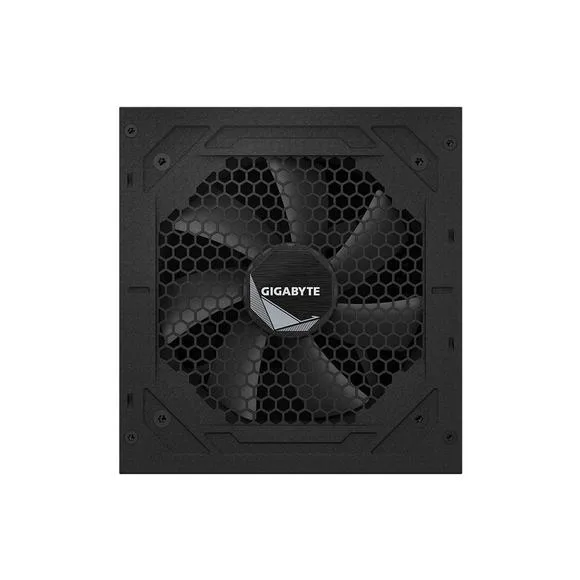

- 120mm hydraulic bearing fan for quiet and reliable cooling
- Ultra Durable Japanese capacitors and comprehensive circuit protections
- Compact 140mm depth fits most mid-tower cases
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Brand | GIGABYTE |
| Model | GP-UD1000GM |
| Type | ATX 12V v2.31 |
| Maximum Power | 1000 W |
| Fans | 120mm Hydraulic Bearing fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 8 |
| Modular | Full Modular |
| Power Good Signal | 100-150ms |
| Hold-up Time | >16ms |
| Efficiency | 90% at typical load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15-6.5A |
| Output | +3.3V@25A, +5V@25A,, [email protected] |
| MTBF | >100,000 Hours |
| Approvals | BSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL |
| Max PSU Length | 140 mm |
| Connectors | 1 x 24 pin ATX, 2 x 8 pin EPS |
| Cable Spec | 20+4Pin MB: One cable, 4+4Pin CPU: Two cables |
| Features | Ultra Durable, – Main Japanese capacitors |
| Dimensions | 3.39″ x 5.91″ x 5.51″ |
