Gigabyte B650M DS3H AM5 LGA 1718 AMD B650 M-ATX Motherboard
The Gigabyte B650M DS3H is an AM5 Micro-ATX motherboard designed for AMD Ryzen 7000 series processors. It supports dual-channel DDR5 memory up to 128GB, features dual PCIe 4.0 M.2 slots, 2.5GbE LAN, and a comprehensive rear I/O with USB-C and DisplayPort. With a 6+2+1 phase digital VRM and Q-Flash Plus, it delivers reliable performance and easy BIOS updates. Available nationwide with cash on delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 53,000
Description

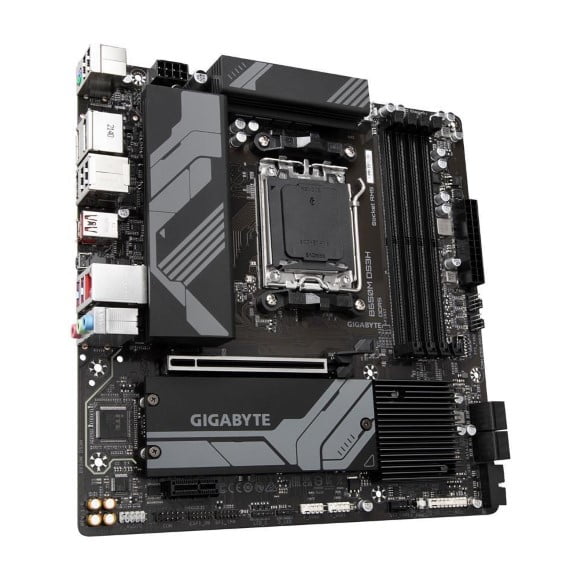

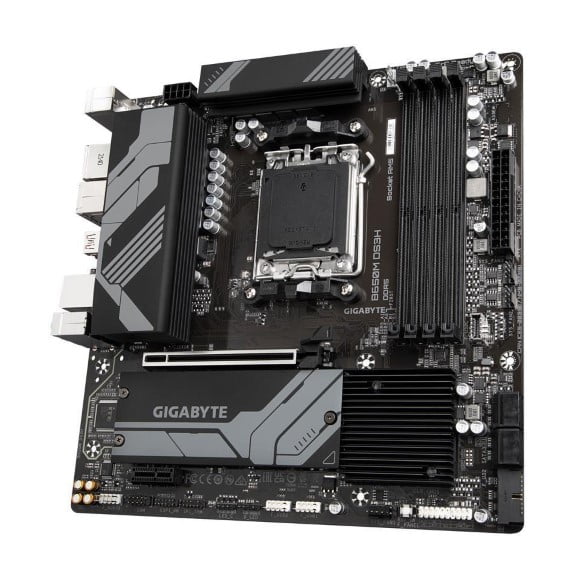

The Gigabyte B650M DS3H is a Micro-ATX motherboard built for AMD’s latest AM5 platform, supporting Ryzen 7000 series processors. It features the AMD B650 chipset, dual-channel DDR5 memory with support for up to 128GB, and a robust 6+2+1 phase digital VRM design for stable power delivery.
Connectivity options include dual PCIe 4.0 M.2 slots, four SATA 6Gb/s ports, and a 2.5GbE LAN port for fast networking. The rear I/O offers versatile display outputs (2x DisplayPort, HDMI) and high-speed USB including one USB Type-C with 10Gb/s. Advanced features like Q-Flash Plus allow BIOS updates without a CPU or memory installed.
- AMD Socket AM5 with support for Ryzen 7000 Series processors
- Dual channel DDR5 memory, up to 128GB, with AMD EXPO and Intel XMP support
- 2 x PCIe 4.0 x4 M.2 connectors with thermal guard
- Realtek 2.5GbE LAN for high-speed networking
- Rear I/O: 2x DisplayPort, HDMI, USB-C 10Gb/s, USB 3.2 Gen 2 Type-A
- Q-Flash Plus for easy BIOS updates without CPU/RAM/GPU
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Brand | GIGABYTE |
| Model | B650M DS3H (rev. 1.0) |
| Part Number | B650M DS3H (rev. 1.0) |
| CPU Socket Type | AM5 |
| CPU Type | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD B650 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules |
| Maximum Memory Supported | 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Channel Supported | Dual channel memory architecture |
| ECC Supported | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Buffer Supported | Un-buffered |
| Memory Feature | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules, (Please refer “Memory Support List” for more information. |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| PCI Express x1 | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Chipset | Realtek® Audio CODEC |
| Audio Channels | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Max LAN Speed | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

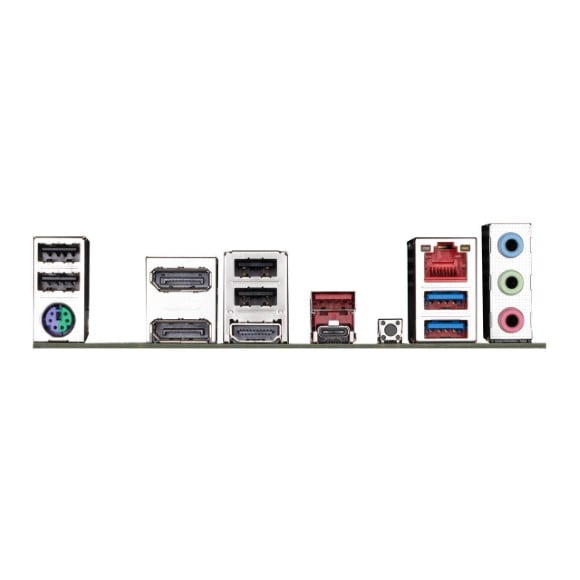

| Back I/O Ports | 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x DisplayPorts, 1 x HDMI port, 1 x USB 3.2 Gen 2 Type-A port (red), 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x Q-Flash Plus button, 1 x RJ-45 port, 2 x USB 3.2 Gen 1 ports, 3 x audio jacks |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Other Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x serial port header, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 24.4cm x 24.4cm |
| Windows 11 | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| Features | AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors, Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution, Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support, SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors, Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance, PCIe x16 EZ-Latch with Quick Release & Screwless Design, Fast Networks:2.5GbE LAN, Extended Connectivity:2*DP, HDMI, 2*USB-C® 10Gb/s, Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card |
| Form Factor | Micro-ATX |
