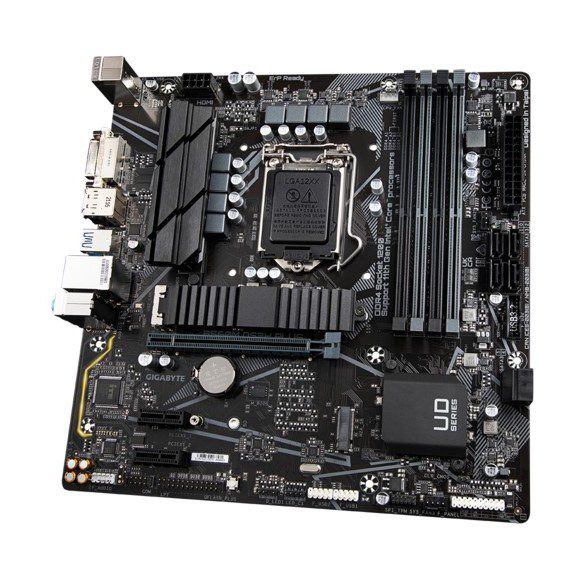

Gigabyte B560M DS3H Plus Rev 1.0 Ultra Durable Motherboard

Name: Gigabyte B560M DS3H Plus Rev 1.0 Ultra Durable Motherboard
Brand: Gigabyte
SKU: MC-MBD-GIG-0104
Price: 37500 PKR
Availability: InStock

SKU: MC-MBD-GIG-0104 Category: Intel Motherboards Brand: Gigabyte

The Gigabyte B560M DS3H Plus Rev 1.0 Ultra Durable Motherboard is a Micro ATX board built on the Intel B560 chipset, supporting 11th and 10th Gen Intel Core processors. It features dual M.2 slots (PCIe 4.0 for 11th Gen), four DDR4 DIMM slots with up to 128GB capacity and speeds up to 4600MHz (O.C.), and integrated graphics outputs including HDMI and DisplayPort. With USB 3.2 Gen 1 Type-C, Realtek GbE LAN, and Ultra Durable components, it offers reliable performance for everyday computing and light gaming. Available with nationwide delivery across Pakistan and cash-on-delivery.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 37,500

Compare

Add to wishlist

Description

The Gigabyte B560M DS3H Plus Rev 1.0 Ultra Durable Motherboard is built on the Intel B560 Express chipset, supporting both 11th and 10th Gen Intel Core processors. Its Micro ATX form factor (24.4cm x 24.4cm) makes it ideal for compact builds without sacrificing performance. With dual M.2 slots—one PCIe 4.0 for 11th Gen CPUs and one PCIe 3.0/SATA—plus six SATA 6Gb/s ports, you get flexible high-speed storage options.

Memory support includes up to 128GB of DDR4 RAM across four DIMM slots, with speeds reaching 4600MHz (O.C.) on 11th Gen processors. The motherboard features integrated Intel HD Graphics outputs via HDMI 1.4, DisplayPort 1.2, and DVI-D, supporting up to 4K resolution. Connectivity includes USB 3.2 Gen 1 Type-C, Realtek GbE LAN, and multiple USB ports for peripherals.

Supports 11th and 10th Gen Intel Core processors (LGA1200)
Intel B560 chipset with dual M.2 slots (PCIe 4.0 for 11th Gen, PCIe 3.0/SATA)
4 x DDR4 DIMM slots, up to 128GB, speeds up to 4600MHz (O.C.)
Integrated graphics: HDMI 1.4, DisplayPort 1.2, DVI-D
USB 3.2 Gen 1 Type-C on back panel, Realtek GbE LAN
Ultra Durable design with Q-Flash Plus and RGB Fusion

Specification

Overview

Warranty	1 Year
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors, 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors, Limited to processors with 4 MB Intel® Smart Cache, Intel Celeron G5xx5 family., L3 cache varies with CPU
Chipset	Intel B560 Express Chipset
BIOS	1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	3 x audio jacks
PCI	1 x PCI Express x16 slot, running at x16, (The PCIEX16 slot conforms to PCI Express 4.0 standard.), Supported by 11th Generation processors only., 2 x PCI Express x1 slots, (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Type	DDR4
Slots	4 x DDR4 DIMM
Supported Memory	11th Generation Intel Core i9/i7/i5 processors:, Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, 10th Generation Intel Core i9/i7 processors:, Support for DDR4 2933/2666/2400/2133 MHz memory modules, 10th Generation Intel Core i5/i3/Pentium/Celeron processors:, Support for DDR4 2666/2400/2133 MHz memory modules
Maximum Memory	Up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics	Integrated Graphics Processor-Intel HD Graphics support:, 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz, * The DVI-D port does not support D-Sub connection by adapter., 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP 2.3, 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz, * Support for HDMI 1.4 version and HDCP 2.3.
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
DVI-D (s)	1 x DVI-D port

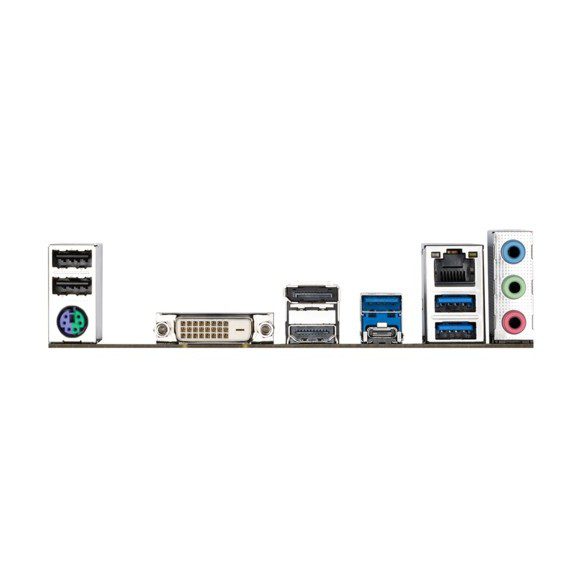

USB (s)	1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header), 4 x USB 2.0/1.1 ports available through the internal USB headers, Chipset+USB 2.0 Hub:, 2 x USB 2.0/1.1 ports on the back panel
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	CPU:, 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU), Supported by 11th Generation processors only., Chipset:, 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB), 6 x SATA 6Gb/s connectors, * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors., Intel Optane Memory Ready
Internal I/O Ports	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 6 x SATA 6Gb/s connectors, 2 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x serial port header, 1 x parallel port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Special Features	Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., @BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version), Realtek Gaming LAN Bandwidth Control Utility
