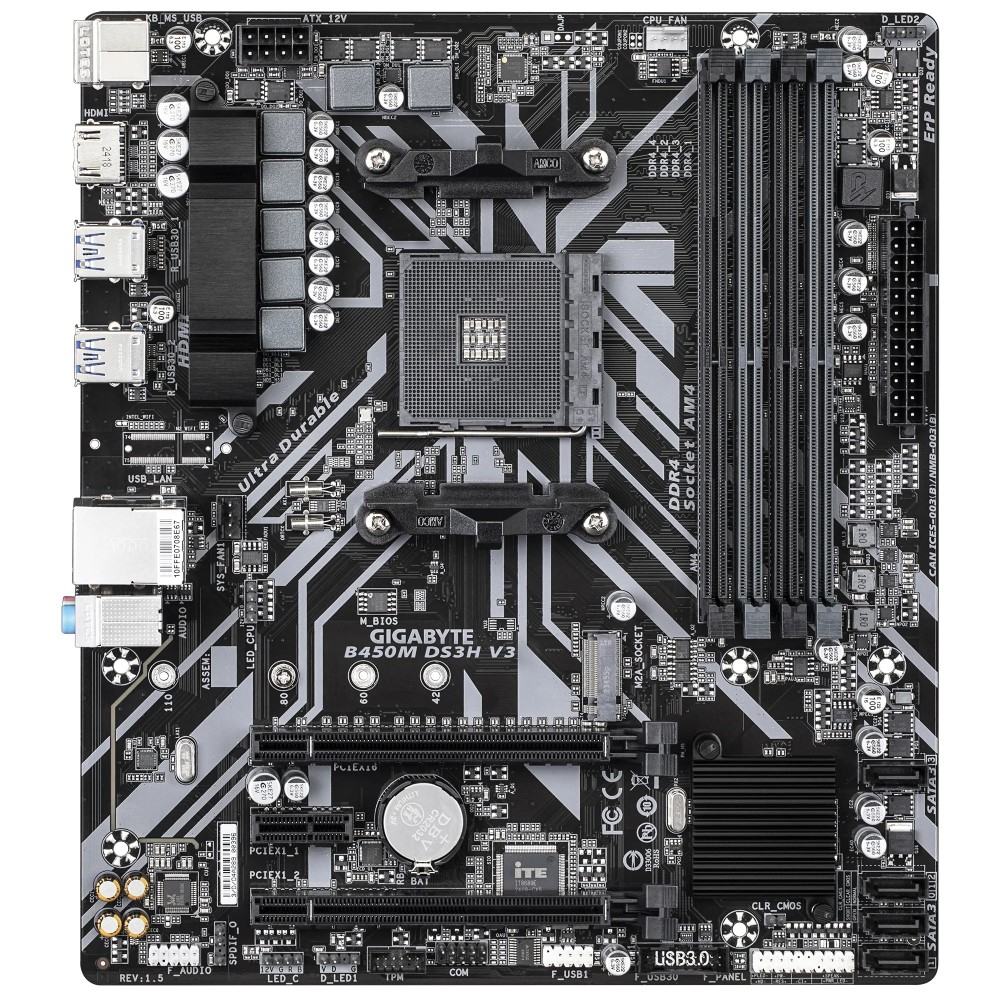

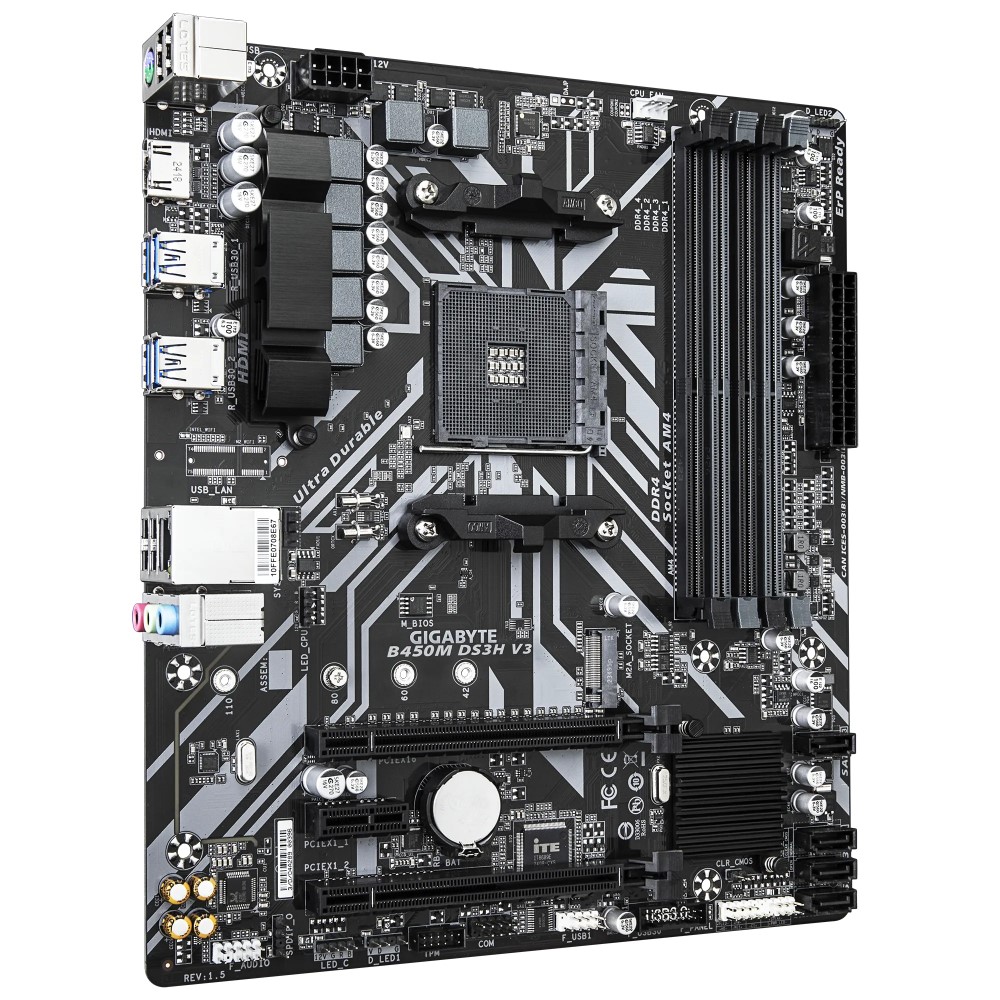

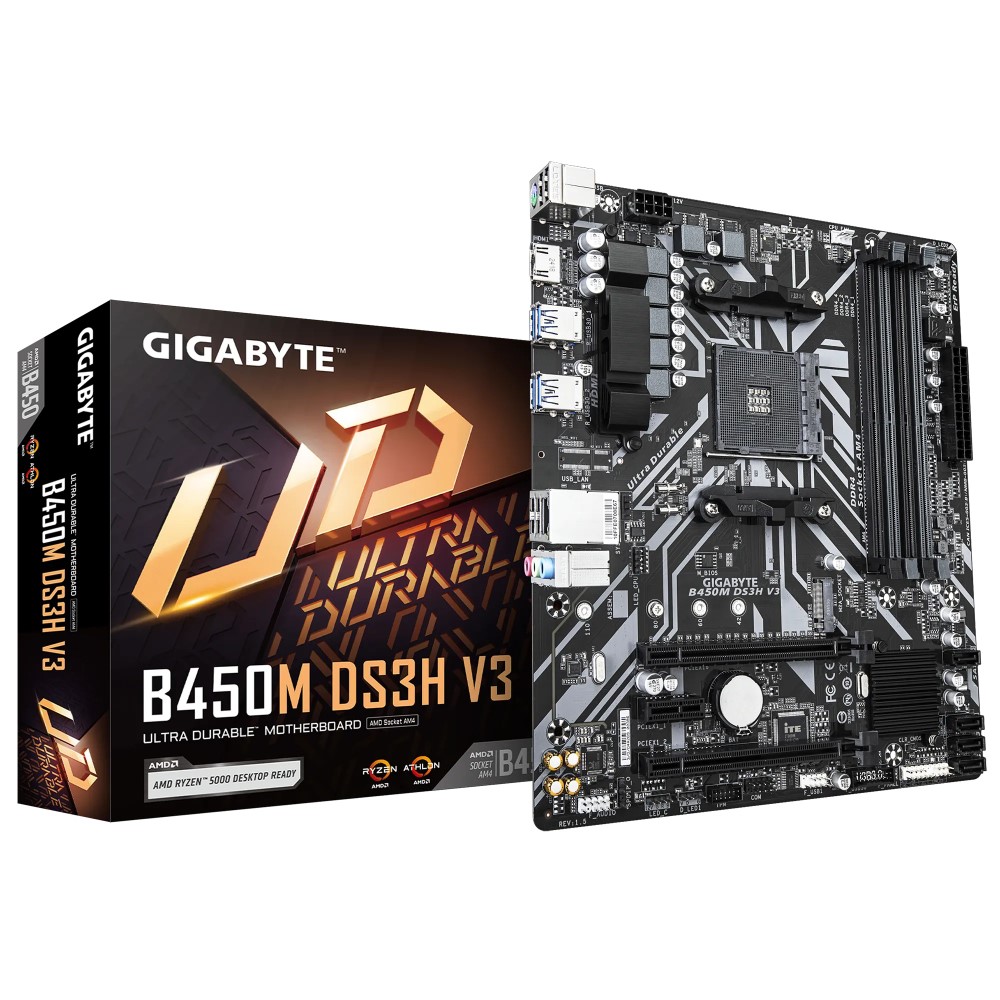

Gigabyte B450M DS3H V3 AM4 Rev 1.5 Socket Motherboard
The Gigabyte B450M DS3H V3 Rev 1.5 is an AMD AM4 motherboard featuring the B450 chipset, supporting Ryzen 5000/4000 G-Series and earlier processors. It offers 4 DDR4 slots (up to 128GB), an M.2 slot for fast storage, HDMI 2.1 output, and Realtek GbE LAN. This board is ideal for building a cost-effective yet powerful system, backed by a 1-year warranty and available with nationwide delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 27,500
Description
The Gigabyte B450M DS3H V3 Rev 1.5 is a Micro ATX motherboard built on the AMD B450 chipset, supporting a wide range of AMD AM4 processors including Ryzen 5000, 4000 G-Series, and earlier generations. With 4 DDR4 DIMM slots supporting up to 128GB of memory and an M.2 connector for high-speed SSDs, it offers a solid foundation for a versatile PC build.
Connectivity includes HDMI 2.1 for integrated graphics, Realtek GbE LAN, and USB 3.1 Gen1 ports. The board also features Gigabyte’s APP Center utilities for easy system tuning and RGB Fusion for lighting control.
- Supports AMD Ryzen 5000/4000 G-Series/3000/2000/1000 series and Athlon with Radeon Vega Graphics processors
- 4 x DDR4 DIMM sockets, up to 128GB (32GB per DIMM)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242) supporting SATA and PCIe 3.0 x4/x2 SSDs
- HDMI 2.1 port supporting up to 4096×2160@60Hz with integrated graphics
- Realtek GbE LAN and high-quality audio codec
- Micro ATX form factor (24.4cm x 21.5cm) with 1-year warranty
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Model | B450M DS3H V3 |
| CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ AMD Ryzen 5000 G-Series/ AMD Ryzen 4000 G-Series/ 3rd Generation AMD Ryzen/ 2nd Generation AMD Ryzen/ 1st Generation AMD Ryzen/ 2nd Generation Ryzen with Radeon Vega Graphics/ 1st Generation Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors (Please refer “CPU Support List” for more information) |
| Chipset | AMD B450 |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Onboard Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz(Note) * Support for HDMI 2.1 version and HDCP 2.2.(Note) Maximum shared memory of 16 GB(Note) Actual support may vary by CPU. |
| Audio | Realtek Audio codec |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support) |
| USB | Chipset: |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| BIOS | 1 x 128 Mbit flash |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot RGB Fusion Smart Backup System Information Viewer |
| Bundled Software | Norton Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
