Ease EM510B DDR4 Intel 10/11th Gen microATX Motherboard
The Ease EM510B is a microATX motherboard supporting Intel 10th and 11th Gen processors via LGA1200 socket. It features the H510 chipset, dual DDR4 slots for up to 64GB, four SATA 3.0 ports, one M.2 PCIe slot, gigabit LAN, and HD audio. Ideal for budget builds with reliable performance.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 19,440
Description

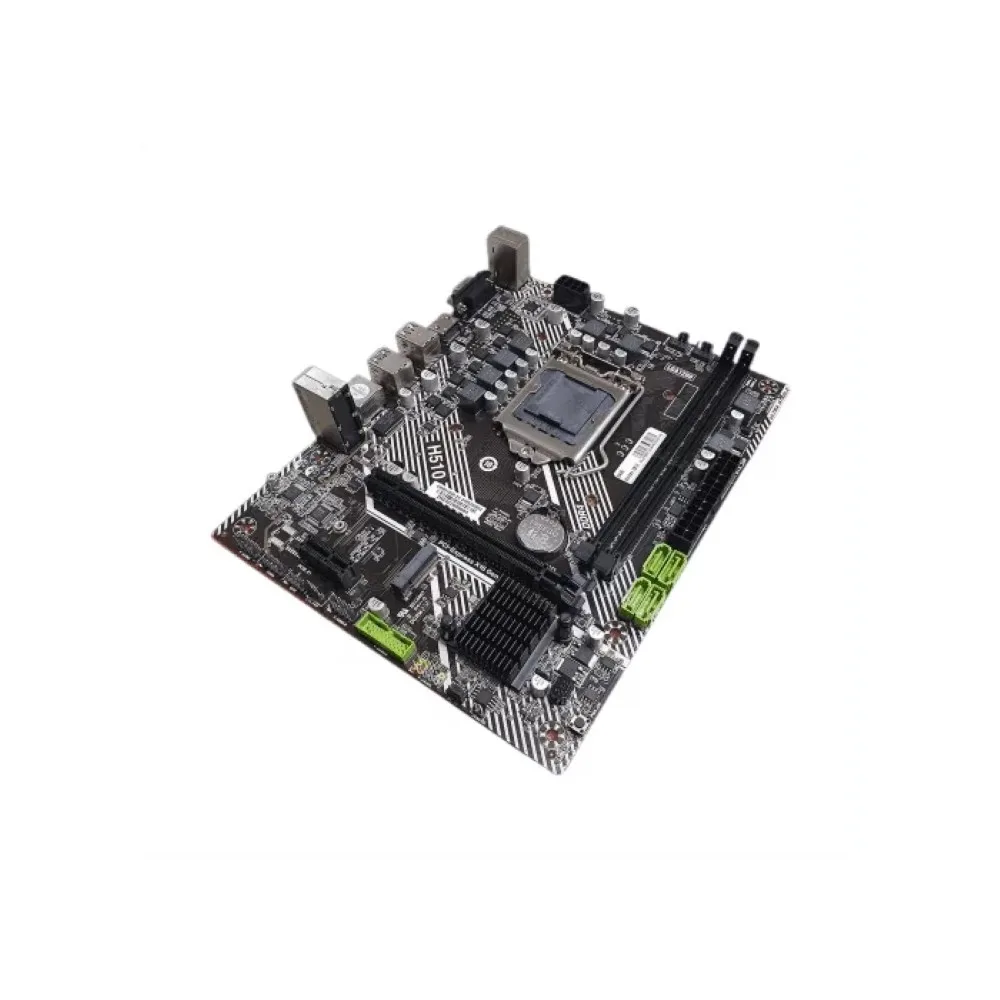

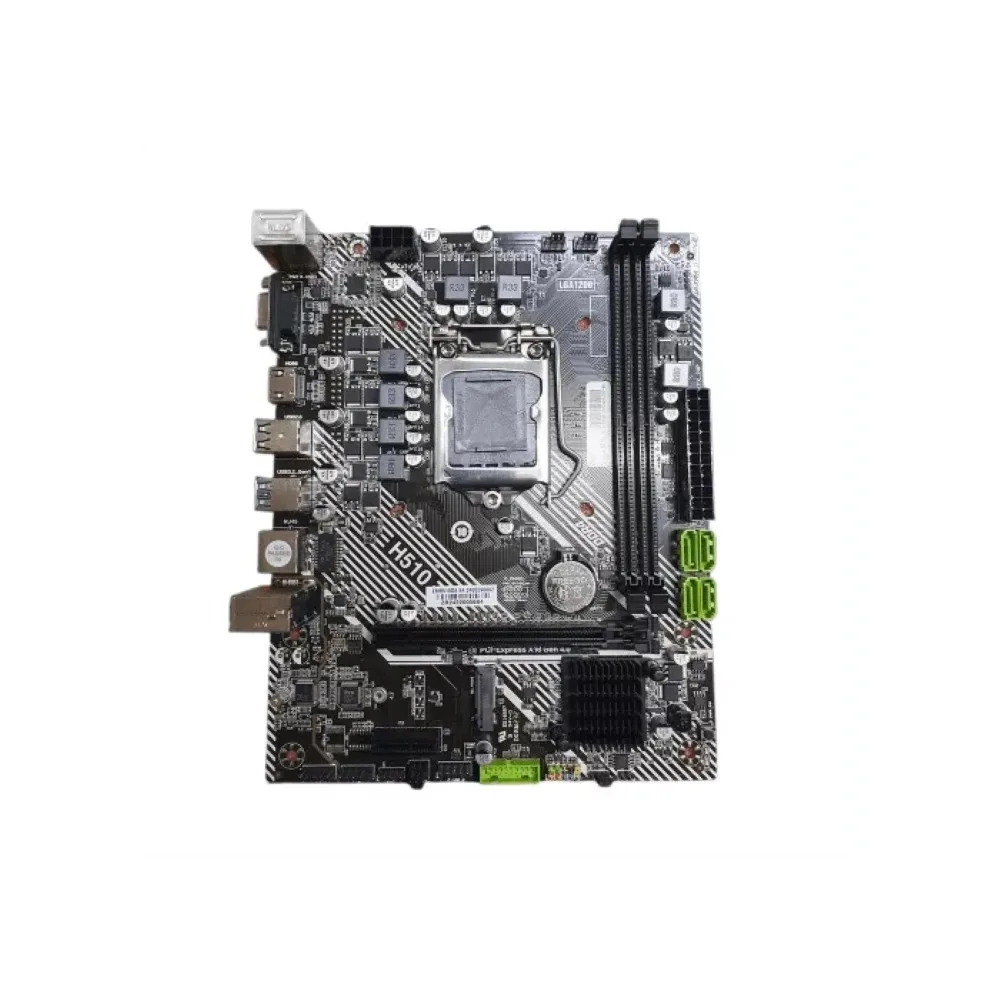

The Ease EM510B is a microATX motherboard built for Intel’s 10th and 11th Gen processors (LGA1200). It features the Intel H510 chipset, supporting Core i3/i5/i7/i9, Pentium, and Celeron CPUs. With two DDR4 DIMM slots, it can handle up to 64GB of memory at speeds up to 3200MHz.
Storage options include four SATA 3.0 ports and one M.2 slot (2242/2280) for PCIe SSDs. The board offers gigabit LAN (Realtek RTL8111E), high-definition audio, and multiple USB ports including four USB 3.0 on the back panel. A single PCIe x16 slot is available for a dedicated graphics card.
- Intel LGA1200 socket for 10th/11th Gen Core/Pentium/Celeron CPUs
- Intel H510 chipset with 2x DDR4 DIMM slots, up to 64GB
- 4x SATA 3.0 and 1x M.2 (PCIe) for storage
- Realtek Gigabit LAN and HD Audio
- 4x USB 3.0, 2x USB 2.0 on back panel
- Micro-ATX form factor (220x175mm) with 6 mounting holes
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Brand | Ease |
| Processor Support | Intel® Socket 1200 Support Intel® 10th / 11th Core i3/i5/i7/i9, Pentium® Celeron® Processor |
| Chipset | Intel@ H510 Chipset |
| Memory Support | 2 * DDR4 2133/2400/2666/2933/3200 DIMM Max 64GB |
| LAN | Support Realtek® RTL8111E 1000M Optional Realtek® RTL8106E 100M |
| Audio | Support Realtek® ALC662 High Definition Audio Optional Realtek® RTL897 High Definition Audio |
| SATA | 4 * SATA 3.0 Port 1 * M2_SSD(2242/2280) Support PCIe Signal |
| USB | 4* USB 3.0 Ports |
| Back Panel | 2 x USB 2.0 Ports |
| On-Board Pinheaders/Connectors | 1 x F_USB 3.0 Pinheader |
| Slots | 1 x PCI Express x 16 Slot |
| Form Factor | Micro-ATX(220mm X 175mm),6 mounting holes |
| Acessories (Optional) | 2 X SATA data cable |
| Model | EM510B |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
