CORSAIR AX1600i 1600W ATX 80 PLUS TITANIUM Certified Full Modular Digital ATX Power Supply
The CORSAIR AX1600i is a 1600W ATX power supply with 80 PLUS Titanium certification, delivering over 94% efficiency. It features Gallium Nitride transistors, fully modular cables, and digital control via CORSAIR LINK software. With a 140mm FDB fan, Zero RPM mode, and a 10-year warranty, it’s ideal for high-end builds requiring stable, efficient power.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 163,000
Description
The CORSAIR AX1600i is a top-tier 1600W ATX power supply designed for enthusiasts and professionals who demand uncompromising performance and efficiency. Featuring 80 PLUS Titanium certification, it delivers over 94% efficiency, reducing energy waste and heat output. This fully modular unit uses Gallium Nitride transistors and 100% Japanese capacitors for exceptional stability and longevity.
With digital control via CORSAIR LINK software, you can monitor voltages, fan speeds, and power usage in real time. The 140mm FDB fan operates silently with a Zero RPM mode at low loads. Ten PCIe connectors support multi-GPU setups, while customizable magnetic side labels let you personalize the look.
- 1600W continuous power with 80 PLUS Titanium efficiency
- Gallium Nitride transistors for superior efficiency and compact design

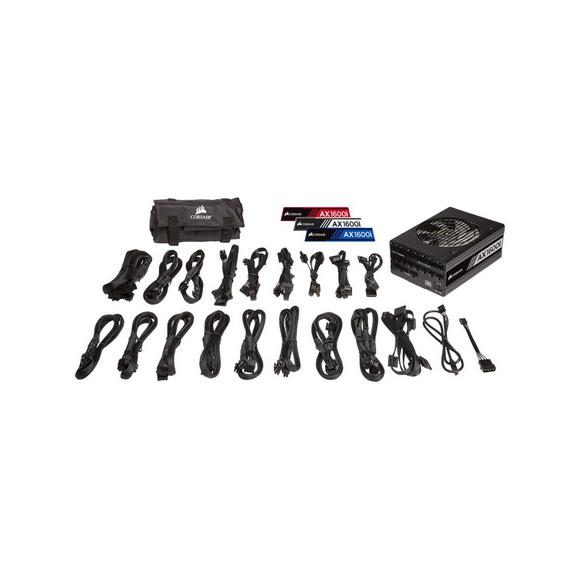

- Fully modular cables for clean builds and easy installation

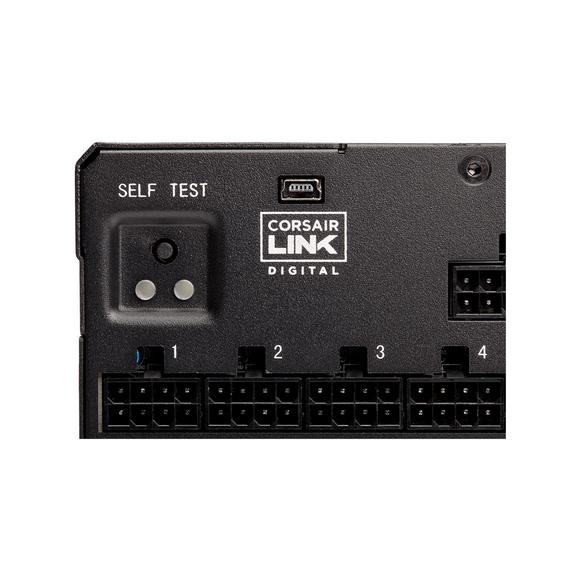

- CORSAIR LINK software for real-time monitoring and fan control

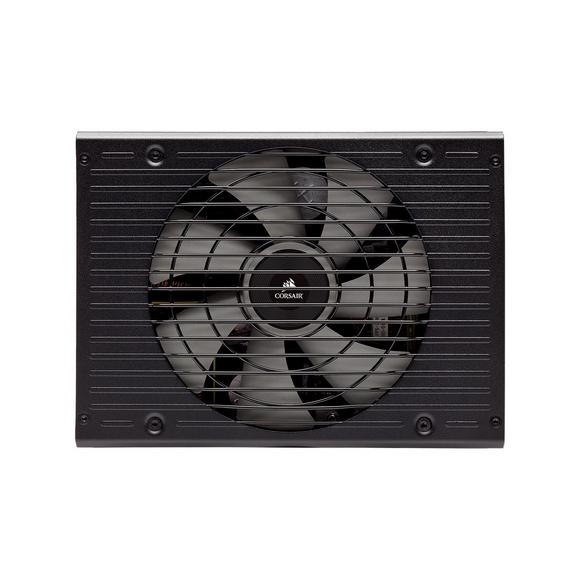

- Zero RPM fan mode for near-silent operation at low loads
- 10-year comprehensive warranty for long-term reliability
Specification
Overview
| Type | ATX |
|---|---|
| Maximum Power | 1600 W |
| Fans | 1 |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 10 x 6+2-Pin |
| SATA Power Connector | 16 |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS TITANIUM Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15 – 9 A |
| Output | +5V@30A, +3.3V@30A,, [email protected], ,, [email protected], ,, [email protected] |
| Max PSU Length | 200 mm |

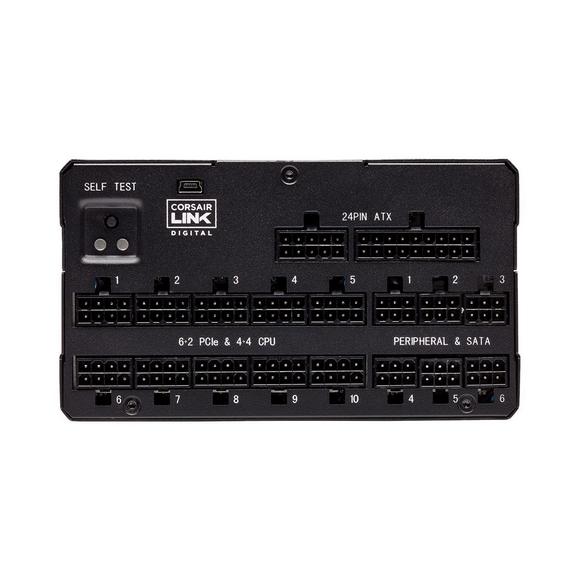

| Connectors | 1 x ATX (24PIN) (20+4) 2 x EPS/ATX12V (8-PIN) (4+4) 10 x PCI-E (8PIN) (6+2) 4 x SATA (2 SATA) 12 x SATA (4 SATA) 9 x Peripheral (4-PIN) 2 x Floppy Adapter (4PIN) 1 x USB (9PIN) |
| Features | 1600W of Ultimate Power: Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficiency power. Top Tier Components: 100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency. The Only Consumer PSU with Gallium Nitride Transistors: Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller formfactor. World Class Electrical Performance: Incredibly stable voltages and ultra-low ripple noise. Software Monitoring: CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency, with the ability to log everything for easy troubleshooting. Take Control: CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail overcurrent protection (OCP), all from your desktop. 140mm Patented FDB cooling fan: Delivers low-noise operation even at demanding loads. Zero RPM Fan Mode: For near-silent operation at low to medium loads. Choose Your Color: Three-color customizable magnetic side labels let you choose your PSU’s style to match your build. Fully Modular Cables: Use only the cables you need for quick and easy installation Built to Last: Ten-Year comprehensive CORSAIR warranty. |
| Dimensions | 3.39″ x 5.91″ x 7.87″ |
| Weight | 12.80 lbs. |
