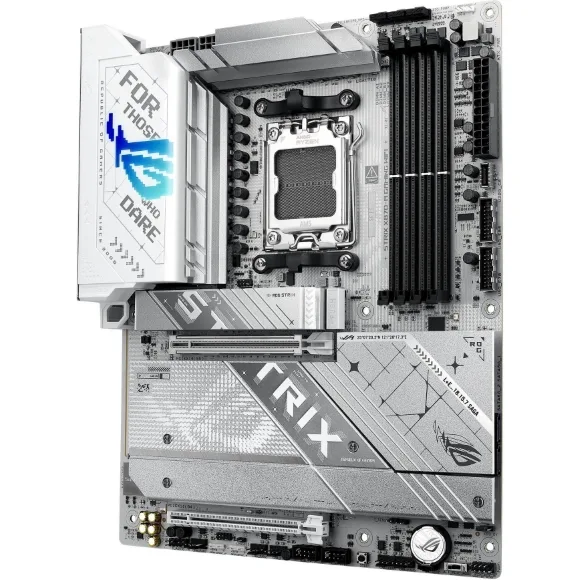

ASUS ROG STRIX X870-A GAMING WIFI AMD AM5 X870 ATX Motherboard
The ASUS ROG STRIX X870-A GAMING WIFI is an AMD X870 ATX motherboard for Ryzen 7000/8000/9000 series processors. It features DDR5 support up to 8000+ MT/s, PCIe 5.0, dual USB4 40Gbps, Wi-Fi 7, and 2.5Gb Ethernet. With SupremeFX audio, ASUS Q-Design, and comprehensive cooling, it is ideal for high-performance gaming builds. Available with nationwide delivery and cash-on-delivery in Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 130,290
Description
The ASUS ROG STRIX X870-A GAMING WIFI is a premium ATX motherboard built on the AMD X870 chipset, designed to unleash the full potential of AMD Ryzen 7000, 8000, and 9000 series processors. With support for DDR5 memory up to 8000+ MT/s (OC) and PCIe 5.0 for both graphics and storage, this board delivers exceptional performance for gaming and content creation.
Connectivity is comprehensive with dual USB4 40Gbps Type-C ports, Wi-Fi 7, Bluetooth 5.4, and 2.5Gb Ethernet. The ROG SupremeFX 7.1 audio with ALC4080 codec and Savitech amplifier ensures immersive sound. ASUS Q-Design features like Q-Release Slim, Q-Antenna, and Q-LED make building and troubleshooting effortless.
- AMD X870 chipset with AM5 socket, supports Ryzen 7000/8000/9000 series CPUs
- DDR5 memory support up to 192GB, speeds up to 8000+ MT/s (OC) with EXPO and AEMP
- PCIe 5.0 x16 slot and dual PCIe 5.0 M.2 slots for ultra-fast storage
- Dual USB4 40Gbps (Type-C with DP Alt), Wi-Fi 7, Bluetooth 5.4, 2.5Gb LAN
- ROG SupremeFX 7.1 audio with ALC4080 codec and Savitech amplifier
- ASUS Q-Design: Q-Release Slim, Q-Antenna, Q-LED, BIOS FlashBack, Clear CMOS
Specification
Overview
| Brand | ASUS |
|---|---|
| Model | ROG STRIX X870-A GAMING WIFI |
| Chip | X870 |
| Form Factor | ATX |
| Socket | AM5 |
| Connectivity | WiFi |
| Warranty | 1 Year |
| Best Seller Ranking | #32 in AMD Motherboards |
| Part Number | 90MB1IF0-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin |
| Memory Standard | DDR5 4400 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Supports up to 8000+MT/s with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory*, Dual channel memory architecture |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors, 1 x PCIe 5.0 x16 slot |
| PCI Express 4.0 x16 | AMD Ryzen 8000 Series Desktop Processors, 1 x PCIe 4.0 x16 slot |
| SATA 6Gb/s | 2 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors*, M.2_1 slot, type 2242/2260/2280 |
| SATA RAID | * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. |
| Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*, – Impedance sense for front and rear headphone outputs |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |
| Back I/O Ports | 2 x USB4 ports, 6 x USB 10Gbps port |
| Onboard USB | 1 x USB 20Gbps connector, 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports |
| Other Connectors | Fan and Cooling Related, 1 x 4-pin CPU Fan header |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Windows 11 | Supported |
| Features | Extreme Engine Digi+, – 5K Black metallic capacitors |
| Package Contents | Cables, 2 x SATA 6Gb/s cables |
| Form Factor | ATX |
