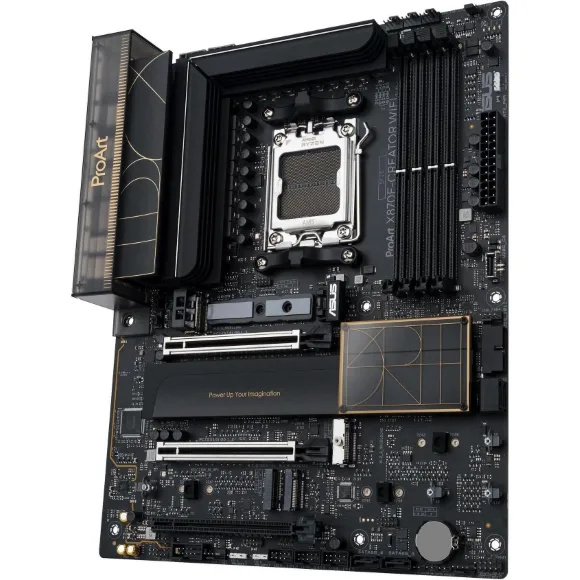

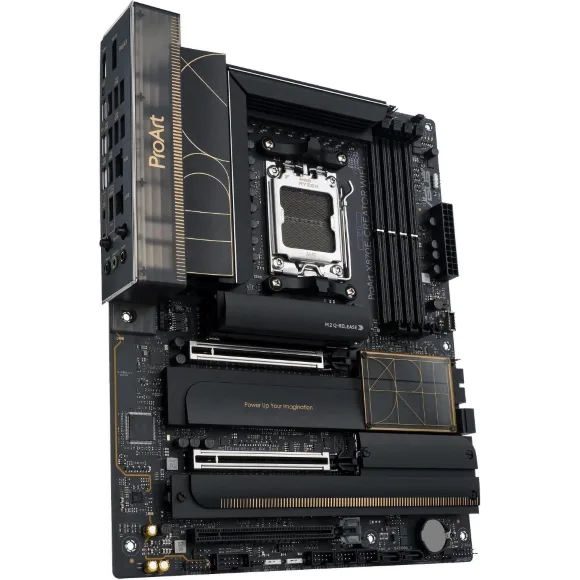

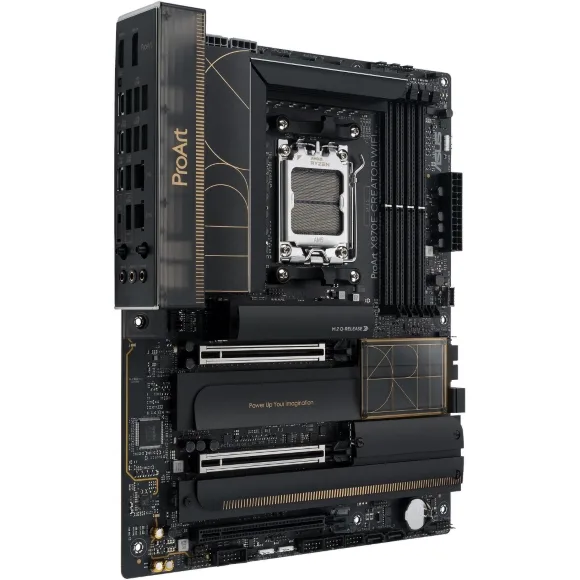

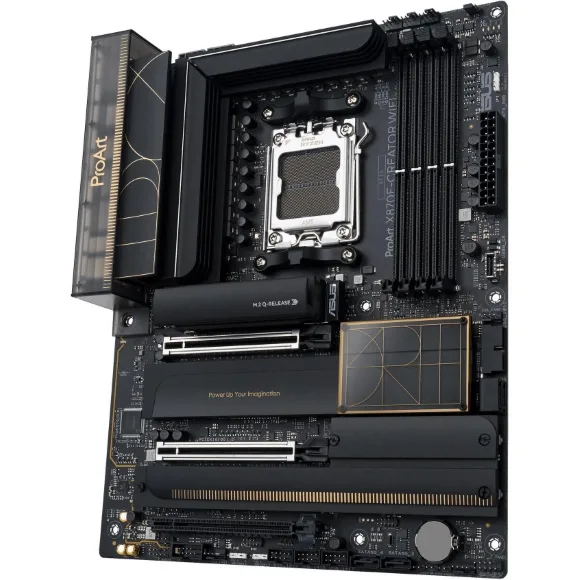

ASUS ProArt X870E-CREATOR WIFI AMD AM5 X870E ATX Motherboard
The ASUS ProArt X870E-CREATOR WIFI is an AMD AM5 ATX motherboard built for creators, featuring dual PCIe 5.0 x16 slots, four M.2 slots (two PCIe 5.0), dual 10Gb and 2.5Gb Ethernet, Wi-Fi 7, and dual USB4 40Gbps ports. It supports Ryzen 7000/8000/9000 series CPUs and up to 256GB DDR5 memory, with ASUS 5X Protection III for durability. Available with nationwide delivery and cash-on-delivery in Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 191,900
Description
The ASUS ProArt X870E-CREATOR WIFI is a high-performance AMD AM5 ATX motherboard designed for creators and professionals who demand uncompromising stability and connectivity. Built on the AMD X870E chipset, it supports Ryzen 7000, 8000, and 9000 series processors, with dual PCIe 5.0 x16 slots and four M.2 slots (two PCIe 5.0 and two PCIe 4.0) for blazing-fast storage and graphics.
Connectivity is a standout feature, with dual Ethernet (10Gb and 2.5Gb), Wi-Fi 7, Bluetooth 5.4, and dual USB4 40Gbps Type-C ports. The motherboard also includes a DisplayPort input for seamless multi-monitor setups. ASUS 5X Protection III ensures long-term reliability, while Q-Design features like M.2 Q-Release and PCIe Slot Q-Release Slim simplify builds.
- AMD AM5 socket supports Ryzen 7000/8000/9000 series CPUs with DDR5 memory up to 256GB
- 2 x PCIe 5.0 x16 slots (x16 or x8/x8) and 1 x PCIe 4.0 x16 slot (x4)
- 4 x M.2 slots: 2 x PCIe 5.0 x4, 2 x PCIe 4.0 x4; 4 x SATA 6Gb/s with RAID support
- Dual Ethernet: Marvell AQtion 10Gb and Intel 2.5Gb; Wi-Fi 7 and Bluetooth 5.4

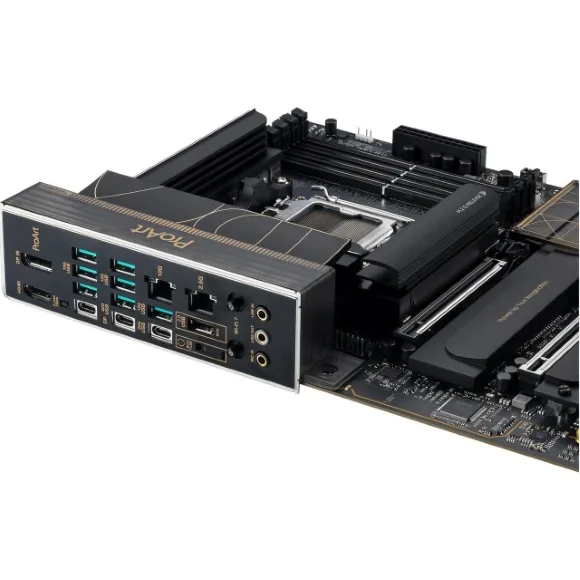

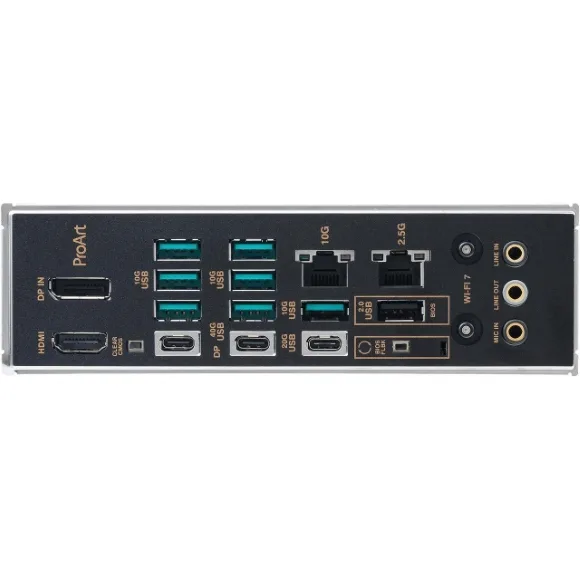

- Back I/O: 2 x USB4 40Gbps Type-C, 1 x USB 20Gbps Type-C, 7 x USB 10Gbps Type-A, DisplayPort input, HDMI
- ASUS 5X Protection III, Q-Design (Q-Latch, Q-Release, Q-Slide), and BIOS FlashBack
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Best Seller Ranking | #48 in, AMD Motherboards |
| Brand | ASUS |
| Model | ProArt X870E-CREATOR WIFI |
| Part Number | 90MB1IG0-M0AAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
| Number of Memory Slots | 4x288pin |
| Memory Standard | DDR5 4400 |
| Maximum Memory Supported | 256GB |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking |
| PCI Express 5.0 x16 | AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors, 2 x PCIe 5.0 x16 slots** |
| PCI Express 4.0 x16 | AMD X870 Chipset, 1 x PCIe 4.0 x16 slot |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 7000 & 8000 & 9000 Series Desktop Processors*, M.2_1 slot, type 2242/2260/2280 |
| SATA RAID | *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. |
| Audio Chipset | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*, – Impedance sense for front and rear headphone outputs |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 1 x Marvell AQtion 10Gb Ethernet, 1 x Intel 2.5Gb Ethernet |
| Wireless LAN | Bluetooth 5.4 |
| Bluetooth | Yes |
| Back I/O Ports | 2 x USB4 with ASMedia ASM4242 USB4 controller ports, 1 x USB 20Gbps port |
| Onboard USB | 1 x USB 20Gbps connector, 1 x USB 5Gbps header support 2 additional USB 3.2 Gen 1 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Features | ASUS 5X PROTECTION III, – DIGI+ VRM |
| Package Contents | Cables, 1 x DisplayPort cable |
| Form Factor | ATX |
