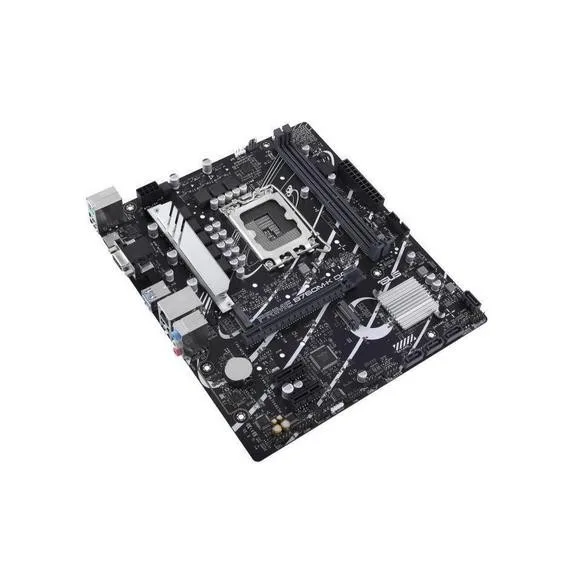

ASUS Prime B760M-K D4, LGA 1700 mATX Motherboard

Name: ASUS Prime B760M-K D4, LGA 1700 mATX Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0064
Price: 30300 PKR
Availability: InStock

SKU: MC-MBD-ASU-0064 Category: Intel Motherboards Brand: Asus

The ASUS Prime B760M-K D4 is a micro-ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket, supporting 12th and 13th Gen Intel processors. It offers dual-channel DDR4 memory up to 64GB, PCIe 4.0 connectivity, dual M.2 slots, and 2.5Gb Ethernet, making it a solid choice for reliable everyday performance. Available with nationwide delivery in Pakistan and cash-on-delivery option.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 30,300

Compare

Add to wishlist

Description

The ASUS Prime B760M-K D4 is a reliable micro-ATX motherboard built on the Intel B760 chipset, supporting 12th and 13th Gen Intel Core processors via the LGA 1700 socket. It offers a solid foundation for everyday computing and productivity tasks, with dual-channel DDR4 memory support up to 64GB and speeds up to 5333MHz (OC).

Connectivity includes PCIe 4.0 slots, dual M.2 slots for fast SSDs, four SATA ports, and a Realtek 2.5Gb Ethernet port for high-speed networking. The motherboard also features comprehensive rear I/O with USB 3.2 Gen 1 and USB 2.0 ports, HDMI and VGA outputs, and legacy PS/2 connectivity.

Intel B760 chipset with LGA 1700 socket for 12th/13th Gen Core processors
Dual-channel DDR4 memory, up to 64GB, supports XMP and overclocking up to 5333MHz
PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots for expansion
Two M.2 slots (PCIe 4.0 x4) and four SATA 6Gb/s ports with RAID support
Realtek 2.5Gb Ethernet and 7.1-channel HD audio
ASUS 5X Protection III, Q-Design features, and Aura Sync RGB headers

Specification

Overview

Warranty	2 Years
Brand	ASUS
Model	PRIME B760M-K D4
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipset	Intel B760
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
Memory Feature	DDR4, 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory, Supports Intel Extreme Memory Profile (XMP), Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express x1	2 x PCI Express 4.0 x1
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel B760 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
SATA RAID	0/1/5/10
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – Supports up to 24-Bit/192 kHz playback, Audio Features, – Audio Shielding, – Premium audio capacitors, – Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels
Max LAN Speed	2.5Gbps
Back I/O Ports	4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x VGA port, 1 x HDMI port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port
Onboard USB	1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin Chassis Fan header, Storage related, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Miscellaneous, 2 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header
Form Factor	Micro ATX
Dimensions (W x L)	9.6″ x 8.3″
Power Pin	1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector
Windows 11	Supported
Features	ASUS 5X PROTECTION III, – DIGI+ VRM, – LANGuard, – Overvoltage Protection, – SafeSlot Core, – Stainless-Steel Back I/O, ASUS Q-Design, – Q-DIMM, – Q-LED Core, – Q-Slot, ASUS EZ DIY, – ProCool, ASUS Thermal Solution, – VRM heatsink design, Aura Sync, – Aura RGB header, – Addressable Gen 2 headers
Package Contents	Cables, 2 x SATA 6Gb/s cables, Miscellaneous, 1 x I/O Shield, 2 x M.2 anchors, Documentation, 1 x User guide
Form Factor	Micro-ATX
