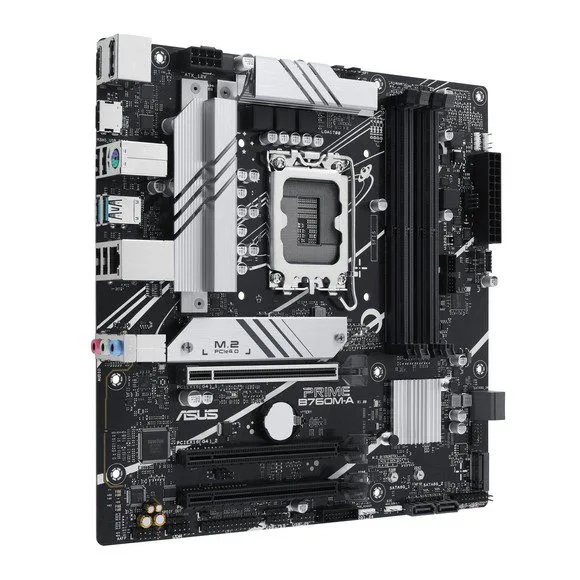

ASUS PRIME B760M-A LGA 1700 Micro-ATX Motherboard
The ASUS PRIME B760M-A is a Micro-ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket, supporting DDR5 memory up to 7200 MHz and 128GB capacity. It offers dual M.2 PCIe 4.0 slots, Realtek 2.5Gb Ethernet, and multiple display outputs, making it ideal for high-performance builds in Karachi, Lahore, and Islamabad with nationwide delivery and cash-on-delivery options.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 39,390
Description
The ASUS PRIME B760M-A is a Micro-ATX motherboard built on the Intel B760 chipset with an LGA 1700 socket, supporting 12th, 13th, and 14th Gen Intel Core processors. It features dual-channel DDR5 memory support up to 128GB, with speeds reaching 7200 MHz via four DIMM slots, ensuring fast and responsive performance for gaming and productivity.
Connectivity includes two M.2 slots (PCIe 4.0 x4), four SATA III ports, and a Realtek 2.5Gb Ethernet controller for high-speed networking. The board offers multiple display outputs (DisplayPort 1.4 and dual HDMI 2.1) and a 7.1-channel Realtek audio codec with S/PDIF out. With PCIe 4.0 x16 slots, USB 3.2 Gen 1 headers, and comprehensive cooling options (CPU, pump, and system fan headers), it is ready for versatile builds.
- Intel B760 chipset with LGA 1700 socket for 12th/13th/14th Gen CPUs
- Dual-channel DDR5 memory support up to 128GB, speeds up to 7200 MHz
- Two M.2 slots (PCIe 4.0 x4) and four SATA III ports for storage
- Realtek 2.5Gb Ethernet and 7.1-channel audio with S/PDIF
- DisplayPort 1.4 and dual HDMI 2.1 outputs for multi-monitor setups
- Micro-ATX form factor with comprehensive cooling and RGB headers
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| USB | 1 x, 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port), 2 x, 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port), 2 x, 2.0 Header (Supports 4 USB-A Port), 1 x, 2.0 Header (Supports 1 USB-A Port) |
| Thunderbolt | None |
| Display | 1 x, DisplayPort 1.4 Output, 2 x, HDMI 2.1 Output |
| Audio | 1 x, S/PDIF |
| Ethernet / Controller | 1 x, Realtek 2.5Gigabit |
| PS/2 | 1 x, Combo |
| Memory Slots | 4 x, 288-Pin |
| Memory Support | DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4 x, SATA III |
| M.2 | 2 x, M Key 2242, 2260, 2280 (PCIe 4.0 x4) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
| Expansion Slots | 1 x, PCIe 4.0 x16, 1 x, PCIe 4.0 x16 (x4 mode), 1 x, PCIe 4.0 x16 (x1 mode) |
| Air Cooling | 1 x, 4-Pin CPU, 2 x, 4-Pin System |
| Liquid Cooling | 1 x, 4-Pin Pump |
| Power Connectors | 1 x, 24-Pin Mainboard, 1 x, 8-Pin ATX |
| Security | Chassis Intrusion, TPM Header |
| LED Header | 4 x, RGB |
| Diagnostics | Clear CMOS |
| Audio Codec | Realtek (7.1-Channel) |
| DAC | None |
| Bluetooth | None |
| OS Compatibility | Windows 10 to 11 (64-Bit Only), *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Form Factor | Micro-ATX |
| Dimensions | 9.6 x 9.6″ / 24.4 x 24.4 cm |
| Package Weight | 2.36 lb |
| Box Dimensions (LxWxH) | 10.5 x 10.4 x 2″ |
| Form Factor | Micro-ATX |
