ASUS Prime B760-PLUS Intel® B760 13th and 12th Gen LGA 1700 ATX Motherboard

Name: ASUS Prime B760-PLUS Intel® B760 13th and 12th Gen LGA 1700 ATX Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0083
Price: 45000 PKR
Availability: InStock

SKU: MC-MBD-ASU-0083 Category: Intel Motherboards Brand: Asus

The ASUS Prime B760-PLUS is an Intel B760 ATX motherboard for 13th and 12th Gen LGA 1700 processors. It supports DDR5 memory up to 128GB, PCIe 5.0, three M.2 slots, and 2.5Gb Ethernet. With ASUS 5X Protection III and Aura Sync RGB, it delivers reliable performance and customization for your build. Available with nationwide delivery across Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 45,000

Compare

Add to wishlist

Description

The ASUS Prime B760-PLUS is an ATX motherboard built on the Intel B760 chipset, supporting 13th and 12th Gen Intel Core processors (LGA 1700). It features DDR5 memory support up to 128GB with overclocking capabilities, PCIe 5.0 for the latest graphics cards, and three M.2 slots for high-speed storage. With ASUS 5X Protection III and Q-Design elements, this board delivers robust performance and ease of use for gamers and professionals alike.

Connectivity options include 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, HDMI, DisplayPort, and VGA outputs. The board also supports Aura Sync RGB lighting with dedicated headers. Ideal for building a powerful and reliable PC in Pakistan, it comes with nationwide delivery and cash-on-delivery options.

Intel B760 chipset with LGA 1700 socket for 13th & 12th Gen CPUs
4 x DDR5 slots, up to 128GB, with overclocking support up to 7200MHz
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1
3 x M.2 slots (PCIe 4.0) and 4 x SATA 6Gb/s with RAID 0/1/5/10
Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, HDMI, DisplayPort
ASUS 5X Protection III, Q-Design, Aura Sync RGB headers

Specification

Overview

Warranty	1 Year
Brand	ASUS
Series	Prime
Model	PRIME B760-PLUS
Part Number	90MB1EF0-M0AAY0
CPU Socket Type	LGA 1700
CPU Type	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0, Refer to www.asus.com for CPU support list., ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B760
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express 3.0 x16	2 x PCIe 3.0 x1 slots
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset, M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
SATA RAID	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – Supports up to 24-Bit/192 kHz playback, Audio Features, – Audio Shielding, – Premium audio capacitors, – Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed	1 x Realtek 2.5Gb Ethernet

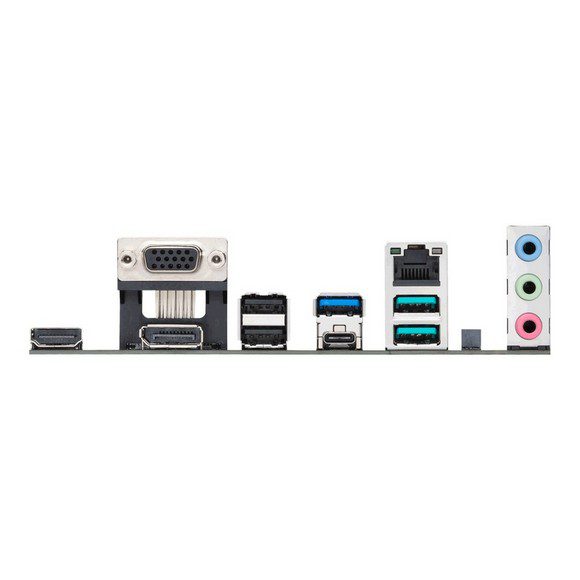

Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®), 2 x USB 3.2 Gen 2 ports (2 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI™ port, 1 x Vertical M.2 slot (Key E), 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB, 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ), 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thunderbolt™ (USB4®) header
Form Factor	ATX
Dimensions (W x L)	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Windows 11	Windows® 11, Windows® 10 64-bit
Features	ASUS 5X PROTECTION III, – DIGI+ VRM, – LANGuard, – Overvoltage Protection, – SafeSlot Core+, – Stainless-Steel Back I/O, ASUS Q-Design, – Q-DIMM, – Q-LED Core, – Q-Slot, ASUS Thermal Solution, – M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – ProCool, Aura Sync, – Aura RGB header, – Addressable Gen 2 headers
Form Factor	ATX
