MSI PRO Z690-A WIFI DDR5 LGA 1700 ATX Intel Motherboard (Black Box) Open Box
The MSI PRO Z690-A WIFI is an open-box ATX motherboard for 13th/12th Gen Intel processors, featuring DDR5 memory support up to 6400+ MHz, PCIe 5.0, four M.2 slots, Intel Wi-Fi 6E, and 2.5G LAN. It includes a 3-month warranty and is available with nationwide delivery and cash-on-delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 41,990
Description
The MSI PRO Z690-A WIFI is an ATX motherboard built for 13th and 12th Gen Intel Core processors on the LGA 1700 socket, featuring the Intel Z690 chipset. It supports DDR5 memory with overclocking up to 6400+ MHz and offers extensive connectivity including PCIe 5.0, four M.2 slots, and USB 3.2 Gen 2×2 Type-C.
This open-box board comes with a 3-month warranty and includes premium features like a 2.5G LAN, Intel Wi-Fi 6E, Bluetooth 5.2, and Audio Boost for studio-grade sound. The extended heatsink design and M.2 Shield Frozr ensure stable performance under heavy loads.
- Supports 13th/12th Gen Intel Core, Pentium Gold, Celeron (LGA 1700)
- DDR5 memory, 4 slots, up to 192GB, overclockable to 6400+ MHz
- 1x PCIe 5.0 x16, 2x PCIe 3.0 x16, 1x PCIe 3.0 x1
- 4x M.2 slots (PCIe 4.0/3.0 & SATA), 6x SATA 6Gb/s
- Intel Wi-Fi 6E, Bluetooth 5.2, 2.5G LAN
- RGB lighting, 6-layer PCB with 2oz copper, Audio Boost
Specification
Overview
| Brand | MSI |
|---|---|
| Model | PRO Z690-A WIFI |
| Socket | LGA 1700 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Max Memory Speed | 6400+(OC) MHz |
| PCIe Version | 5.0 |
| M.2 Interface | Lightning Gen4 x4 |
| WiFi | Built-in |
| Operating System | None |
| Warranty | 3 Months |
| CPU Socket Type | LGA 1700 |
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors*, May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. |
| Chipset | Intel Z690 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x288pin |
| Memory Standard | DDR5 1R 4800 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | 4 x M.2 slots: |
| Intel Optane Ready | Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I225-V |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel WIFI 6E, 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

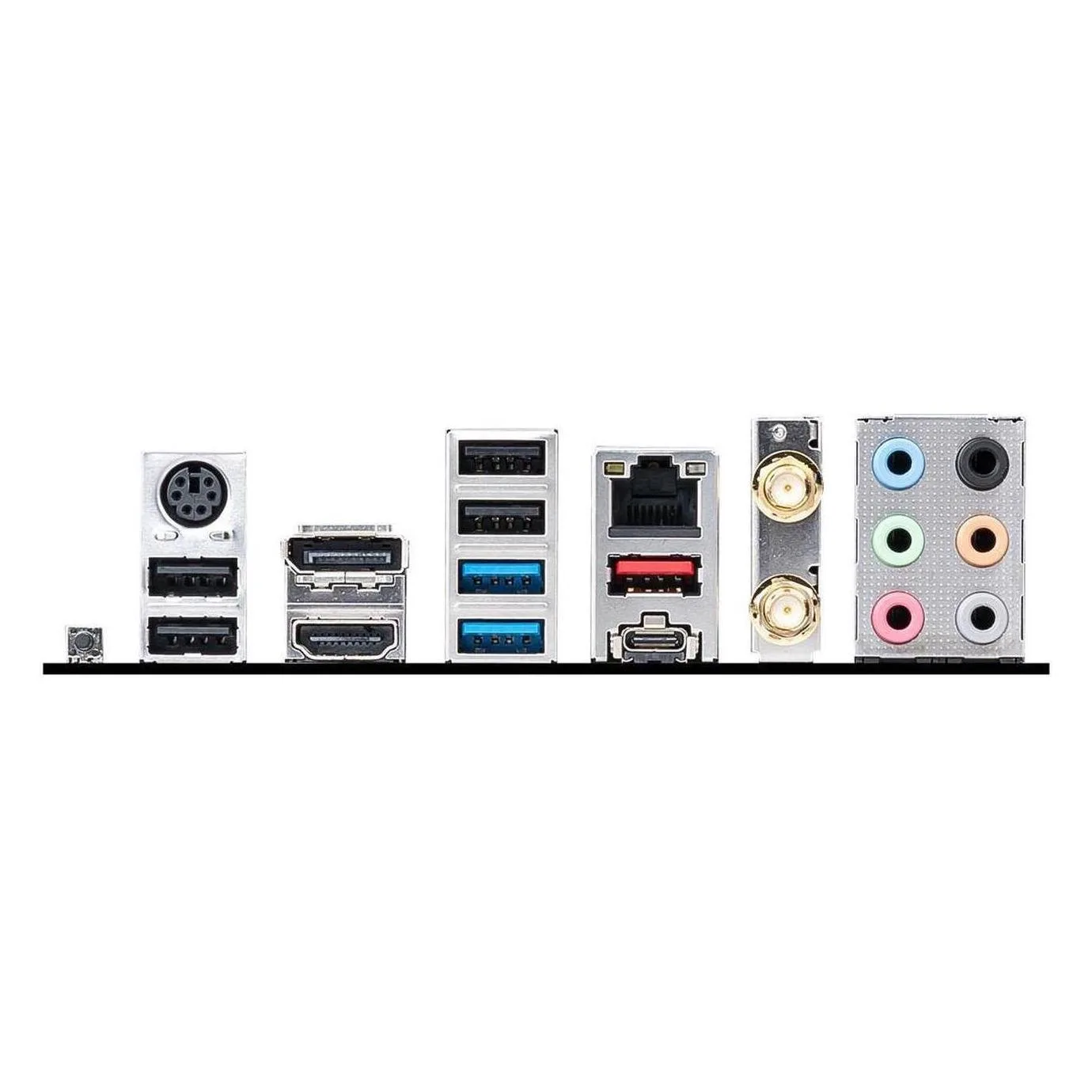

| Back I/O Ports | 1 x DisplayPort, 1 x HDMI |
| Onboard USB | 1 x USB 3.2 Gen 2 10Gbps Type-C port, 2 x USB 3.2 Gen 1 5Gbps connectors |
| Other Connectors | 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump fan connector |
| Windows 11 | Supported |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connector |
| Features | Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket |
| Form Factor | ATX |
| Memory Type | DDR5 |
