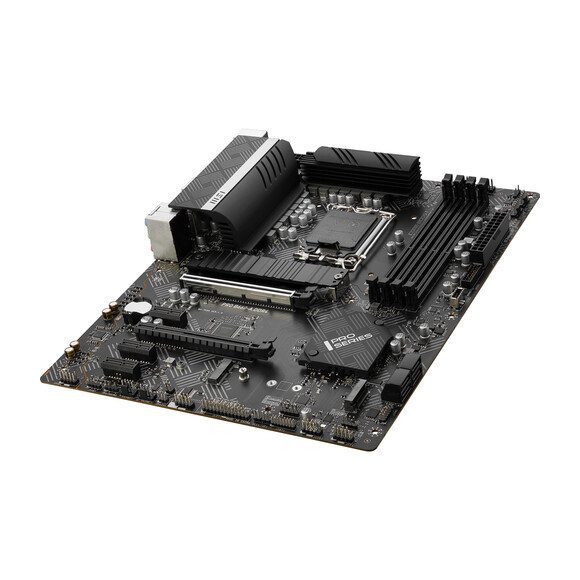

MSI PRO B660-A DDR4 LGA 1700 ATX Motherboard

Name: MSI PRO B660-A DDR4 LGA 1700 ATX Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0082
Price: 44000 PKR
Availability: InStock

SKU: MC-MBD-MSI-0082 Category: Intel Motherboards Brand: MSI

The MSI PRO B660-A DDR4 LGA 1700 ATX Motherboard delivers a stable and feature-rich platform for Intel 12th and 13th Gen processors. It supports up to 128GB of DDR4 memory, dual PCIe 4.0 M.2 storage, and 2.5 Gigabit Ethernet. With HDMI 2.1, DisplayPort, and VGA outputs, it’s ready for diverse setups. Available with nationwide delivery across Pakistan including Karachi, Lahore, and Islamabad.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 44,000

Compare

Add to wishlist

Description

The MSI PRO B660-A DDR4 LGA 1700 ATX Motherboard is a robust and reliable foundation for your next Intel 12th or 13th Gen build. Built on the Intel B660 chipset, it supports DDR4 memory up to 4800 MHz with a maximum capacity of 128 GB across four slots, ensuring compatibility with a wide range of memory kits for smooth multitasking and gaming.

This motherboard features dual PCIe 4.0 M.2 slots for lightning-fast storage, one of which also supports SATA III SSDs. The 2.5 Gigabit LAN controller provides a significant boost over standard Gigabit Ethernet, ideal for high-bandwidth tasks. With a comprehensive set of connectivity options including USB 3.2 Gen 1 Type-C and Type-A headers, HDMI 2.1, DisplayPort 1.4, and VGA, it offers flexibility for various peripherals and displays.

Intel B660 Chipset with LGA 1700 socket for 12th/13th Gen Intel Core processors
4 x DDR4 memory slots supporting up to 128GB and speeds up to 4800 MHz (OC)
2 x M.2 slots (PCIe 4.0 x4) and 4 x SATA III ports for storage
Intel 2.5 Gigabit LAN for high-speed networking
Multiple display outputs: HDMI 2.1, DisplayPort 1.4, VGA
PCIe 4.0 x16 slot, PCIe 3.0 x16 (x4), and 3 x PCIe x1 expansion slots

Specification

Overview

Chipset	Intel B660
CPU Socket	LGA 1700
USB	1 x, USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port), 1 x, USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port), 1 x, USB 2.0 Header (Supports 1 USB Type-A Port)
Thunderbolt	None
Display	1 x, DisplayPort 1.4, 1 x, HDMI 2.1, 1 x, VGA
Audio	None
Ethernet / Controller	1 x, Intel 8125BG 2.5Gigabit
PS/2	1 x, PS/2
Memory Slots	4 x, 288-Pin
Memory Support	DDR4 2133, 2400, 2666, 3200, 3333, 3400, 3600, 3733, 3800, 4000, 4266, 4400, 4600, 4800 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered
SATA	4 x, SATA III
M.2	1 x, M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4), 1 x, M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support	Yes
RAID Support	RAID 0, 1, 5, 10 (SATA)
Expansion Slots	1 x, PCIe 4.0 x16, 1 x, PCIe 3.0 x16 (x4 mode), 3 x, PCIe x1
Multi-GPU Support	AMD CrossFireX
Air Cooling	1 x, 4-Pin CPU, 5 x, 4-Pin System
Liquid Cooling	1 x, 4-Pin Pump
Power Connectors	1 x, 24-Pin Mainboard, 1 x, 8-Pin ATX, 1 x, 4-Pin ATX
Security	Chassis Intrusion, TPM Header
LED Header	3 x, RGB
Diagnostics	Clear CMOS
Add-On	1 x, Thunderbolt Header
I/O Connection Headers	AAFP
Audio Codec	Realtek ALC897 (7.1-Channel)
Bluetooth	None
Wi-Fi	None
Module Support	1 E Key M.2
Form Factor	ATX
Dimensions	12.0 x 9.6″ / 30.5 x 24.4 cm
Package Weight	3.185 lb
Box Dimensions (LxWxH)	13.6 x 11.8 x 2.7″
Form Factor	ATX
Memory Type	DDR4
