MSI MPG Z690 EDGE WIFI DDR4 LGA 1700 ATX Motherboard

Name: MSI MPG Z690 EDGE WIFI DDR4 LGA 1700 ATX Motherboard
Brand: MSI
SKU: MC-MBD-MSI-0096
Price: 85500 PKR
Availability: InStock

SKU: MC-MBD-MSI-0096 Category: Intel Motherboards Brand: MSI

The MSI MPG Z690 EDGE WIFI DDR4 is an ATX motherboard for Intel LGA 1700 CPUs, featuring the Z690 chipset and DDR4 memory support up to 5200 MHz. It offers four M.2 slots, six SATA ports, 2.5 Gigabit LAN, Wi-Fi 6, and Bluetooth 5.2, making it a solid choice for high-performance builds with nationwide delivery available across Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 85,500

Compare

Add to wishlist

Description

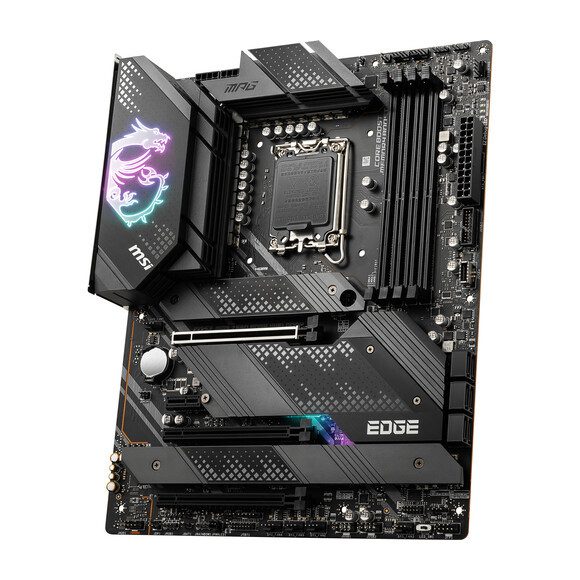

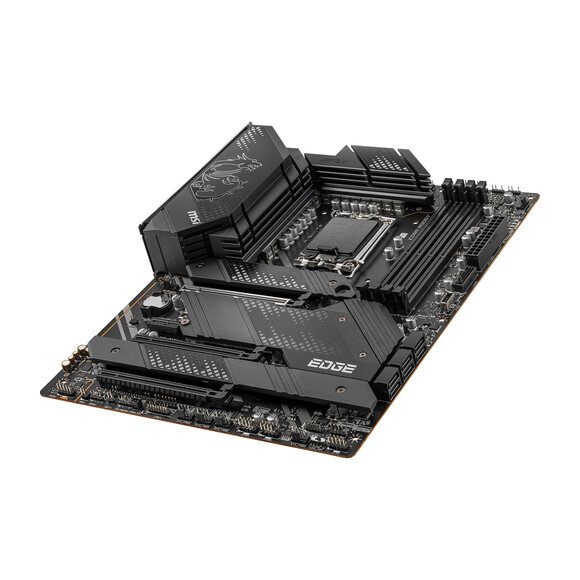

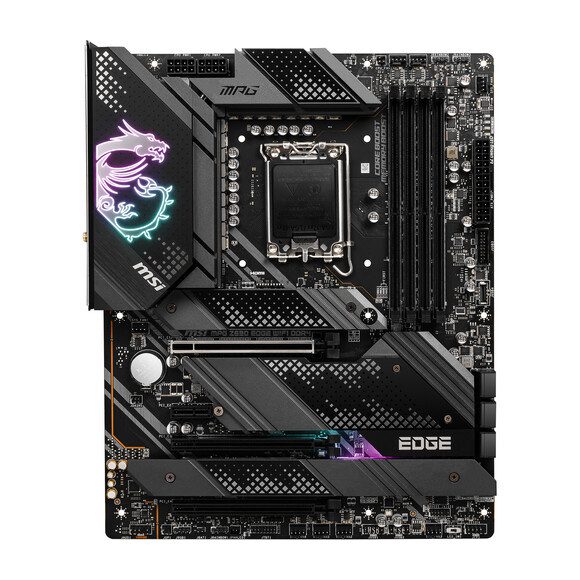

The MSI MPG Z690 EDGE WIFI DDR4 is a premium ATX motherboard built for Intel’s 12th Gen LGA 1700 processors. Featuring the Intel Z690 chipset, it supports DDR4 memory up to 5200 MHz with a maximum capacity of 128 GB, offering a balance of performance and value for gamers and content creators.

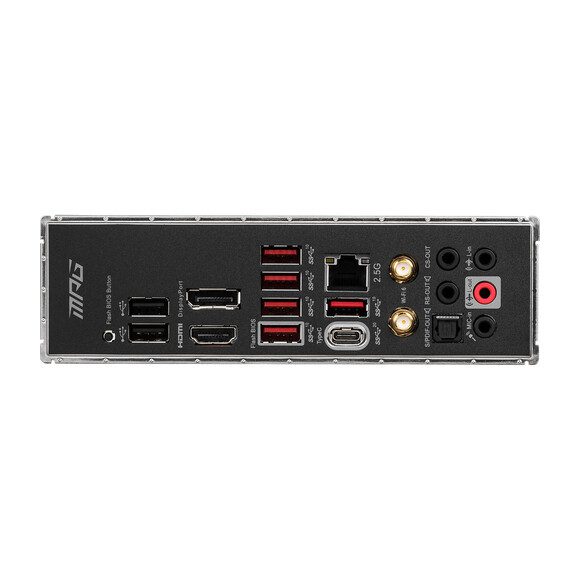

Connectivity is robust with dual PCIe 4.0 M.2 slots, six SATA III ports, and a 2.5 Gigabit Ethernet controller. Integrated Wi-Fi 6 and Bluetooth 5.2 provide fast wireless connections, while the rear I/O includes DisplayPort 1.4 and HDMI 2.1 for integrated graphics. The board also features a BIOS Flashback button for easy firmware updates without a CPU.

Intel Z690 chipset with LGA 1700 socket for 12th Gen processors
Dual-channel DDR4 memory support up to 128 GB (5200 MHz OC)
Four M.2 slots (three PCIe 4.0 x4, one supports SATA) and six SATA III ports
2.5 Gigabit LAN, Wi-Fi 6 (802.11ax), and Bluetooth 5.2
PCIe 5.0 x16 slot for next-gen graphics cards
BIOS Flashback button and 2-digit debug LED for easy troubleshooting

Specification

Overview

Chipset	Intel Z690
CPU Socket	LGA 1700
USB	2 x, 2.0 Header (Supports 4 USB-A Port), 1 x, 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port), 1 x, 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Thunderbolt	None
Display	1 x, DisplayPort 1.4, 1 x, HDMI 2.1
Audio	1 x, S/PDIF, 5 x, 1/8″ / 3.5 mm
Ethernet / Controller	1 x, Intel I225-V 2.5Gigabit
Wi-Fi Antenna	2 x, Connector
Buttons	BIOS Flashback
Memory Slots	4 x, 288-Pin
Memory Support	DDR4 2133, 2666, 2933, 3200, 4000, 4400, 4800, 5200 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered
SATA	6 x, SATA III
M.2	1 x, M Key 2260, 2280, 22110 (PCIe 4.0 x4), 1 x, M Key 2260, 2280 (PCIe 4.0 x4), 2 x, M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
U.2	None
Optane Memory Support	Yes
RAID Support	RAID 0, 1, 10 (SATA), RAID 0, 1, 5, 10 (M.2)
Expansion Slots	1 x, PCIe 5.0 x16 (x16 mode), 2 x, PCIe 3.0 x16 (x4 mode), 1 x, PCIe 3.0 x1
Multi-GPU Support	AMD CrossFireX
Air Cooling	6 x, 4-Pin System, 1 x, 4-Pin CPU
Liquid Cooling	1 x, 4-Pin Pump
Power Connectors	1 x, 24-Pin Mainboard, 2 x, 8-Pin ATX
Security	Chassis Intrusion, TPM Header
LED Header	1 x, RGB
Diagnostics	2-Digit Debug LED, Clear CMOS
Front Panel I/O	AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio Codec	Realtek ALC4080 (8-Channel)
Bluetooth	5.2
Wi-Fi	Wi-Fi 6 (802.11ax) with MU-MIMO Support
Module Support	1 E Key M.2
Form Factor	ATX
Dimensions	12.0 x 9.6″ / 30.5 x 24.4 cm
Package Weight	5.075 lb
Box Dimensions (LxWxH)	13.5 x 11.4 x 2.9″
Form Factor	ATX
Memory Type	DDR4
