MSI MPG X870E CARBON WIFI AM5 ATX Gaming Motherboard
The MSI MPG X870E CARBON WIFI is an AM5 ATX gaming motherboard featuring the AMD X870E chipset, supporting Ryzen 9000/8000/7000 series CPUs. It offers DDR5 memory up to 8400+ MT/s, dual PCIe 5.0 slots, quad M.2 slots (two PCIe 5.0), 5Gbps LAN, Wi-Fi 7, and extensive USB connectivity. With a robust VRM design, comprehensive cooling, and EZ DIY features, it’s built for high-performance gaming and content creation.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 144,999
Description

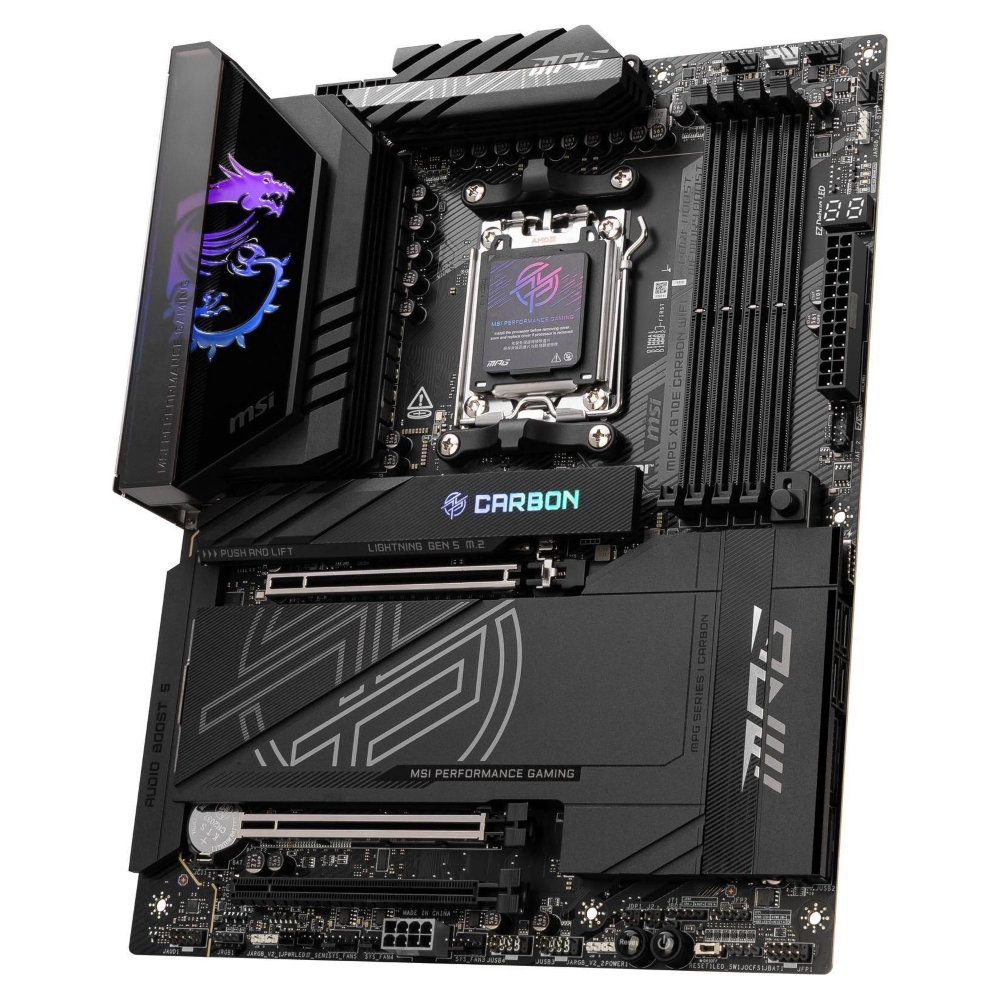

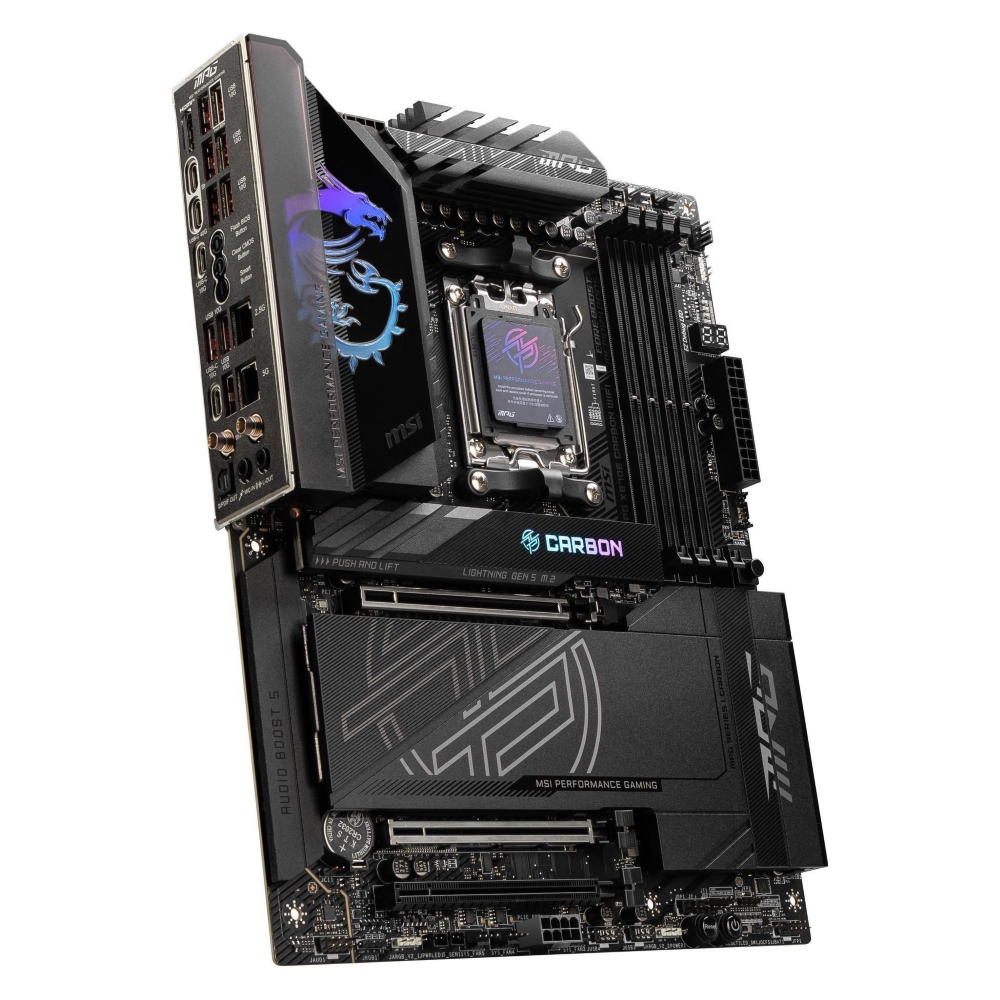

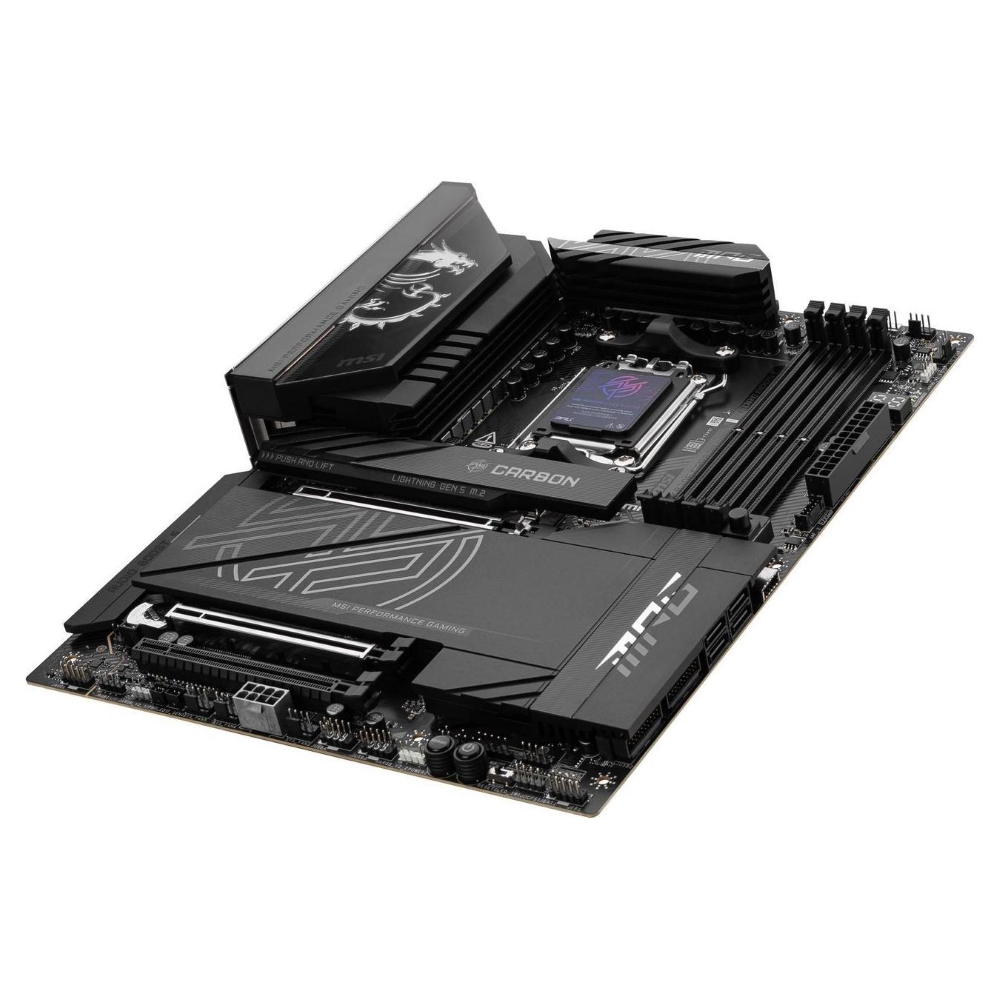

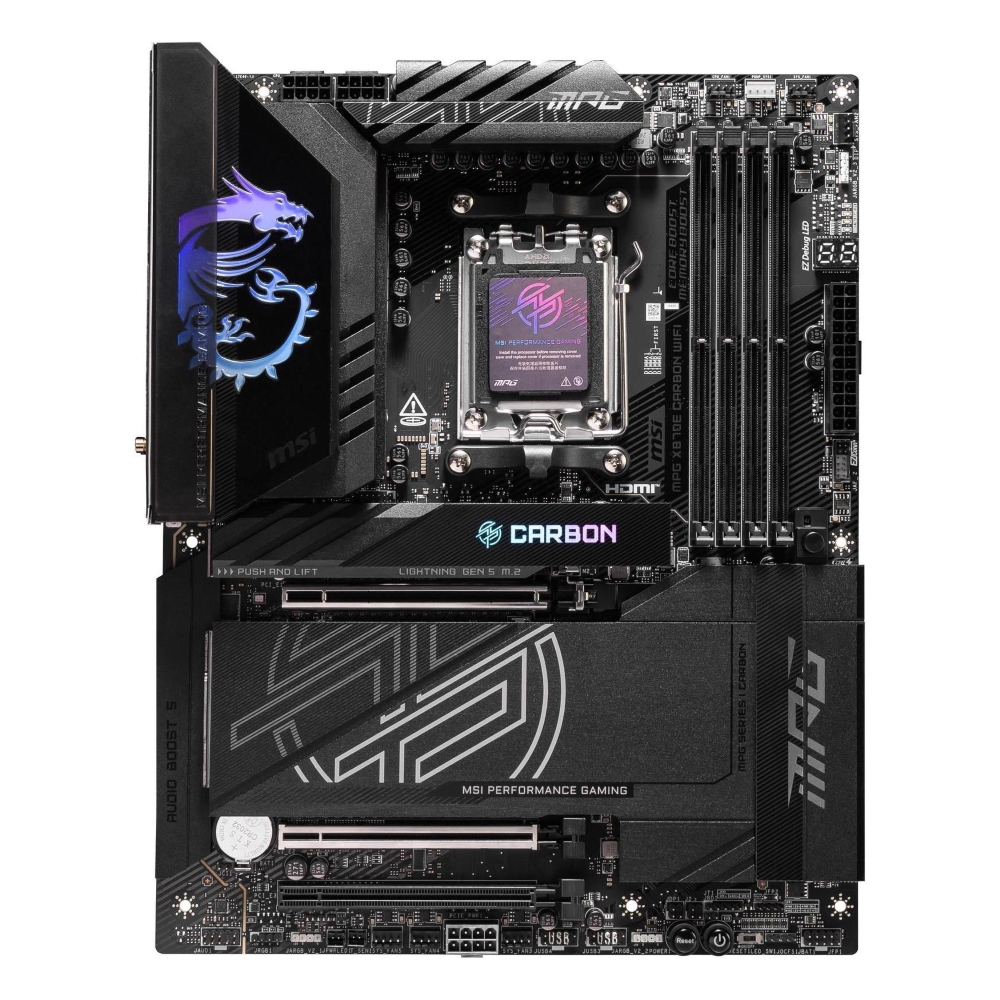

The MSI MPG X870E CARBON WIFI is a premium ATX gaming motherboard built for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. Powered by the AMD X870E chipset, it delivers cutting-edge performance with support for DDR5 memory up to 8400+ MT/s (OC) and dual PCIe 5.0 slots for next-gen graphics and storage.
This motherboard is equipped with a robust 18+2+1 power stage design, dual 8-pin CPU power connectors, and a comprehensive cooling solution including a heat-pipe design and M.2 Shield Frozr. It features quad M.2 slots (two PCIe 5.0), 5Gbps and 2.5Gbps LAN, Wi-Fi 7, Bluetooth 5.4, and extensive USB connectivity with two 40Gbps Type-C ports. EZ DIY features like Magnetic M.2 Shield Frozr, EZ M.2 Clip II, and pre-installed I/O shield simplify building.
- AMD X870E chipset with AM5 socket, supports Ryzen 9000/8000/7000 series
- DDR5 memory support up to 8400+ MT/s (OC), 4 slots, max 256GB
- Dual PCIe 5.0 x16 slots (x16/x0 or x8/x4) and quad M.2 slots (2x PCIe 5.0, 2x PCIe 4.0)
- 5Gbps Realtek 8126 + 2.5Gbps Realtek 8125 LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4
- Rich I/O: 2x USB 40Gbps Type-C, 2x USB 10Gbps Type-C, multiple USB 10Gbps Type-A
- Premium audio with Realtek ALC4080 7.1-channel, EZ DIY features, and Mystic Light RGB
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Best Seller Ranking | #6 in AMD Motherboards |
| Brand | MSI |
| Model | MPG X870E CARBON WIFI |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870E |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| Memory Feature | Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s, Ryzen 9000 Series Processors max. overclocking frequency:, – 1DPC 1R Max speed up to 8400+ MT/s, – 1DPC 2R Max speed up to 6400+ MT/s, – 2DPC 1R Max speed up to 6400+ MT/s, – 2DPC 2R Max speed up to 4800+ MT/s |
| PCI Express 5.0 x16 | PCI_E1 slot (From CPU): Support up to PCIe 5.0 x16, PCI_E2 slot (From CPU): Support up to PCIe 5.0 x4, * Supports x16/x0 or x8/x4 (For Ryzen 9000/7000 Series processors), * Supports x8/x0 (For Ryzen 7 8700G and Ryzen 5 8600G processor), * Supports x4/x0 (For Ryzen 5 8500G processor) |
| PCI Express x4 | PCI_E3 slot (From X870E chipset): Supports up to PCIe 4.0 x1 |
| Other Slots | * PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot. |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | 4 x M.2 slots (Key M), M2_1 slot (From CPU), – Supports up to PCIe 5.0 x4, – Supports 2260/2280 storage devices, M2_2 slot (From CPU), – Supports up to PCIe 5.0 x4, – Supports 2260/2280 storage devices, M2_3 slot (From Chipset), – Supports up to PCIe 4.0 x4, – Supports 2280/22110 storage devices, M2_4 slot (From Chipset, – Supports up to PCIe 4.0 x4, – Supports 2260/2280 storage devices, * PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot. |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Additional RAID Controller | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC4080 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126 5Gbps LAN controller |
| Second LAN Chipset | Realtek 8125 2.5Gbps LAN controller |
| Max LAN Speed | 5Gbps + 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

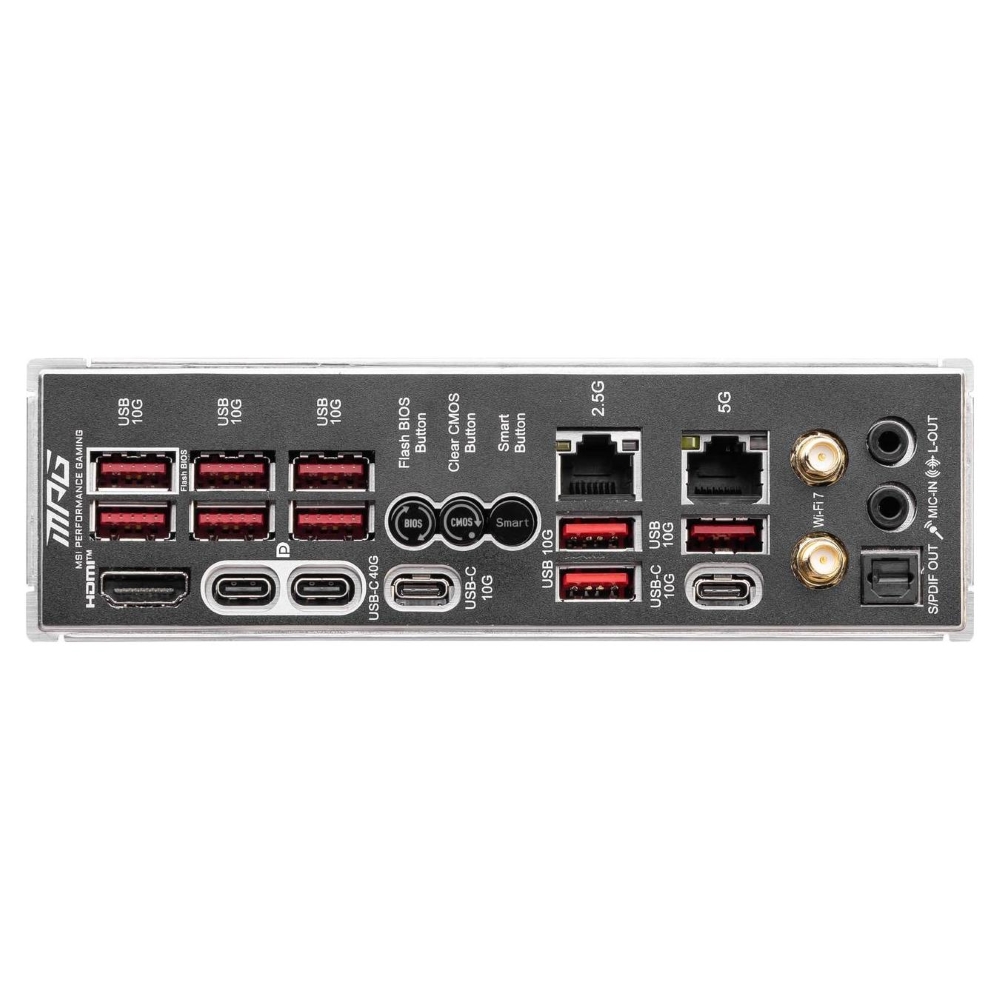

| Back I/O Ports | 2 x USB 10Gbps Type A (From X870E Chipset), 4 x USB 10Gbps Type A (From RTS5420), 1 x HDMI port, 2 x USB 40Gbps Type-C (From CPU/ASM4242), 2 x USB 10Gbps Type C (1 from CPU/ 1 from X870E Chipset), 3 x USB 10Gbps Type A (1 from CPU/ 1 from X870E Chipset), 1 x Clear CMOS Button, 1 x Flash BIOS Button, 1 x Smart Button, 1 x 5G LAN (RJ45) port, 1 x 2.5G LAN (RJ45) port, 2 x Wi-Fi Antenna connectors, 2 x audio jacks, 1 x Optical S/PDIF Out connector |
| Other Connectors | AMD X870 Chipset, – 1x USB 3.2 Gen 2×2 20Gbps Type-C connectors Supports up to 27W fast charging, – 2x USB 3.2 Gen 1 5Gbps connectors Supports additional 4 USB 3.2 Gen 1 5Gbps ports, – 2x USB 2.0 Type-A connectors Supports additional 4 USB 2.0 ports, Fan Connectors, – 1x 4-pin CPU fan connector, – 1x 4-pin PUMP_SYS fan connectors, – 5x 4-pin system fan connectors, System Connectors, – 1x Front panel audio connector, – 2x System panel connectors, – 1x Chassis Intrusion connector, – 1x 2-pin Thermal sensor connectors, – 1x EZ Conn-Header V2 (JAF_2), Jumpers, – 1x Clear CMOS jumper, – 1x OC safe boot jumper |
| Form Factor | ATX |
| LED Lighting | 1 x 4-pin RGB LED connector, 3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors, 4 x EZ Debug LED, 1 x 2-Digit Debug Code LED |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Power Connector (ATX_PER), 2 x 8-pin Power Connector (CPU_PWR), 1 x 8-pin Power Connector (PCIE_PWR) |
| BIOS Feature | 1 x 256 Mb flash, UEFI AMI BIOS, ACPI 6.4, SMBIOS 3.7, Multi-language |
| Software | Drivers, MSI Center, Acrobat, Adobe Creative Cloud, AIDA64 Extreme-MSI Edition, CPU-Z MSI GAMING, MSI App Player(BlueStacks), Norton 360, Voicemod |
| Features | EZ DIY, – Magnetic M.2 Shield Frozr, – EZ M.2 Clip II, – EZ PCIe Release, – Smart Button, – Flash BIOS Button, – Clear CMOS Button, – Pre-installed I/O Shield, – EZ Antenna, – EZ Front Panel Cable, – EZ Conn-Design, – PCI-E Steel Armor II, – EZ Digi-Debug LED, – EZ LED Control (Switch), Thermal Features, – Heat-pipe Design, – Extended Heatsink Design, – M.2 Shield Frozr, – 7W/mK MOSFET thermal pad, – 5W/mK Extra choke pad, – FAN Headers (CPU*1 + PUMP_SYS*1 + SYSTEM*5), Performance, – Core Boost, – VRM Power Design (VCore, – M.2 Shield Frozr, – 7W/mK MOSFET thermal pad, – Choke thermal pad, – Fan headers (CPU + PUMP + SYSTEM), Performance, – Core Boost, – VRM Design, – Dual CPU Power, – Memory Force, – Lightning Gen 5 PCI-E Slot, – Lightning Gen 5 M.2 Slot, – Lightning Gen 4 PCI-E Slot, – Lightning Gen 4 M.2 Slot, – Front USB Type-C, – USB with PD (27W/Front Type-C(, – Supplemental PCIe Power Connector, – Server Grade PCB, – 2oz Copper thickened PCB, Audio, – Audio Boost 5, RGB, – Mystic Light, – Mystic Light Extension (RGB), – Mystic Light Extension (A-RGB V2), – Ambient Devices Support, BIOS, – Click BIOS X, – AI Boost, – Performance Preset |
| Form Factor | ATX |
