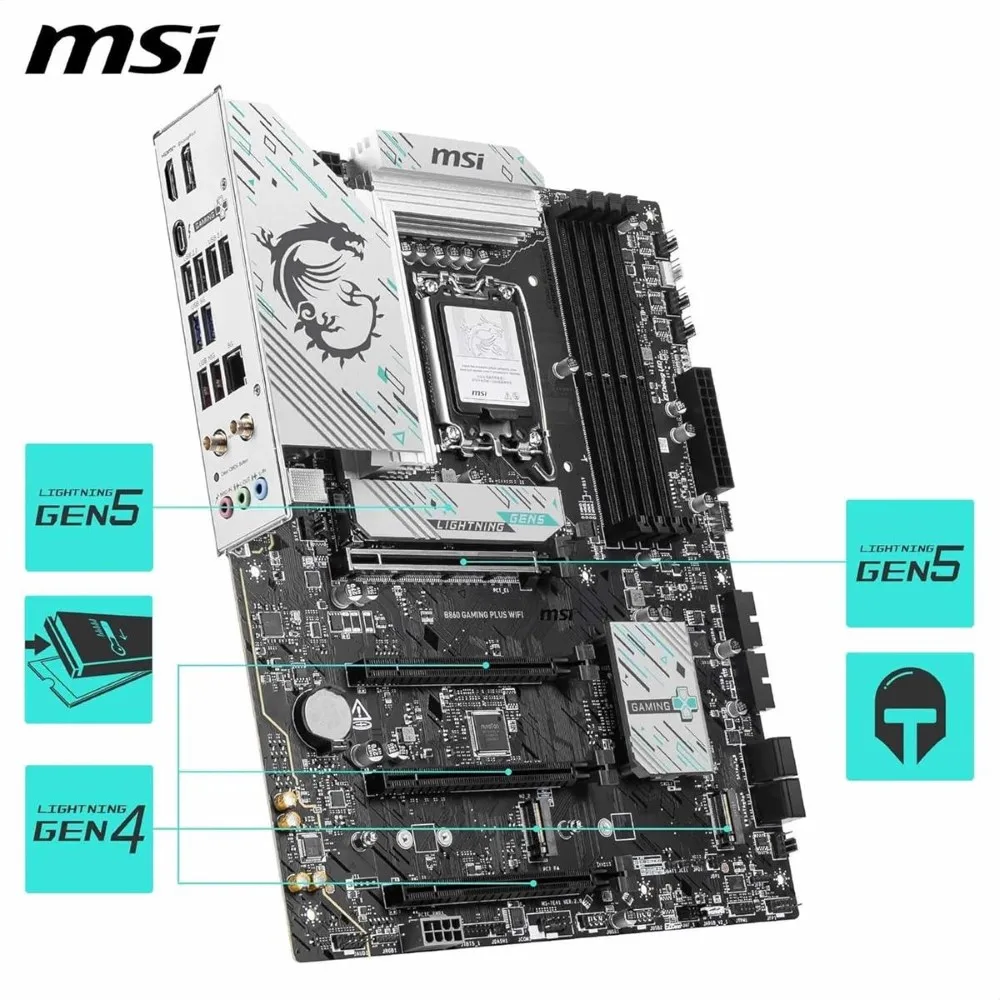

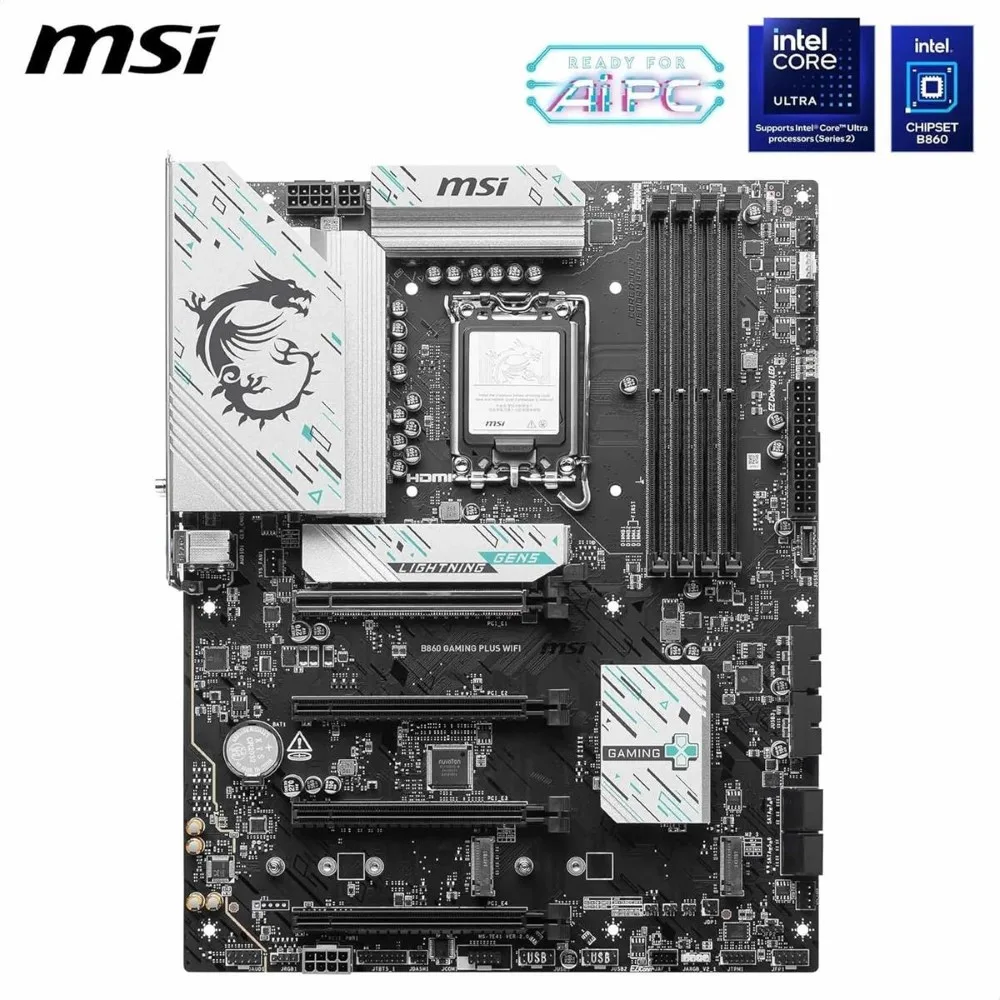

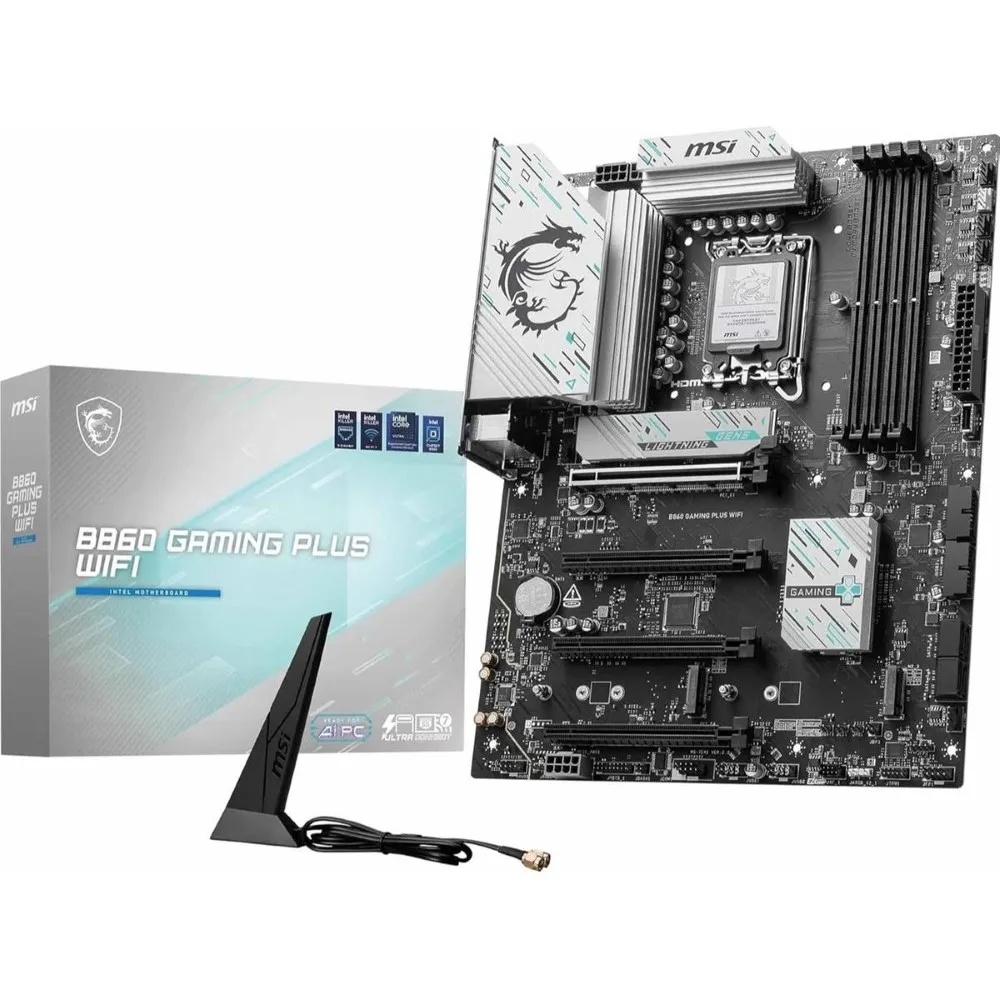

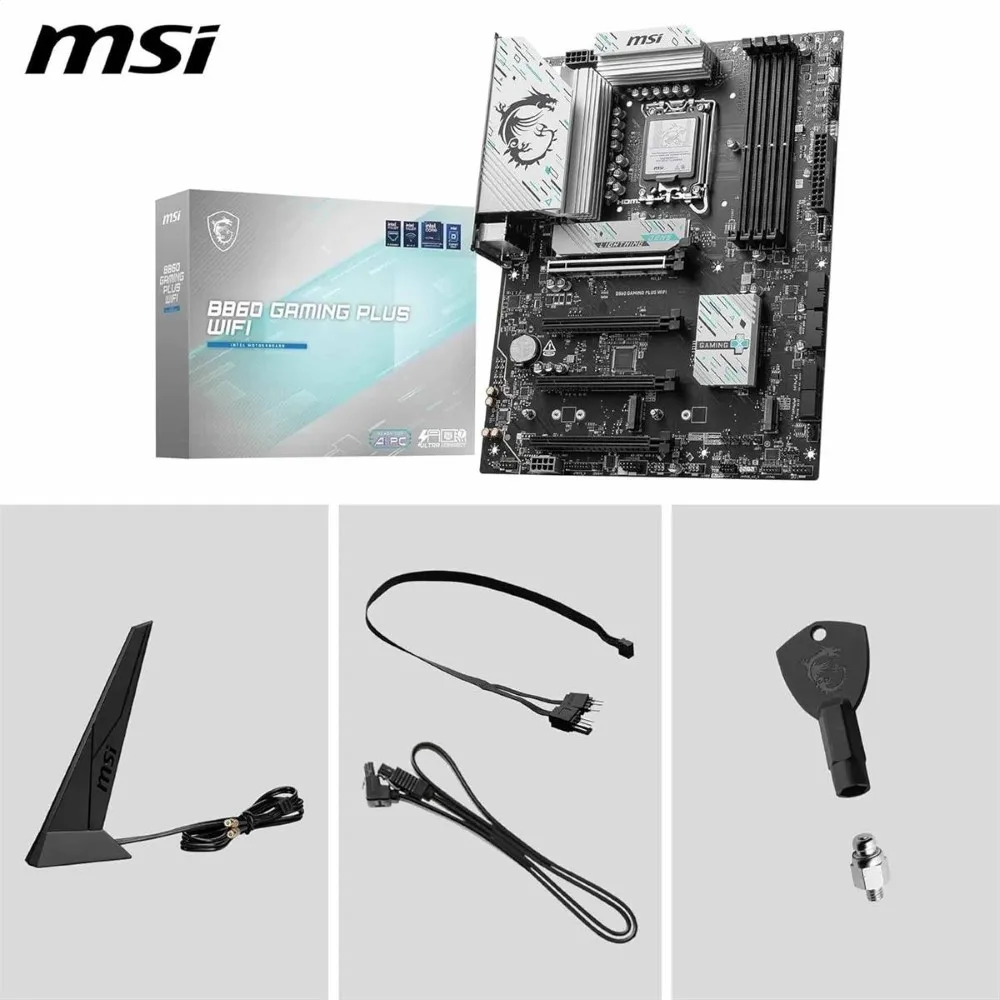

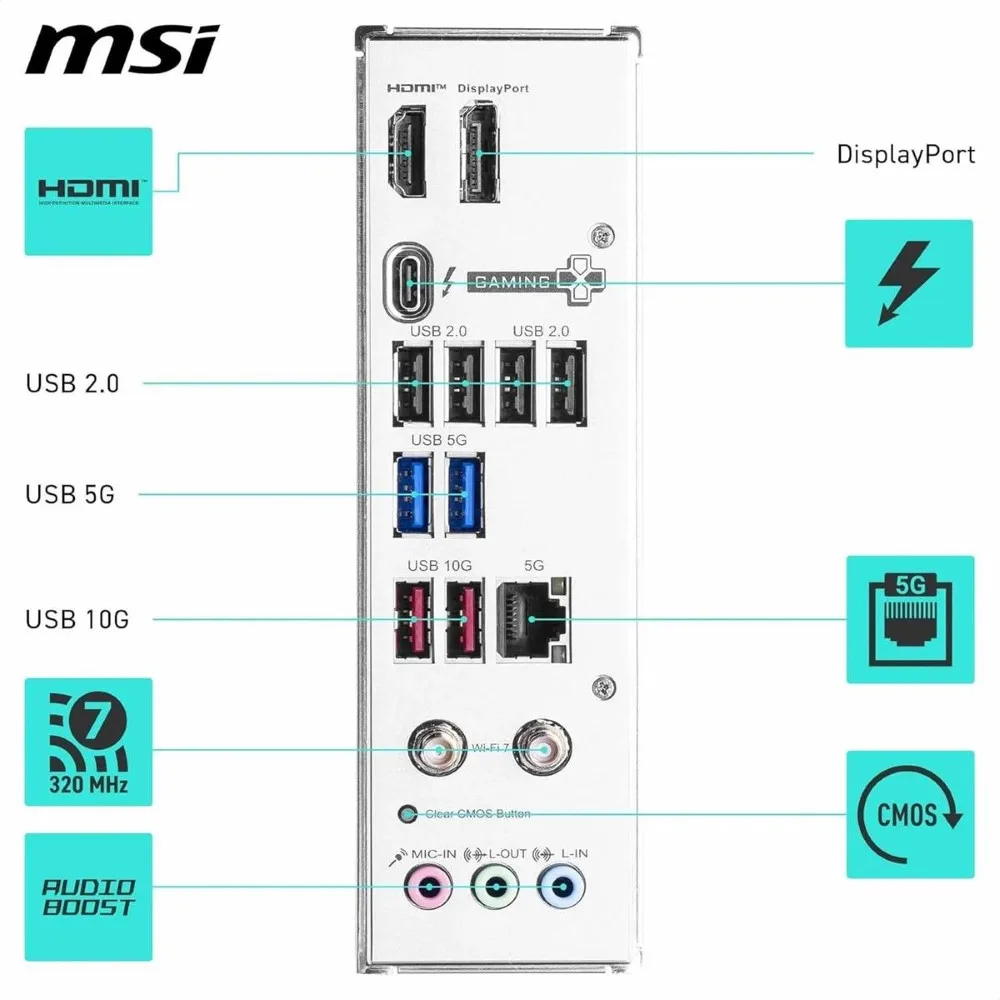

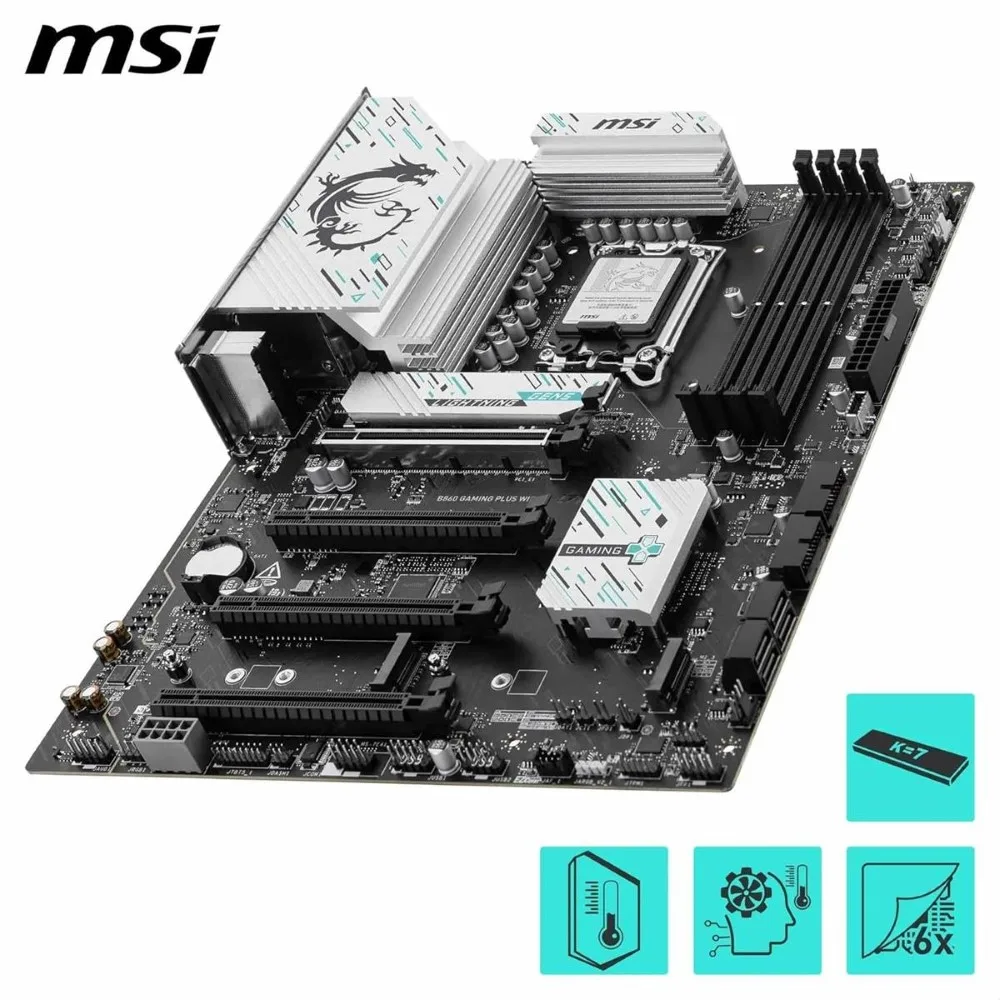

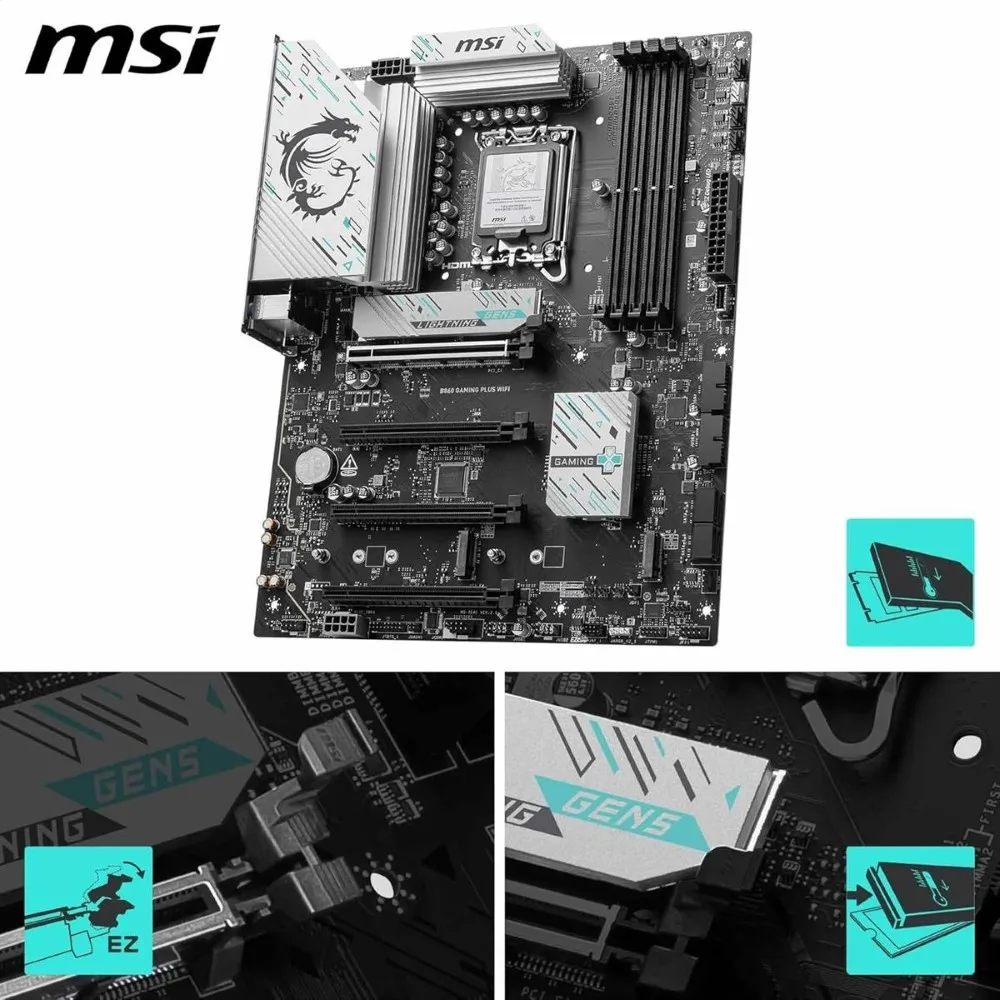

MSI B860 Gaming Plus Wifi Motherboard, ATX
The MSI B860 Gaming Plus Wifi Motherboard is an ATX board designed for Intel Core Ultra Processors (LGA 1851) with the Intel B860 chipset. It features DDR5 memory support up to 8800+ MT/s, PCIe 5.0 for graphics and storage, Intel Killer 5Gbps LAN, Thunderbolt 4, and Wi-Fi connectivity, making it ideal for high-performance gaming and productivity builds.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 69,185
Description
The MSI B860 Gaming Plus Wifi Motherboard is an ATX powerhouse built for Intel Core Ultra Processors (Series 2) with LGA 1851 socket. Featuring the Intel B860 chipset, it supports DDR5 memory up to 8800+ MT/s (OC) and a maximum capacity of 256GB across four DIMM slots. With PCIe 5.0 support for both graphics and M.2 storage, this motherboard delivers blazing-fast data transfer speeds.
Connectivity is comprehensive with Intel Killer E5000 5Gbps LAN, integrated Wi-Fi, and Thunderbolt 4 port supporting up to 40Gbps transfer rates and 8K display output. The board includes three M.2 slots (one PCIe 5.0), four SATA 6G ports, and RAID 0/1/5/10 support. Audio is handled by the Realtek ALC897 codec for 7.1-channel high-definition sound.
- Supports Intel Core Ultra Processors (Series 2) – LGA 1851
- 4x DDR5 UDIMM, up to 256GB, support for XMP 3.0 and CUDIMM
- PCIe 5.0 x16 slot for graphics and PCIe 5.0 M.2 storage
- Intel Killer E5000 5Gbps LAN and integrated Wi-Fi
- Thunderbolt 4 port with 40Gbps transfer and 8K display support
- Realtek ALC897 7.1-Channel HD Audio
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Chipset | INTEL B860 |
| CPU | Supports Intel® Core™ Ultra Processors, LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support 8800 – 6400 MT/s / 6400 – 4800 MT/s |
| Onboard Graphics | 1x HDMI™, Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| Slot | 4x PCI-E x16 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 |
| Audio | Realtek, ® |
| Storage | 3x M.2, M.2_1 Source supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Onboard Thunderbolt | 1x Thunderbolt4 ports, Supports up to 40Gbps transfer rate with Thunderbolt devices |
| USB | 2x USB 2.0, 4x USB 2.0 |
| LAN | Intel, ® |
| Internal IO | 1x Thunderbolt5 card connector, 1x Power Connector |
| Form Factor | ATX |
