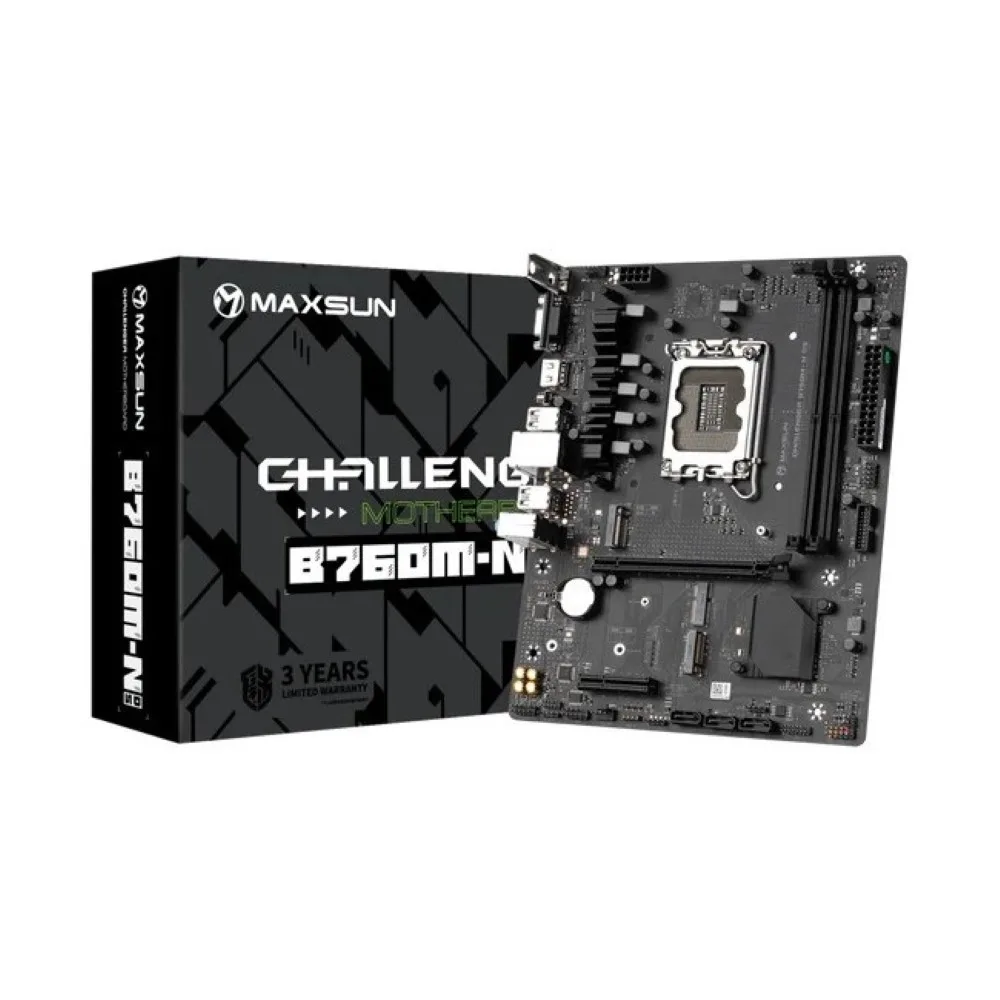

Maxsun Challenger B760M-N D5 V2 Intel 12/13th Gen microATX Motherboard
The Maxsun Challenger B760M-N D5 V2 is a microATX motherboard supporting Intel 12th/13th Gen CPUs with DDR5 memory up to 96 GB and speeds up to 6000 MHz (OC). It features dual M.2 PCIe 4.0 slots, PCIe 4.0 x16 graphics, and comprehensive connectivity including HDMI and VGA outputs. Ideal for a compact build, it comes with a 2-year warranty and is available nationwide with cash on delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 25,799
Description

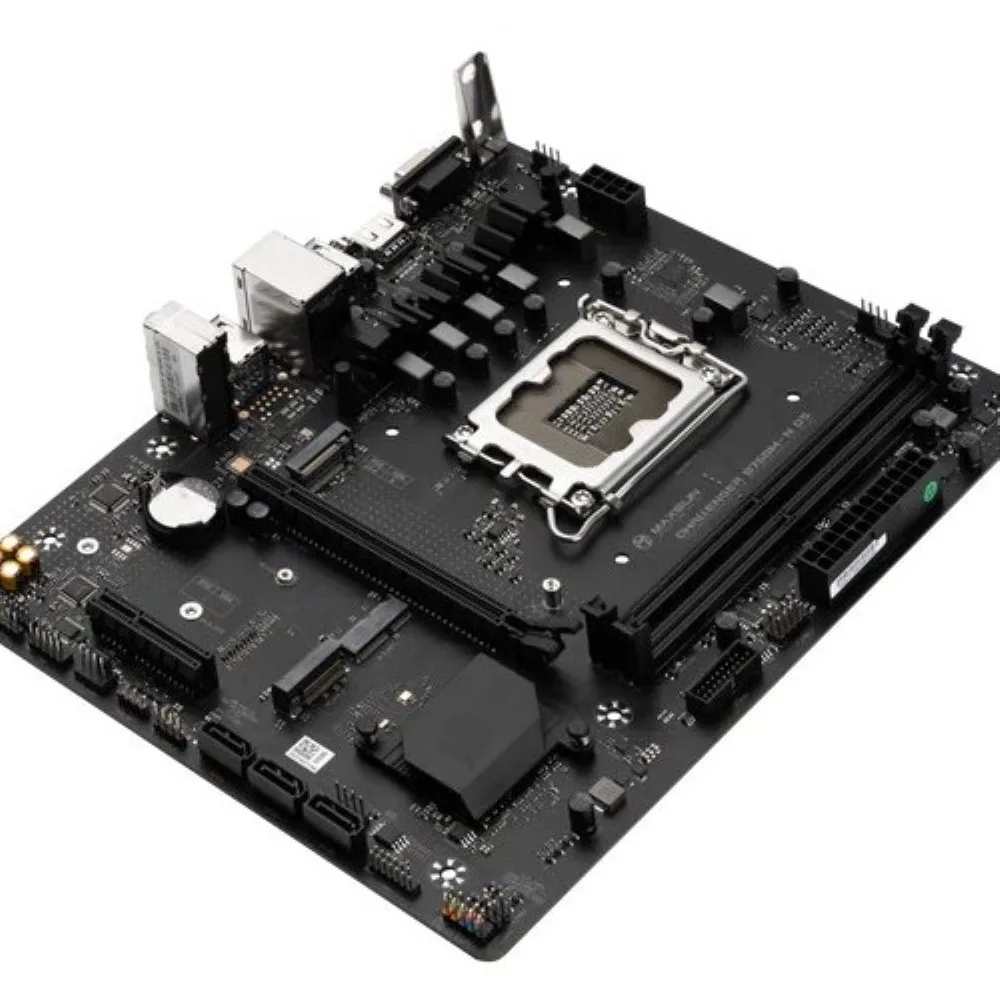

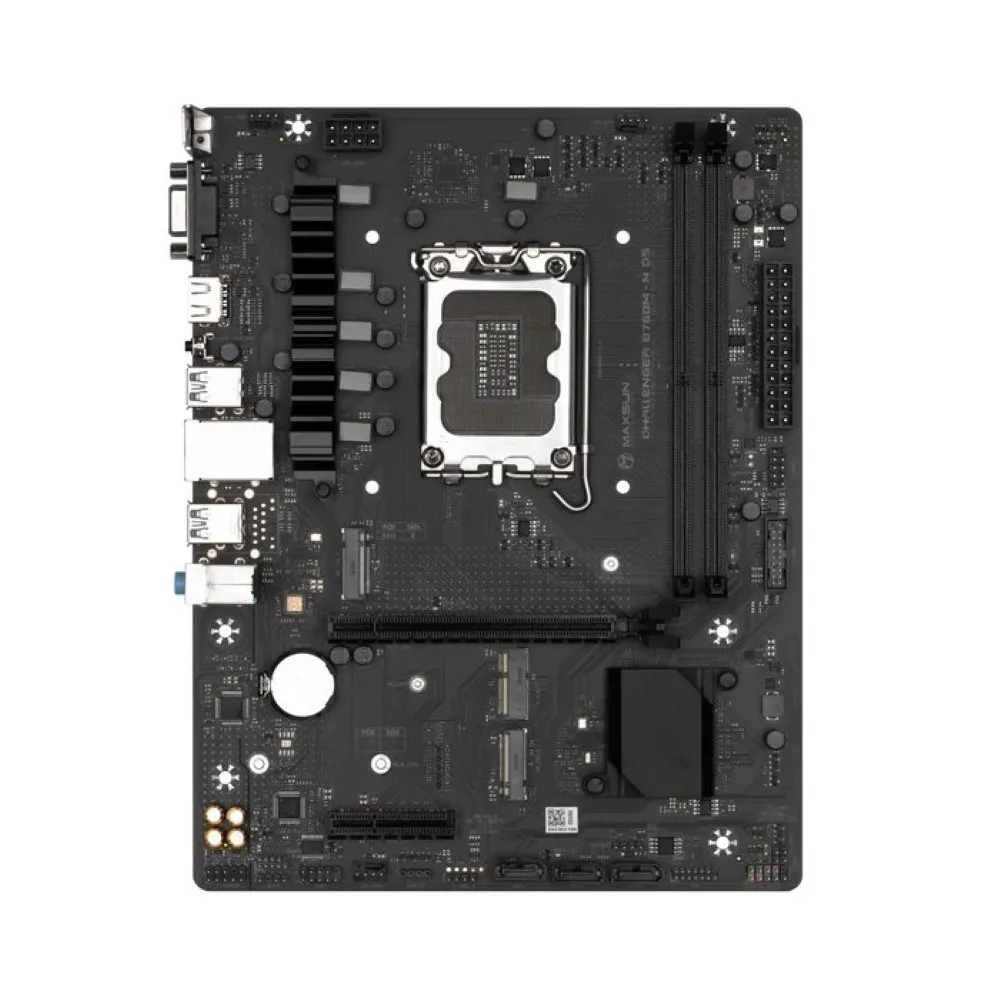

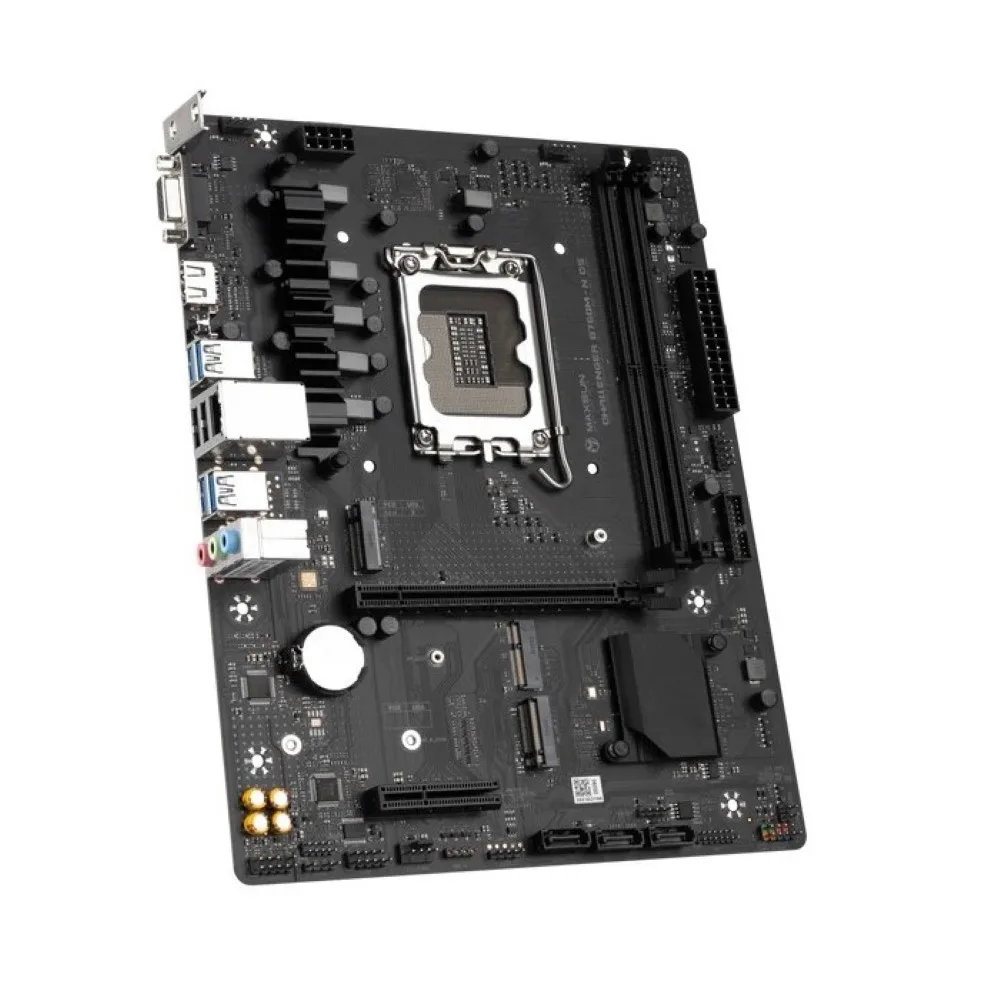

The Maxsun Challenger B760M-N D5 V2 is a microATX motherboard built for Intel 12th and 13th Gen processors (LGA 1700). It supports DDR5 memory up to 96 GB with speeds reaching 6000 MHz (OC) and features Intel XMP 3.0 for easy overclocking. With dual M.2 PCIe 4.0 x4 slots and a PCIe 4.0 x16 slot, this board offers fast storage and graphics expansion.
Connectivity includes 1G Ethernet, HDMI and VGA outputs, and multiple USB 3.2 Gen1 ports. The board also includes debug LEDs for troubleshooting, TPM 2.0 support, and a COM port for legacy devices. It comes with a 2-year warranty and is ideal for building a compact yet powerful PC.
- Intel B760 chipset with LGA 1700 socket for 12th/13th Gen CPUs
- 2× DDR5 slots, dual-channel, up to 96 GB, 6000 MHz (OC)

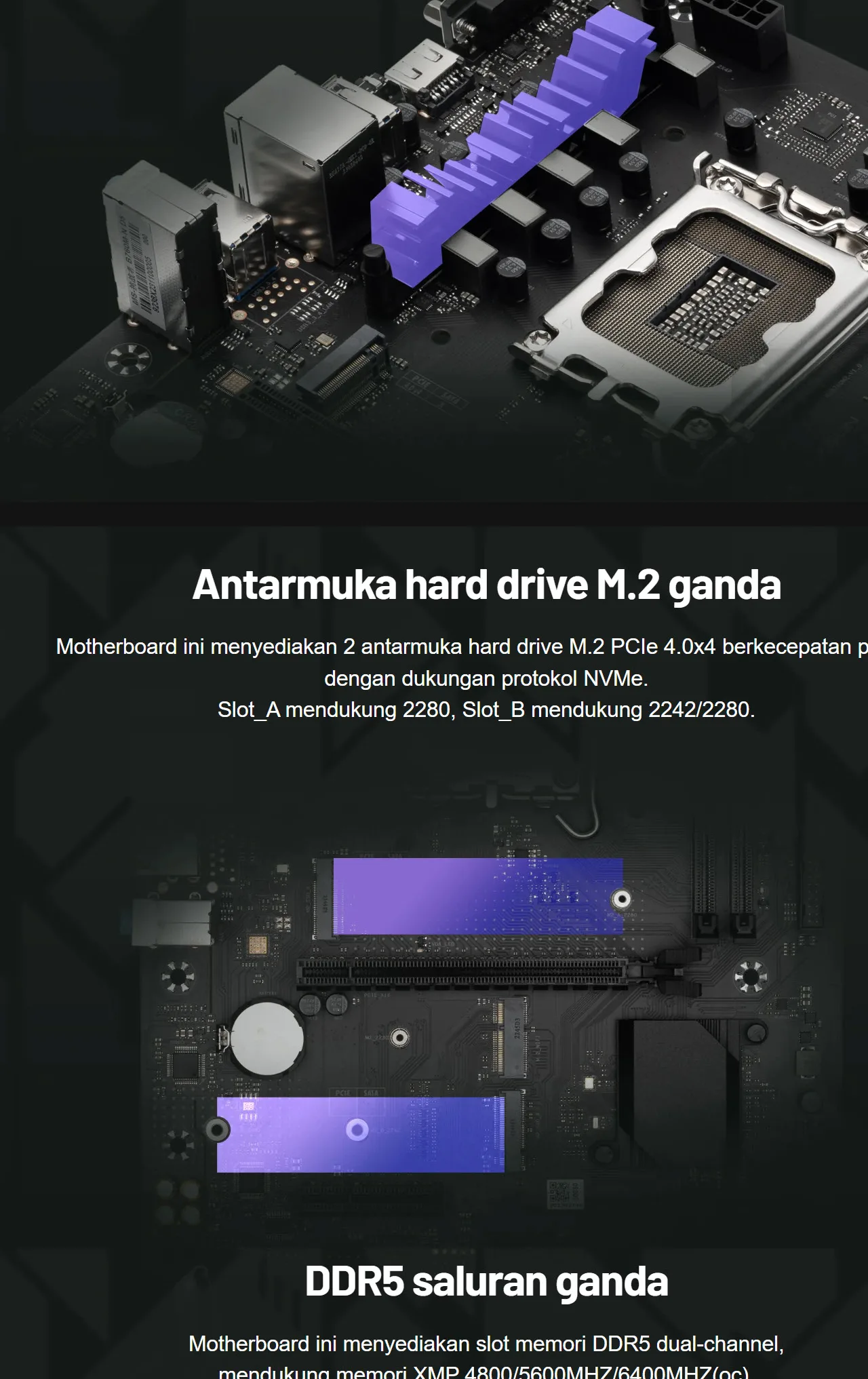

- 2× M.2 PCIe 4.0 x4 and 3× SATA 6Gb/s for storage
- 1× PCIe 4.0 x16, 1× PCIe 3.0 x4 expansion slots
- Rear I/O: 4× USB 3.2 Gen1, 2× USB 2.0, HDMI, VGA, 1G LAN
- Debug LEDs, TPM 2.0, COM port, and RGB header
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Chipset | Intel B760 |
| CPU Support | Intel Core Gen 12/13, Pentium Gold, Celeron |
| Socket | LGA 1700 |
| Memory Slots | 2× DDR5 |
| Max Memory | 96 GB |
| Memory Speed | 4800–5600 MHz (JEDEC), up to 6000 MHz (OC) |
| XMP Support | Intel XMP 3.0 |
| Memory Mode | Dual-Channel |
| Graphics Output | 1× VGA, 1× HDMI (4K@30Hz) |
| Expansion Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x4 |
| M.2 Slots | 2× M.2 PCIe 4.0 x4 |
| SATA Ports | 3× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Front USB | 2× USB 3.2 Gen1 Type-A, 4× USB 2.0 |
| Rear USB | 4× USB 3.2 Gen1 Type-A, 2× USB 2.0 |
| LAN | Realtek RTL8111H (1G Ethernet) |
| Audio | Realtek ALC897, 5.1 Channel HD Audio |
| Power Connectors | 24-pin ATX, 8-pin CPU |
| Fan Headers | 1× CPU, 2× System |
| Internal Connectors | TPM 2.0, COM port, Front audio, SPDIF, RGB header |
| Special Features | 4× Debug LEDs |
| Operating System | Windows 10/11 64-bit |
| Form Factor | Micro-ATX |
| Dimensions | 245 mm × 190 mm |
| Form Factor | Micro-ATX |
