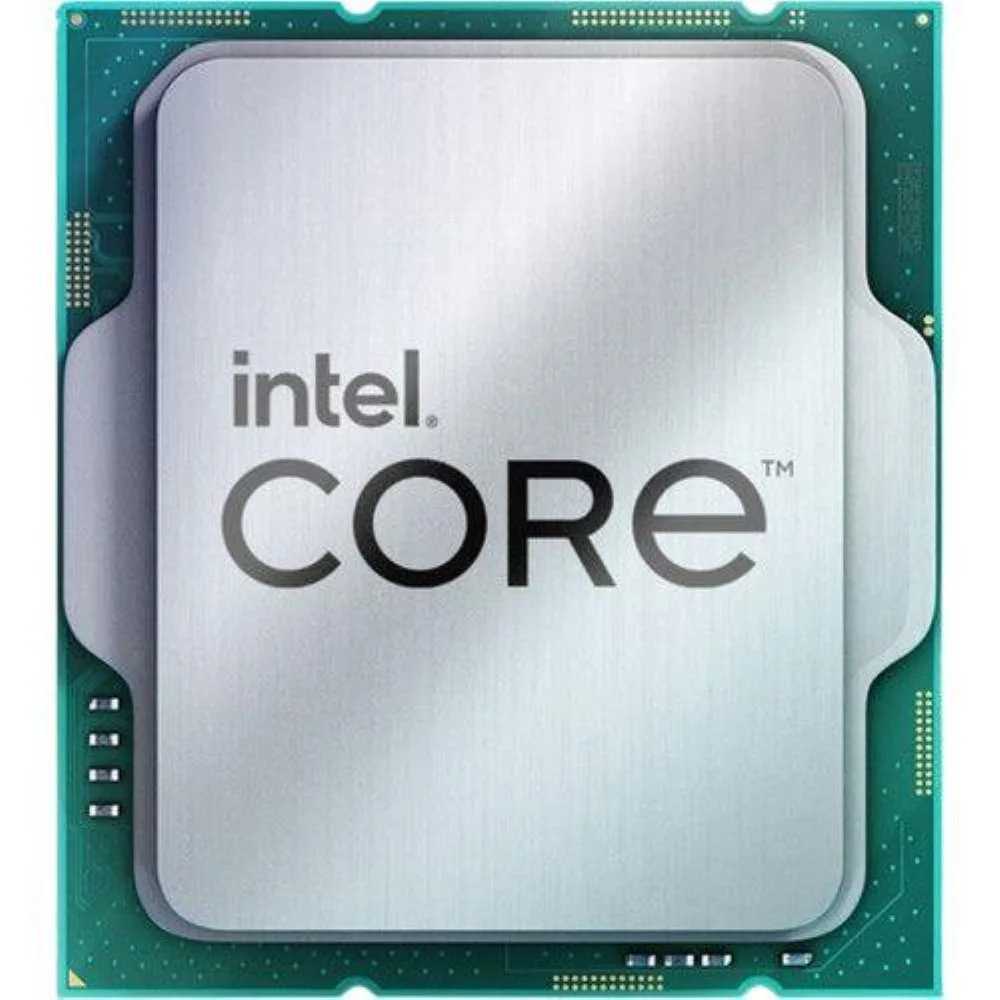

Intel Core i7-14700 2.1 GHz 20-Core LGA 1700 Processor (Tray)
The Intel Core i7-14700 is a 14th Gen LGA 1700 processor with 20 cores and 28 threads, offering a hybrid architecture for balanced performance. It features integrated Intel UHD Graphics 770, supports DDR5-5600 memory, and includes advanced security and vPro technologies. Ideal for professionals and gamers across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 99,000
Description
The Intel Core i7-14700 is a 14th Gen processor built on the LGA 1700 socket, featuring a hybrid architecture with 20 cores (8 Performance-cores and 12 Efficient-cores) and 28 threads. With a base clock of 300 MHz and a maximum boost of 1.65 GHz, it delivers efficient performance for demanding tasks. The processor includes Intel UHD Graphics 770, supports up to 192 GB of DDR5-5600 or DDR4-3200 memory, and has a 33 MB L3 cache.
This tray version is ideal for system integrators in Pakistan, offering nationwide delivery to Karachi, Lahore, and Islamabad with cash-on-delivery options. It supports ECC memory, vPro, and advanced security features like Control-Flow Enforcement and Boot Guard.
- 20 cores (8 P-cores + 12 E-cores) with 28 threads for multitasking
- Integrated Intel UHD Graphics 770 supporting up to 4 displays at 8K resolution
- DDR5-5600 and DDR4-3200 dual-channel memory support up to 192 GB
- 33 MB L3 cache and 20 PCIe 5.0 lanes for fast data access
- Intel vPro and security technologies for business-grade protection
- 65 W TDP with included Laminar RM1 cooler for efficient thermal management
Specification
Overview
| CPU Model | Intel Core i7-14700 (14th Gen) |
|---|---|
| CPU Socket | LGA 1700 |
| Unlocked | No |
| Number of Cores | 20 (8 x P-Cores + 12 x E-Cores) |
| Base Clock Speed | 300 MHz |
| Maximum Boost Speed | 1.65 GHz |
| Thermal Design Power (TDP, Max) | 65 W |
| Included Thermal Solution | Laminar RM1 |
| Integrated Graphics | Intel UHD Graphics 770 |
| Manufacturing Process | 10 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 20 (Revision 5.0) |
| Number of Threads | 28 |
| L3 Cache | 33 MB |
| Maximum Capacity | 192 GB |
| Memory Support | DDR5 Up to 5600 MT/s, DDR4 Up to 3200 MT/s |
| ECC Memory | Yes |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 89.6 GB/s |
| Optane Memory Support | No |
| Maximum Temperature | 212°F / 100°C |
| Thermal Monitoring Technologies | Yes |
| AES Support | Yes |
| Extension | AVX 2.0, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| DMI | DMI4 (16 GT/s) |
| vPro Support | Yes |
| Performance Technologies | Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Thermal Velocity Boost, Turbo Boost Max 3.0 |
| Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key |
| Video Technologies | Clear Video HD, Quick Sync Video |
| Maximum Resolution Support | 7680 x 4320 at 60 Hz |
| Supported APIs | DirectX: 12, OpenGL: 4.5, OpenCL: 3 |
| Number of Displays | 4 |
| Output Support | eDP, DisplayPort, HDMI |
