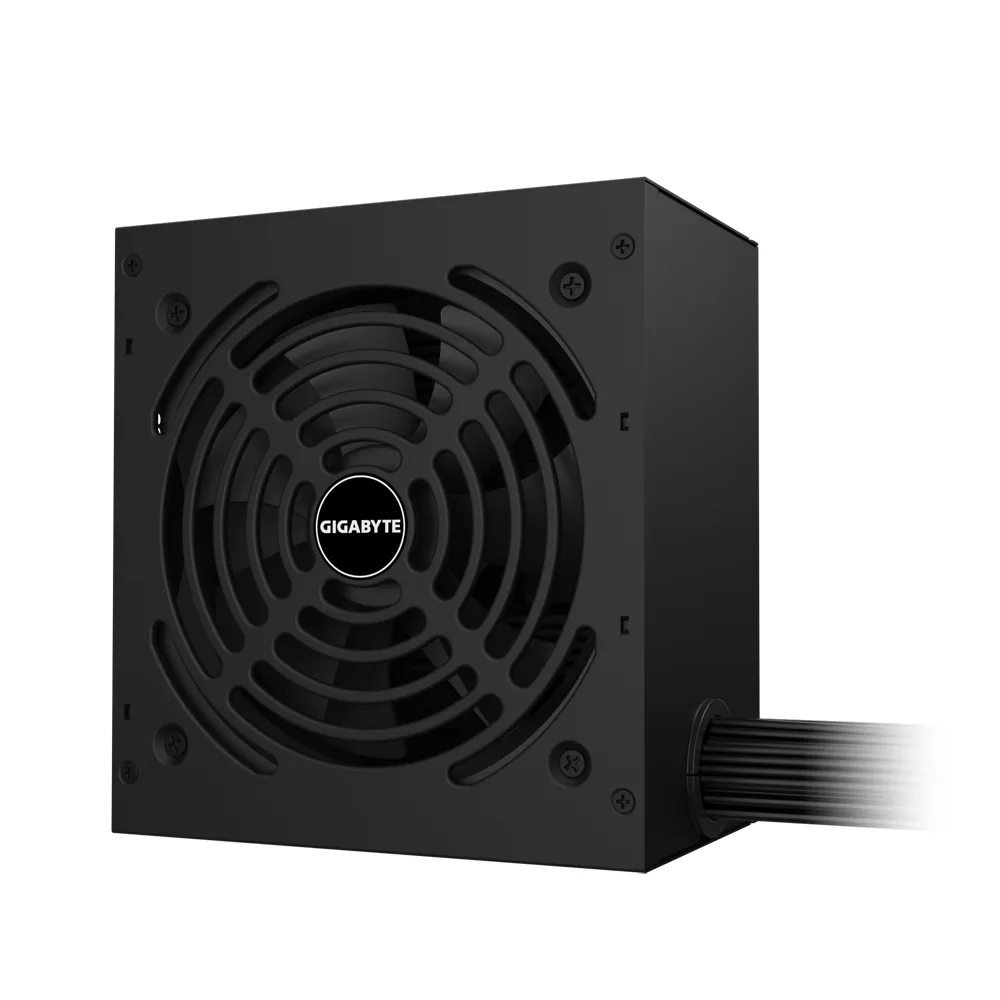

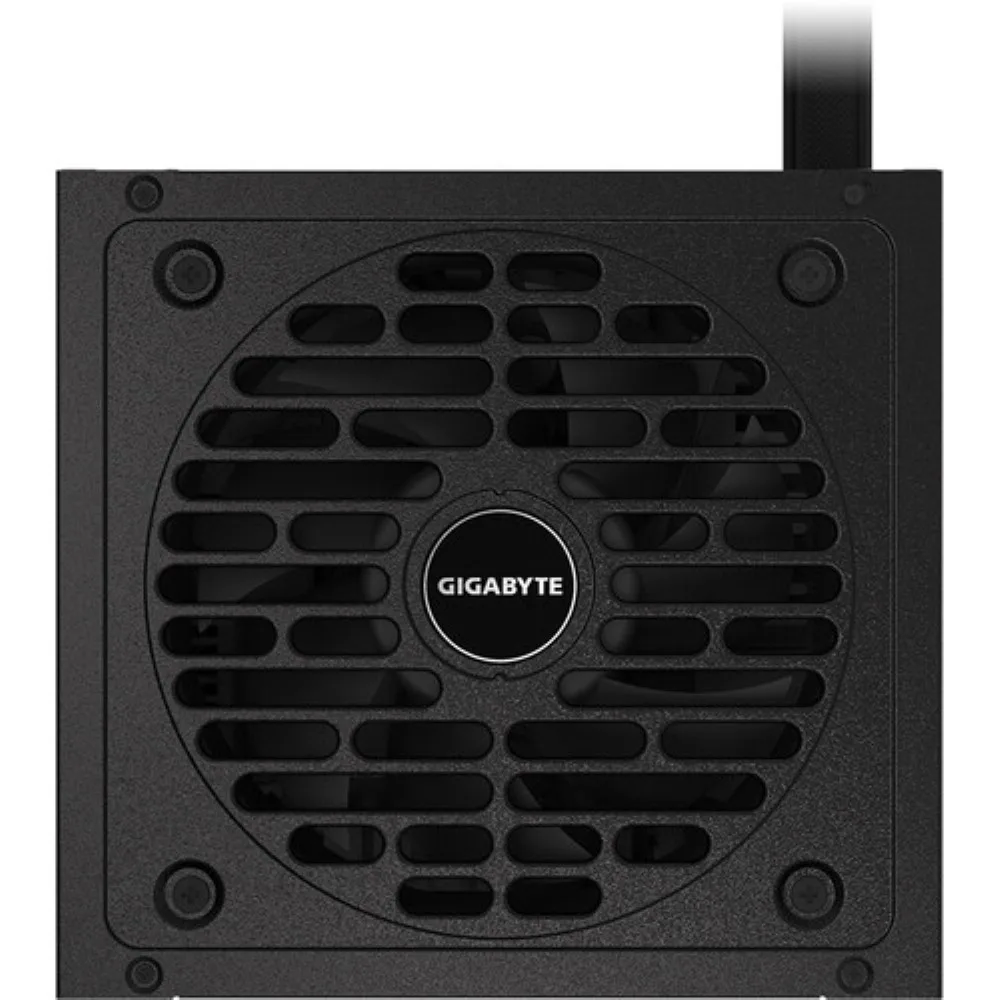

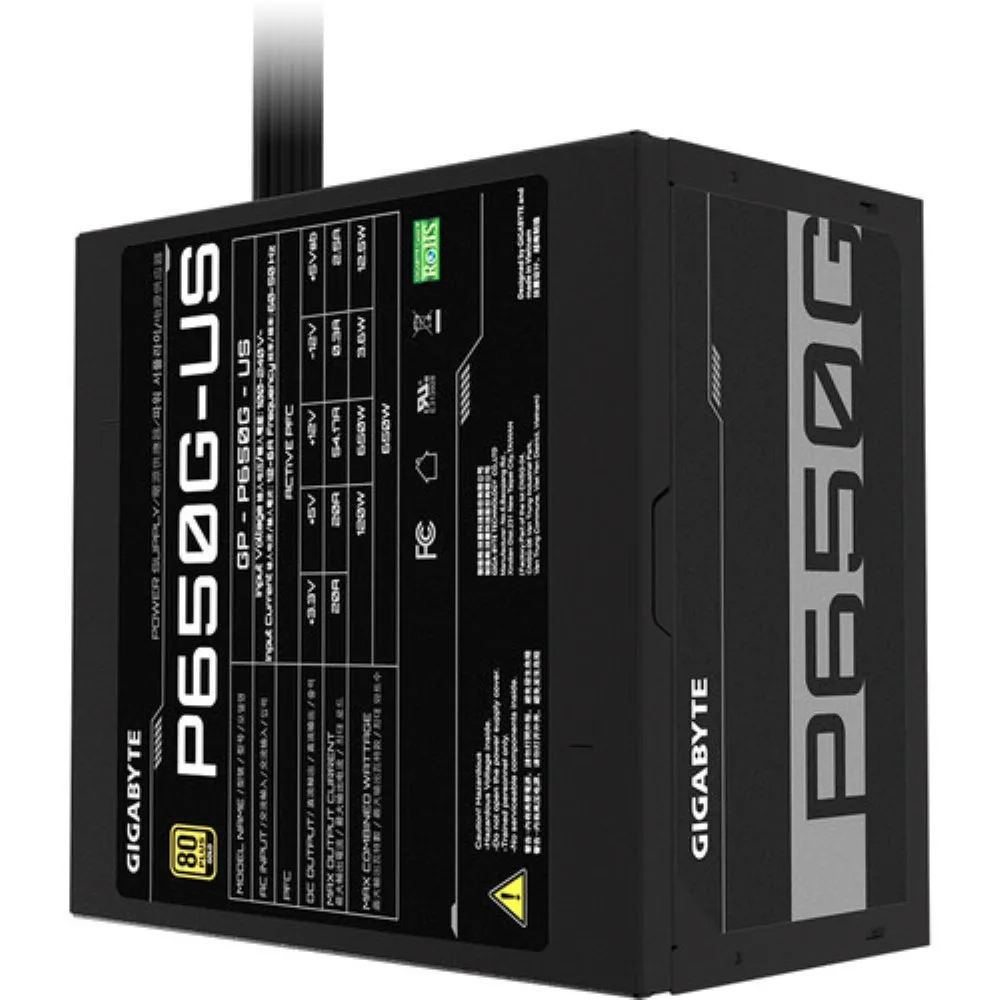

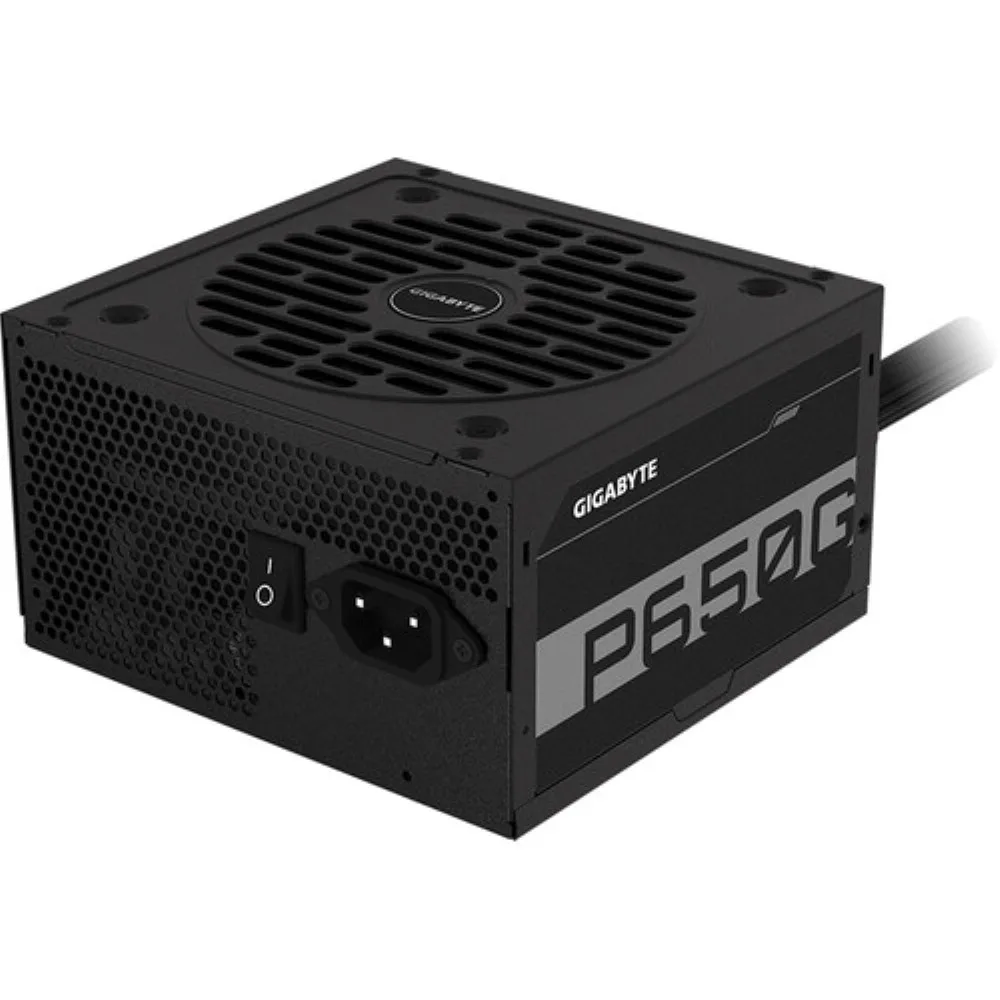

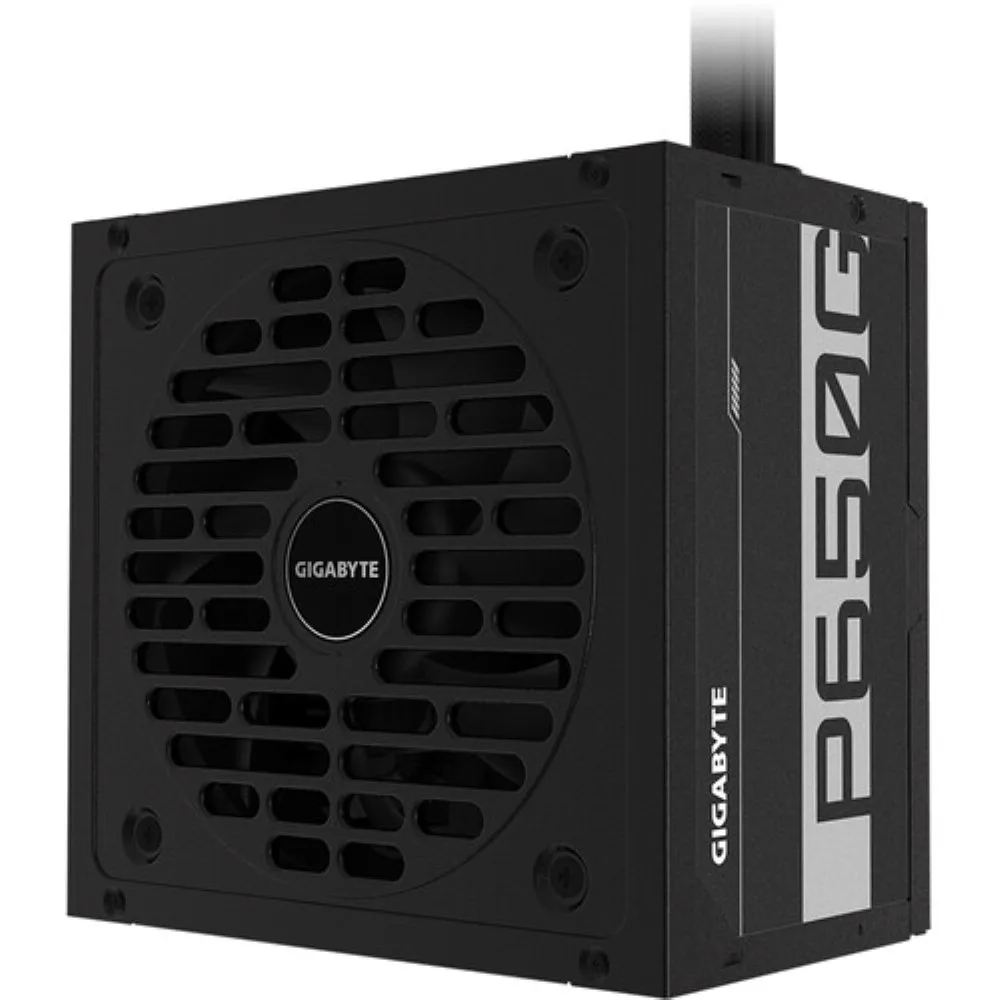

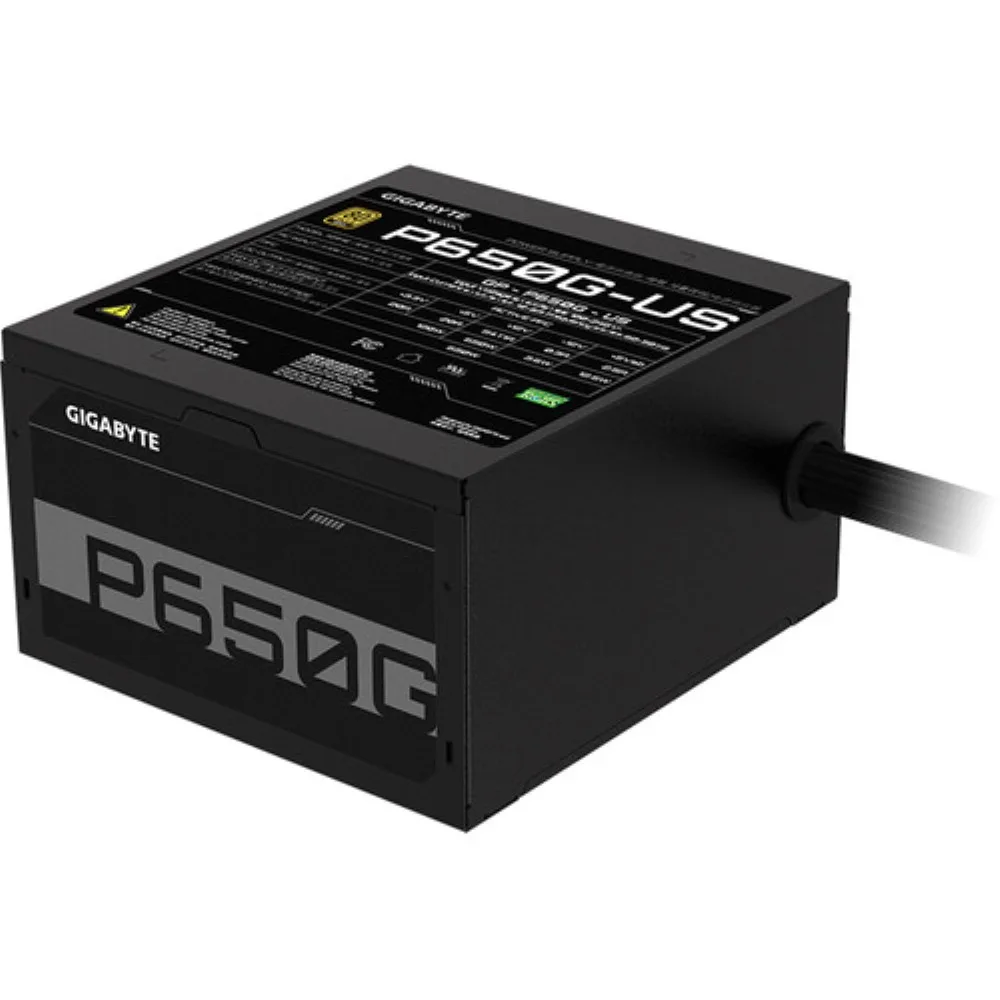

GIGABYTE GP-P650G 650W 80 Plus Gold Certified Power Supply
The GIGABYTE GP-P650G is a 650W power supply with 80 PLUS Gold certification, delivering high efficiency and stable power via a single +12V rail. Its flat modular cables simplify installation, while the 120mm hydraulic fan keeps noise low. Ideal for gaming and productivity builds, backed by comprehensive protections.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 19,499
Description
The GIGABYTE GP-P650G 650W Power Supply delivers reliable and efficient power for your PC build. With an 80 PLUS Gold certification, it achieves up to 90% efficiency at 50% load, reducing energy waste and heat output. The single +12V rail design provides stable power delivery with up to 54.1A, ensuring compatibility with modern components.
This PSU features a flat modular cable design for easy cable management and improved airflow inside your case. It comes with a 120mm hydraulic bearing fan that operates quietly between 20-40 dBA, balancing performance and noise. Comprehensive protections including OVP, OCP, OPP, OTP, SCP, and UVP safeguard your system.
- 650W continuous power with 80 PLUS Gold efficiency (87-90% efficiency)
- Single +12V rail with 54.1A max load for stable performance
- Flat modular cables for clean builds and easy routing
- 120mm hydraulic bearing fan with low noise operation (20-40 dBA)
- Full protection suite: OVP, OCP, OPP, OTP, SCP, UVP
- ATX 12V v2.31 compliant with 100,000 hours MTBF
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Total Connectors | 1x 20+4-Pin ATX Motherboard, 1x 4+4-Pin EPS CPU, 4x 6+2-Pin PCIe, 6x 15-Pin SATA, 1x 4-Pin Peripheral / Molex |
| Cable Design | Flat, Modular |
| PCIe Connector Distances | 19.7″ / 500 mm, 5.9″ / 150 mm |
| SATA Connector Distances | 19.7″ / 500 mm, 5.9″ / 150 mm, 5.9″ / 150 mm |
| Peripheral Connector Distances | 19.7″ / 500 mm, 5.9″ / 150 mm, 5.9″ / 150 mm, 5.9″ / 150 mm |
| ATX Connector Distance | 23.6″ / 600 mm |
| EPS Connector Distances | 23.6″ / 600 mm |
| Total Wattage | 650 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 650 W |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 12.5 W |
| Max Load for +5 Vsb | 2.5 A |
| Max Power for -12 V | 3.6 W |
| Peak Power | 650 W |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Efficiency Rating | 80 PLUS Gold |
| Active Power Factor Correction | Yes |
| Efficiency | 87% at 20% Load, 90% at 50% Load, 87% at 100% Load |
| Fan Size | 120 mm |
| Bearing Type | Hydraulic |
| Noise Level | 20 to 40 dBA |
| Form Factor | ATX |
| Compliance | ATX 12 V v2.31 |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Mean Time Between Failures (MTBF) | 100,000 Hours |
| Dimensions | 5.9 x 5.5 x 3.4″ / 150 x 140 x 86 mm |
| Max Load for +12 V | 54.1 A |
