GIGABYTE B760M GAMING PLUS WIFI DDR4 LGA 1700 Intel B760 M-ATX Motherboard

Name: GIGABYTE B760M GAMING PLUS WIFI DDR4 LGA 1700 Intel B760 M-ATX Motherboard
Brand: Gigabyte
SKU: MC-MBD-GIG-0121
Price: 39500 PKR
Availability: InStock

SKU: MC-MBD-GIG-0121 Category: Intel Motherboards Brand: Gigabyte

The GIGABYTE B760M GAMING PLUS WIFI DDR4 is a Micro ATX motherboard for LGA 1700 Intel processors, featuring the B760 chipset. It supports DDR4 memory up to 128GB with overclocking, dual M.2 PCIe 4.0 slots, and built-in Wi-Fi 6 and Bluetooth 5.3. With a 1-year warranty and nationwide delivery available, it’s a solid choice for a balanced gaming or productivity build.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 39,500

Compare

Add to wishlist

Description

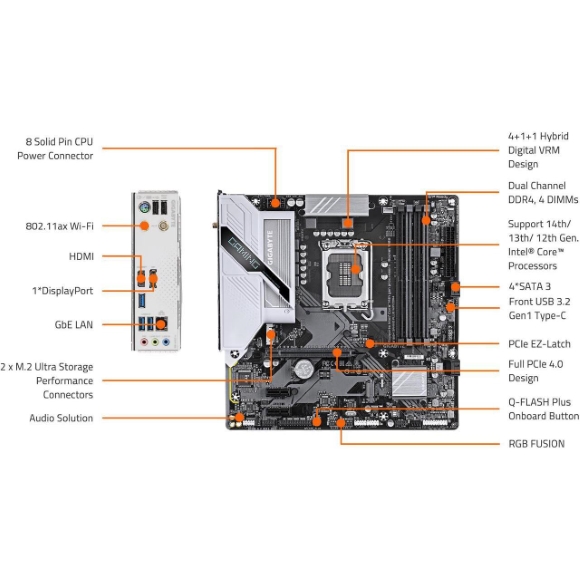

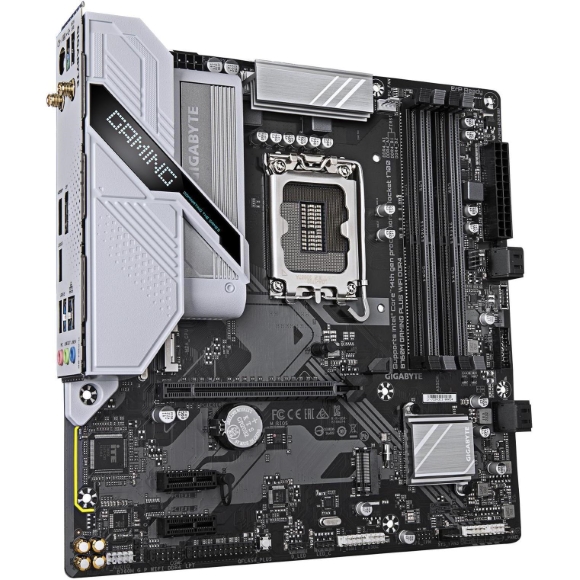

The GIGABYTE B760M GAMING PLUS WIFI DDR4 is a Micro ATX motherboard built on the Intel B760 chipset, supporting LGA 1700 socket for 13th and 14th Gen Intel Core processors as well as Celeron and Pentium Gold CPUs. It offers four DDR4 DIMM slots with support for up to 128GB of memory, including overclocking profiles up to DDR4-5333.

Connectivity is robust with dual M.2 PCIe 4.0 slots, four SATA 6Gb/s ports, and onboard Wi-Fi 802.11ax with Bluetooth 5.3. The board features a PCIe 4.0 x16 slot, two PCIe 3.0 x1 slots, and a comprehensive set of rear I/O including DisplayPort, HDMI, USB 3.2 Gen 1, and USB Type-C header. GIGABYTE Control Center, Q-Flash, and Q-Flash Plus provide easy system management and BIOS updates.

Intel LGA 1700 socket: Supports 13th/14th Gen Core, Celeron, Pentium Gold
DDR4 memory: 4 slots, up to 128GB, overclocking support up to 5333 MHz
Dual M.2 PCIe 4.0 x4 slots for high-speed SSDs
Integrated Wi-Fi 6 (802.11ax) with Bluetooth 5.3
Micro ATX form factor with comprehensive connectivity: DisplayPort, HDMI, USB 3.2 Gen 1, USB Type-C header
GIGABYTE Control Center and Q-Flash Plus for easy BIOS updates and system tuning

Specification

Overview

Warranty	1 Year
Best Seller Ranking	#17 in Intel Motherboards
Brand	GIGABYTE
Model	B760M GAMING PLUS WIFI DDR4
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
Chipset	Intel B760
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules, 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels	7.1 Channels
Max LAN Speed	1Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	BLUETOOTH 5.3

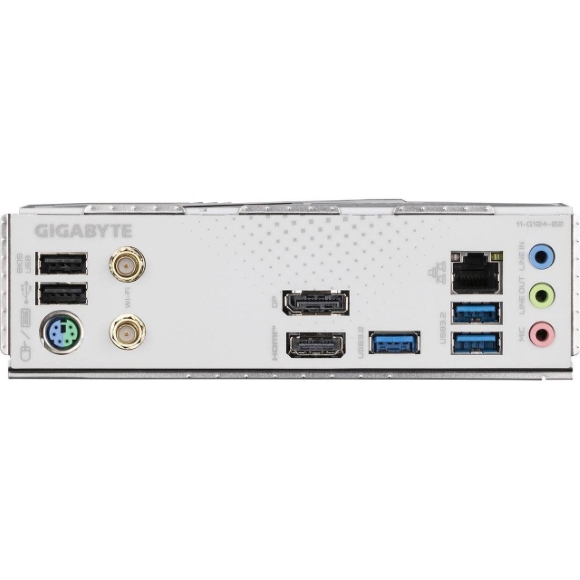

Back I/O Ports	2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R), 1 x DisplayPort, 1 x HDMI port, 3 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 3 x audio jacks
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x parallel port header, 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper
Windows 11	Supported
Form Factor	Micro ATX
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
Features	Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, H/W Monitoring:, Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
Form Factor	Micro-ATX
Memory Type	DDR4
