DeepCool PN750D 750W 80 PLUS Gold ATX 3.1 Power Supply
The DeepCool PN750D 750W 80 PLUS Gold ATX 3.1 Power Supply delivers efficient, reliable power for high-performance PCs. With 80 PLUS Gold certification (≥90% efficiency) and ATX 3.1 compliance, it supports modern hardware while ensuring stable output. Its 120mm HYB fan and comprehensive protections make it a durable choice for gaming or workstation builds, available with nationwide delivery in Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 23,000
Description
The DeepCool PN750D 750W Power Supply delivers reliable and efficient power for your gaming or workstation PC. With an 80 PLUS Gold certification, it achieves ≥90% efficiency under typical load, reducing energy waste and heat output. Its ATX 3.1 compliance ensures compatibility with the latest hardware, including high-end GPUs and CPUs.

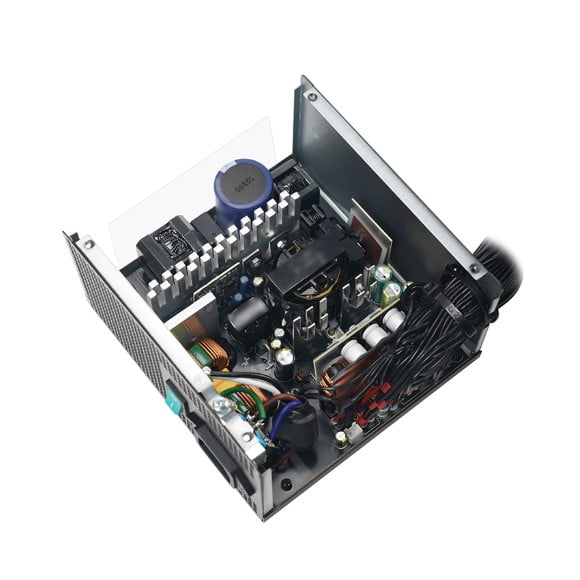

Built with an Active PFC + Full Bridge SRC LLC + DC to DC topology, this PSU provides stable and clean power delivery. The 120mm HYB fan offers quiet cooling, while comprehensive protections (OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO) safeguard your components. With a 100,000-hour MTBF and ErP 2014 compliance, it’s built for long-term reliability.
- 750W continuous output with 80 PLUS Gold efficiency (≥90% at 50% load)
- ATX 3.1 compliant for modern hardware compatibility
- Active PFC + Full Bridge SRC LLC + DC to DC topology for stable power

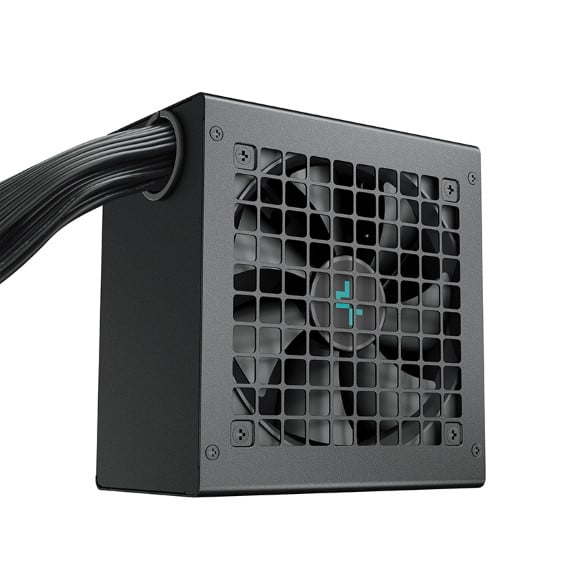

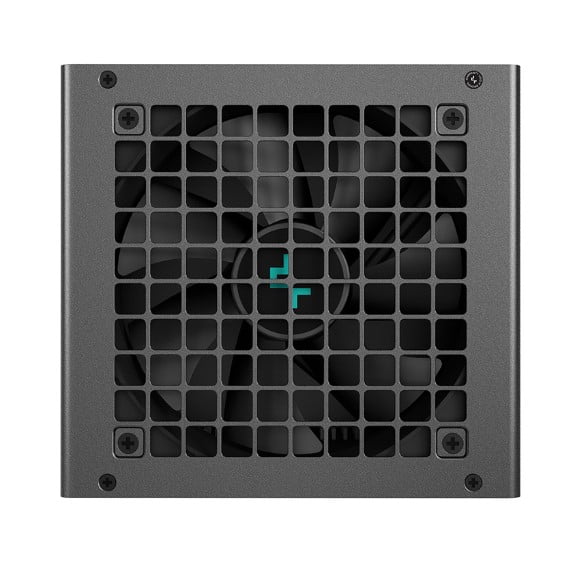

- 120mm HYB fan for quiet and efficient cooling
- Multiple protections: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
- Compact dimensions (150×140×86mm) fit most cases
Specification
Overview
| Type | ATX12V V3.1 |
|---|---|
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412718710 R-PN750D-FC0B-CN, 6933412718727 R-PN750D-FC0B-AU, 6933412718734 R-PN750D-FC0B-EU, 6933412718741 R-PN750D-FC0B-JP, 6933412718758 R-PN750D-FC0B-UK, 6933412718765 R-PN750D-FC0B-US, 6933412718772 R-PN750D-FC0B-WO, 6933412718789 R-PN750D-FC0B-BP |
