Corsair HX1200 1200 W 80+ Platinum Fully Modular Power Supply Unit
The Corsair HX1200 is a 1200W 80 PLUS Platinum certified fully modular power supply unit. It features a 135mm fluid dynamic bearing fan with Zero RPM mode for quiet operation, single or multi +12V rail mode, and eight PCIe connectors for high-end graphics cards. Backed by comprehensive protection circuits, it delivers stable and efficient power for demanding systems.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 82,000
Description
The Corsair HX1200 is a 1200W fully modular power supply unit designed for high-end systems demanding reliable and efficient power delivery. With 80 PLUS Platinum certification, it achieves up to 92% efficiency at typical loads, reducing heat and energy waste. Its single or multi +12V rail mode offers flexibility for overclocking or multi-GPU setups.
Built with a 135mm fluid dynamic bearing fan featuring Zero RPM mode, the PSU operates silently under low to moderate loads. It is fully compatible with the latest ATX12V v2.4 and EPS12V 2.92 standards, ensuring support for modern CPUs and GPUs. The unit also includes comprehensive protection features for system safety.
- 1200W continuous power output with 80 PLUS Platinum efficiency
- Fully modular cabling for clean builds and easy installation
- Single or multi +12V rail mode for flexible power distribution
- 135mm fluid dynamic bearing fan with Zero RPM mode for silent operation
- 8 x 6+2-pin PCIe connectors for multi-GPU support
- Over-voltage, under-voltage, short circuit, over power, and over temperature protection
Specification
Overview
| Brand | CORSAIR |
|---|---|
| Model | CP-9020140-UK |
| Series | HX Series HX1200 |
| Type | ATX12V v2.4 / EPS12V 2.92 |
| Maximum Power | 1200W |
| Fans | 1 x 135mm fluid dynamic bearing fan |
| Main Connector | 24Pin |
| +12V Rails | Single +12V Rail or Multi +12V Rail Mode |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 8 |
| Haswell Support | Yes |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 47 – 63 Hz |
| Input Current | 15 – 7.5 A |
| Output | Single +12V Rail Mode:, +3.3V@30A, +5V@30A, +12V@100A,, [email protected], ,, [email protected], +12V Rail Mode:, +3.3V@30A, +5V@30A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, +12V6@40A, +12V7@40A, +12V8@40A,, [email protected], , +5VSB@3A |
| Approvals | FCC, ICES, CE, UL, cUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC |
| Dimensions | 3.39″ x 5.91″ x 7.87″ |
| Max PSU Length | 200 mm |

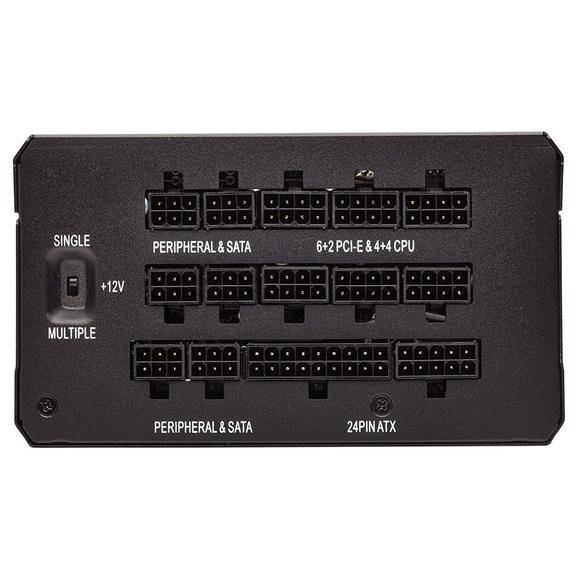

| Connectors | 1 x 24-pin ATX Cable, 2 x 1 x EPS12V/ATX12V Cable (4+4), 4 x 2 x PCIe Cable (6+2), 5 x 4 x SATA Cable (4 Connectors), 2 x 4 x PATA Cable (4 connectors) |
| Features | Active PFC with full range AC input (100-240 VAC), 135mm fluid dynamic bearing fan with Zero RPM mode, Engineered to meet maximum power output at a 50 degree C temperature rating., Compatible with the latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and older systems., Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components. |
