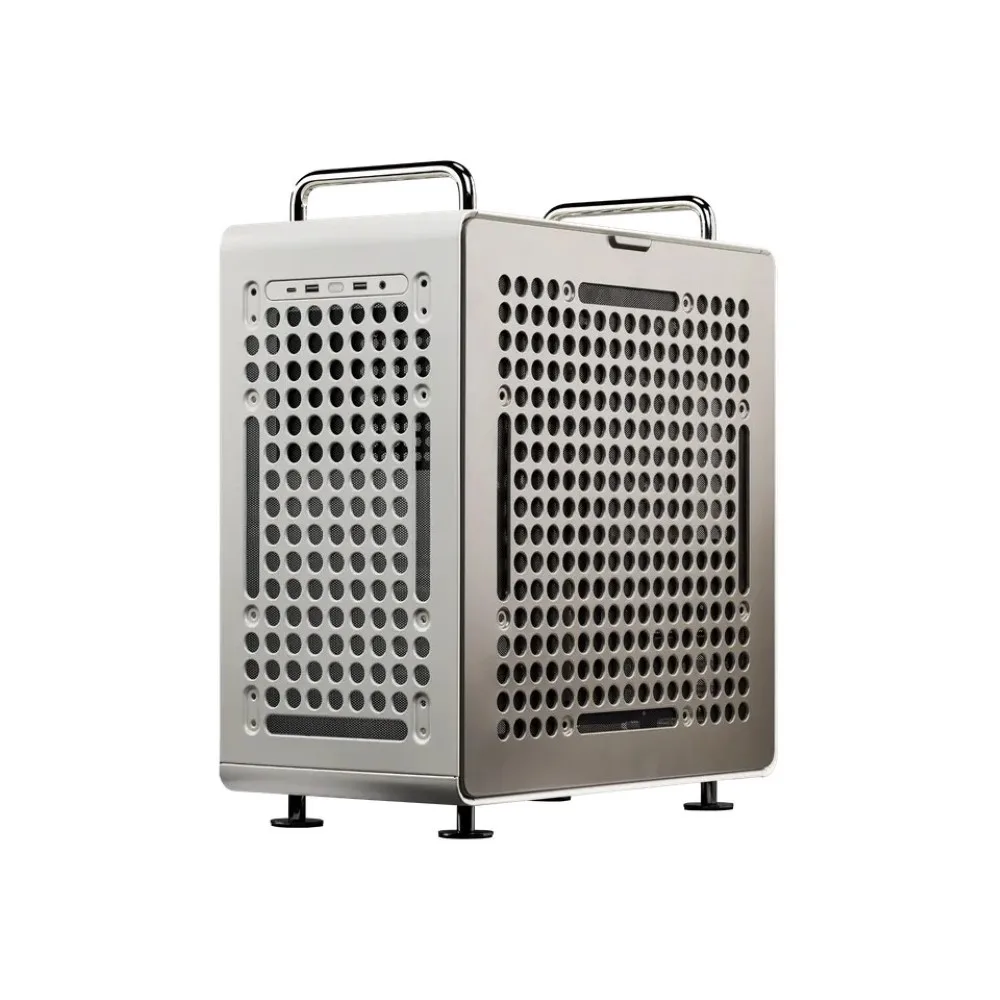

Cooler Master Qube 540 Compact ATX Cube Design Case – Modular Internal Layout 360mm Radiator Support USB 3.2 Gen 2×2 Type-C Port (Moonstone)
The Cooler Master Qube 540 is a compact ATX cube case with a modular internal layout, offering extensive customization for high-performance builds. It supports up to E-ATX motherboards, 360 mm radiators, and graphics cards up to 415 mm, while featuring a USB 3.2 Gen 2×2 Type-C port and tempered glass side panel. Ideal for enthusiasts seeking a versatile and space-efficient chassis.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 15,799
Description

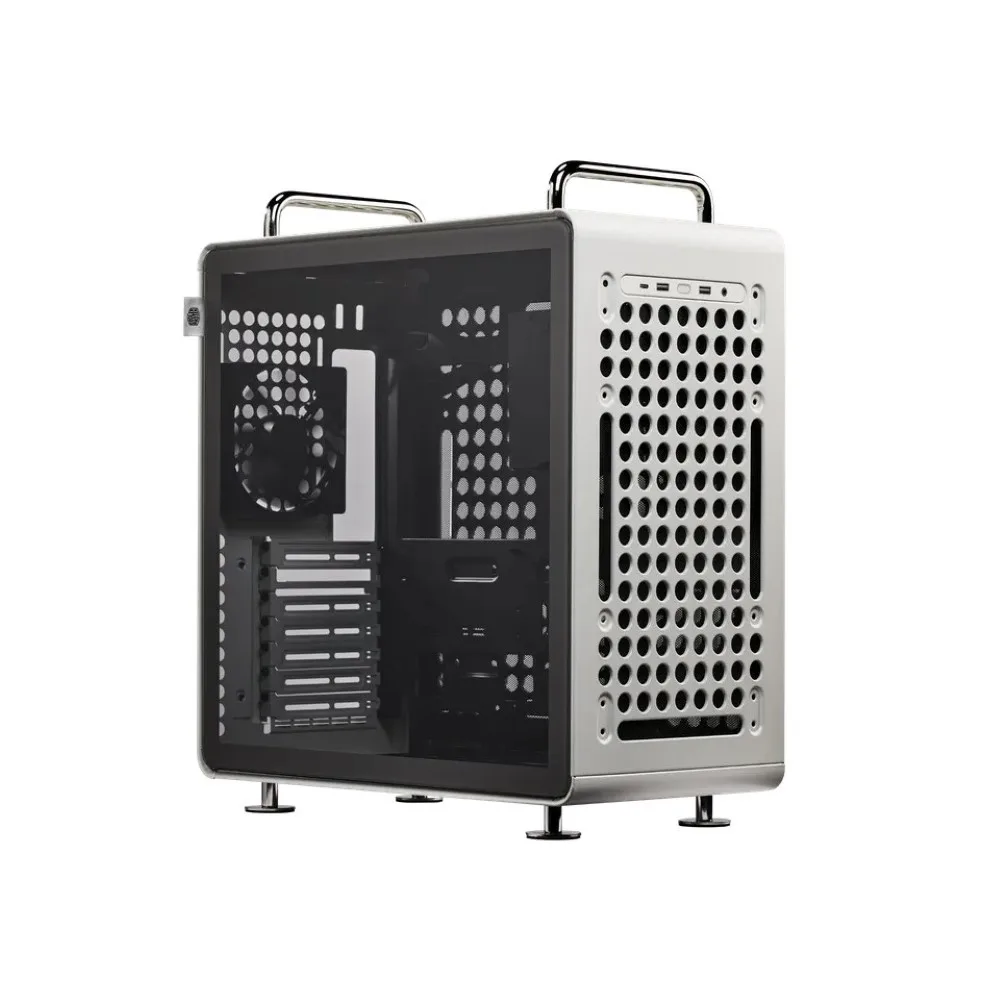

The Cooler Master Qube 540 is a compact ATX cube case that redefines flexibility with its modular internal layout. Designed for enthusiasts who value both form and function, this case supports up to E-ATX motherboards (280 mm width) and offers extensive cooling options including support for 360 mm radiators at the front, top, and bottom. The Moonstone variant features a sleek tempered glass left side panel to showcase your build.
With a volume of just 40.64 liters (without protrusions), the Qube 540 maximizes space efficiency without compromising on hardware compatibility. It accommodates graphics cards up to 415 mm in length and CPU coolers up to 172 mm tall. The I/O panel includes a USB 3.2 Gen 2×2 Type-C port for high-speed data transfer, along with two USB 3.2 Gen 1 Type-A ports and a combo audio jack.
- Modular internal layout allows repositioning of the I/O panel and PSU bracket for flexible build configurations
- Supports up to 360 mm radiators at front, top, and bottom for advanced liquid cooling
- Accommodates graphics cards up to 415 mm long and CPU coolers up to 172 mm tall
- Includes one pre-installed 120 mm rear fan; ample fan mounts for up to 10 fans total
- USB 3.2 Gen 2×2 Type-C port delivers up to 20 Gbps transfer speeds
- Dust filters at top, bottom, and front keep your system clean with easy maintenance

Specification
Overview
| Warranty | No Warranty |
|---|---|
| Product Name | QUBE 540 |
| Model Number (Stardust Iron) | Q540-MGNN-S00 |
| Model Number (Moonstone) | Q540-LGNN-S00 |
| Color(s) | Stardust Iron / Moonstone |
| Exterior Material | Steel |
| Right Side Panel Material | Steel |
| Left Side Panel Material | Tempered Glass (TG) |
| Dimensions (Incl. Protrusions) | 438.5 × 225 × 492.1 mm |
| Dimensions (Excl. Protrusions) | 425 × 225 × 425 mm |
| Volume (Without Protrusions) | 40.64 L |
| Motherboard Support | ITX / M-ATX / ATX / E-ATX (Up to 280 mm) |
| Expansion Slots | 7 |
| 5.25″ ODD Bays | N/A |
| 3.5″ HDD Bays | 1 (Shared with 2.5″ on PSU bracket) |
| 2.5″ SSD Bays | 2 (Max. 5) |
| I/O Panel – USB Ports | 2 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 2×2 Type-C |
| I/O Panel – Audio | 1 × 3.5 mm Mic / Audio Combo Jack |
| Fan Support – Front | 3 × 120 mm / 2 × 140 mm (w/o I/O panel) |
| Fan Support – Top | 3 × 120 mm / 2 × 140 mm (w/o I/O panel) |
| Fan Support – Rear | 1 × 120 mm |
| Fan Support – Bottom | 3 × 120 mm / 2 × 140 mm |
| Pre-installed Fans – Front | N/A |
| Pre-installed Fans – Top | N/A |
| Pre-installed Fans – Rear | 1 × 120 mm Black Fan |
| Radiator Support – Front | 140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support – Top | 140 / 280 / 360 mm (w/o I/O panel) |
| Radiator Support – Rear | 120 mm |
| Radiator Support – Bottom | 140 / 280 / 360 mm (w/o I/O panel) |
| CPU Cooler Clearance | 172 mm |
| Power Supply Clearance | 200 mm |
| Graphics Card Clearance | 415 mm (w/o front fan) |
| Cable Routing Space (Behind Tray) | 27 mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX / SFX |
| Volume (With Panels, Protrusions & Feet) | 48.55 L |
