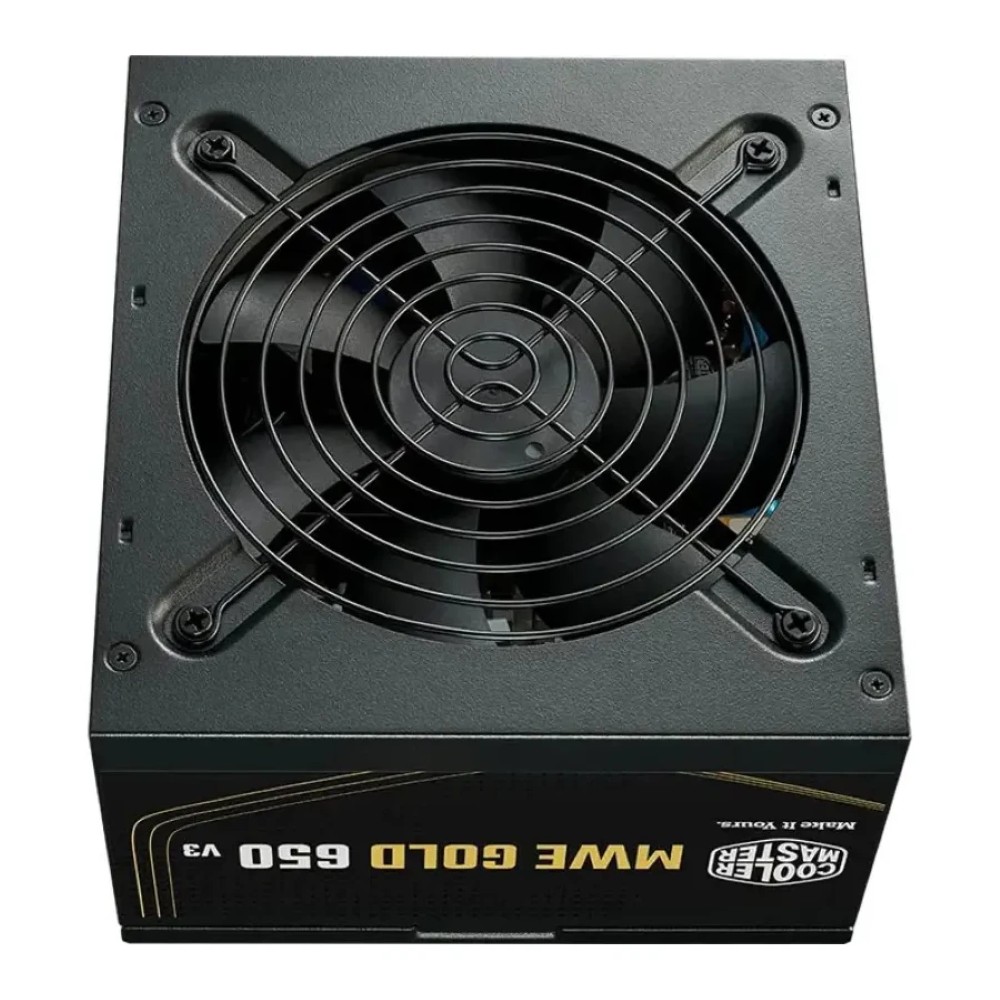

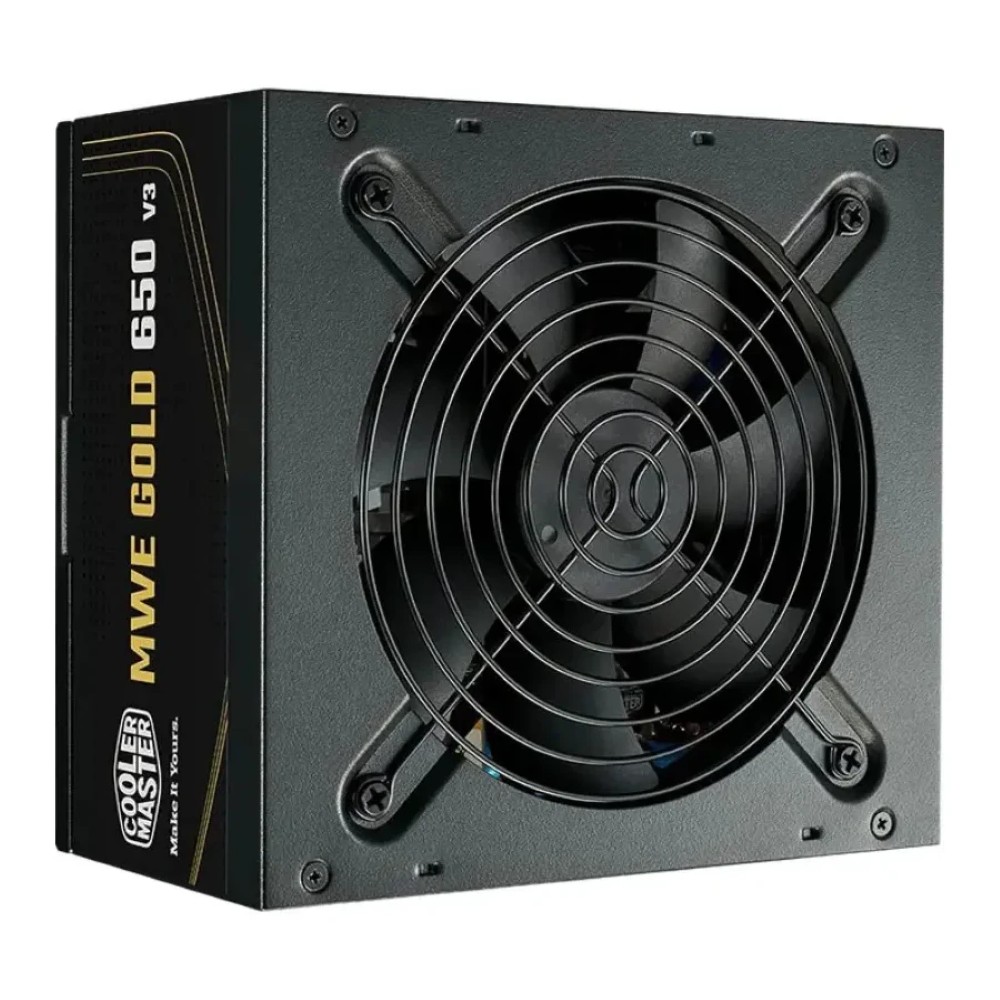

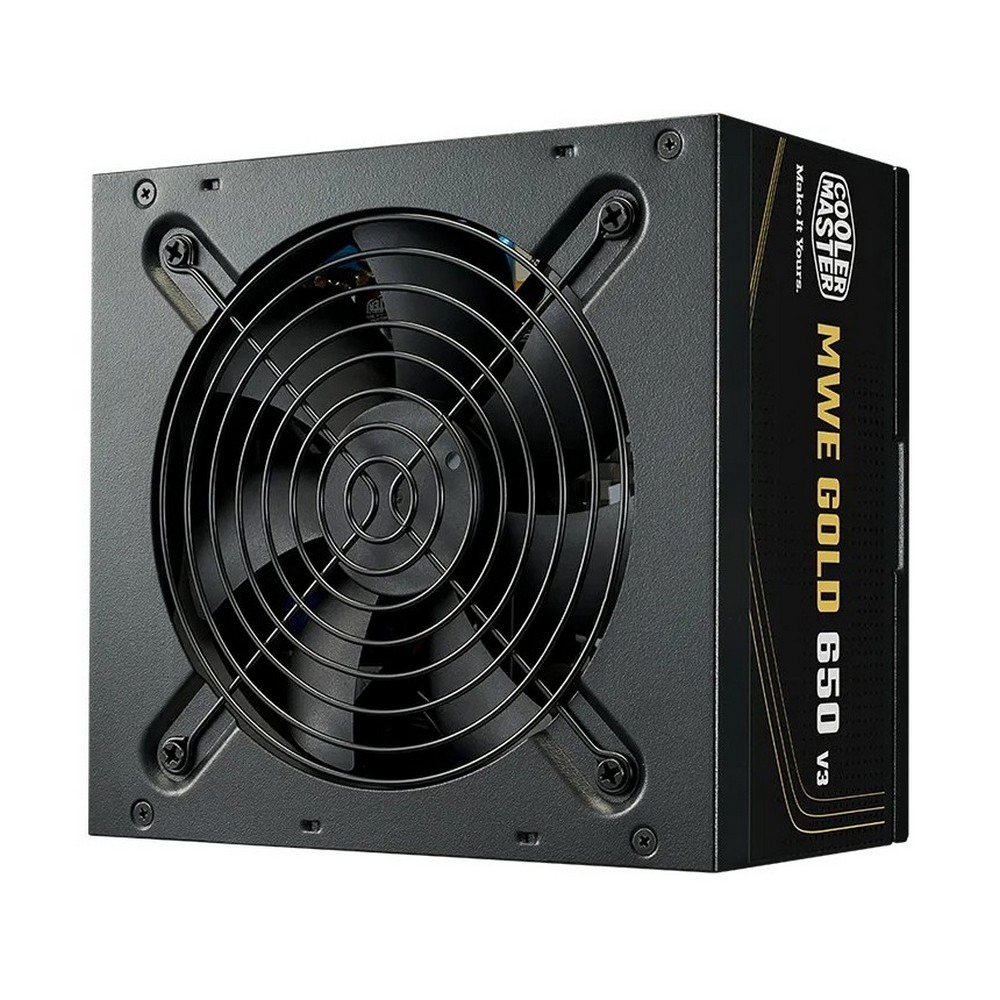

Cooler Master MWE Gold 650 V3 Non-Modular PSU, 650W, 80 Plus Gold, ATX 3.1, Zero RPM Mode
The Cooler Master MWE Gold 650 V3 is a 650W non-modular PSU with 80 PLUS Gold efficiency and ATX 3.1 compliance. It features a 120mm HDB fan with Zero RPM Mode for silent operation, robust protections, and a compact 140mm depth. Ideal for reliable, efficient power in mid-range builds, with nationwide delivery across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 17,499
Description
The Cooler Master MWE Gold 650 V3 is a non-modular power supply delivering 650W of continuous power with 80 PLUS Gold efficiency (≥90% typical load). It complies with ATX 3.1 standards, ensuring compatibility with modern systems and transient loads. The unit features a 120mm HDB fan with Zero RPM Mode for silent operation under low loads.
Built with robust protections (UVP, OVP, OPP, OTP, SCP, OCP) and an MTBF of over 100,000 hours, this PSU offers reliable performance for gaming or workstation builds. Active PFC and ErP 2014 Lot 3 compliance enhance energy efficiency.
- 650W continuous output with 80 PLUS Gold certification
- ATX 3.1 compliant for next-gen hardware
- 120mm HDB fan with Zero RPM Mode for near-silent operation
- Non-modular design with fixed cables for cost-effectiveness
- Full protection suite: UVP, OVP, OPP, OTP, SCP, OCP
- 2-year warranty and nationwide delivery with cash-on-delivery available
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Category | Specification |
| Model | MPE-8506-ACAG-B**, MPE-7506-ACAG-B**, MPE-6502-ACAAG-3B**, MPE-5502-ACAAG-3B** |
| Series | MWE Gold Series |
| Form Factor | ATX |
| ATX Version | ATX 12V Ver. 3.1 |
| Modular | Non-Modular |
| PFC | Active PFC |
| Input Voltage | 100–240V |
| Input Current | 10–6A (850/750W), 10–5A (650W), 8–4A (550W) |
| Input Frequency | 50–60Hz |
| Dimensions (L × W × H) | 140 × 150 × 86 mm |
| Fan Size | 120 mm |
| Fan Bearing | HDB |
| Fan Speed | 2400 RPM (850/750/650W), 1800 RPM (550W) |
| Efficiency | ≥90% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| 80 Plus Efficiency | Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0 – 40°C |
| Power Good Signal | 100 – 150 ms |
| Hold Up Time | ≥16 ms at 80% Load |
| MTBF | >100,000 Hours (850/750W), >100,000 Hours @ 25°C ambient (650/550W) |
| Protections | UVP / OVP / OPP / OTP / SCP / OCP |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS 2.0 / BIS, KC (region dependent) |
| ATX 24-Pin Connectors | 1 |
| SATA Connectors | 6 |
| Peripheral 4-Pin Connectors | 3 |
| eps-8-pin-4-4-pin-connectors | 2 |
| pci-e-6-2-pin-connectors | 4 (850/750/650W), 2 (550W) |
| 12v-2x6-12-4-pin-connectors | 1 (850/750W) |
| EPS 8-Pin / 4+4-Pin Connectors | 2 |
| PCI-e 6+2-Pin Connectors | 4, 2 |
| 12V-2×6 (12+4-Pin) Connectors | 1 |
