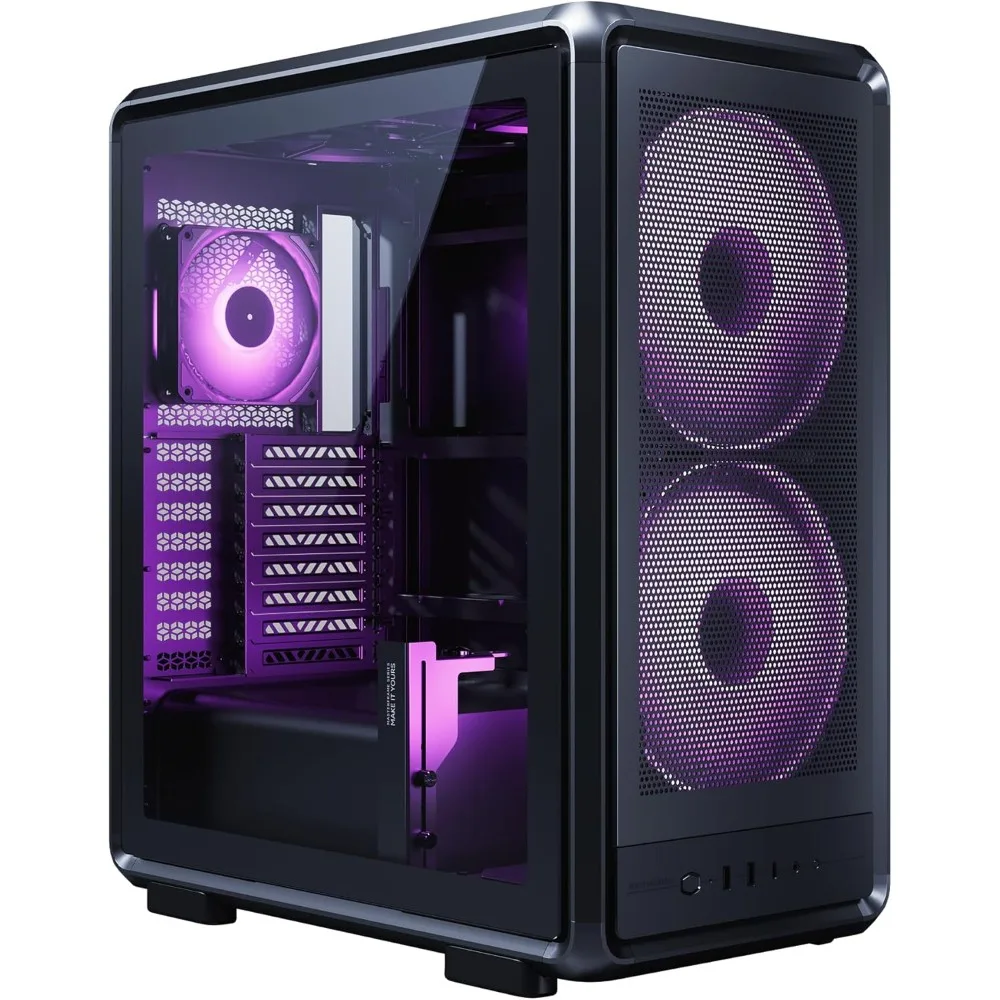

Cooler Master MasterFrame 500 Mesh ARGB EATX Mid Tower Case Pre-installed 2x 200mm SickleFlow/1x 120mm ARGB Fans – Black
The Cooler Master MasterFrame 500 Mesh ARGB is a mid-tower EATX case that comes pre-installed with three ARGB fans (two 200mm front, one 120mm rear) for exceptional airflow. It supports large components including E-ATX motherboards, 390mm GPUs, and 360mm radiators, all housed in a steel-and-aluminum chassis with tempered glass side panels. Ideal for high-end builds, it also includes a GPU support bracket and a USB-C port on the I/O panel.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 45,999
Description
The Cooler Master MasterFrame 500 Mesh ARGB is a feature-rich EATX mid-tower case designed for high-performance builds. Its open mesh front panel and dual 200mm SickleFlow ARGB fans (plus a rear 120mm ARGB fan) deliver exceptional airflow right out of the box. The case supports up to EATX motherboards, 390mm graphics cards, and 190mm CPU coolers, making it ideal for flagship components.
Built with SGCC steel and aluminum, the MasterFrame 500 offers a sturdy chassis with tempered glass side panels on both sides. The interior provides ample cable routing space (43mm behind the motherboard tray) and includes a GPU support bracket for heavy graphics cards. With support for up to 360mm radiators on the front and top, this case is ready for custom liquid cooling loops.
- Pre-installed with 2x 200mm SickleFlow ARGB fans (front) and 1x 120mm ARGB fan (rear) for outstanding airflow
- Supports EATX, ATX, Micro-ATX, Mini-ITX, and SSI-CEB motherboards (conditional for larger formats)
- Accommodates graphics cards up to 390mm, CPU coolers up to 190mm, and PSUs up to 235mm
- Radiator support: up to 360mm front/top, 120mm rear
- Includes GPU support bracket and removable mesh dust filters
- I/O panel features 2x USB 3.2 Gen1 Type-A and 1x USB 3.2 Gen2x2 Type-C
Specification
Overview
| Warranty | No Warranty |
|---|---|
| Model Number | Black: MF500M-KHNN-S01 (ARGB), MF500M-KHNN-S00 (Non-ARGB) |
| Color(s) | Black / Silver |
| Exterior Material | SGCC Steel, Aluminum |
| Side Panel Material | Tempered Glass (Right / Left) |
| Dimensions (L × W × H) | 471 × 261 × 544 mm (Incl. Protrusions) |
| Volume | 60.9 L (Excl. Protrusions) |
| Motherboard Support | Mini-ITX / Mini-DTX / Micro-ATX / ATX / E-ATX* / SSI-CEB* (*Conditional Support) |
| Power Supply Support | ATX |
| PCI Expansion Slots | 8 |
| 3.5″ Drive Bays | |
| 2.5″ / 3.5″ Drive Bays | 1 (Bottom) |
| Pre-installed Drive Bays | 1 × 2.5″ or 1 × 3.5″ |
| I/O Panel – USB Ports | 2 × USB 3.2 Gen1 Type-A, 1 × USB 3.2 Gen2×2 Type-C |
| I/O Panel – Audio | 1 × 3.5 mm Headset Jack (Audio + Mic) |
| Pre-installed Fans – Front | ARGB: 2 × 200 mm SickleFlow ARGB |
| Pre-installed Fans – Rear | ARGB: 1 × 120 mm ARGB |
| Fan Support – Front | 3 × 120 mm / 2 × 140 mm / 2 × 180 mm / 2 × 200 mm |
| Fan Support – Top | 3 × 120 mm / 2 × 140 mm / 2 × 180 mm / 2 × 200 mm |
| Fan Support – Rear | 1 × 120 mm |
| Fan Support – Bottom | 1 × 120 mm |
| Radiator Support – Front | 120 / 140 / 240 / 280 / 360 mm |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360 mm |
| Radiator Support – Rear | 120 mm |
| Dust Filters | Mesh Only (Removable) |
| CPU Cooler Clearance | 190 mm |
| PSU Clearance | 235 mm |
| Graphics Card Clearance | 390 mm |
| Included Accessories | GPU Support Bracket |
| Cable Routing Space | 43 mm (Behind Motherboard Tray) |
| Case Size | Mid Tower |
| Series | MasterFrame Series |
