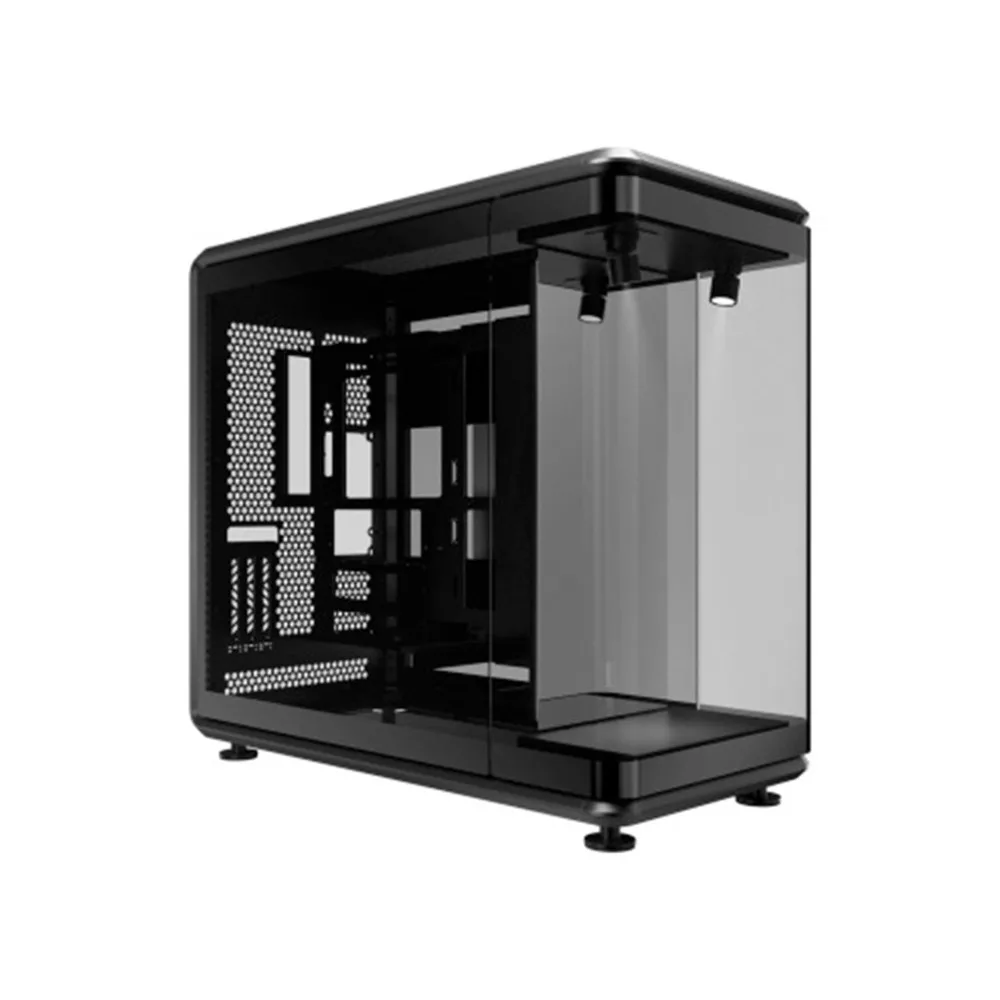

Cooler Master MasterFrame 360 Panorama ATX Mid-Tower PC Case – Black
The Cooler Master MasterFrame 360 Panorama is a panoramic ATX mid-tower PC case with a dual-chamber design and tempered glass side panel. It supports up to ATX motherboards, 430mm GPUs, and offers extensive cooling with support for up to six 120mm fans or 360mm radiators on top and bottom. Includes a PCIe 5.0 riser cable, ARGB spotlights, and front USB 4.0 Type-C connectivity.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 55,999
Description
The Cooler Master MasterFrame 360 Panorama is a panoramic ATX mid-tower PC case that offers a unique dual-chamber design with a large tempered glass side panel, showcasing your build from multiple angles. With a volume of 86 liters (without protrusions), it supports up to ATX motherboards, including BTF (Back-to-Front) layouts, and provides extensive cooling options.
This case features impressive fan and radiator support, accommodating up to six 120mm fans on both the top and bottom, as well as radiators up to 360mm. It includes a PCIe 5.0 riser cable for vertical GPU mounting, two ARGB spotlights, and tool-free drive bays for one HDD or two SSDs. The front I/O panel offers two USB 3.2 Gen 1 Type-A ports and one USB 4.0 Gen 2×2 Type-C port.

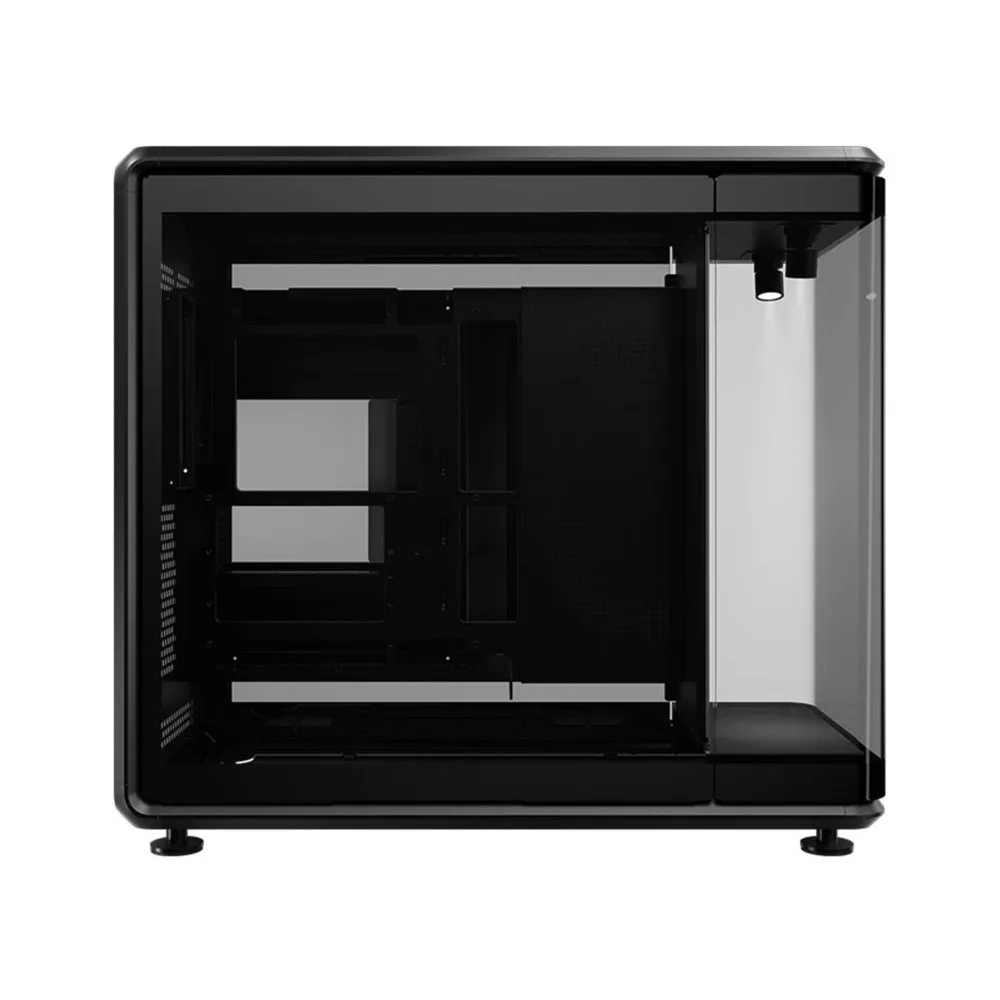

- Panoramic tempered glass side panel for full component visibility
- Supports up to ATX and BTF motherboards with 430mm GPU clearance
- Top and bottom support for up to 6x 120mm fans or 360mm radiators
- Includes PCIe 5.0 riser cable for vertical GPU installation
- Tool-free drive bays: 1x 3.5″ HDD or 2x 2.5″ SSDs
- USB 4.0 Type-C and two USB 3.2 Gen 1 Type-A front ports
Specification
Overview
| Warranty | No Warranty |
|---|---|
| Product Names | MASTERFRAME 360 PANORAMA / MASTERFRAME 360 STAGE LCD / MASTERFRAME 360 STAGE MIRROR |
| Model Numbers | PANORAMA: MF360-KINN-S00 / STAGE LCD: MF360-KHNN-S02 / STAGE MIRROR: MF360-KHNN-S01 |
| Color(s) | Black |
| Materials – Exterior | SGCC |
| Side Panel Materials | Tempered Glass (TG / TG) |
| Dimensions (Incl.) | 549 x 291 x 581 mm |
| Dimensions (Excl.) | 511 x 291 x 581 mm |
| Volume | 86 L (without panel, protrusions, feet), 93 L (with all) |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / BTF (ATX) |
| Power Supply Support | ATX |
| PCI Expansion Slots | 3.5 |
| 3.5″ Drive Bays | |
| 2.5″/3.5″ Drive Bays (SSD/HDD) | 1x HDD or 2x SSD |
| Preinstalled Drive Bays | 1x HDD or 2x SSD (tool-free) |
| USB Ports | 2x USB 3.2 Gen 1 Type-A, 1x USB 4.0 Gen 2×2 Type-C |
| Audio Ports | 1x 3.5mm Headset Jack (Audio + Mic) |
| Fan Support – Top | 6x 120mm / 2x 140mm / 2x 180mm / 2x 200mm |
| Fan Support – Bottom | 6x 120mm / 2x 140mm / 2x 180mm / 2x 200mm |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360 mm (max thickness 75mm) |
| Radiator Support – Bottom | 120 / 140 / 240 / 280 / 360 mm (max thickness 75mm) |
| Dust Filters | Mesh Only (Removable) |
| Other Components | 1x PCI-e 5.0 Riser / 2x ARGB Spotlight |
| Front Display Clearance (H x W x D) | 328 x 290 x 110 mm |
| Toolbox | Yes |
| CPU Cooler Clearance | 145 mm |
| PSU Clearance | 210 mm |
| GPU Clearance | 430 mm |
| Cable Routing Space | 110 mm |
| Size | Mid Tower |
| Series | MasterFrame Series |
| DIY Tank & Pump Support | PANORAMA: Right side / STAGE LCD & MIRROR: Left side |
