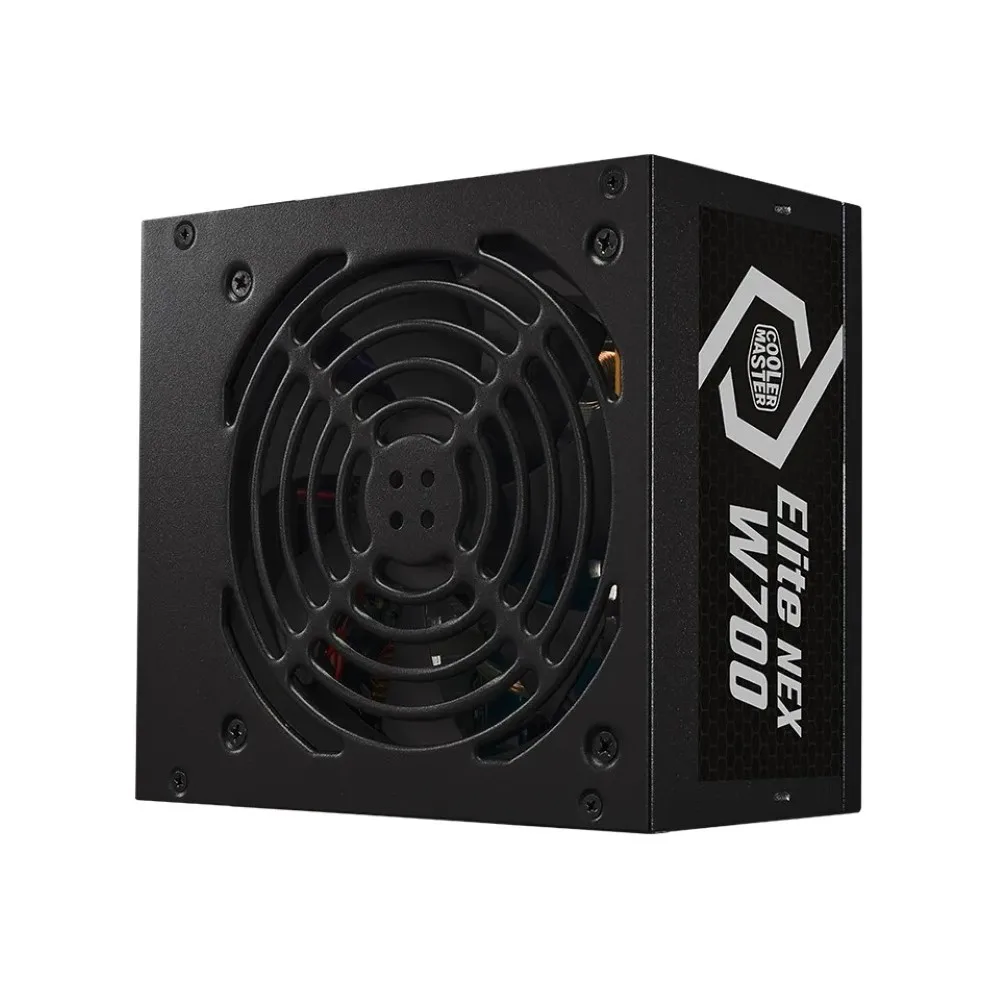

Cooler Master Elite NEX W700 230V 700W 80+ ATX Non Modular Power Supply
The Cooler Master Elite NEX W700 230V is a 700W non-modular power supply with 80+ White efficiency, offering ≥85% efficiency at typical load. It features Active PFC, a 120mm sleeve fan, and comprehensive protections (OVP, OPP, SCP, UVP, OTP, Inrush). With two EPS and two PCI-e connectors, it supports mainstream builds. Available nationwide in Pakistan with cash on delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 14,799
Description
The Cooler Master Elite NEX W700 230V is a reliable 700W power supply designed for stable and efficient performance. With an 80+ White efficiency rating, it delivers ≥85% efficiency at typical load, reducing energy waste and heat generation. The unit features Active PFC and complies with ATX 12V Ver. 2.41, ensuring compatibility with modern systems.
This non-modular PSU includes essential connectors: one 24-pin ATX, two EPS 8-pin (4+4), two PCI-e 6+2 pin, five SATA, and three peripheral 4-pin connectors. It is equipped with a 120mm sleeve bearing fan for quiet cooling and comprehensive protections including OVP, OPP, SCP, UVP, OTP, and inrush protection. With a 2-year warranty and MTBF over 100,000 hours, it’s a dependable choice for budget builds.
- 700W continuous power with 80+ White efficiency (≥85% @ typical load)
- Active PFC and ATX 12V Ver. 2.41 compliant
- Non-modular design with fixed cables: 1x 24-pin ATX, 2x EPS 8-pin, 2x PCI-e 6+2 pin, 5x SATA, 3x peripheral
- 120mm sleeve bearing fan for reliable cooling
- Full protection suite: OVP, OPP, SCP, UVP, OTP, Inrush Protection
- 2-year warranty and >100,000 hours MTBF
Specification
Overview
| Warranty | 2 Years |
|---|---|
| Model | MPW-7001-ACBW-B |
| ATX Version | ATX 12V Ver. 2.41 |
| PFC | Active PFC |
| Input Voltage | 200–240V |
| Input Current | 5A |
| Input Frequency | 50–60Hz |
| Dimensions (L × W × H) | 140 × 150 × 86 mm |
| Fan Size | 120 mm |
| Fan Bearing | Sleeve Fan |
| Efficiency | ≥ 85% @ Typical Load |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0–40°C |
| Power Good Signal | 100–500 ms |
| Hold Up Time | ≥10 ms at 100% load |
| MTBF | >100,000 Hours |
| Protections | OVP / OPP / SCP / UVP / OTP / Inrush Protection |
| Regulatory Certifications | TUV, cTUVus, CE, FCC, CCC, EAC, UKCA |
| ATX 24-Pin Connectors | 1 |
| SATA Connectors | 5 |
| Peripheral 4-Pin Connectors | 3 |
| Series | Elite Series |
| Category | 500–750W |
| Modular | Non-Modular |
| 80 Plus Efficiency | White |
| Form Factor | ATX |
| Wattage | 700W |
| eps-8-pin-4-4-pin-connectors | 2 |
| pci-e-6-2-pin-connectors | 2 |
| EPS 8-Pin / 4+4 Pin Connectors | 2 |
| PCI-e 6+2 Pin Connectors | 2 |
