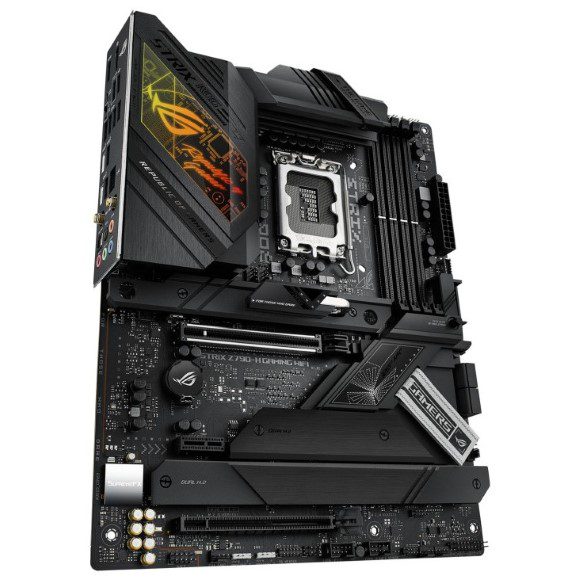

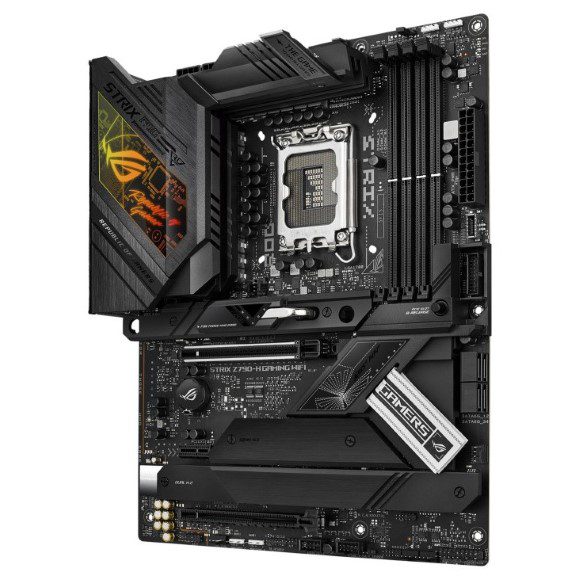

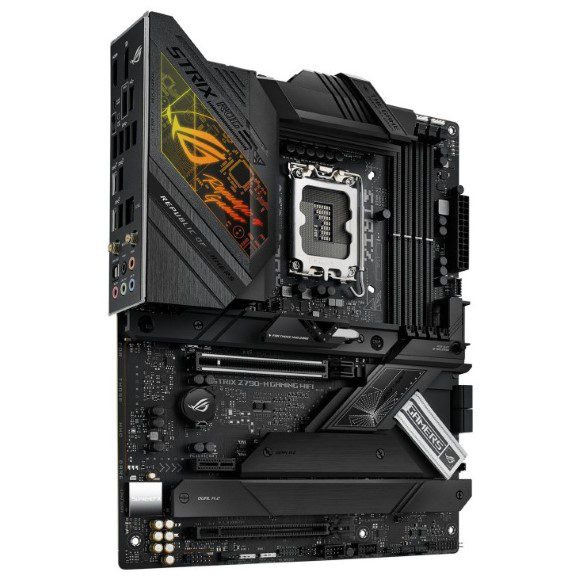

ASUS ROG STRIX Z790-H Gaming (WiFi 6E) LGA 1700 (Intel12th&13th Gen) Motherboard

Name: ASUS ROG STRIX Z790-H Gaming (WiFi 6E) LGA 1700 (Intel12th&amp;13th Gen) Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0091
Price: 92500 PKR
Availability: InStock

SKU: MC-MBD-ASU-0091 Category: Intel Motherboards Brand: Asus

The ASUS ROG STRIX Z790-H Gaming (WiFi 6E) motherboard is designed for Intel 12th and 13th Gen processors, featuring the Z790 chipset and DDR5 memory support up to 7800MHz. With PCIe 5.0, four M.2 slots, 2.5Gb Ethernet, and Wi-Fi 6E, it delivers top-tier performance and connectivity for gaming enthusiasts. Available nationwide in Pakistan with cash on delivery.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 92,500

Compare

Add to wishlist

Description

The ASUS ROG STRIX Z790-H Gaming (WiFi 6E) motherboard is built for Intel 12th and 13th Gen LGA 1700 processors, featuring the Intel Z790 chipset. It supports DDR5 memory up to 7800MHz (OC) with a maximum capacity of 192GB across four slots, ensuring blazing-fast performance for gaming and content creation.

Equipped with PCIe 5.0 support, four M.2 slots (all PCIe 4.0), and 2.5Gb Ethernet plus Wi-Fi 6E, this board delivers exceptional connectivity and storage options. The ROG SupremeFX 7.1 audio with ALC4080 codec provides immersive sound, while comprehensive cooling and Q-Design features like Q-Latch and Q-Release simplify building.

Intel LGA 1700 socket: Compatible with 12th & 13th Gen Core processors
DDR5 memory support: Up to 7800MHz (OC) with 192GB max capacity
PCIe 5.0 x16 slot for next-gen graphics cards
Four M.2 slots (all PCIe 4.0) with heatsinks and backplate
Wi-Fi 6E (802.11ax) and Bluetooth v5.3 for fast wireless connectivity
ROG SupremeFX 7.1 audio with ALC4080 codec and Savitech amplifier

Specification

Overview

Warranty	1 Year
Brand	ASUS
Model	ROG STRIX Z790-H GAMING WIFI
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipset	Intel Z790
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Supports Intel Extreme Memory Profile (XMP), OptiMem II, * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/, * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express x1	1 x PCI Express 3.0 x1
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel Z790 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID	0/1/5/10
Audio Chipset	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, – Impedance sense for front and rear headphone outputs, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input, – Supports up to 32-Bit/384 kHz playback, Audio Features, – SupremeFX Shielding Technology, – Savitech SV3H712 AMP, – Rear optical S/PDIF out port, – Premium audio capacitors, – Audio cover
Audio Channels	7.1 Channels
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E, 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band, WiFi 6E 6GHz regulatory may vary between countries., ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
Bluetooth	Bluetooth v5.3
Back I/O Ports	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C), 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Intel 2.5Gb Ethernet port, 5 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button
Onboard USB	1 x USB 3.2 Gen 2×2 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Storage related, 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x AURA RGB header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header, 1 x Thunderbolt header
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector
Windows 11	Supported
Features	Extreme Engine Digi+, – 5K Black Metallic Capacitors, ASUS Q-Design, – M.2 Q-Latch, – PCIe Slot Q-Release, – Q-DIMM, – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – Q-Slot, ASUS Thermal Solution, – M.2 heatsink backplate, – M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – BIOS FlashBack button, – BIOS FlashBack LED, – Clear CMOS button, – CPU Socket lever protector, – ProCool II, – Pre-mounted I/O shield, – SafeSlot, – SafeDIMM, Aura Sync, – Aura RGB header, – Addressable Gen 2 headers
Package Contents	Cables, 2 x SATA 6Gb/s cables, Additional Cooling Kit, 1 x Thermal pad for M.2, Miscellaneous, 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties package, 1 x M.2 backplate Q-Latch package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x ROG Strix thank you card, 2 x M.2 Rubber Packages, 1 x M.2 backplate Rubber Package, Documentation, 1 x User guide
