ASUS ProArt Z790-Creator WiFi 6E LGA 1700 (Intel 12th&13th Gen) ATX Content Creator Motherboard

Name: ASUS ProArt Z790-Creator WiFi 6E LGA 1700 (Intel 12th&amp;13th Gen) ATX Content Creator Motherboard
Brand: Asus
SKU: MC-MBD-ASU-0086
Price: 160000 PKR
Availability: InStock

SKU: MC-MBD-ASU-0086 Category: Intel Motherboards Brand: Asus

The ASUS ProArt Z790-Creator WiFi is a high-performance ATX motherboard for content creators, featuring an Intel LGA 1700 socket for 12th and 13th Gen processors. It offers dual Thunderbolt 4, 10Gb and 2.5Gb Ethernet, Wi-Fi 6E, and supports up to 192GB of DDR5 memory. With four M.2 slots, PCIe 5.0, and ProArt Creator Hub software, it delivers exceptional connectivity and optimization for creative workflows.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 160,000

Compare

Add to wishlist

Description

The ASUS ProArt Z790-Creator WiFi is a premium ATX motherboard designed for content creators and professionals who demand uncompromising performance. Built on the Intel Z790 chipset with an LGA 1700 socket, it supports 12th and 13th Gen Intel Core processors, delivering exceptional computing power for demanding workflows like 3D rendering, video editing, and software development.

This motherboard offers robust connectivity with dual Thunderbolt 4 USB-C ports, dual Ethernet (10Gb and 2.5Gb), and built-in Wi-Fi 6E and Bluetooth v5.3. It supports up to 192GB of DDR5 memory with speeds up to 7200MHz (OC), four M.2 slots for high-speed storage, and comprehensive PCIe 5.0 support. The ProArt Creator Hub and CreationFirst software optimize system performance for creative applications, while ASUS 5X Protection III ensures long-term reliability.

Intel LGA 1700 socket for 12th and 13th Gen Core processors with Intel Z790 chipset
Dual Thunderbolt 4 USB-C ports, dual Ethernet (10Gb + 2.5Gb), Wi-Fi 6E, and Bluetooth v5.3
4 x DDR5 slots supporting up to 192GB and speeds up to 7200MHz (OC) with XMP
2 x PCIe 5.0 x16 slots, 1 x PCIe 4.0 x16 slot, and 4 x M.2 slots (all PCIe 4.0)
8 x SATA 6Gb/s ports with RAID 0/1/5/10 support via Intel Rapid Storage Technology
Realtek S1220A 7.1-channel audio, ASUS ProArt Creator Hub software, and comprehensive cooling options

Specification

Overview

Warranty	1 Year
Brand	ASUS
Model	PROART Z790-CREATOR WIFI
Part Number	90MB1DV0-M0AAY0
CPU Socket Type	LGA 1700
CPU Type	Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*, Refer to www.asus.com for CPU support list., ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z790
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory, Supports Intel Extreme Memory Profile (XMP), OptiMem II, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
PCI Express 5.0 x16	2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes), Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)., – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA 6Gb/s	8 x SATA 6Gb/s
M.2	Total supports 4 x M.2 slots, Intel 13th & 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), Intel Z790 Chipset, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes), ** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.
SATA RAID	Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
Audio Chipset	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC, – Impedance sense for front and rear headphone outputs, – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), – Supports up to 32-Bit/192 kHz playback, Audio Features, – Premium audio capacitors, – Dedicated audio PCB layers, – Audio cover, – Unique de-pop circuit, * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio., ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels
LAN Chipset	1 x Marvell AQtion 10Gb Ethernet
Second LAN Chipset	1 x Intel 2.5Gb Ethernet
Max LAN Speed	10Gbps + 2.5Gbps
Wireless LAN	Wi-Fi 6E, 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Supports 2.4/5/6GHz frequency band, WiFi 6E 6GHz regulatory may vary between countries.
Bluetooth	Bluetooth v5.3, The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

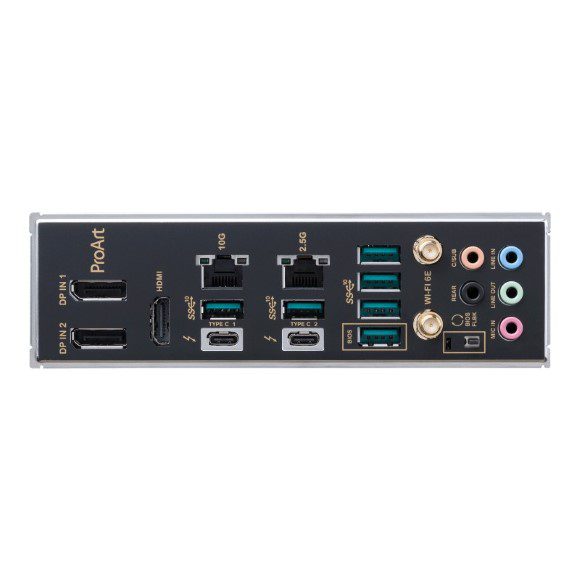

Back I/O Ports	2 x Thunderbolt 4 USB Type-C port(s), 6 x USB 3.2 Gen 2 port(s) (6 x Type-A), 2 x DisplayPort (Input only), 1 x HDMI port, 1 x ASUS Wi-Fi Module, 1 x Marvell AQtion 10Gb Ethernet port, 1 x Intel 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack button
Onboard USB	1 x USB 3.2 Gen 2×2 (support(s) USB Type-C), 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related, 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 5 x 4-pin Chassis Fan header(s), Storage related, 4 x M.2 slots (Key M), 8 x SATA 6Gb/s ports, Miscellaneous, 3 x Addressable Gen 2 header(s), 1 x AURA RGB header(s), 1 x Clear CMOS header, 1 x COM Port header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (AAFP), 1 x M.2 slot (Key E), 1 x SPI TPM header (14-1pin), 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x Thermal Sensor header
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Power Pin	1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector, 1 x 6-pin +12V Power connector
Windows 11	Windows 11 64-bit, Windows 10 64-bit
Features	ASUS 5X PROTECTION III, – DIGI+ VRM (- Digital power design with DrMOS), – Enhanced DRAM Overcurrent Protection, – ESD Guards, – LANGuard, – Overvoltage Protection, – SafeSlot, – Stainless-Steel Back I/O, ASUS Q-Design, – M.2 Q-Latch, – Q-Connector, – Q-DIMM, – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), – Q-Slot, ASUS Thermal Solution, – M.2 heatsink, – VRM heatsink design, ASUS EZ DIY, – BIOS FlashBack™ button, – BIOS FlashBack™ LED, – Box Headers, – ProCool II, – Pre-mounted I/O shield, AURA Sync, – AURA RGB header(s), – Addressable Gen 2 header(s), ASUS Exclusive Software, Armoury Crate, – AURA Creator, – AURA Sync, – Fan Xpert 4 with AI Cooling II, – Two-Way AI Noise Cancelation, – Power Saving, AI Suite 3, – Easy Optimization with AI Overclocking, – TPU, – DIGI+ Power Control, – Turbo app, – PC Cleaner, ASUS CPU-Z, IT Management software supported, – ASUS Control Center Express(ACCE), ProArt Creator Hub, CreationFirst, MyAsus, Norton 360 Deluxe (60 Days Free Trial), WinRAR, UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY, – ASUS CrashFree BIOS 3, – ASUS EZ Flash 3, – ASUS UEFI BIOS EZ Mode, FlexKey, MemTest86

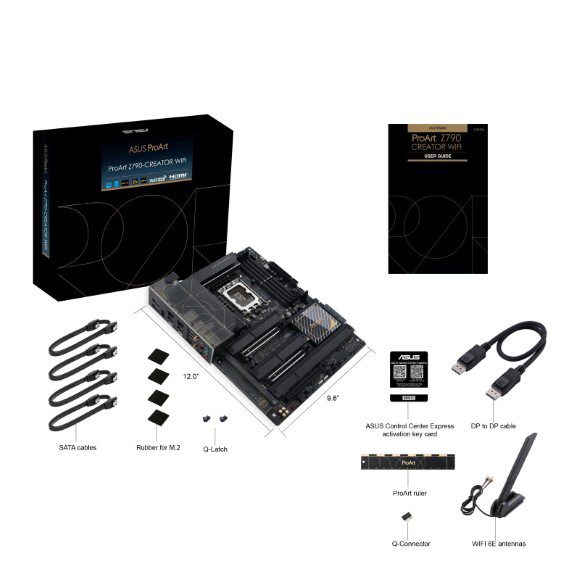

Package Contents	Cables, 1 x DisplayPort cable, 4 x SATA 6Gb/s cables, Miscellaneous, 1 x ASUS Wi-Fi moving antennas, 2 x M.2 Rubber Package(s), 1 x M.2 SSD Q-Latch package(s), 1 x Q-connector, 1 x ProArt ruler, 1 x Screw rubber cover, Documentation, 1 x ACC Express Activation Key Card, 1 x User guide
Form Factor	ATX
