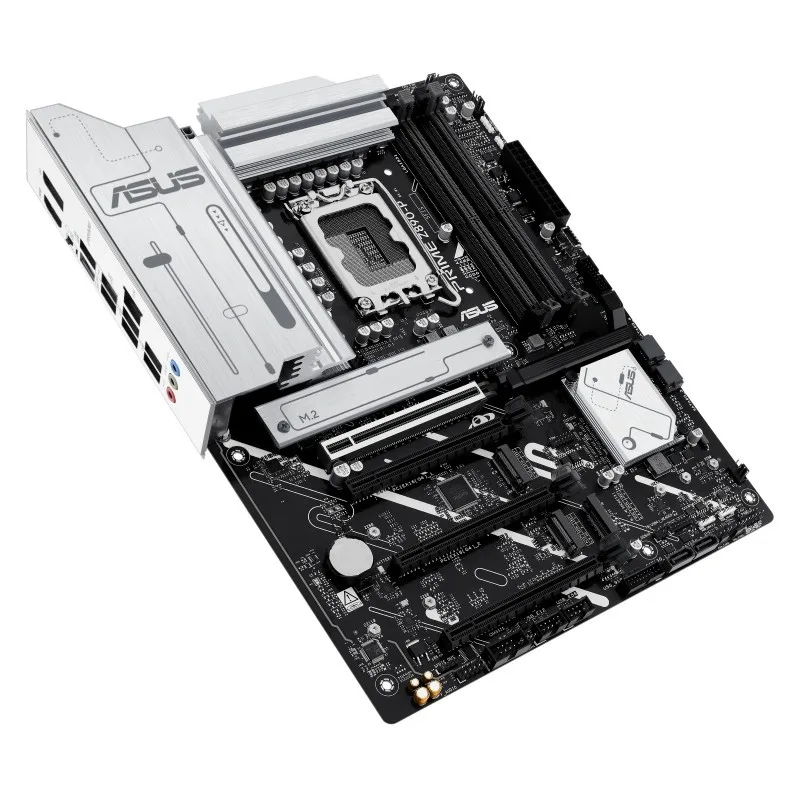

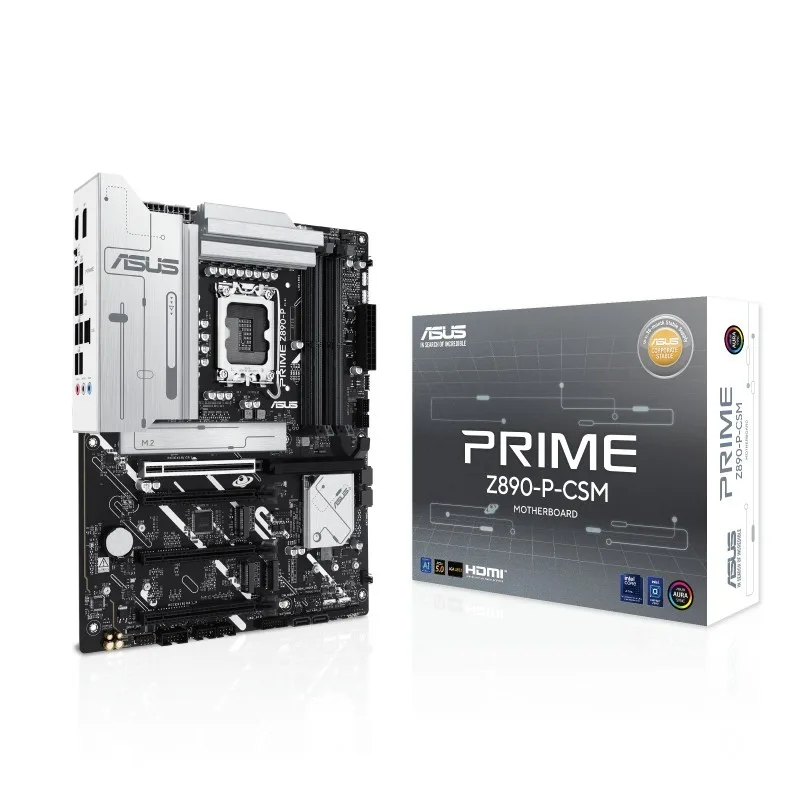

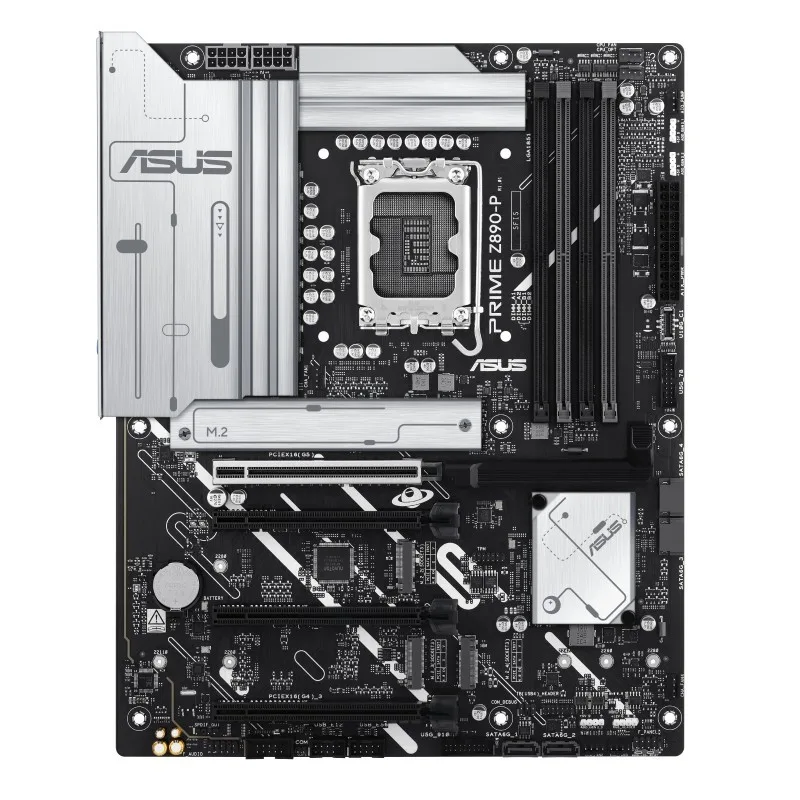

ASUS Prime Z890-P-CSM DDR5 LGA1851 ATX Motherboard
The ASUS Prime Z890-P-CSM DDR5 LGA1851 ATX Motherboard is built for Intel® Core™ Ultra Processors (Series 2), featuring the Intel® Z890 chipset. It supports up to 256GB of DDR5 memory with speeds exceeding 8666 MT/s, PCIe 5.0 for graphics and storage, and Realtek 2.5Gb Ethernet. With comprehensive connectivity including USB-C 20Gbps and HDMI 2.1, it delivers a powerful foundation for gaming and productivity builds across Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 88,880
Description

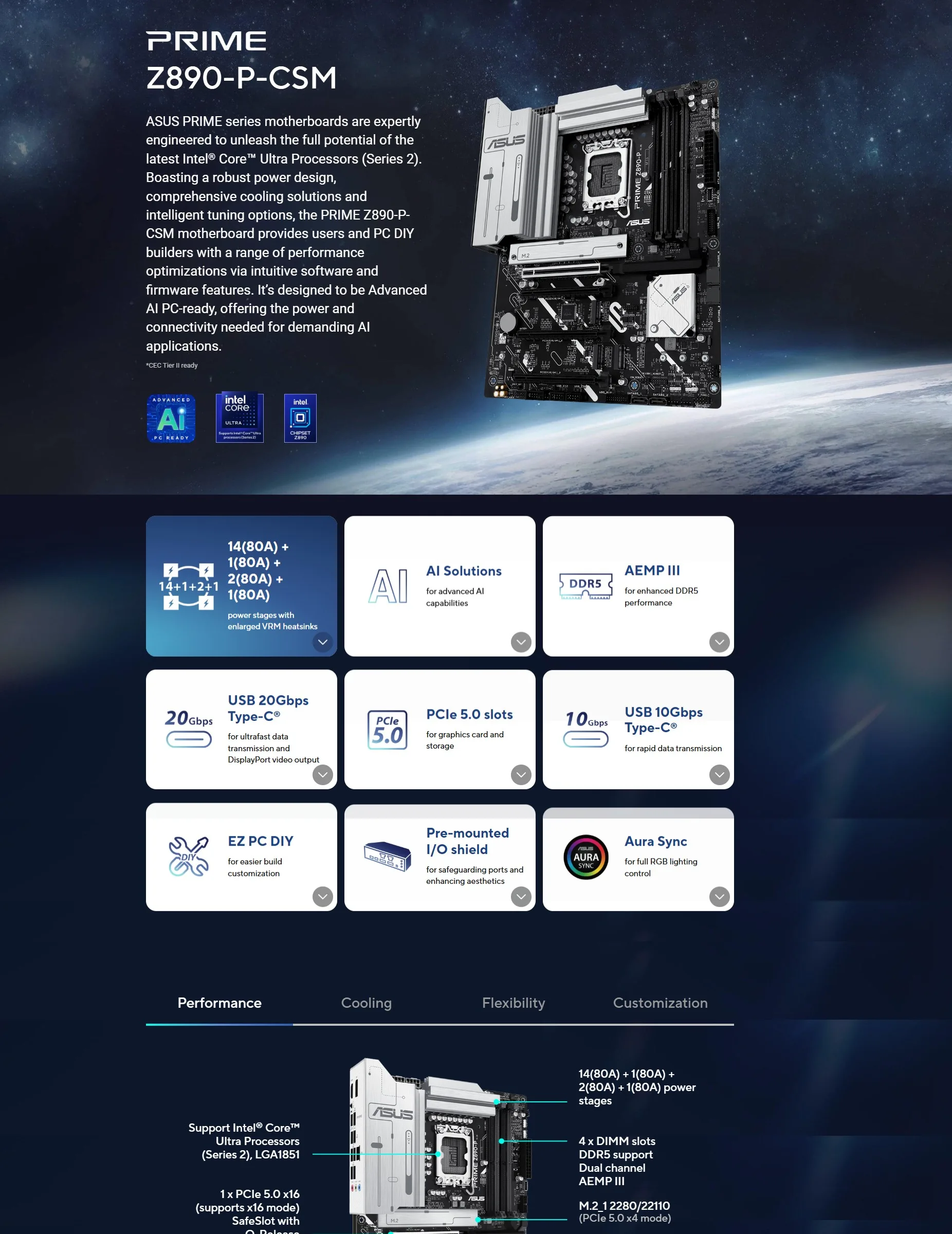

The ASUS Prime Z890-P-CSM DDR5 LGA1851 ATX Motherboard is engineered for Intel® Core™ Ultra Processors (Series 2), offering a robust foundation for high-performance builds. With the Intel® Z890 chipset, it supports DDR5 memory up to 8666+ MT/s (OC) and features PCIe 5.0 for cutting-edge graphics and storage.

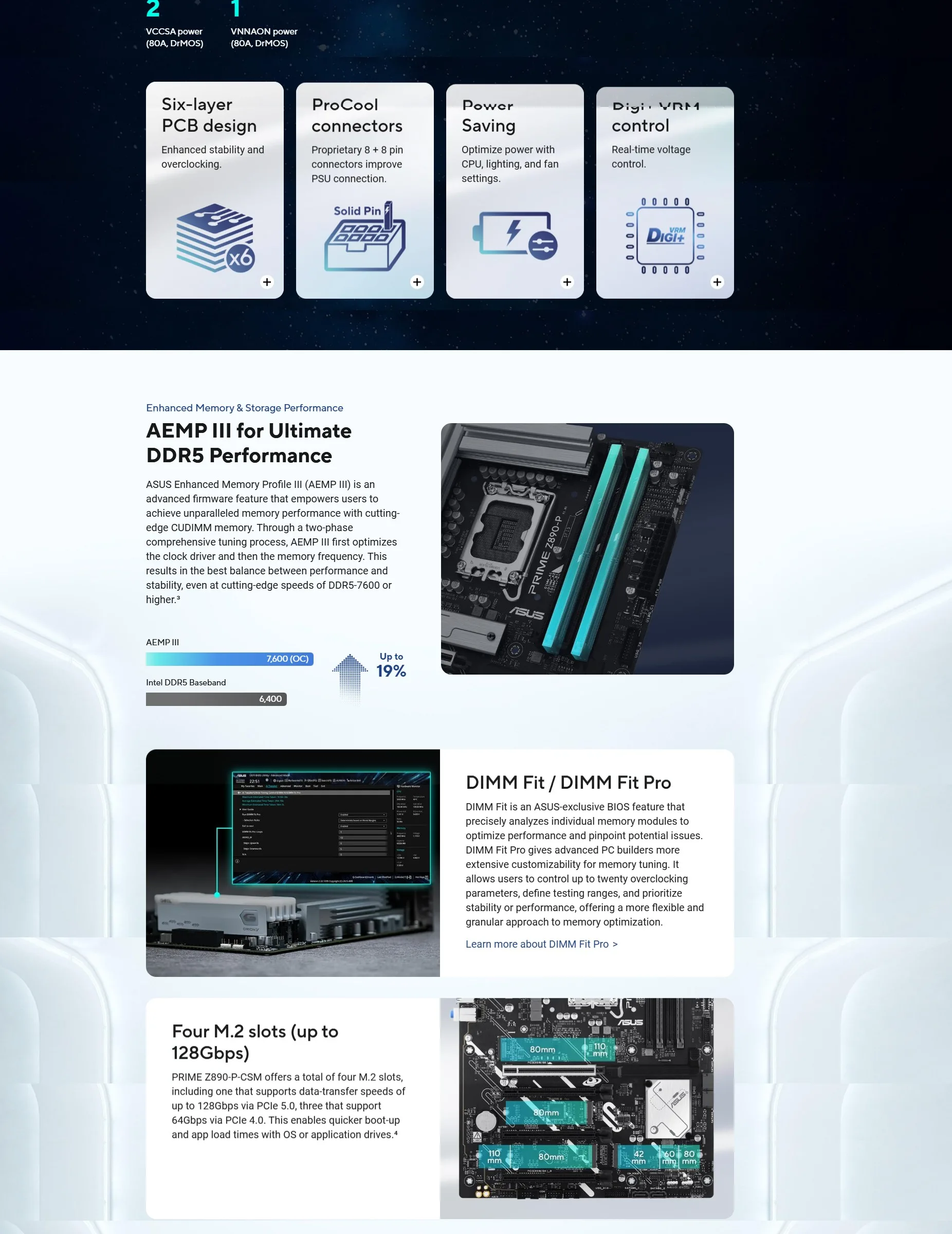

This motherboard includes four M.2 slots, with one supporting PCIe 5.0 x4 for lightning-fast SSDs, and four SATA 6Gb/s ports for additional storage. Connectivity is future-proof with Realtek 2.5Gb Ethernet, USB-C 20Gbps, and HDMI 2.1 with 4K@60Hz support. ASUS 5X Protection III and Q-Design ensure durability and ease of use, while Aura Sync allows customizable RGB lighting.
- Supports Intel® Core™ Ultra Processors (Series 2) on LGA1851 socket
- 4× DDR5 DIMM slots, up to 256GB, with speeds up to 8666+ MT/s (OC)
- PCIe 5.0 x16 slot for graphics and M.2_1 PCIe 5.0 x4 for storage
- Realtek 2.5Gb Ethernet for high-speed networking

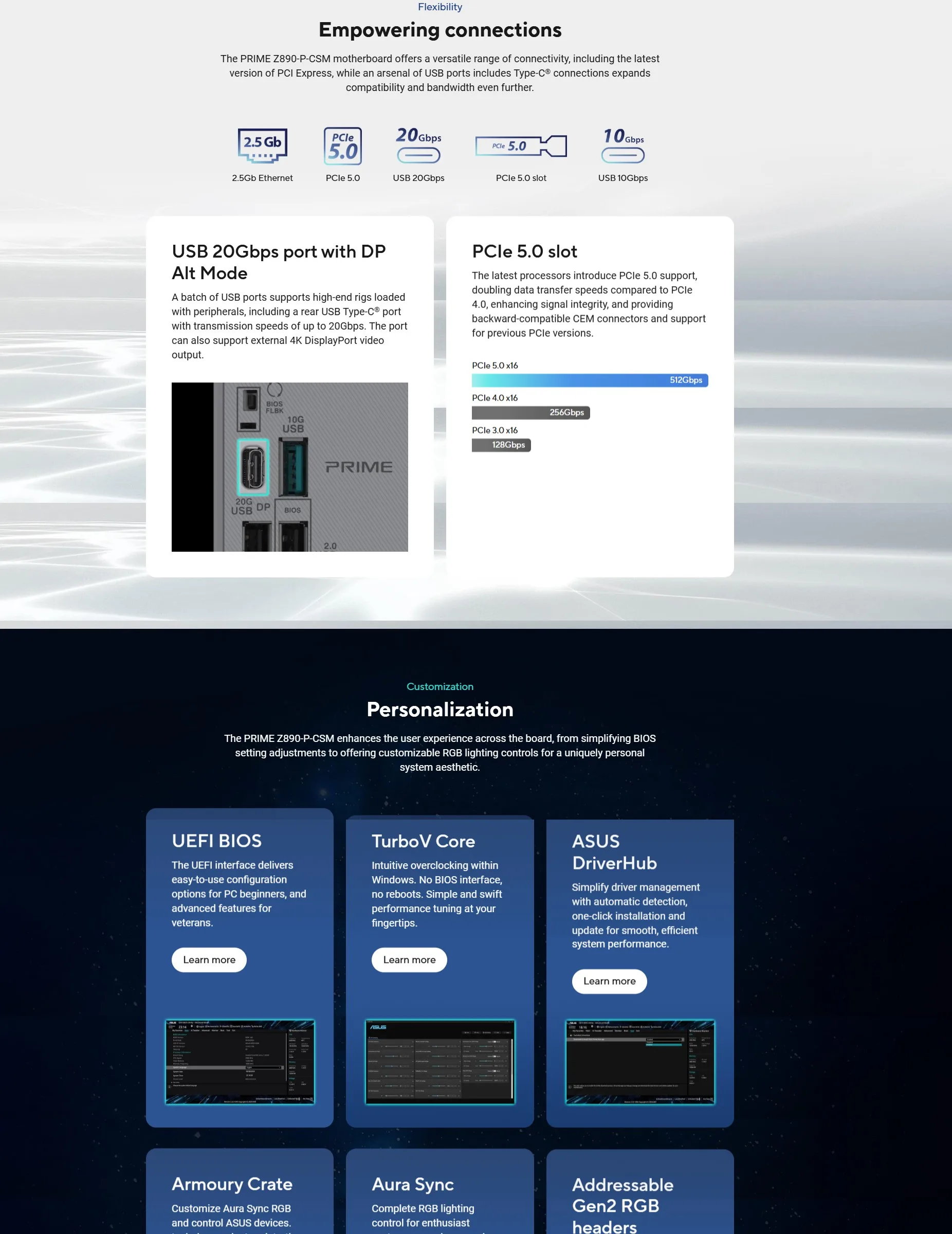

- Rear USB-C 20Gbps and HDMI 2.1 with 4K@60Hz output
- ASUS 5X Protection III and Q-Design for reliability and convenient DIY
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Model | PRIME Z890-P-CSM |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| CPU Features | Intel® Turbo Boost 2.0, Turbo Boost Max 3.0 |
| Chipset | Intel® Z890 |
| Memory Slots | 4 × DDR5 DIMM |
| Max Memory | 256 GB |
| Memory Speed | Up to 8666+ MT/s (OC) |
| Memory Type | DDR5, Non-ECC, Un-buffered |
| Memory Profiles | Intel XMP, ASUS AEMP III |
| Graphics – DisplayPort | 4K @ 60 Hz (DP 1.4) |
| Graphics – HDMI | 4K @ 60 Hz (HDMI 2.1) |
| Graphics – USB-C Alt Mode | 4K @ 120 Hz (DP 1.4) |
| PCIe Slot (CPU) | 1 × PCIe 5.0 x16 |
| PCIe Slots (Chipset) | 2 × PCIe 4.0 x16 (x4 mode) |
| Additional PCIe | 1 × PCIe 4.0 x16 (x1 mode) |
| M.2_1 | PCIe 5.0 x4 (2280/22110, CPU) |
| M.2_2 | PCIe 4.0 x4 (2280, CPU) |
| M.2_3 | PCIe 4.0 x4 (2280/22110, Chipset) |
| M.2_4 | PCIe 4.0 x4 & SATA (2280/2260/2242, Chipset) |
| SATA Ports | 4 × SATA 6Gb/s |
| LAN | Realtek 2.5Gb Ethernet |
| Rear USB | 1× USB-C 20Gbps, 1× USB-A 10Gbps, 2× USB-A 5Gbps, 4× USB 2.0 |
| Front USB | 1× USB-C 10Gbps, 4× USB 5Gbps, 4× USB 2.0 |
| Audio Codec | Realtek 7.1 HD Audio |
| Audio Features | 24-bit/192 kHz, shielding, premium capacitors |

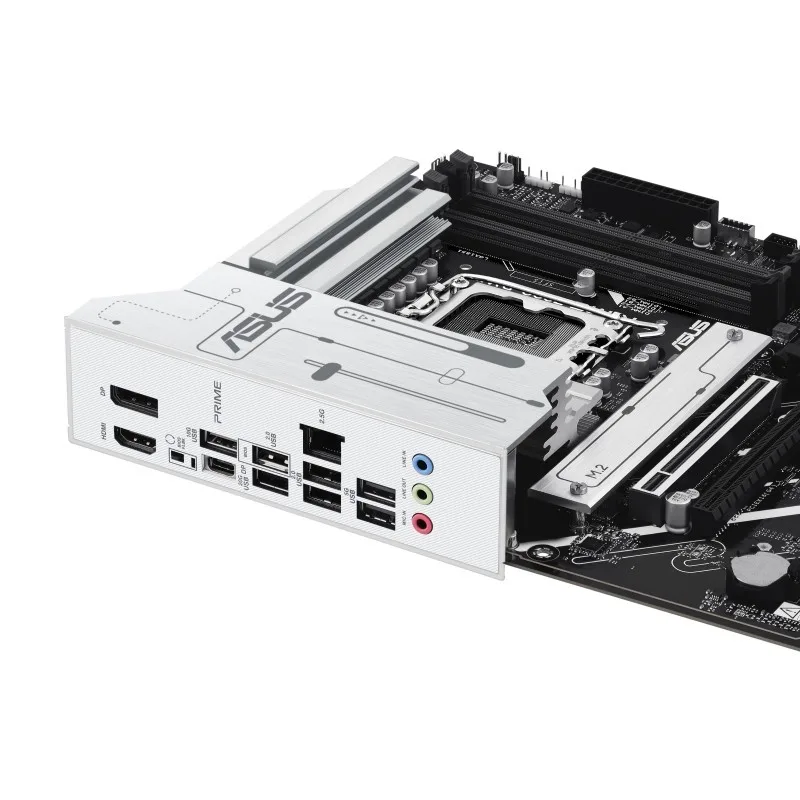

| Back Panel Ports | DP, HDMI, LAN, 3× audio jacks, USB ports, BIOS Flashback |

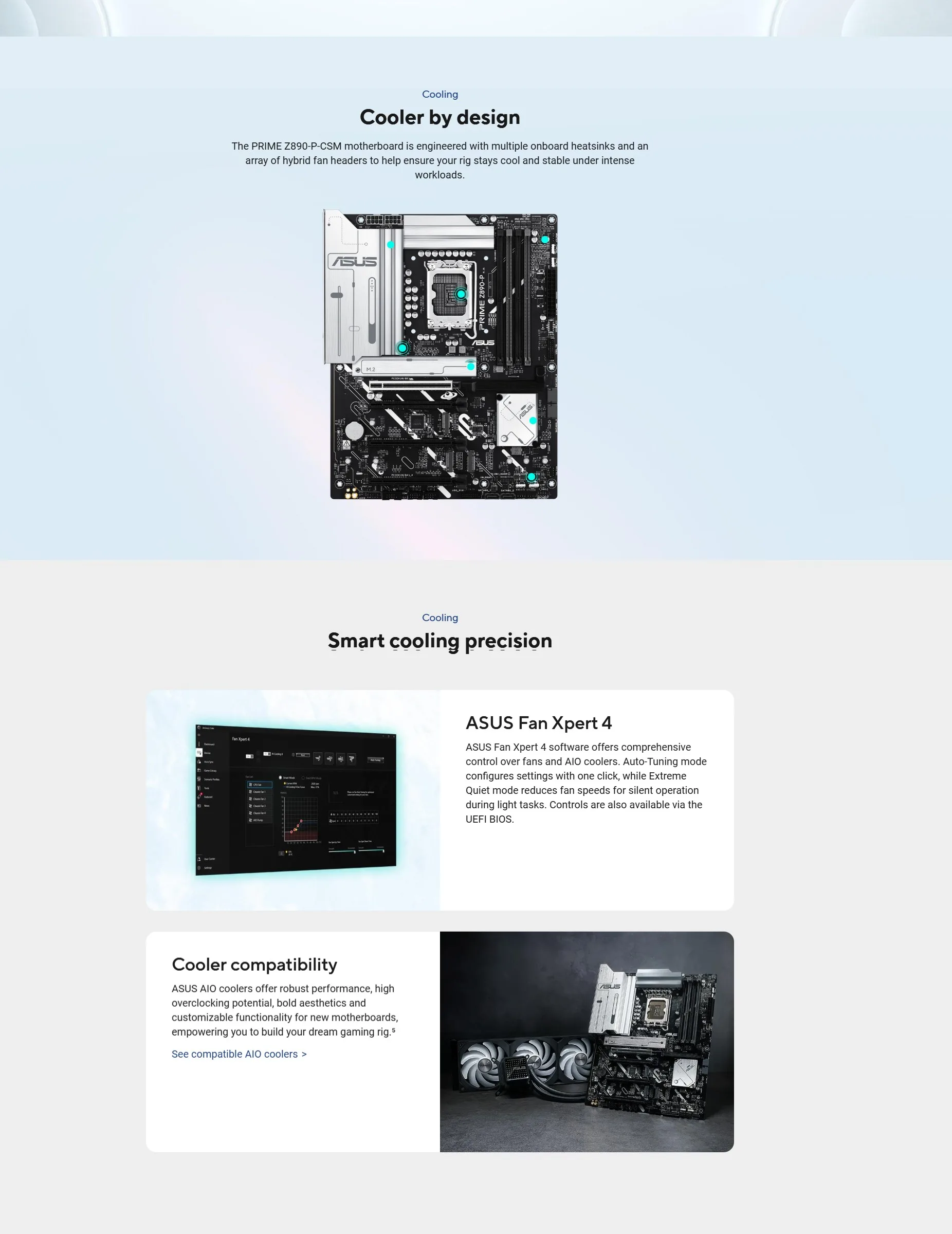

| Fan Headers | CPU Fan, CPU OPT, AIO Pump, 4× Chassis Fan |
| Power Connectors | 24-pin ATX, 2× 8-pin CPU |
| RGB Headers | 1× Aura RGB, 3× ARGB Gen2 |
| Other Headers | Clear CMOS, COM, TPM, S/PDIF, Thunderbolt, Front Panel |
| Special Features | ASUS 5X Protection III, Q-Design, Aura Sync |
| BIOS | 256Mb UEFI AMI BIOS |
| OS Support | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
| Accessories | SATA cables, M.2 screws, rubber |
| Form Factor | ATX – 30.5 cm × 24.4 cm |
| Form Factor | ATX |
| Memory Type | DDR5 |
