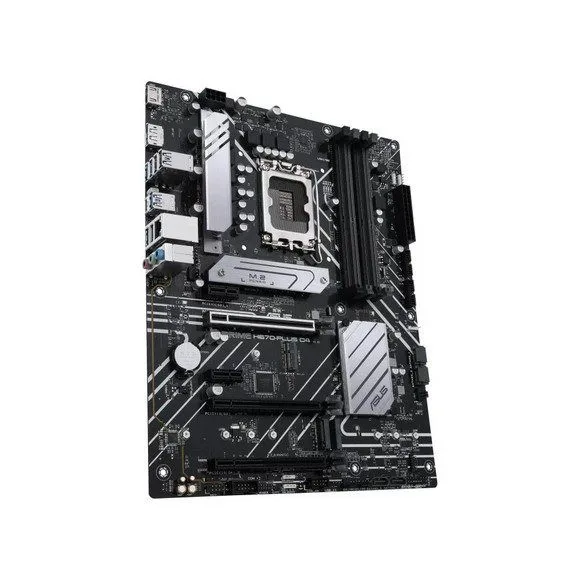

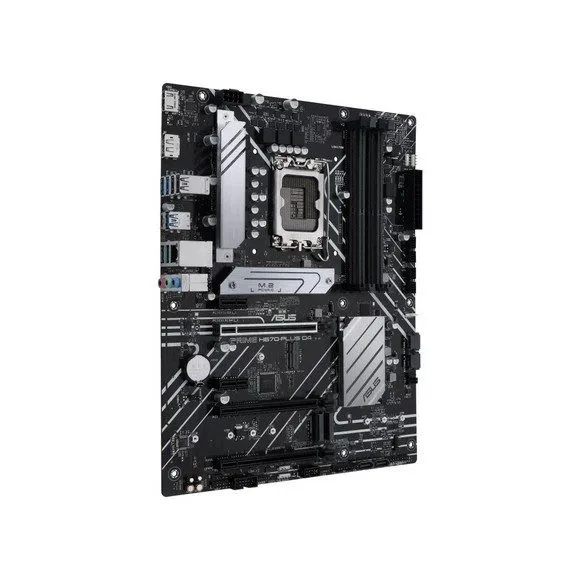

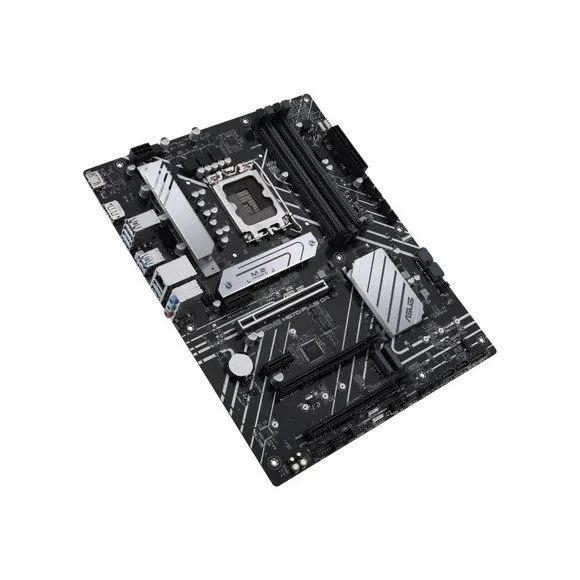

ASUS PRIME H670-PLUS D4 LGA 1700 (Intel 12th & 13th Gen) ATX Motherboard
The ASUS PRIME H670-PLUS D4 is an ATX motherboard supporting Intel 12th and 13th Gen LGA 1700 processors. It features DDR4 memory up to 128GB, PCIe 4.0, three M.2 slots, 2.5Gb Ethernet, and AURA Sync RGB lighting. Built with ASUS 5X PROTECTION III for durability, it’s ideal for reliable high-performance builds. Available nationwide with cash on delivery.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 43,000
Description
The ASUS PRIME H670-PLUS D4 is an ATX motherboard built for Intel 12th and 13th Gen processors (LGA 1700). It features the Intel H670 chipset, supporting DDR4 memory up to 128GB with speeds up to 5000MHz (OC). With PCIe 4.0 x16 slots, three M.2 slots (including one supporting SATA mode), and 2.5Gb Ethernet, this board delivers solid performance for gaming and productivity builds.
ASUS 5X PROTECTION III ensures durability with DIGI+ VRM, LANGuard, and SafeSlot Core+. AURA Sync RGB headers allow customizable lighting, while Q-Design features like Q-LED and Q-Slot simplify installation. The motherboard includes ample USB connectivity, including USB 3.2 Gen 2 Type-C and Type-A ports, and supports Windows 11.
- Supports Intel 12th & 13th Gen Core, Pentium Gold, Celeron processors (LGA 1700)
- 4 x DDR4 DIMM slots, max 128GB, up to DDR4 5000MHz (OC)
- 2 x PCIe 4.0 x16 slots, 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 3.0 x1
- 3 x M.2 slots (PCIe 4.0 x4; one supports SATA mode), 4 x SATA 6Gb/s with RAID 0/1/5/10
- Realtek 2.5Gb Ethernet, Realtek 7.1-channel HD audio

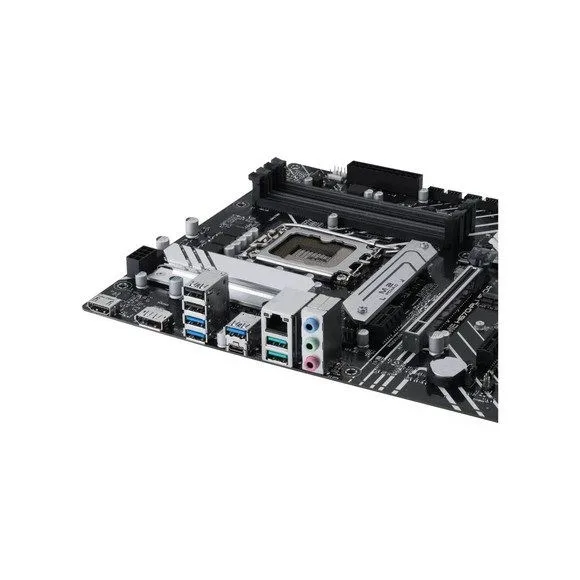

- Rear I/O: USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 2 x USB 2.0, DisplayPort, HDMI
Specification
Overview
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1, 5, 10 |
| Number of displays supported | 2 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Motherboard chipset | Intel H670 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 192 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 53 mm |
| Cables included | SATA |
| Drivers included | Yes |
| Weight | 707 g |
| Brand | ASUS |
| Model | PRIME H670-PLUS D4 |
| CPU Socket Type | LGA 1700 |
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors* |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* |
| Chipset | Intel H670 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Memory Standard | DDR4 5000 / 4800 / 4600 / 4400 / 4266 / 4000 / 3733 / 3600 / 3466 / 3400 / 3333 / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 * |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 |
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | Intel 12th Gen Processors:, M.2_1 slot, type 2242/2260/2280 |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 2.5Gb Ethernet |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Back I/O Ports | 1 x USB 3.2 Gen 2 port, 2 x USB 3.2 Gen 2 ports |
| Onboard USB | 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector |
| Windows 11 | Supported |
| Features | Special Features:, ASUS 5X PROTECTION III |
| Package Contents | Accessories:, Cables |
| Form Factor | ATX |
