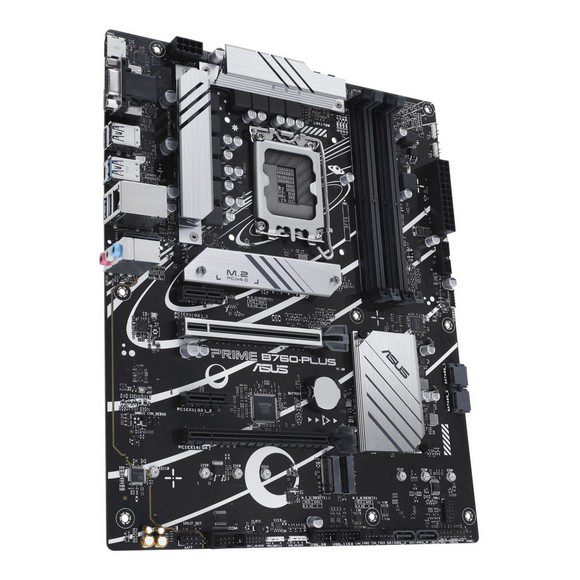

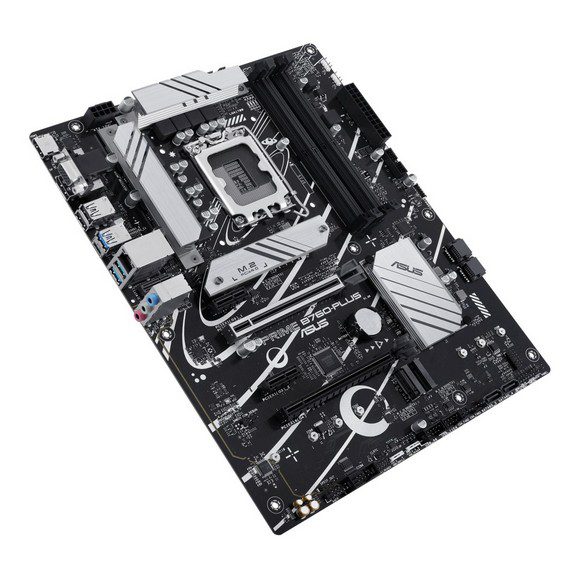

ASUS Prime B760-PLUS Intel® B760 13th and 12th Gen LGA 1700 ATX Motherboard (Used)
The ASUS Prime B760-PLUS is a used ATX motherboard featuring the Intel B760 chipset and LGA 1700 socket for 13th and 12th Gen CPUs. It supports DDR5 memory up to 7200MHz, PCIe 5.0, three M.2 slots, and 2.5Gb Ethernet. With ASUS 5X Protection III and Aura Sync RGB, this board offers a solid foundation for a high-performance build at an affordable price.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 35,000
Description
The ASUS Prime B760-PLUS is a used ATX motherboard built on the Intel B760 chipset, supporting 13th and 12th Gen Intel Core processors via the LGA 1700 socket. It features DDR5 memory support with speeds up to 7200MHz (OC) and a maximum capacity of 128GB across four slots. The board includes one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot (x4 mode), and two PCIe 3.0 x1 slots, along with three M.2 slots (two PCIe 4.0 x4 and one PCIe 4.0 x2) and four SATA 6Gb/s ports with RAID 0/1/5/10 support.
Connectivity is robust with a Realtek 2.5Gb Ethernet port, multiple USB ports including a USB 3.2 Gen 2×2 Type-C, and display outputs via HDMI, DisplayPort, and VGA. The motherboard also features ASUS 5X Protection III, Q-Design elements like Q-DIMM and Q-LED Core, and Aura Sync RGB headers for customization. This used unit is ideal for building a high-performance PC with modern features at a great value.
- Supports Intel 13th & 12th Gen Core processors (LGA 1700)
- 4x DDR5 slots, up to 128GB, 7200MHz (OC)
- 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 3.0 x1
- 3x M.2 slots (2x PCIe 4.0 x4, 1x PCIe 4.0 x2) & 4x SATA 6Gb/s with RAID

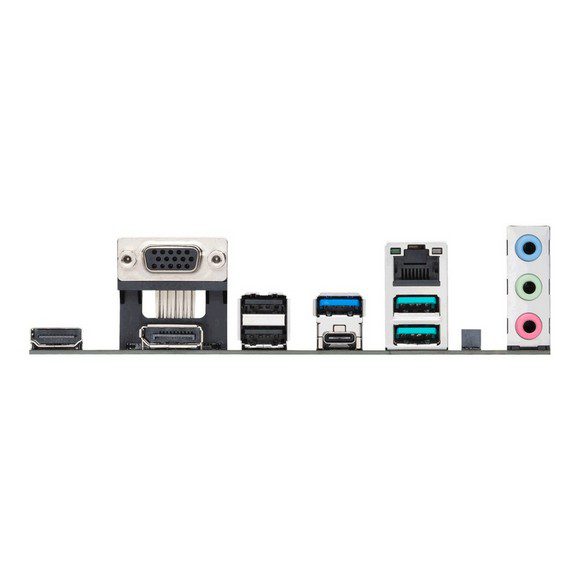

- Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, HDMI/DP/VGA
- ASUS 5X Protection III, Q-Design, Aura Sync RGB
Specification
Overview
| Condition | Used |
|---|---|
| Brand | ASUS |
| Series | Prime |
| Model | PRIME B760-PLUS |
| Part Number | 90MB1EF0-M0AAY0 |
| CPU Socket Type | LGA 1700 |
| CPU Type | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin |
| Memory Standard | DDR5 7200+/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 slot |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot |
| PCI Express 3.0 x16 | 2 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
| M.2 | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*, Intel® 13th & 12th Gen Processors |
| SATA RAID | * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC*, – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Max LAN Speed | 1 x Realtek 2.5Gb Ethernet |
| Back I/O Ports | 1 x USB 3.2 Gen 2×2 port, 2 x USB 3.2 Gen 2 ports |
| Other Connectors | Fan and Cooling related, 1 x 4-pin CPU Fan header |
| Form Factor | ATX |
| Dimensions (W x L) | 12 inch x 9.6 inch |
| Windows 11 | Windows® 11, Windows® 10 64-bit |
| Features | ASUS 5X PROTECTION III, – DIGI+ VRM |
| Form Factor | ATX |
