Asus PRIME B660M-A WIFI D4 Intel B660 LGA1700 mATX Motherboard

Name: Asus PRIME B660M-A WIFI D4 Intel B660 LGA1700 mATX Motherboard
Brand: Asus
SKU: MC-MBD-GEN-0004
Price: 48000 PKR
Availability: InStock

SKU: MC-MBD-GEN-0004 Category: Intel Motherboards Brand: Asus

The Asus PRIME B660M-A WIFI D4 is an Intel B660 micro-ATX motherboard for 12th Gen Core processors. It supports up to 128GB of DDR4 memory with overclocking, dual M.2 PCIe 4.0 slots, and integrated Wi-Fi. With comprehensive USB connectivity and Realtek audio, it delivers solid performance for everyday computing and gaming builds, available with cash-on-delivery nationwide in Pakistan.

Shipping & Delivery

Pick up from the Megacomputer Store

To pick up today

Free

Express delivery

Applicable to selected areas in Karachi only

1-2 Days

TCS Courier delivery

Our courier partner will deliver to your specified address

Delays may occur due to situations out of our control

3-4 Days

₨ 48,000

Compare

Add to wishlist

Description

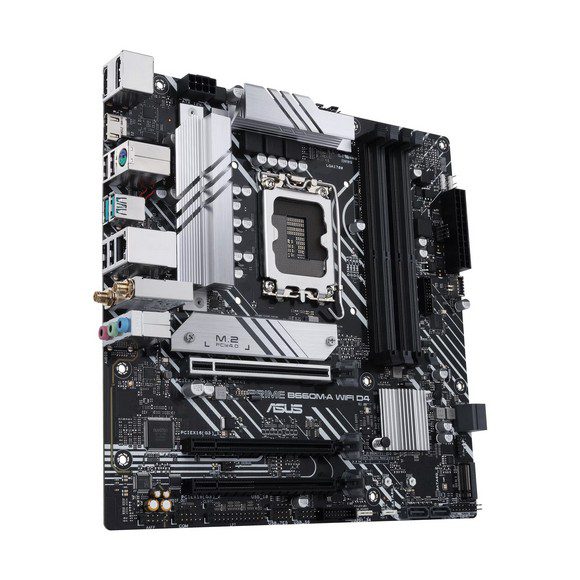

The Asus PRIME B660M-A WIFI D4 is a micro-ATX motherboard built on the Intel B660 chipset, supporting 12th Gen Intel Core, Pentium Gold, and Celeron processors (LGA1700). It features dual-channel DDR4 memory with four DIMM slots, supporting up to 128GB and overclocking up to 5333 MHz via XMP. Storage options include two M.2 slots (one PCIe 4.0 x4 from CPU, one PCIe 4.0 x4 from chipset) and four SATA 6Gb/s ports with RAID 0/1/5/10 support.

Connectivity is robust with integrated Wi-Fi, Realtek 7.1-channel audio, and a comprehensive USB setup: two USB 3.2 Gen 2 Type-A ports, four USB 2.0 ports on the rear, plus headers for additional USB 3.2 Gen 1 (including Type-C) and USB 2.0 ports. The expansion slots include one PCIe 4.0 x16, one PCIe 3.0 x16 (x4 mode), and one PCIe 3.0 x16 (x1 mode). This motherboard is ideal for building a reliable, feature-rich system for gaming or productivity, with nationwide delivery available across Pakistan.

Intel B660 chipset with LGA1700 socket for 12th Gen Core processors
4 x DDR4 DIMMs, up to 128GB, support for OC up to 5333 MHz and XMP
2 x M.2 slots (PCIe 4.0 x4) and 4 x SATA 6Gb/s with RAID support
Integrated Wi-Fi and Realtek 7.1-channel HD audio

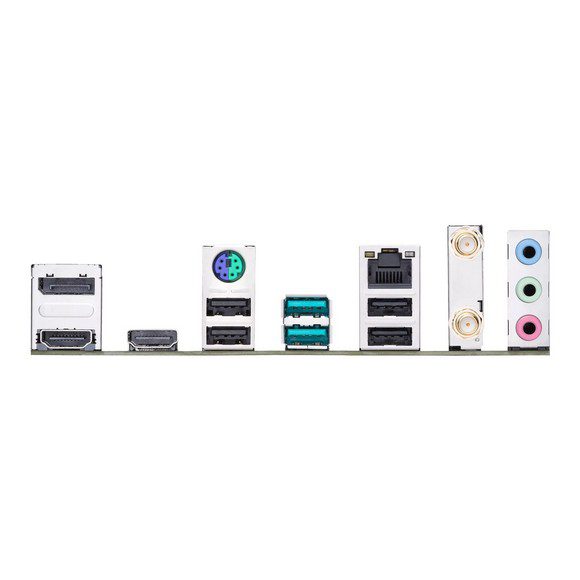

Rear USB: 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0; headers for additional USB 3.2 Gen 1 (Type-C) and USB 2.0
Micro-ATX form factor with PCIe 4.0 x16, PCIe 3.0 x16 (x4), and PCIe 3.0 x16 (x1) slots

Specification

Overview

Brands	Asus
Model	B660M-A WIFI D4
CPU	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
Motherboad Chipset	Intel® B660 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4, 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP), OptiMem II
Expansion Slot	ntel® 12th Gen Processors, 1 x PCIe 4.0/3.0 x16 slot, Intel® B660 Chipset *, 1 x PCIe 3.0 x16 slot (supports x4 mode), 1 x PCIe 3.0 x16 slot (supports x1 mode)
Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® 12th Gen Processors, M.2_1 slot (Key M), type 2242/2260/2280, – Intel® 12th Gen processors support PCIe 4.0 x4 mode., Intel® B660 Chipset *, M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10., ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Lan	Yes
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC*
USB Ports	Rear USB:Total 6 ports, 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A), 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C®), 2 x USB 2.0 headers support additional 4 USB 2.0 ports, 1 x USB 2.0 headers support additional 1 USB 2.0 port
Form Factor	Micro ATX
Form Factor	Micro-ATX
