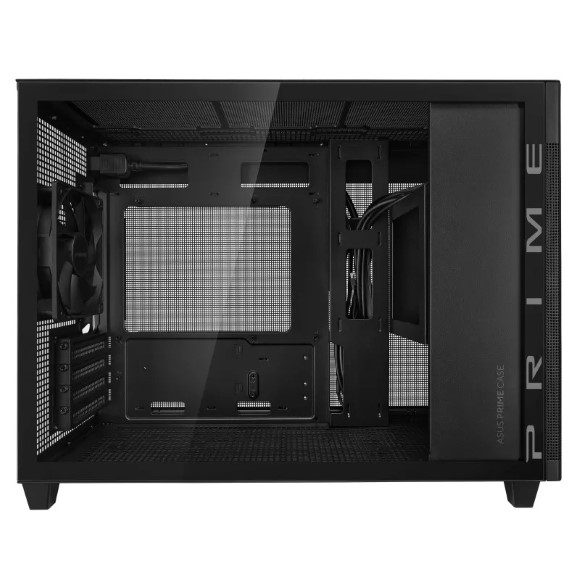

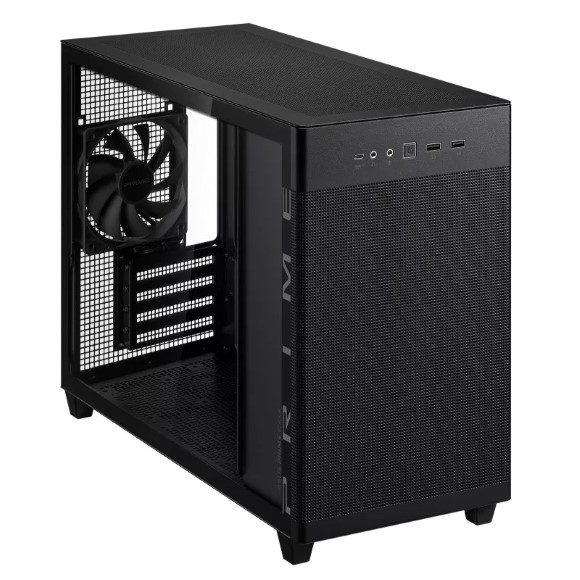

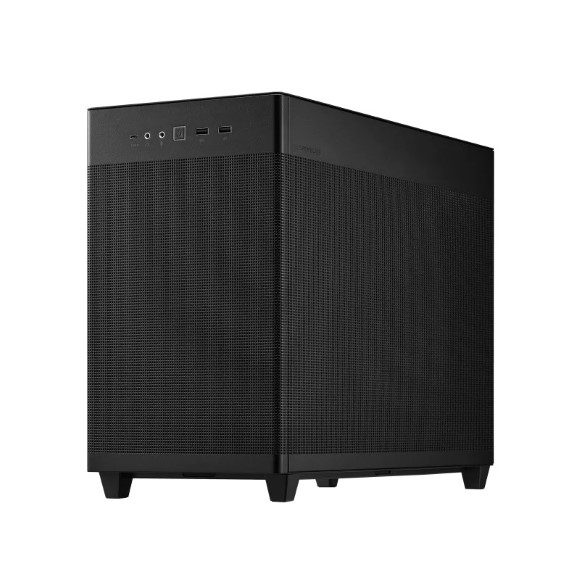

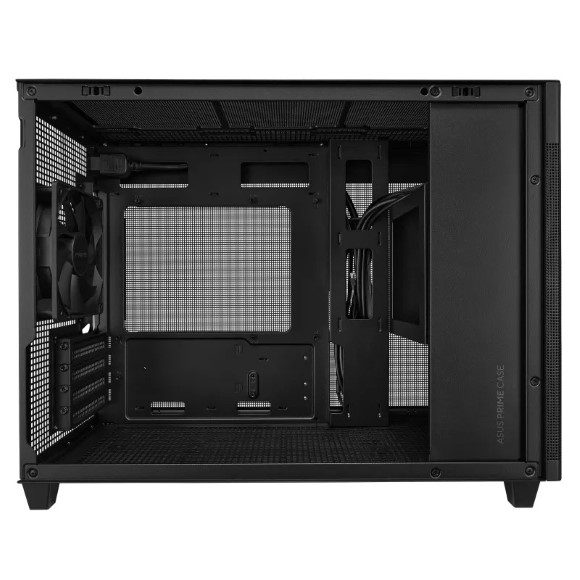

ASUS Prime AP201 Tempered Glass Micro ATX Gaming Case Black
The ASUS Prime AP201 is a compact Micro ATX gaming case in black, featuring a tempered glass side panel and support for ATX power supplies. With GPU clearance up to 338 mm and CPU cooler height up to 170 mm, it fits high-end components. The mesh front and multiple fan mounts (up to 3 x 120 mm top) ensure excellent airflow, while the tool-less design simplifies building.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 19,000
Description
The ASUS Prime AP201 is a compact Micro ATX gaming case that delivers excellent airflow and component compatibility in a space-saving design. Its steel construction with a tempered glass side panel showcases your build while maintaining durability. The case supports Micro-ATX and Mini-ITX motherboards, ATX power supplies, and graphics cards up to 338 mm in length.
With a mesh front panel and multiple fan mounting options (up to 3 x 120 mm on top, 2 x 120 mm on bottom, and 1 x 120 mm on rear), the AP201 ensures efficient cooling for high-performance components. It also accommodates radiators up to 360 mm on top and 120 mm on rear. Cable management is simplified with 32 mm of space behind the motherboard tray.
- Compact Micro ATX form factor with tempered glass side panel
- Supports ATX power supplies up to 180 mm length
- Accommodates GPU up to 338 mm and CPU cooler up to 170 mm
- Versatile cooling: up to 3 x 120 mm fans top, 2 x 120 mm bottom, 1 x 120 mm rear
- Top radiator support up to 360 mm
- Tool-less design with dust filter at bottom
Specification
Overview
| Warranty | No Warranty |
|---|---|
| Motherboard Support | Micro-ATX, Mini-ITX |
| External Drive Bays | None |
| Internal Drive Bays | 1 x, 2.5″, and, 3 x, 2.5/3.5″ |
| Expansion Slots | 4 x, Full Height |
| Maximum GPU Length | 13.3″ / 338 mm |
| CPU Cooler Height | 6.7″ / 170 mm |
| Supported PSU Size | ATX |
| Maximum PSU Length | 7.1″ / 180 mm |
| PSU Mounting Location | Middle |
| Fan Mounting (Rear) | 1 x, 120 mm |
| Fan Mounting (Top) | 3 x, 120 mm, or, 2 x, 140 mm |
| Fan Mounting (Bottom) | 2 x, 120 mm |
| Fans Included (Rear) | 1 x, 120 mm |
| Maximum Radiator Size (Rear) | 120 mm |
| Maximum Radiator Size (Top) | 360 mm |
| Fan Controller Included | No |
| Filter Locations | Bottom |
| I/O | 2 x, USB-A (USB 3.0 / 3.1/3.2 Gen 1), 1 x, USB-C (USB 3.1/3.2 Gen 2) |
| Media/Memory Card Slot | None |
| Audio I/O | 1 x, 3.5 mm Input, 1 x, 3.5 mm Output |
| Display Connections | None |
| Windowed Panel | No |
| Color | Black |
| Built-In Lighting | No |
| Tool-Less Design | Yes |
| Cable Management Space | 1.3″ / 32 mm |
| Dimensions (W x H x D) | 0.7 x 1.1 x 1.5′ / 205 x 350 x 460 mm |
| Weight | 12.8 lb / 5.8 kg |
