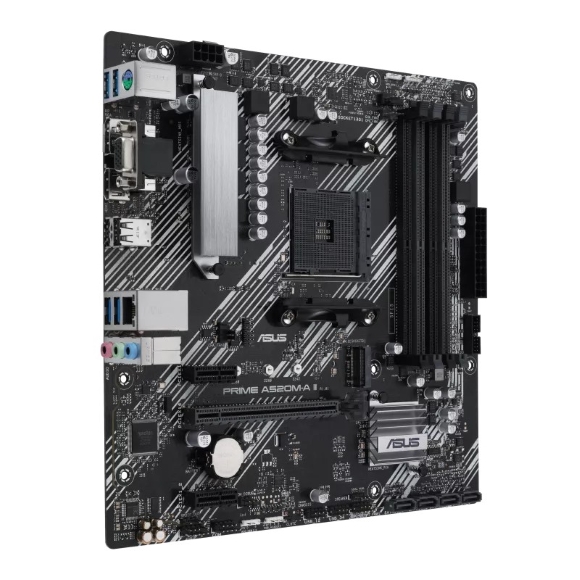

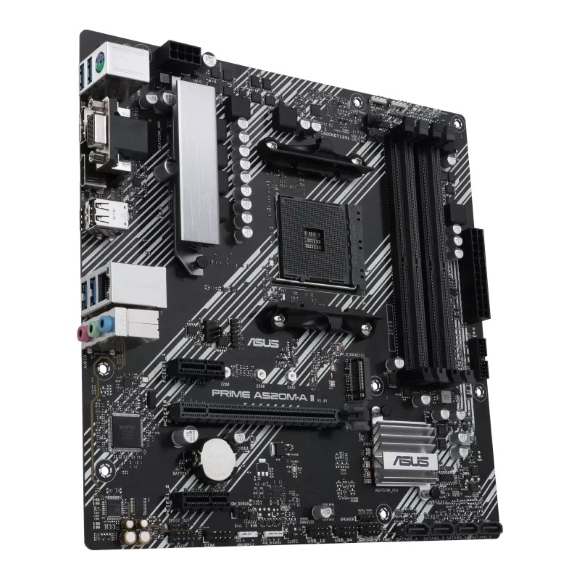

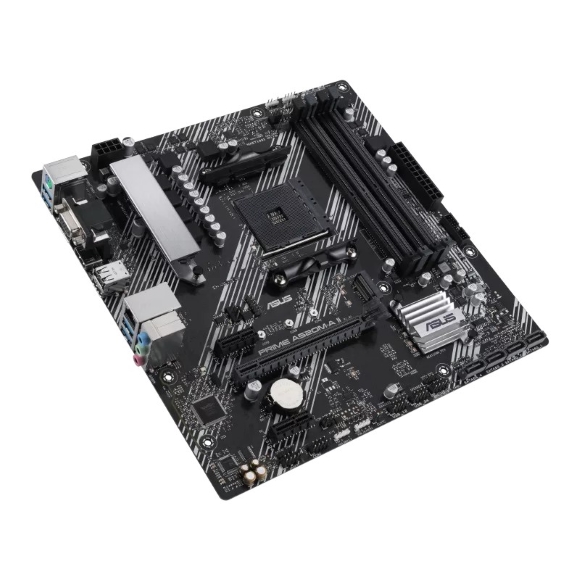

ASUS PRIME A520M-A II AMD A520 SATA 6Gb/s Micro ATX Motherboard
The ASUS PRIME A520M-A II is a microATX motherboard supporting AMD Ryzen 5000/4000/3000 series processors. It features dual-channel DDR4 memory up to 128GB, PCIe 3.0 slots, an M.2 slot, and four SATA ports. With HDMI, DisplayPort, and D-Sub outputs, plus USB 3.2 Gen 1 connectivity and ASUS 5X Protection III, it’s a durable and versatile choice for building a reliable PC.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 24,800
Description
The ASUS PRIME A520M-A II is a reliable microATX motherboard built for AMD Ryzen 5000/4000/3000 series processors. It features the A520 chipset and supports dual-channel DDR4 memory up to 128GB, with overclocking capabilities up to 4866MHz. The board includes PCIe 3.0 slots, an M.2 slot, and four SATA 6Gb/s ports for flexible storage options.
Connectivity is robust with HDMI, DisplayPort, and D-Sub outputs, plus six rear USB ports including USB 3.2 Gen 1. The integrated Realtek 1Gb Ethernet with ASUS LANGuard ensures stable networking. ASUS 5X Protection III and AURA Sync RGB headers enhance durability and customization.
- Supports AMD Ryzen 5000/4000/3000 series processors
- Dual-channel DDR4 memory up to 128GB (OC 4866MHz)
- 1 x PCIe 3.0 x16 slot, 2 x PCIe 3.0 x1 slots
- 1 x M.2 slot (PCIe 3.0 x4 & SATA modes) and 4 x SATA 6Gb/s
- Rear USB: 4 x USB 3.2 Gen 1, 2 x USB 2.0; front headers for additional USB
- ASUS 5X Protection III, AURA Sync RGB headers, and LANGuard
Specification
Overview
| Warranty | 1 Year |
|---|---|
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | A520 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | microATX, 24.4cm x 24.4cm |
| Audio | 3 x Audio jacks Back Panel, 1 x Front Panel Audio header (AAFP) |
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors, 1 x PCIe 3.0 x16 slot (supports x16 mode), AMD A520 Chipset, 2 x PCIe 3.0 x1 slots |
| M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
| Type | Dual Channel DDR4 Memory Technology |
| Slots | 2 x DIMM |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory |
| Maximum Memory | 128GB |
| Graphics | Graphics specifications may vary between CPU types |
| HDMI | 1 x HDMITM port |
| Display Port (s) | 1 x DisplayPort |
| D-Sub (s) | 1 x D-Sub |
| USB (s) | Rear USB: Total 6 ports, 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), Front USB: Total 6 ports, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet, ASUS LANGuard |
| Supported Storage | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors, M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes), AMD A520 Chipset, 4 x SATA 6Gb/s ports, Support Raid 0, 1, 10 |
| Internal I/O Ports | Fan and cooling related, 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power related, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related, 1 x M.2 slot (Key M), 4 x SATA 6Gb/s ports, USB, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports, Miscellaneous, 2 x AURA Addressable Gen 2 header, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
| Special Features | ASUS 5X PROTECTION III, – DIGI+ VRM, – LANGuard, – Overvoltage Protection, – SafeSlot Core, – Stainless-Steel Back I/O, ASUS Q-Design, – ASUS Q-DIMM, – ASUS Q-Slot, ASUS Thermal Solution, – VRM heatsink design, AURA Sync, – AURA RGB headers, – Addressable Gen 2 RGB headers |
| Bundled Software | ASUS Exclusive Software, Armoury Crate, – Aura Creator, – Aura Sync, AI Suite 3, – Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, – EZ update, ASUS CPU-Z, AI Charger, DAEMON Tools, Norton Anti-virus software (Free Trial version), WinRAR, UEFI BIOS, ASUS EZ DIY, – ASUS CrashFree BIOS 3, – ASUS EZ Flash 3 |
| Form Factor | Micro-ATX |
