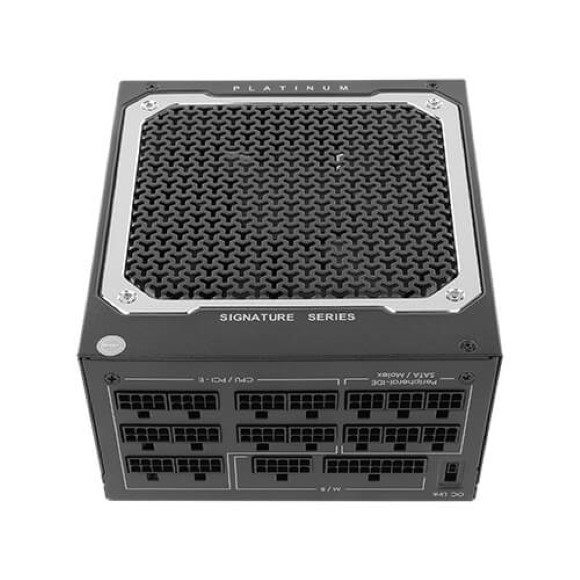

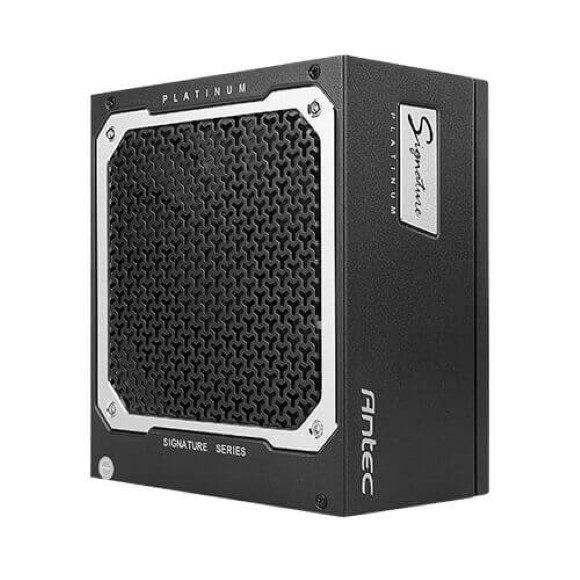

Antec Signature Series SP1300W 80 Plus Platinum Modular Power Supply
The Antec Signature Series SP1300W 80 Plus Platinum Modular Power Supply is a high-performance PSU designed for demanding systems. With 1300W capacity, fully modular cables, and 80 Plus Platinum efficiency (up to 92%), it ensures stable power delivery and quiet operation via a 135mm FDB fan. Backed by a 10-year warranty, it’s ideal for gaming PCs and workstations, available with nationwide delivery in Pakistan.
Shipping & Delivery
-
Pick up from the Megacomputer Store
To pick up today
Free
-
Express delivery
Applicable to selected areas in Karachi only
1-2 Days
-
TCS Courier delivery
Our courier partner will deliver to your specified address
Delays may occur due to situations out of our control
3-4 Days
₨ 87,999
Description
The Antec Signature Series SP1300W 80 Plus Platinum Modular Power Supply delivers exceptional efficiency and reliability for high-end systems. With a fully modular design, it simplifies cable management and improves airflow inside your chassis. Rated for 1300W continuous output, this PSU is built to handle demanding workloads, from gaming rigs to workstations.
Engineered with a 135mm FDB silent fan, the SP1300 operates quietly even under load. It features comprehensive protections including OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, ensuring your components remain safe. The unit is 80 Plus Platinum certified, achieving up to 92% efficiency at 50% load (115V), reducing energy waste and heat generation.

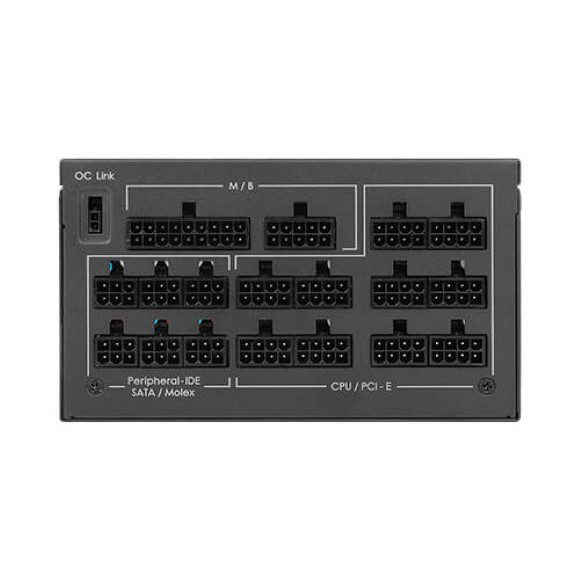

- Fully modular design for easy cable management
- 80 Plus Platinum certified for high efficiency

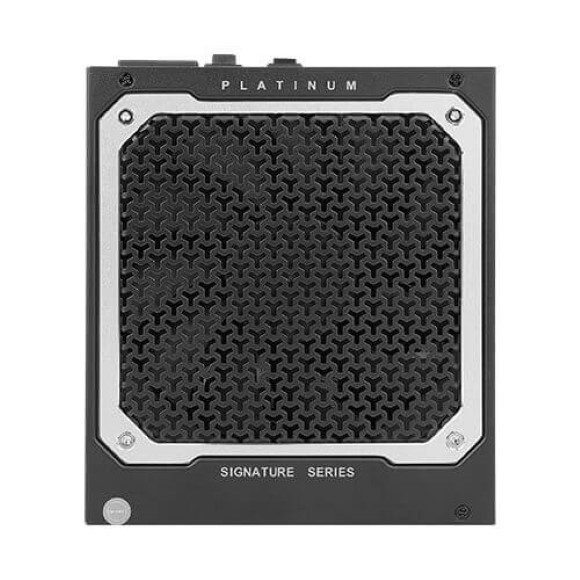

- 135mm FDB silent fan for quiet operation
- Comprehensive protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 10-year warranty for long-term reliability
- Supports nationwide delivery across Pakistan with cash-on-delivery option
Specification
Overview
| Product Name | SP1300 Platinum |
|---|---|
| Model Name | X8000A506-18 |
| Type | ATX |
| Modular | Fully |
| Dimension (W x L x H) | 150 x 170 x 86mm |
| Warranty | 10 years |
| Input Voltage | 100-240 |
| Input Current | 15A ~ 7.5A |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | APFC, PFC at half / full load:, >0.95 at AC 110v 60Hz(typical), >0.90 at AC 230v 50Hz(typical) |
| Power Good Signal | 100 ~ 500mS |
| Efficiency | At 20% / 50% / 100% load AC 115V internal,, the power efficiency should be at least 90% / 92% / 89%. |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 1300W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus / TUV / CB [IEC62368 Compliant] / CE /, FCC / BSMI / 3C / KC / RCM |
| Fan | 135 x 135 x 25(mm) FDB Silent Fan |
| Certifications | 80 Plus Platinum |
| Connector | 1 x MB 24(20+4) Pin |
| UPC# | 0-761345-11705-0 SP1300, 0-761345-11706-7 SP1300 AU, 0-761345-11707-4 SP1300 EC, 0-761345-11708-1 SP1300 GB, 0-761345-11709-8 SP1300 JP |
| Net Weight | 2.12 Kgs |
| Gross Weight | 4.05 Kgs |
